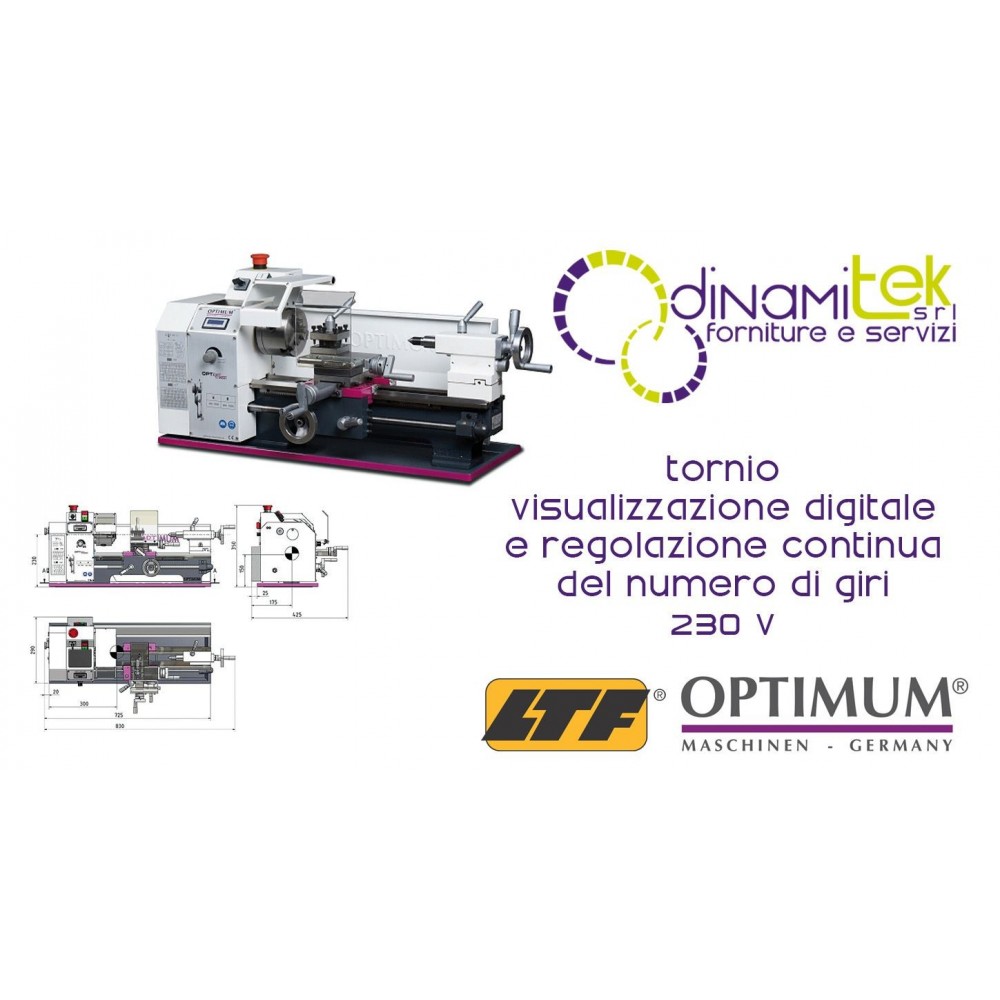

TU 2004 V OPTIMUM lathe with digital display and continuous speed control, code 050OP0310

STANDARD EQUIPMENT
Three-jaw chuck Ø 100 mm
Fixed tailstocks CM 2 - CM 3
Splashback wall and chip tray
4-compartment tool holder
Gearbox gear set
Service keys

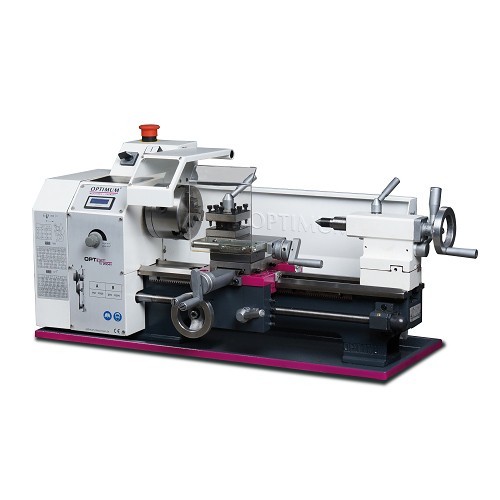

Metalworking lathe with automatic longitudinal feed. The spindle nose has a concentricity accuracy of ≤0.009 mm. The main spindle shaft is hardened and mounted on precision tapered roller bearings. The spindle nose is hardened to DIN 6350. The centering attachment is cylindrical . This is a very efficient and well-made product.

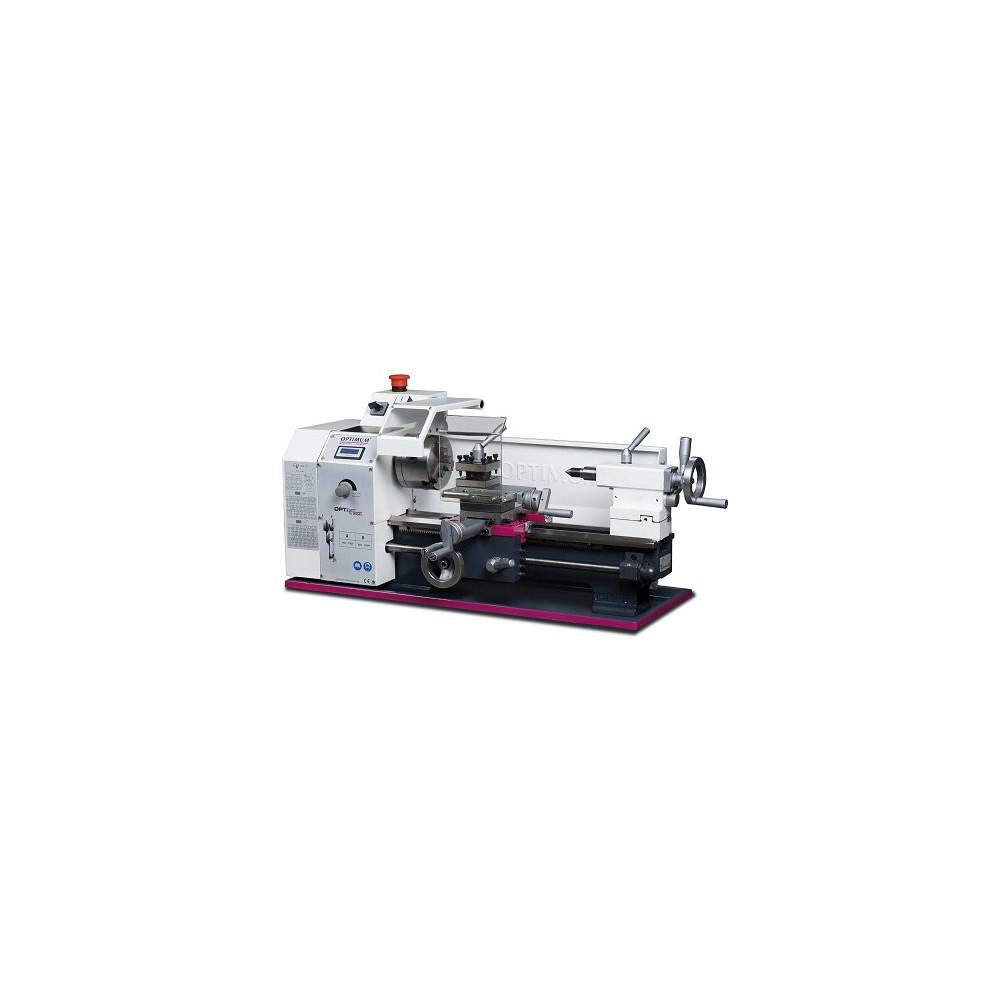

The lathe's prismatic bed is made of solid cast iron with reinforcing ribs , induction hardened, and precision ground. The bed guides are also hardened and ground. The rotating four-compartment tool holder is very convenient and practical. The lathe's control panel allows you to set the lathe's rotation in clockwise and counterclockwise directions . An easily readable digital display shows the lathe's rpm.

The lead screw is mounted on two bearings, and the lathe is equipped with a self-centering guard, with a concentric rotation accuracy of ≤0.04 mm. A wide range of thread pitches can be achieved thanks to the gear set. Changing the speed is achieved via V-belts, making it very simple and quick, as required by a high-productivity workshop. By moving the tailstock, conical turning can also be performed. The tailstock-quill and the handwheel with fine divisions are adjustable up to 0.02 mm.

For operator safety, the lathe is equipped with an emergency switch and a minimum voltage relay. The upper slide features a chip guard, which is necessary for all turning operations, regardless of the material being machined.

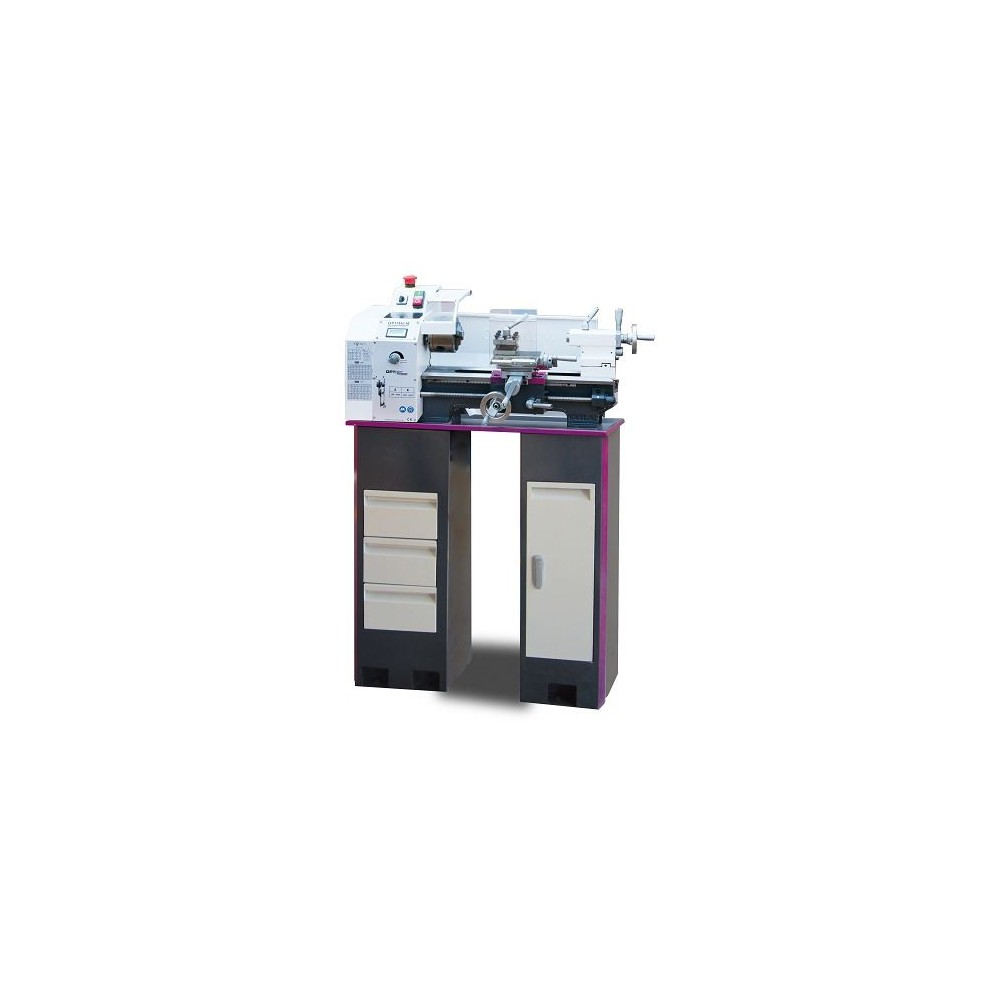

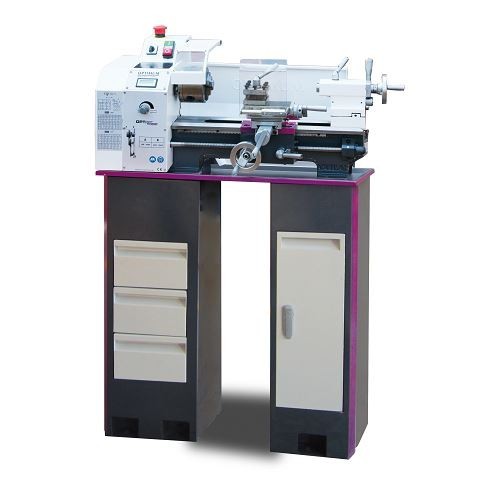

Optional base.

Technical data:

motor power: 230 V 50 Hz - 600 W,

tip height 100 mm,

distance between tips 300 mm,

turning diameter on bed: 200 mm,

turning diameter on cross slide: 110 mm,

pallet width 100 mm,

spindle speed 150-2500 rpm,

2 electronically adjustable speeds,

spindle cone CM3,

bar passage DEGREES 21mm,

20 mm three-jaw self-centering passage,

upper slide travel 55 mm,

cross slide travel 75 mm,

longitudinal feed 0.1 - 0.2 mm/rev,

metric thread (14): 0.4 - 3.5 mm/rev,

thread inch (12): 44 - 8 threads/1",

maximum height of tool holder attachment 12 mm,

CM2 tailstock cone,

tailstock/quill stroke: 65 mm,

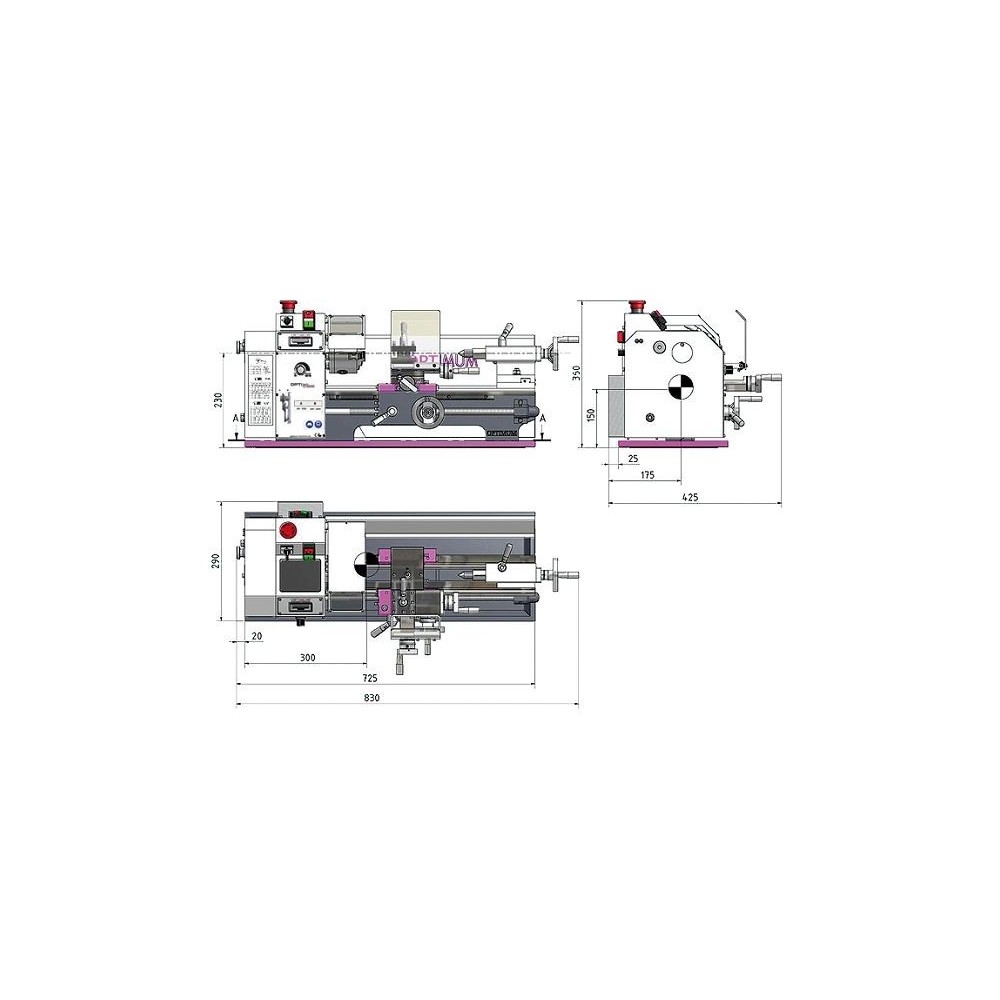

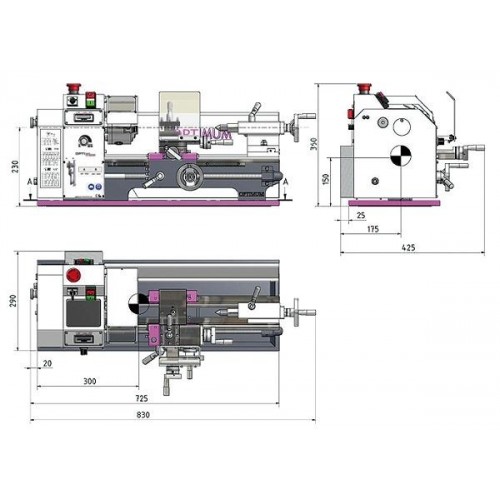

dimensions: 830x425x360 mm,

weight: 61 kg

The above data are not binding and may be modified at the discretion of the manufacturer.
