From today the MADE IN ITALY pallet truck is even more performing and safer!

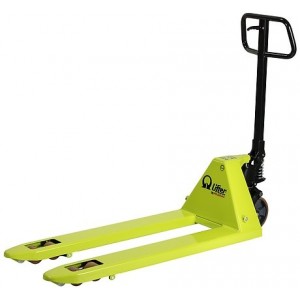

PALLET TRUCK LIFTER by PRAMAC new model GS EVO 25S4 WITH SPEED CONTROLLED DESCENT
NEW GS PALLET TRUCK - technical improvement and advanced features.
The GS series pallet trucks are designed and produced in Italy to offer practical and efficient solutions for handling loads. The EVO line is the latest Pramac improvement, even more efficient and even safer. The handling of loads is now very quiet: the directional wheels and loading rollers are now both in non-marking polyurethane. The quality perceived by the operator is higher, making the work shift more bearable. The steel frame allows efficient use even in the most difficult applications. The pallet truck is versatile and easily maneuverable.
The handle has changed shape and has become ergonomic: the 3D shape improves the handling of heavy loads reducing operator fatigue. The fork controls are enclosed in a single lever, making the operator's task easier. This design is unique, this detail also improves the quality perceived by the user. The new ergonomics aims to change the position of the hands and arms of the operator, who will have the wrists in an ideal position during the push. This leads to less fatigue and lowers the risk of injury. To change the posture it was enough to widen the handles and insert them at an angle more favorable to the correct grip. To fully understand how much the rudder has improved, you have to try to maneuver the pallet truck in tight spaces: the ease with which you will transport the load will surprise you!
The new hydraulic unit with proportional descent valve allows safe handling of the load. This component is the most important for the pallet truck, from this we understand the quality of the product. The hydraulic unit of the Pramac pallet truck is completely designed and built in Italy: the pump body is machined on CNC numerical control machining centers for high precision tolerances
The new monolithic pump is equipped with a chromed piston rod, piston oil seal and the rudder attachment updated to correctly exploit the technical evolution of the rudder. The hydraulic pump is now much more reliable: the quality of Made in Italy is all in this pallet truck.
The lifting system of the pallet truck is of the rapid type. In every workplace, reducing work times and improving the general efficiency of the department is a goal to be achieved. Thanks to the Pramac pallet truck you can achieve this result. Two strokes are enough to lift loads up to 120 kg or three strokes from the ground
for loads over 120 kg. With traditional pallet trucks, 5 pumps are needed to achieve the same result.
standard.
Let's see in detail the characteristics of the hydraulic pump.
• MONOLITHIC DESIGN. The pump body is made of cast iron with integrated oil tank. This design choice has a very specific reason: to protect all hydraulic elements from accidental damage.
• CHROMED PISTON AND SEALING GASKET. Elements inserted to avoid oxidation and prevent oil leaks during use.
• MAXIMUM PRESSURE VALVE: this is the new safety device that protects the pallet truck from overloads.
• PROPORTIONAL CONTROL VALVE: the lowering speed of the forks is proportional to the pressure the operator exerts on the control lever. Perfect work tool for handling fragile and delicate loads such as crystal, glass and ceramics.
A significant change is also found in the forks, which are now equipped with inlet and outlet rollers to be used easily even with pallets equipped with side slats.
The pallet truck is also very safe, thanks to the maximum pressure valve that automatically blocks the forks when the load capacity is exceeded. No structural damage to the pallet truck and no risk for the user and the load. The pallet truck is very resistant thanks to the special painting process: after the conditioning operation, it is painted with polyester powder at a temperature of 250 °. This treatment is specific to give maximum resistance to wear and atmospheric agents. A PRAMAC pallet truck lasts forever.

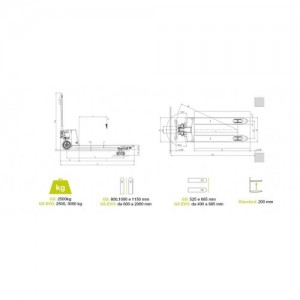

Data sheet
DESCRIPTION
1.2 GS EVO S4 MODEL
1.3 Manual PROPULSION
1.4 GUIDE SYSTEM accompaniment
1.5 CAPACITY 2500 Kg
1.6 CENTER OF GRAVITY 600 mm
1.8 DISTANCE OF THE LOAD WHEELS AXIS FROM THE FORK BASE 932 mm
1.9 PITCH 1192 mm
WEIGHTS
2.1 MASS IN SERVICE 61-63 Kg
2.2 AXLE LOAD WITH LOAD, FRONT / REAR 738 / 1823-1825 Kg
2.3 LOAD ON THE AXLE WITHOUT LOAD, FRONT / REAR 42 / 19-21 Kg
FRAME / WHEELS
3.1 RUBBER * polyurethane / polyurethane
3.2 DIMENSIONS OF FRONT WHEELS (Ø x width) 200x45
3.3 REAR WHEEL DIMENSIONS (Ø x width) 82x82-60
3.5 NUMBER OF WHEELS (x = DRIVE) FRONT / REAR 2 / 2-2 / 4
3.6 FRONT TRACK 155 mm b10
3.7 REAR TRACK 375 mm b11
DIMENSIONS
4.4 LIFTING HEIGHT 115 mm h3
4.9 HEIGHT OF THE RUDDER IN DRIVING POSITION MIN / MAX 710/1185 mm h14
4.15 HEIGHT OF LOWERED FORKS 85 mm h 13
4.19 TOTAL LENGTH 1550 mm l1
4.20 DRIVE UNIT LENGTH 400 mm l2
4.21 TOTAL WIDTH 525 mm b1
4.22 FORKS DIMENSIONS 55/150/150 mm s / e / l
4.25 FORK WIDTH 525 mm b5
4.32 CLEAR LIGHT AT HALF PITCH 30 mm m2
4.34 STORAGE CORRIDOR FOR PALLET 800x1200 LONGITUDINALLY 2048 mm ast
4.35 TURNING RADIUS 1367 mm wa
PERFORMANCE
5.2 LIFTING SPEED, WITH / WITHOUT LOAD 12/12 pumping unit
5.3 DESCENT SPEED, WITH / WITHOUT LOAD 0.06 / 0.02 m / s
