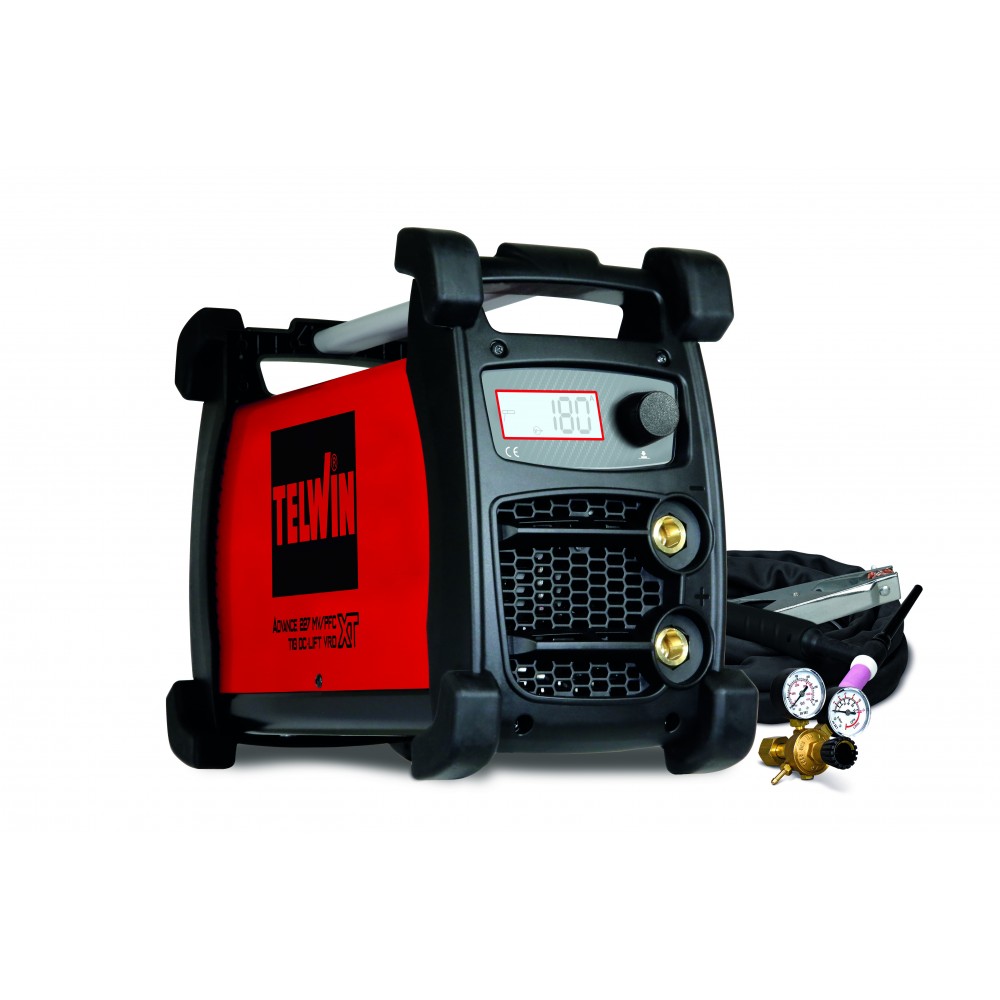

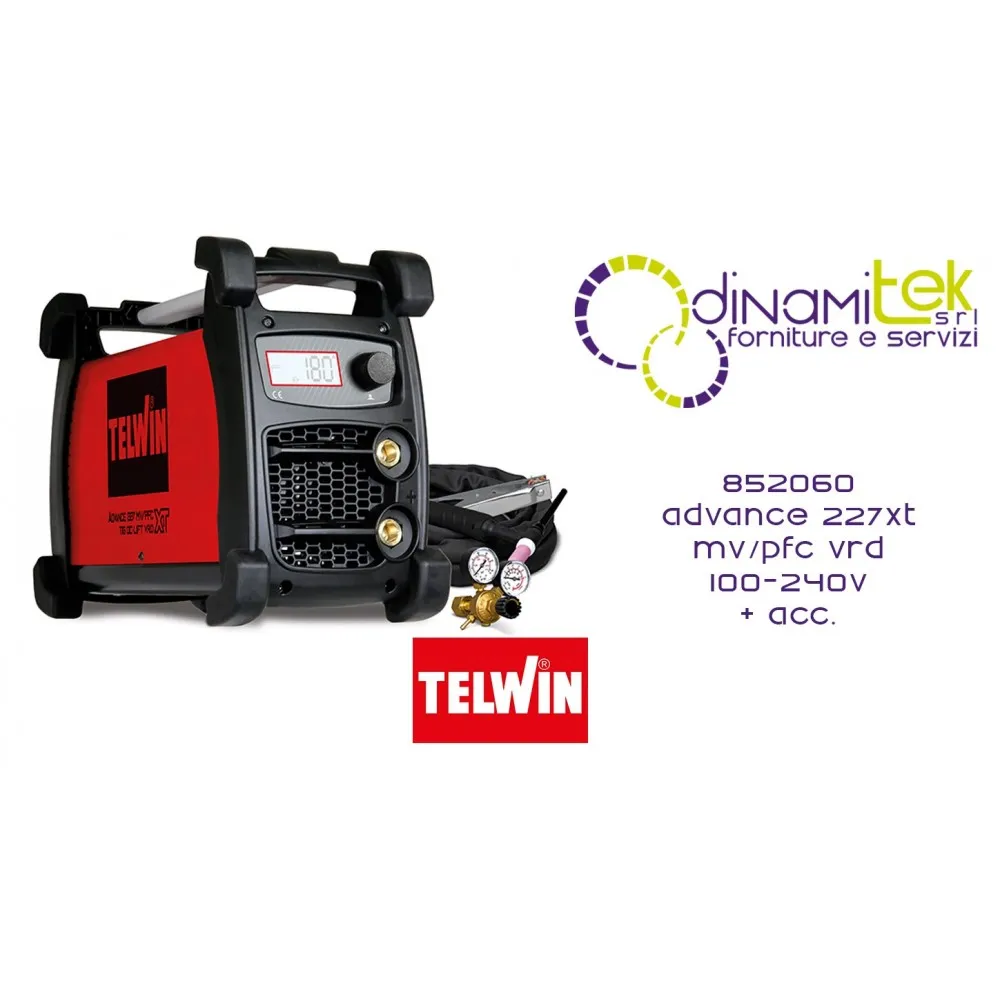

852060 ADVANCE 227XT MV-PFC VRD 100-240V ACC TIG 1PH WELDING MACHINE TELWIN

ADVANCE 227 XT MV/PFC VRD 100-240V ACC.
code 852060
DC inverter MMA and TIG welding machine (LIFT ignition). Suitable for use with various materials such as steel, stainless steel, titanium, copper, nickel, and their alloys.
Multivoltage: Use with any variable power supply within a wide range (100-240V) and operate with unstable and fluctuating voltages. MV/PFC device: Ensures maximum performance even on domestic lines with 30% lower power consumption than similarly powered welders.
VRD device: reduces the output voltage to a safe level when the welder is on, but not in welding conditions, ensuring the safety of the operator who can come into contact with the electrode without risk until welding resumes (for use in humid environments such as mines, shipyards, etc.).
Characteristics:
- robust and shock-resistant;
- compact and lightweight;
- quick connector Ø 50 mm;
- LCD display for viewing the welding current;
- MMA adjustments: arc force and hot start;
- MMA electrodes: rutile, basic, stainless steel, cast iron;
- use extension cords up to 250m;
- thermostatic, overvoltage, undervoltage, overcurrent, motor generator protection (+/-15%).
Complete with TIG welding accessories.
MMA TIG DC SCRATCH
1 PH 100V-240V
100V-240V AUTOMATIC
VENTILATED
CE MARKING
EAC CERTIFICATION
TÜV CERTIFICATION

ST26V TIG TORCH AX50 4M 742058

SINGLE-PHASE MAINS VOLTAGE 100-120 / 200-240 V
POWER CONSUMPTION AT 60% 2.3(1.9) / 3.2(2.1) kW
MAINS FREQUENCY 50 / 60 Hz
MINIMUM POWER OF MOTOR GENERATOR 5 / 8 kW
CURRENT REGULATION RANGE10 - 120(150) / 10 - 200 A
MAINS FUSE 15 (20) / 16 A
MAX DC CURRENT (EN 60974-1)120 @ 30%(150 @ 30%) / 200 @ A
YIELD 84%
MAX DC CURRENT (EN 60974-1)30% A
POWER FACTOR (cosphi) 0.98
CURRENT IN DC95(125) / 125(135) A
D. ELECTRODES USABLE IN DC 1.6 - 4 mm
MAX NO LOAD VOLTAGE 81 V
PROTECTION DEGREE IP23
MAXIMUM ABSORBED CURRENT 33(25) / 27(19) A
DIMENSIONS 45 x 18.1 x 29.2 cm
CURRENT ABSORBED AT 60% - MAX24(20) / 16.5(11) A
WEIGHT 11.8 kg
MAX ABSORBED POWER 3.1(2.4) / 5.2(3.6) kW
