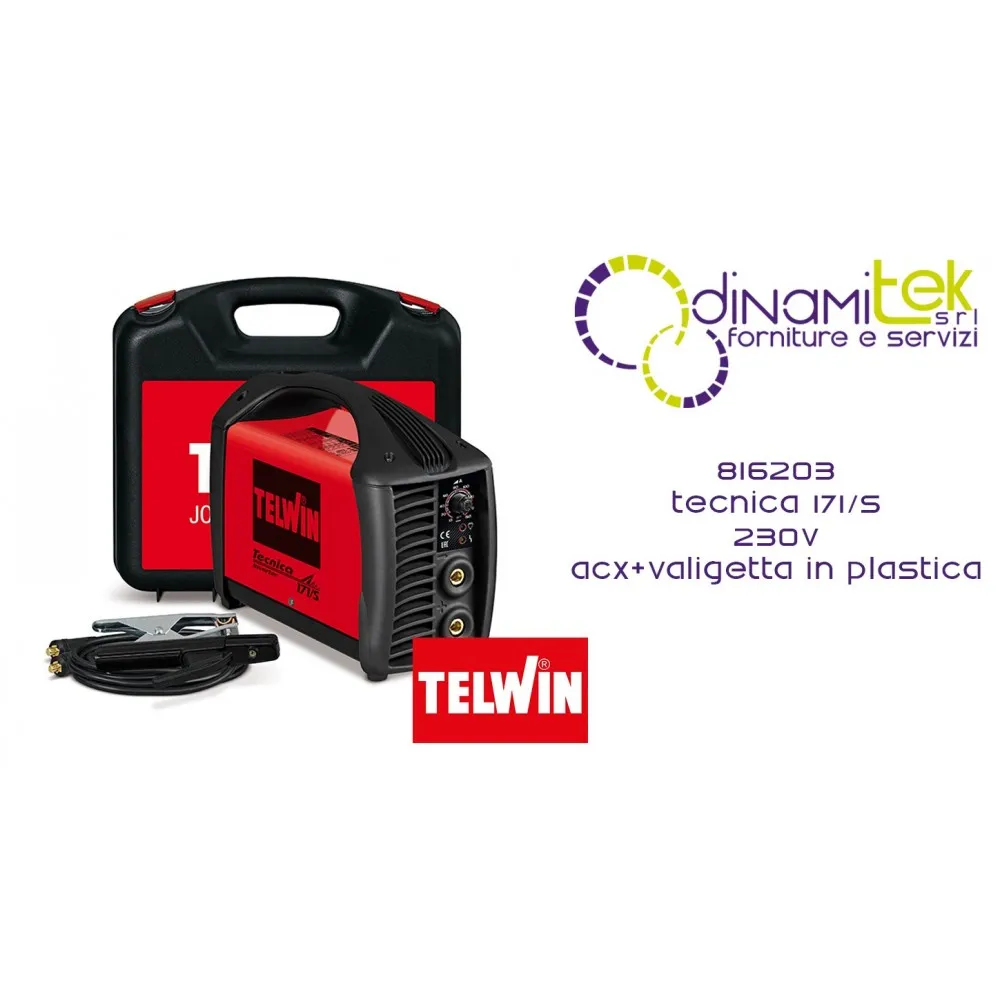

816203 171/S 230V ACC. TECHNICAL WELDER WITH PLASTIC CASE TELWIN

Reliability and professional precision for MMA and TIG welding! The Telwin Tecnica 171/S (code 816203) is the ideal 150A inverter welder for those who need a robust tool for intensive use in the workshop or on the construction site. Designed to ensure excellent results even for less experienced users, this machine prevents electrode sticking and offers high arc stability even in the presence of mains voltage fluctuations. Lightweight, compact, and supplied with a practical plastic case and accessories, it is ready to easily handle rutile, basic, stainless steel, and cast iron electrodes up to 4 mm.

Shipping cost: Free for
284 €
Tax included

232,79 € Tax excluded

Quantity
Last items in stock

Telwin Tecnica 171/S: Inverter Technology and Multi-Process Versatility

The Tecnica 171/S is a direct current (DC) inverter power source for MMA and TIG (scratch ignition) electrodes, designed for flexibility of use and operational stability. Thanks to its advanced technology, it can work on various metals while always guaranteeing a clean, professional weld bead.

Arc Control Devices

To optimize each work session, the welder integrates three fundamental electronic devices:

  • Arc Force: Facilitates the transfer of molten metal drops, preventing the arc from going out when the electrode comes into contact with the workpiece.
  • Hot Start: Provides an initial surge that facilitates the ignition of the electric arc at each restart.
  • Anti-Stick: Automatically turns off the generator if the electrode sticks to the material, allowing it to be removed without damaging the electrode holder.

Safety and Compatibility with Motor Generators

The generator is equipped with a complete set of protections (thermostatic, overvoltage, undervoltage, and overcurrent) and is designed for use with motor generators (+/- 15%) , ensuring the integrity of the electronic components even in unstable power conditions. The IP23 protection rating also makes it suitable for outdoor use.

Equipment and Practicality

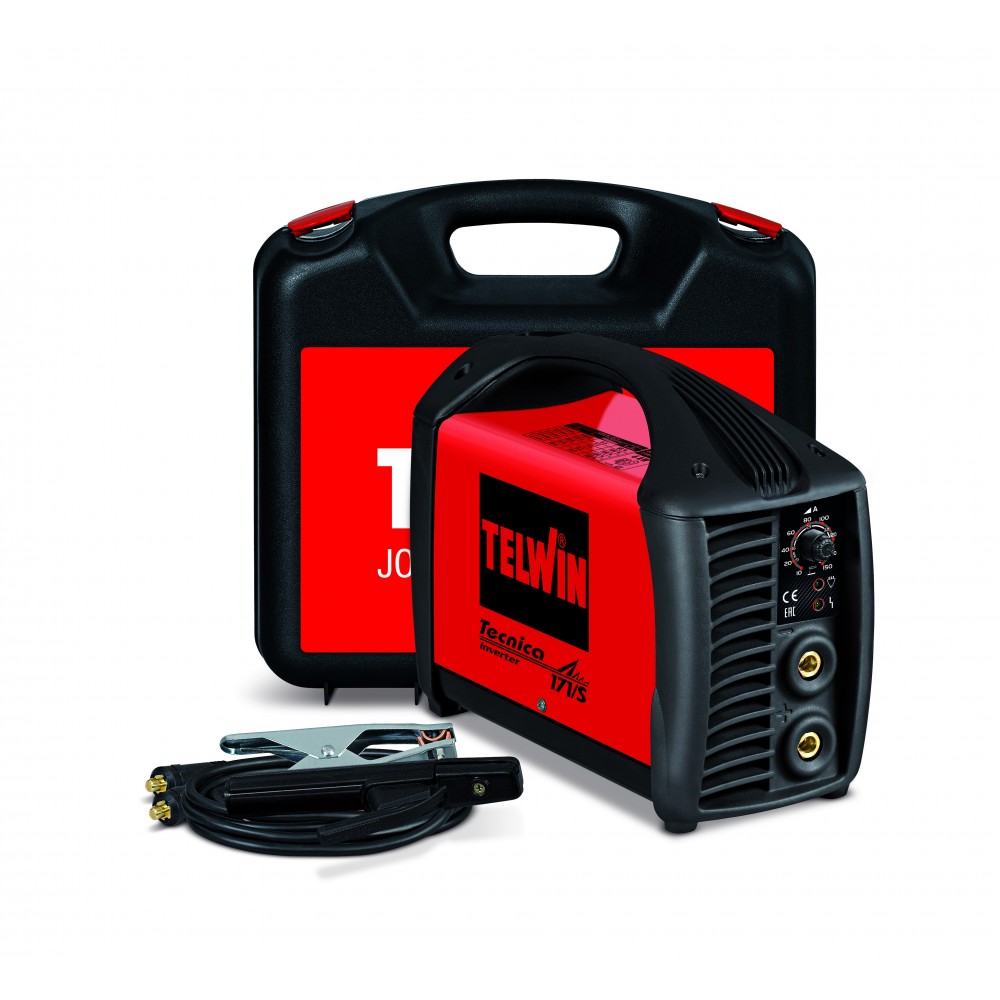

The welder is delivered ready for use in a sturdy original plastic case which includes the essential accessories for MMA welding:

  • Toledo 250A ground clamp.
  • Dallas 300A electrode holder.
  • Power cord with plug.

Technical Specifications

  • Product code: 816203.
  • Current regulation range: 10 - 150 A.
  • Duty cycle (%USE at 20°C): 88% at 150A.
  • Usable electrode diameter: from 1.6 to 4 mm.
  • Minimum generator power: 6 kW.
  • Dimensions and Weight: 32.5 x 42.5 x 17.5 cm | 6.6 kg.
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
