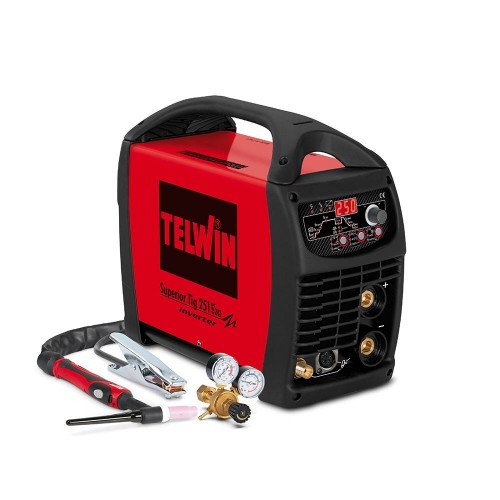

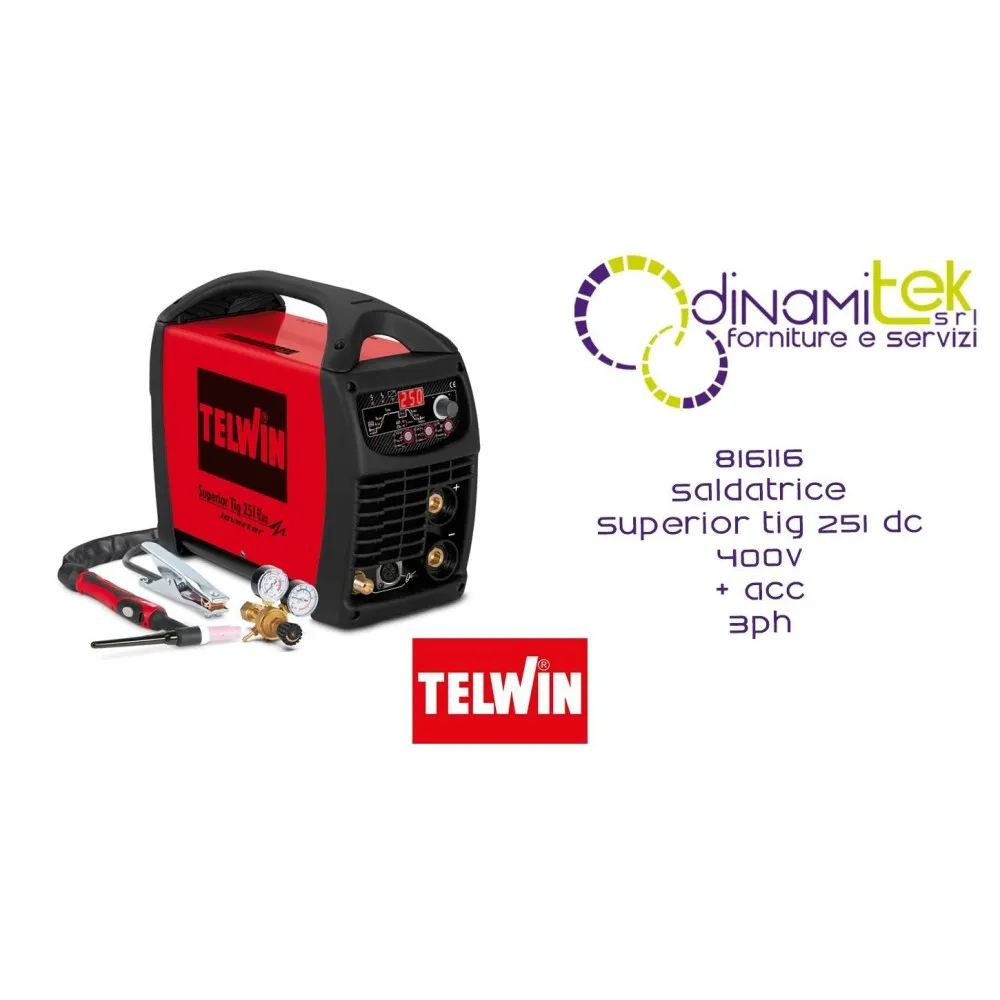

816116 SUPERIOR TIG 251 DC 400V WELDING MACHINE AND 3PH TIG ACC. TELWIN

SUPERIOR TIG 251 DC-HF/LIFT VRD 400V+ACC
code 816116
Microprocessor-controlled TIG (high frequency HF or LIFT ignition), PULSED TIG and MMA inverter welding machine in direct current (DC).
Use with various types of materials such as stainless steel, titanium, copper, nickel and their.
Characteristics:
- pulsed and EASY pulsed operation
- TIG settings: bi-level, initial/final current, spot welding time, post gas, pre gas, current slope up and down, DC balance, square wave frequency
- THINSPOT utility for fast and precise spot welding
- MMA adjustments: arc force and hot start
- anti-stick device
- VRD device
- provision for remote control and GRA cooling unit
- thermostatic, overvoltage, undervoltage, overcurrent, cooling group protections.
Complete with accessories for TIG welding.
TIG DC HF/LIFT MMA
3 PH 400V
REMOTE CONTROLS
CE MARKING
EAC CERTIFICATION
TÜV SUD CERTIFICATION

ARGON CYLINDER ADAPTER IT 432036
PRESSURE REDUCER 2 MANOMETERS 12 Lmin 722119
TOLEDO 300 GROUND CLAMP 712231
ST26 TIG TORCH AX50 4M 742614
CABLE 25 MMQ 3 M - DINSE 50 713504

CODE 816116
POWER CONSUMPTION AT 60% 3.3 kW
THREE-PHASE MAINS VOLTAGE 400 V
10 A MAINS FUSE
MAINS FREQUENCY 50 / 60 Hz
YIELD 85%
CURRENT REGULATION RANGE 10 - 250 A
POWER FACTOR (cosphi) 0.8
MAX DC CURRENT (EN 60974-1)230 @ 20 % A
D. ELECTRODES USABLE IN DC 1.6 - 5 mm
DC CURRENT 115 A
PROTECTION DEGREE IP23
MAX NO LOAD VOLTAGE 101 V
DIMENSIONS 43 x 17.5 x 34 cm
MAXIMUM ABSORBED CURRENT 12 A
WEIGHT 16.4 kg
CURRENT ABSORBED AT 60% - MAX 6 A
EAN CODE 800489791799 3
MAX ABSORBED POWER 7.5 kW
