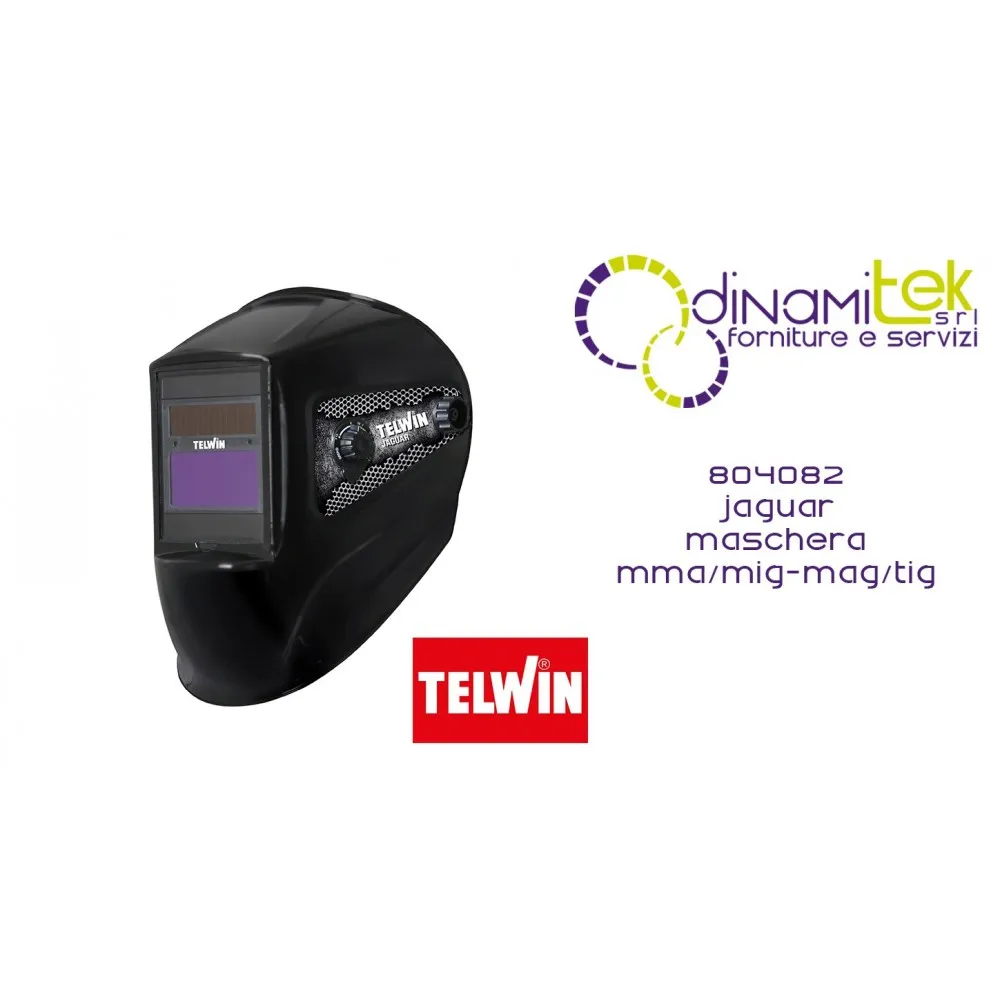

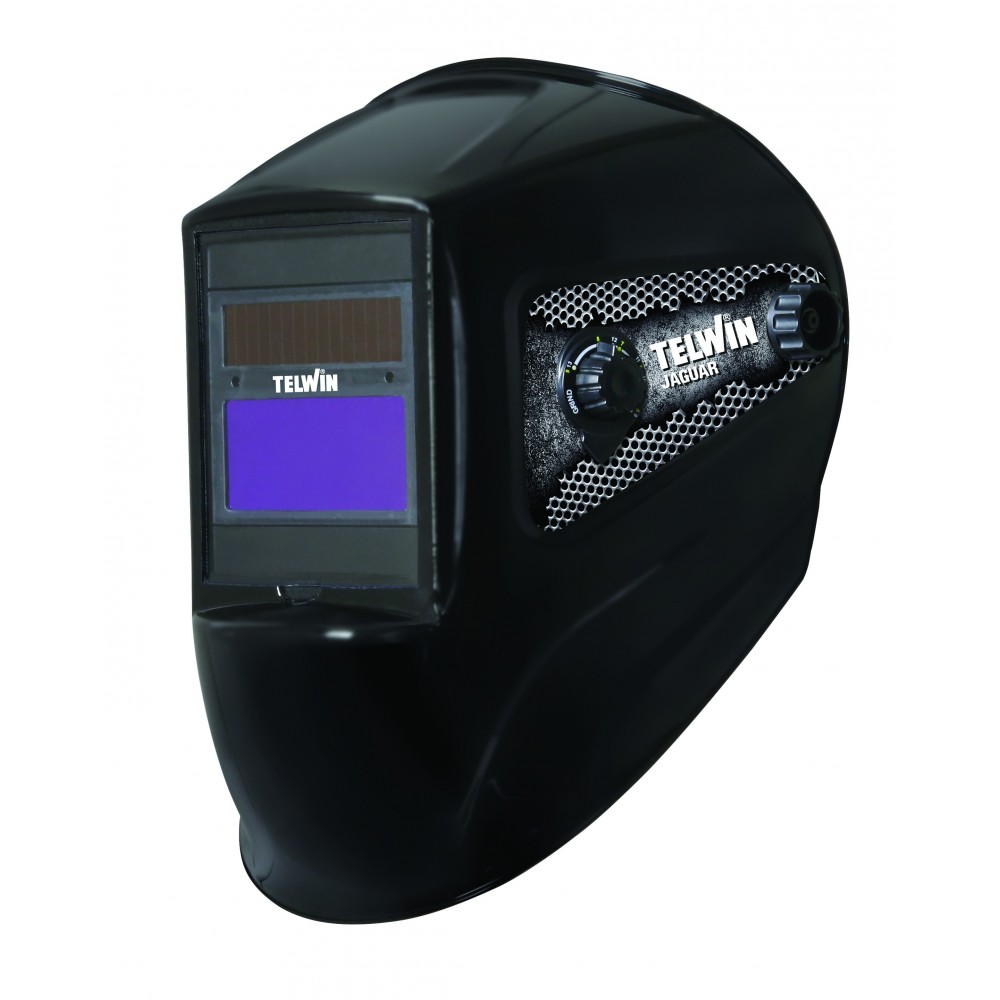

804082 JAGUAR MMA/MIG-MAG/TIG MASK TELWIN

JAGUAR MMA/MIG-MAG/TIG MASK
code 804082
Automatic helmet mask suitable for TIG, MIG-MAG and MMA welding with external shade adjustment (DIN 4/5÷9/9-13).
The LCD liquid crystal filter automatically darkens when the welding arc is struck and quickly returns to clear when the arc is turned off, eliminating the need to raise and lower the mask during each work break and thus allowing hands-free operation.
In addition to adjusting the filter sensitivity according to the welding process, there is also the option of adjusting the delay time for the transition from the dark state to the light state, after the arc has been interrupted, according to the brightness of the piece.
Characteristics:
- adjustable auto-darkening filter,
- optical class 1/1/1/2,
- TIG >5 A,
- grinding mode,
- sensitivity adjustment and dark-light delay,
- solar cell operation,
- light and comfortable.
CE MARKING

CODE 804082
DARK-LIGHT DELAY 0.1-1 s
TIG MASK > 5 A
OPTICAL CLASS 1/1/1/2
MIG-MAG MASK*
USE TEMPERATURE (MIN-MAX) -5 - 55 °C
MMA MASK*
SENSORS 2 NR
4 DIN LIGHT STATION
VIEWING AREA 92x42 mm
VARIABLE STATE5 -9/9-13 DIN
WEIGHT 0.62 kg
LIGHT-DARK TRANSITION TIME 0.4 ms
EAN CODE 800489702237 6
