823195 SPOT DIGITAL SPOTTER 9000 400V + ACC. TELWIN Dinamitek 1
  • 823195 SPOT DIGITAL SPOTTER 9000 400V + ACC. TELWIN Dinamitek 1
  • 823195 SPOT DIGITAL SPOTTER 9000 400V + ACC. TELWIN Dinamitek 2

DIGITAL SPOTTER 9000 400V SPOT AND ACC. SPOT WELDER TELWIN

SPOT DIGITAL SPOTTER 9000 400V + ACC.

|2
Shipping cost: Gratis for
3525,68 €
Tax included

2.889,90 € Tax excluded

Quantity
Available product, order it now.

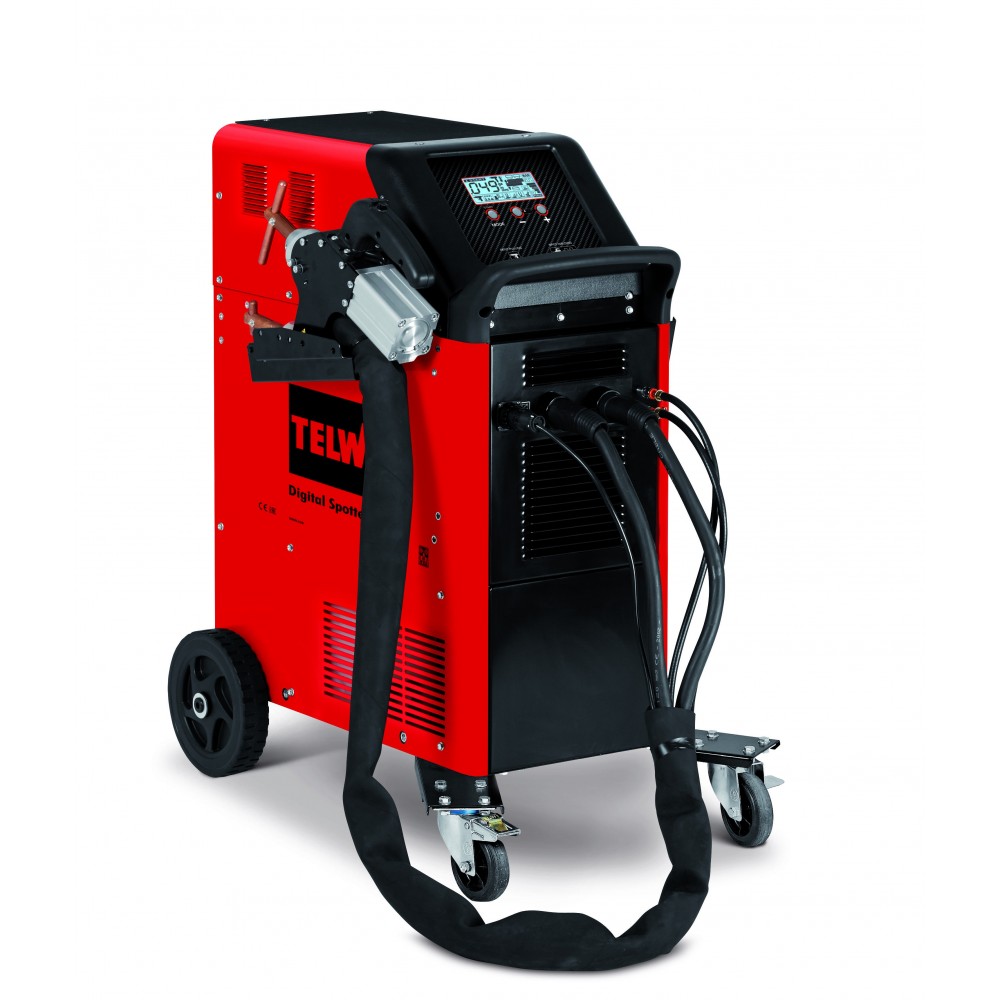

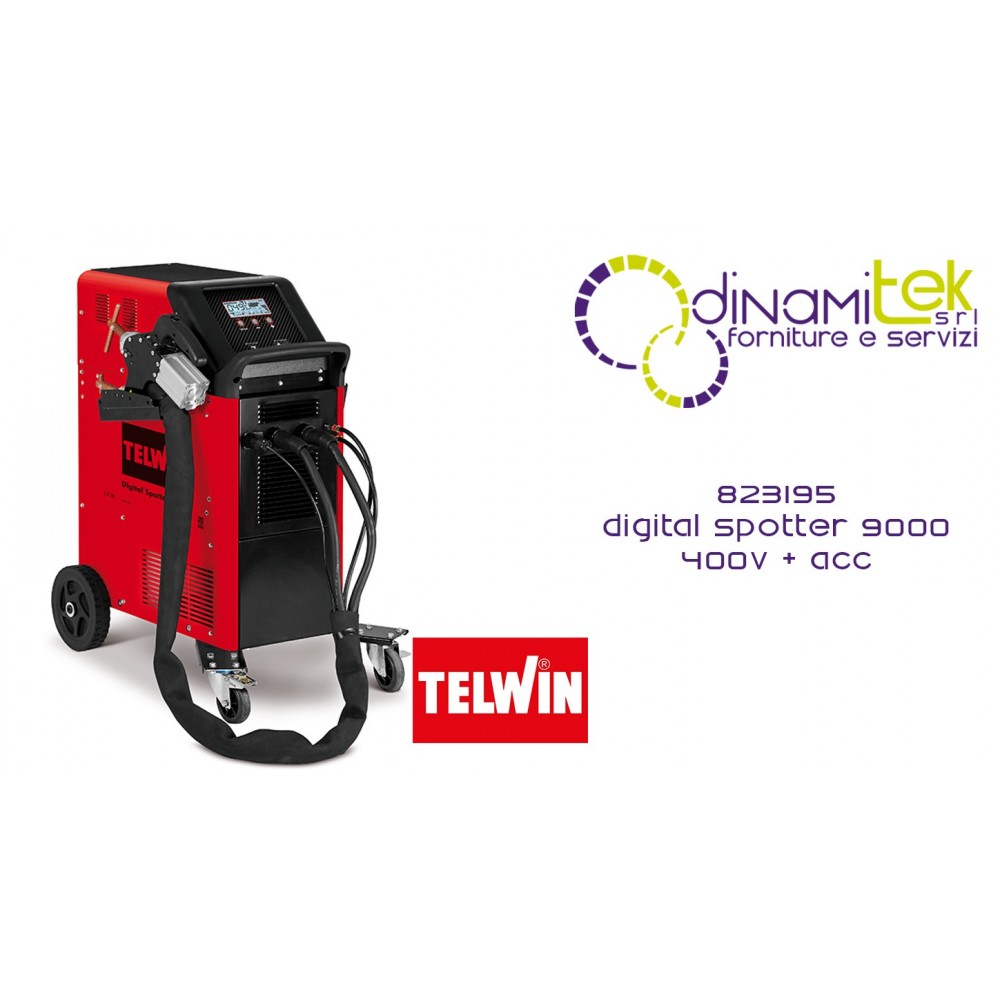

DIGITAL SPOTTER 9000 400V + ACC.
code 823195
Electronic resistance welder (spot welder), microprocessor-controlled, suitable for applications in body shops and in industrial environments.
The multifunctional digital LCD panel allows automatic adjustment of the spot welding parameters based on the chosen tool and the thickness of the sheet metal.
Digital Spotter is a workstation that allows for multiple operations such as continuous and PULSED single-point spot welding, spot welding of screws-washers-nails-rivets, spot welding/pulling of special washers, intermittent spot welding, heating and forming of sheet metal.
Characteristics:
- automatic recognition of the inserted tool
- mains voltage monitor
- automatic control of the caliper and cable cooling
- choice of the optimal spot welding current based on the available network power
- backlit LCD display for viewing the controls and set parameters.
Complete with air-cooled pneumatic caliper.
2 PH 400V
CE MARKING
EAC CERTIFICATION
TÜV SUD CERTIFICATION

ELECTRODE HOLDER ARM L=120MM 690005
STRAIGHT ELECTRODE L=50MM D.12MM 690050
STRAIGHT ELECTRODE L=130MM D.12MM 690047
PNEUMATIC CLAMP "X" + CABLES 801048

CODE 823195
MAXIMUM THICKNESS OF 2 SIDES 3 + 3 mm
TWO-PHASE MAINS VOLTAGE 400 V
INTERMITTENCE RATIO 3%
MAINS FREQUENCY 50 / 60 Hz
PROTECTION DEGREE IP22
MAX SPOT WELDING CURRENT 7000 A
DIMENSIONS 79 x 45 x 90 cm
MAX NO LOAD VOLTAGE 10 V
WEIGHT 78 kg
MAX ABSORBED POWER 47 kW
EAN CODE 800489793047 3
RATED POWER X=50% 8 kW
PIECES / PALLET 2 pcs/pallet
POWER FACTOR (cosphi)0.8
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
