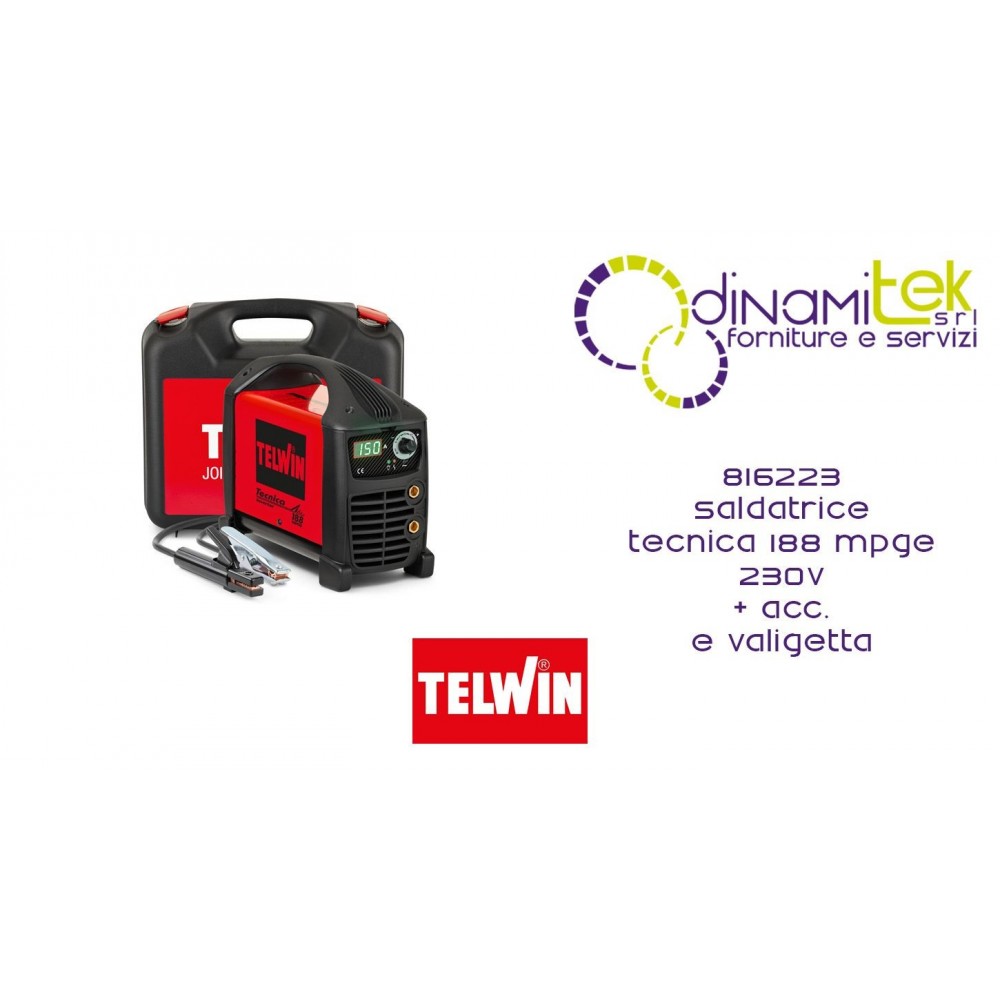

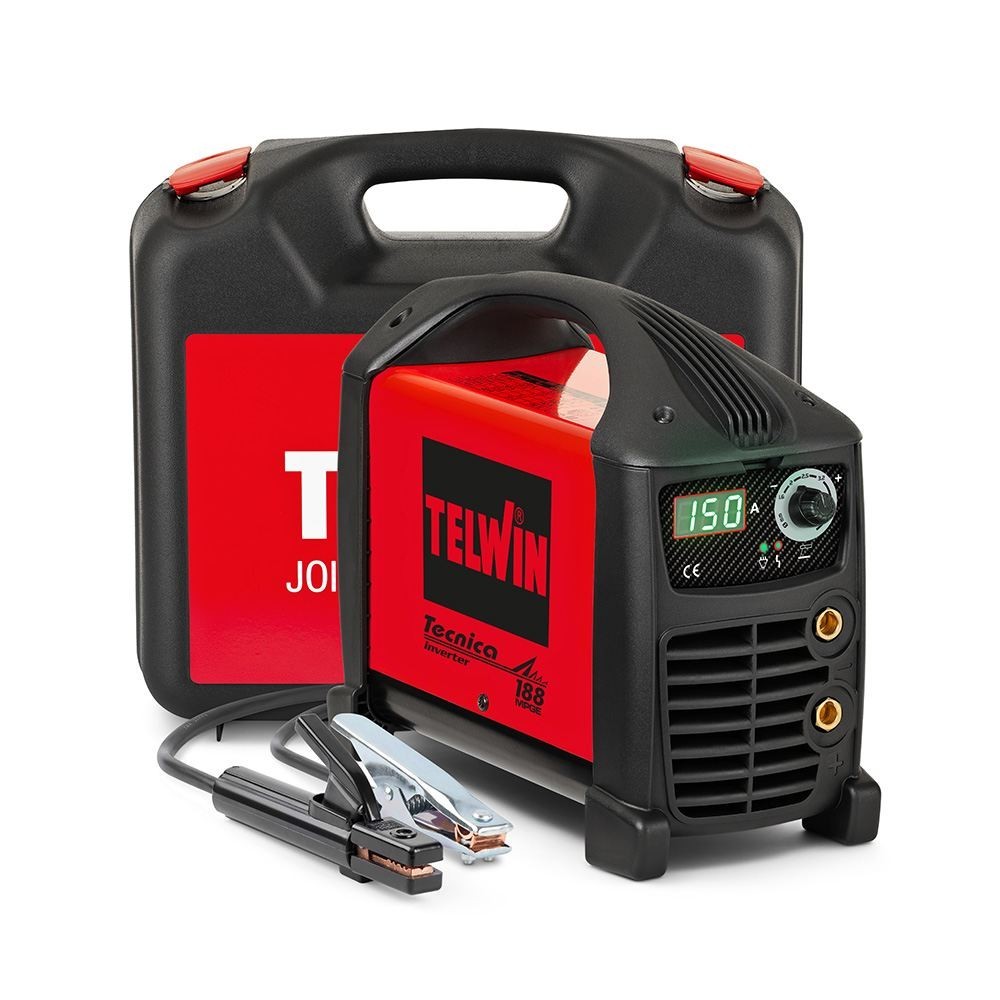

816223 TELWIN 188 MPGE 230V ACC. TECHNICAL WELDING MACHINE WITH PLASTIC CASE

Power and total protection for welding in any condition! The Telwin Tecnica 188 MPGE (code 816223) is the 150A MMA and TIG (scratch striking) inverter welder designed for those who require maximum reliability even with unstable power supplies [1], [3], [4]. Thanks to the exclusive MPGE (Multi Protection for Generator) device, it is the ideal tool for use with motor generators, as it filters voltage peaks and stabilizes oscillations to protect the internal electronics [1], [5], [6]. Lightweight, robust and supplied with a practical plastic case and accessories, it is ready to follow you on any construction site, offering professional performance on electrodes up to 4 mm [1], [7], [3].

Long technical description
Shipping cost: Gratis for
305 €
Tax included

250,00 € Tax excluded

Quantity
Last items in stock

Telwin Tecnica 188 MPGE: Advanced Inverter Technology for Professionals

The Tecnica 188 MPGE represents Telwin's technological excellence in the portable welding machine segment. This direct current (DC) inverter power source offers unparalleled flexibility of use, allowing for MMA and TIG welding with scratch striking.

MPGE Device: The Shield for the Motor Generator

The heart of this model is MPGE (Multi Protections for GEnerator) technology. This multi-level protection system makes the machine perfect for powering generators (+/- 15%) or unstable grids. The device monitors the waveform, filters input voltage spikes, and stabilizes oscillations, ensuring the electronic boards are supplied with voltage free from potentially harmful interference.

Performance and Digital Control

  • Welding Power: With an adjustment range from 10 to 150A, it allows you to handle complex joints with precision.
  • Digital Display: Equipped with a screen for immediate viewing of the set welding current.
  • Arc Control Devices: Integrates advanced arc force, hot start and anti-stick functions for smooth, stick-free welding.
  • Electrode Versatility: Can be used with rutile, basic, stainless steel and cast iron electrodes with diameters from 1.6 to 4 mm.
  • Robustness: The structure is specially designed to be raised and resistant against dust, water and dirt (IP23 rating.

Complete Equipment

The welder is supplied in a sturdy plastic case (code 322800) which includes the necessary equipment for MMA welding:

  • Toledo 250A ground clamp.
  • Dallas 300A electrode holder.
  • 16mm² cable (1.8m) with Atlas 25 plug.

Main Technical Specifications

  • Product code: 816223.
  • Mains voltage: 230 V (single phase).
  • Duty cycle (at 20°C): 90% at 150A.
  • Minimum generator power: 6 kW.
  • Dimensions and Weight: 38 x 42 x 17 cm | 6.03 kg.
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
