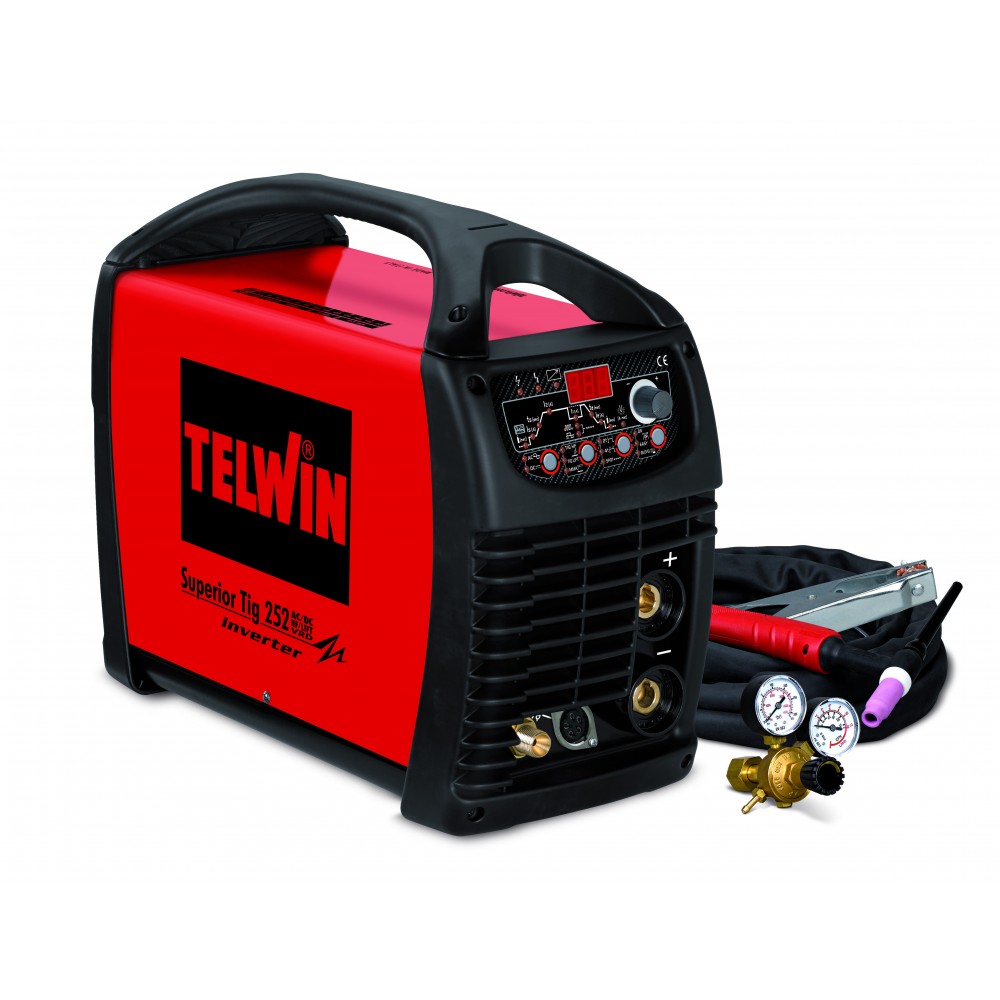

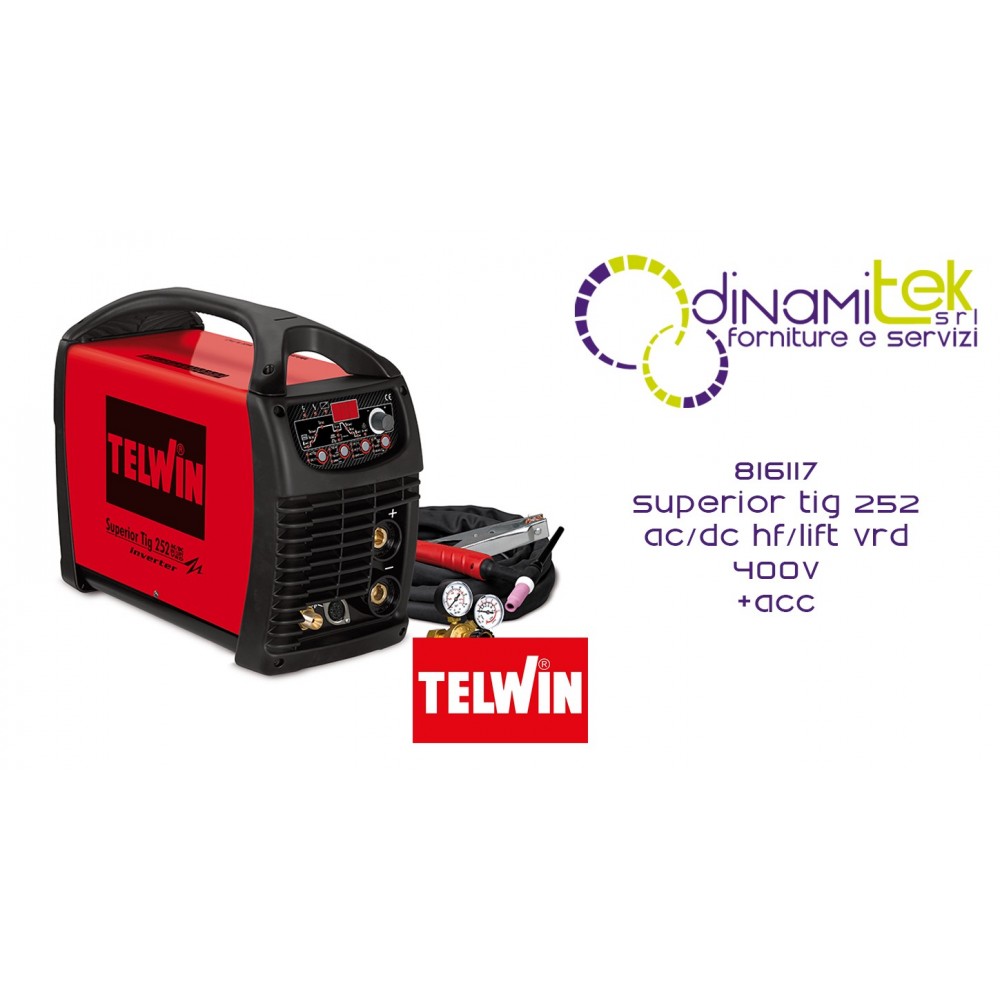

SUPERIOR TIG 252 AC-DC WELDING MACHINE HF-LIFT VRD 400V AND ACC. TELWIN

SUPERIOR TIG 252AC/DC HF/LIFT VRD 400V+A
code 816117
Microprocessor-controlled TIG (high frequency HF or LIFT ignition), PULSED TIG and MMA inverter welding machine in direct and alternating current (AC/DC).
Use with various types of materials such as stainless steel, titanium, copper, nickel and their alloys, aluminum, magnesium and their alloys.
Characteristics:
- pulsed and EASY pulsed operation
- adjustable preheat for easy AC ignition
- TIG settings: bi-level, initial/final current, spot welding time, post gas, pre gas, current slope up and down, DC AC balance, square wave frequency
- THINSPOT utility for fast and precise spot welding
- MMA adjustments: arc force and hot start
- anti-stick device
- VRD device
- provision for remote control and GRA cooling unit
- thermostatic, overvoltage, undervoltage, overcurrent, cooling group protections.
Complete with TIG welding accessories.
TIG AC-DC HF/LIFT MMA
3 PH 400V
REMOTE CONTROLS
CE MARKING
EAC CERTIFICATION
TÜV SUD CERTIFICATION

ARGON CYLINDER ADAPTER IT 432036
PRESSURE REDUCER 2 MANOMETERS 12 Lmin 722119
TOLEDO 300 GROUND CLAMP 712231
ST26 TIG TORCH AX50 4M 742614
CABLE 25 MMQ 3 M - DINSE 50 713504

CODE 816117
POWER CONSUMPTION AT 60% 3.3 kW
THREE-PHASE MAINS VOLTAGE 400 V
MAINS FUSE 10 MAINS FREQUENCY 50 / 60 Hz
YIELD 85%
CURRENT REGULATION RANGE 5 - 250 A
POWER FACTOR (cosphi) 0.8
MAX DC CURRENT (EN 60974-1)230 @ 20 % A
D. ELECTRODES USABLE IN DC 1.6 - 5 mm
DC CURRENT 115 A
PROTECTION DEGREE IP23
MAX NO LOAD VOLTAGE 102 V
DIMENSIONS 47 x 19 x 35.5 cm
MAXIMUM ABSORBED CURRENT 12.2 A
WEIGHT 19.6 kg
CURRENT ABSORBED AT 60% - MAX 6 A
EAN CODE 800489791800 6
MAX ABSORBED POWER 7.5 kW
