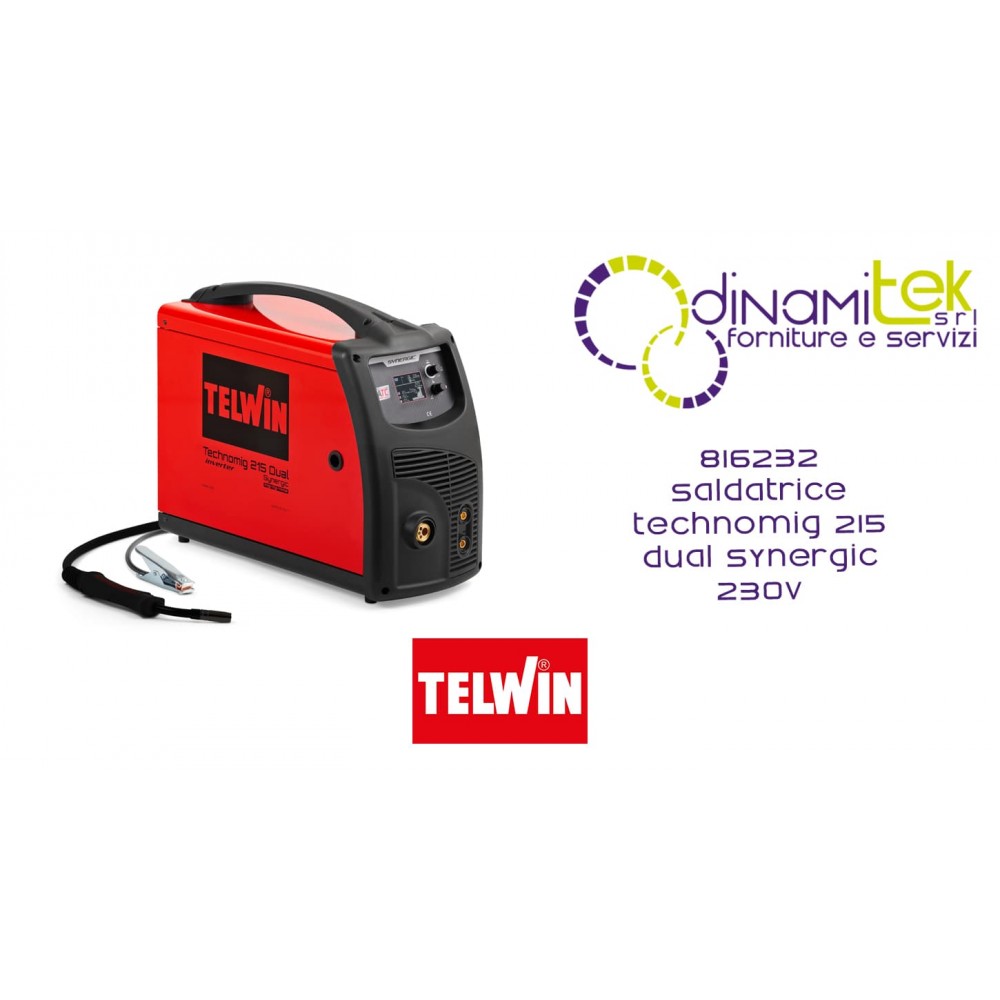

816232 TECHNOMIG 215 DUAL SYNERGIC 230V TELWIN WELDING MACHINE

The ultimate synergic intelligence for the modern professional! The Telwin Technomig 215 Dual Synergic (code 816232) is the 220A multiprocess inverter welder that will revolutionize the way you work. Thanks to OneTouch LCD technology, you simply set the material thickness to start welding: the electronics will manage the arc in real time for impeccable results on steel, stainless steel, aluminum, and galvanized sheets. Equipped with the exclusive ATC system for thin thicknesses and capable of holding spools of up to 15 kg , it is the ideal tool for bodywork, installation, and heavy maintenance that require precision and ease of use.

Shipping cost: Gratis for
1040 €
Tax included

852,46 € Tax excluded

Quantity
Available product, order it now.

Telwin Technomig 215 Dual Synergic: 5-in-1 Versatility and Total Control

The Technomig 215 Dual Synergic is a microprocessor-based inverter power source designed to excel in five different welding processes: MIG-MAG, FLUX, BRAZING, MMA, and TIG DC-Lift . It's the perfect all-in-one solution for those looking for industrial performance in a compact, portable package.

OneTouch Technology and ATC Control

  • OneTouch LCD Control: An advanced graphical interface that dramatically simplifies setup. Once the gas/wire program is selected, simply set the thickness to automatically load one of the 27 preset synergic curves .
  • Advanced Thermal Control (ATC): Telwin proprietary technology that facilitates welding on thin thicknesses (less than 1.5 mm), reducing material deformations and guaranteeing aesthetically perfect seams with minimal heat input.
  • Arc Customization: The operator can manually intervene to modify the arc length, adapting the shape of the bead to their welding style or to the specific needs of the joint.

Reliability and Industrial Capacity

Despite its light weight (22 kg), the machine is built for intensive use: it can accommodate wire spools weighing up to 15 kg (Ø 200/300 mm), minimizing machine downtime. It also integrates the VRD device for maximum safety in humid environments and complete protection against overvoltages and mains instability (compatible with motor generators +/- 15%).

Main Technical Specifications

  • Product code: 816232.
  • Power supply: 230 V single phase.
  • Current regulation range: 20 - 220 A.
  • Maximum current (EN 60974-1): 180 A @ 20%.
  • Usable wire diameter: Steel (0.6-1mm), Stainless Steel and Aluminium (0.8-1mm), Animated (0.8-1.2mm).
  • MMA electrode capacity: 1.6 to 3.2 mm.
  • Degree of protection: IP23.
  • Dimensions: 62 x 26 x 49 cm.

Equipment Included

The welding machine is supplied ready to use for the MIG-MAG process:

  • MIG-MAG torch MT15 (3 meters).
  • Toledo 250 ground cable and clamp.
  • Drive roller for steel wire 0.6-0.8 mm.
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.



816232
