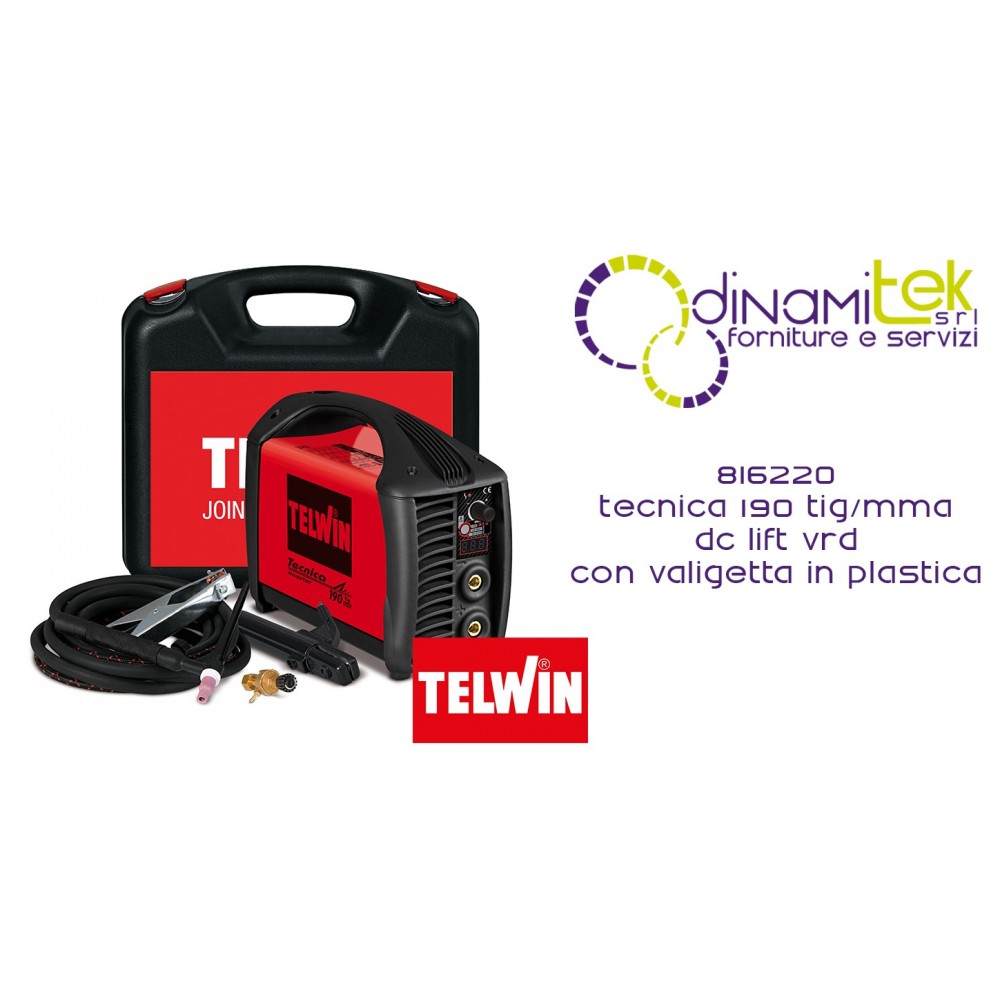

816220 TECHNICAL WELDING MACHINE TIG 190 DC LIFT 230V ACC.EVAL. TIG 1PH TELWIN

TECHNIQUE 190TIG/MMA DC LIFT VRD VAL.PLAS.
code 816220
TIG (LIFT ignition) and MMA DC inverter welder. Suitable for use with various materials such as steel, stainless steel, titanium, copper, nickel, and their alloys.
The VRD device reduces the output voltage to a safe level when the welder is on, but not in welding conditions, ensuring the safety of the operator who can come into contact with the electrode without risk until welding resumes (for use in humid environments such as mines, shipyards, etc.).
Characteristics:
- reduced weight and size
- display for showing the welding current
- MMA adjustments: arc force and hot start
- MMA electrodes: rutile, basic, stainless steel, cast iron
- thermostatic, overvoltage, undervoltage, overcurrent, motor generator (± 15%) protections.
Complete with accessories for TIG/MMA welding and WITH plastic CASE.
MMA DC
1 PH 230V
CE MARKING
EAC CERTIFICATION
TÜV CERTIFICATION

CABLE 25 MMQ 3 M PLUG ATLAS 25 124466
DALLAS 300 ELECTRODE HOLDER CLAMP 300A 712260
WITH PLASTIC CASE 322800
REFILLABLE CYLINDER PRESSURE REDUCER 722341
TOLEDO 250 GROUND CLAMP 250A 712030
ST9V TIG TORCH AX25 4M 722563

CODE 816220
MINIMUM POWER OF MOTOR GENERATOR 6 kW
SINGLE-PHASE MAINS VOLTAGE 230 V
16 A MAINS FUSE
MAINS FREQUENCY 50 / 60 Hz
YIELD 86%
CURRENT REGULATION RANGE 10 - 170 A
POWER FACTOR (cosphi) 0.7
%USE (USE AT 20°C)88% @ 150A
D. ELECTRODES USABLE IN DC 1.6 - 4 mm
MAX DC CURRENT (EN 60974-1)160 @ 20 % A
PROTECTION DEGREE IP23
DC CURRENT 110 A
DIMENSIONS 38 x 42 x 17 cm
MAX NO LOAD VOLTAGE 78 V
WEIGHT 9.4 kg
MAXIMUM ABSORBED CURRENT 29 A
EAN CODE 800489796558 1
CURRENT ABSORBED AT 60% - MAX 17 A
PIECES / PALLET 36 pcs/pallet
MAX ABSORBED POWER 4.4 kW
PIECES / PALLET - B30 pieces/pallet B
POWER CONSUMPTION AT 60% 2.6 kW
