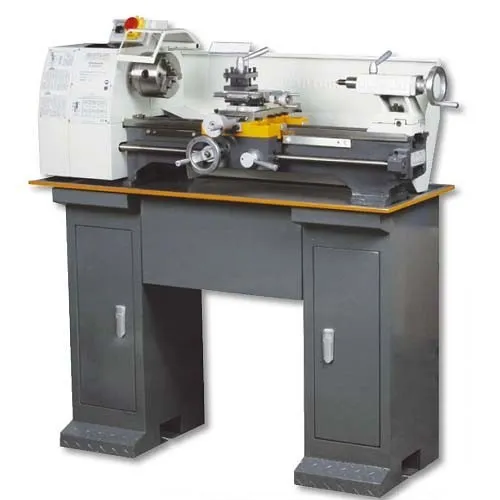

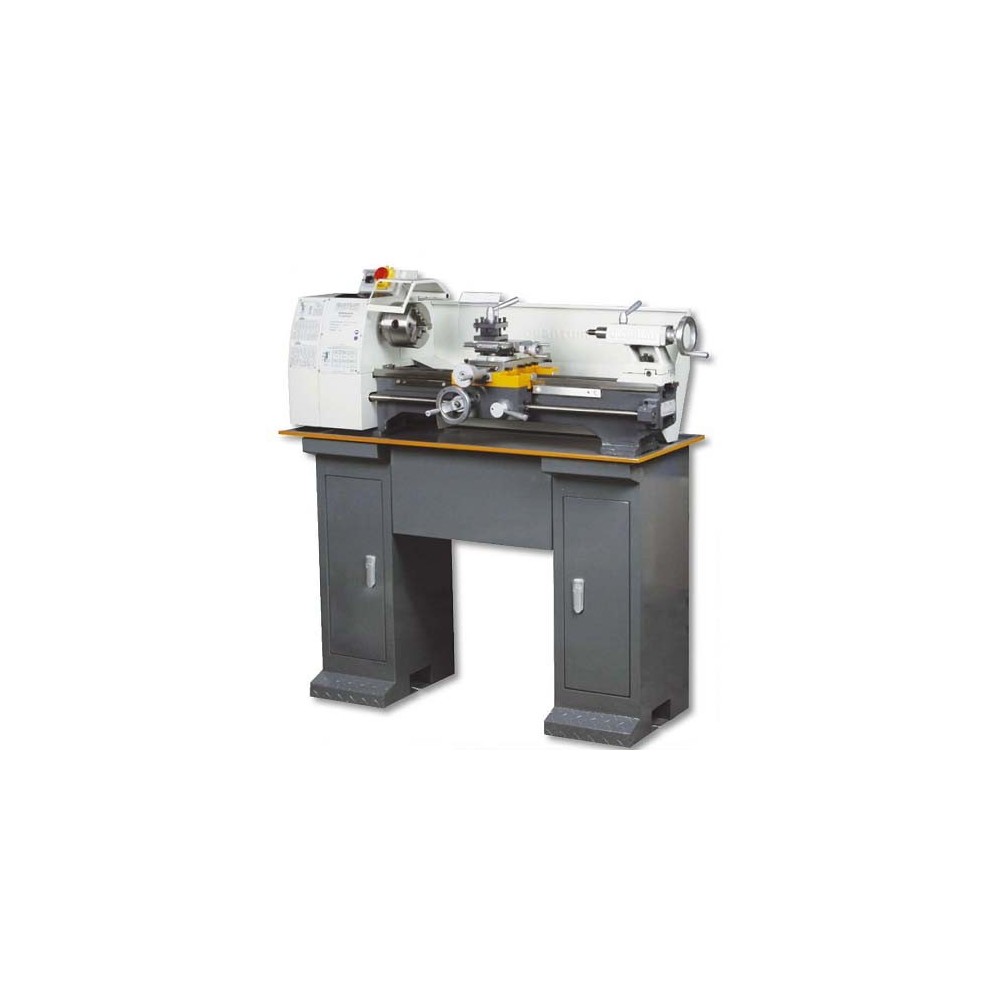

TU2304 OPTIMUM lathe with continuous speed adjustment, code 050OP0320
STANDARD EQUIPMENT
Three-jaw chuck Ø 100 mm
Fixed tailstocks CM 2 - CM 3
Splashback wall and chip tray
4-compartment tool holder
Gearbox gear set
Service keys
Perfect lathe for DIY, with hardened and ground bed guides . The prismatic gray cast iron bed is induction hardened ( HRC 42-52 ) and precision ground. The lead screw is mounted on bearings.
For conical turning , the tailstock can be moved; the play is ±5 mm. The tailstock and handwheel have adjustable fine divisions of 0.02 mm.
The self-centering concentricity accuracy of this lathe is ≤0.05 mm, while the spindle nose concentricity accuracy is ≤0.009 mm. Right-hand and left-hand rotation can be easily selected from the control panel.
The speed change is regulated by V-belts . This makes the operation really simple and quick to perform.
The adjustable precision slides are machined and have tapered gibs for easy sliding. The handwheels have fine graduations, with 0.04/0.01 mm divisions. The tool holder has 4 compartments.
The lathe is equipped with a set of gears for thread cutting. The bearings are tapered rollers . The thrust bearing is inserted in the handwheel.
For user safety, the lathe is equipped with an emergency switch and a minimum voltage relay.
Technical data:
motor power: 50 Hz – 750 W,
tip height: 115 mm,
distance between tips: 450 mm,
turning diameter on bed: 230 mm,
pallet width: 135 mm,
spindle connection: diameter 72 mm,
spindle speed: 125 – 2000 rpm,
number of speeds: 6,
spindle taper: CM3,
bar passage: diameter 20 mm,
upper slide stroke: 75 mm,
cross slide travel: 120 mm,
metric thread pitch: 0.4 – 3.5 mm/rev,
Thread Inch: 44 – 10 fil/1",
4-compartment tool holder attachment height: 14 x 14 mm,
tailstock cone: CM2,
tailstock/quill stroke: 70 mm,
dimensions: 965x585x510 mm,
Net weight: 114 kg
The above data are not binding and may be modified at the discretion of the manufacturer.
THE IMAGE IS PURELY INDICATIVE AND MAY DIFFER FROM THE ACTUAL PRODUCT
