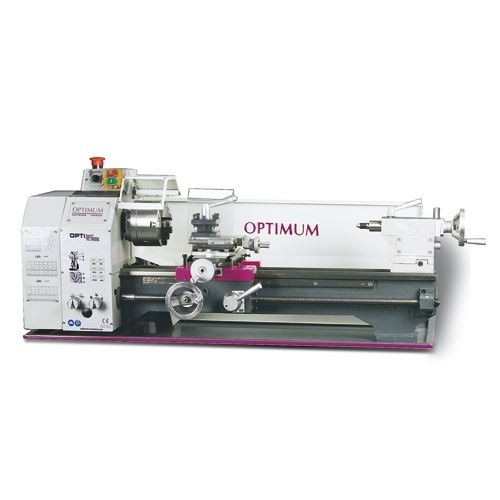

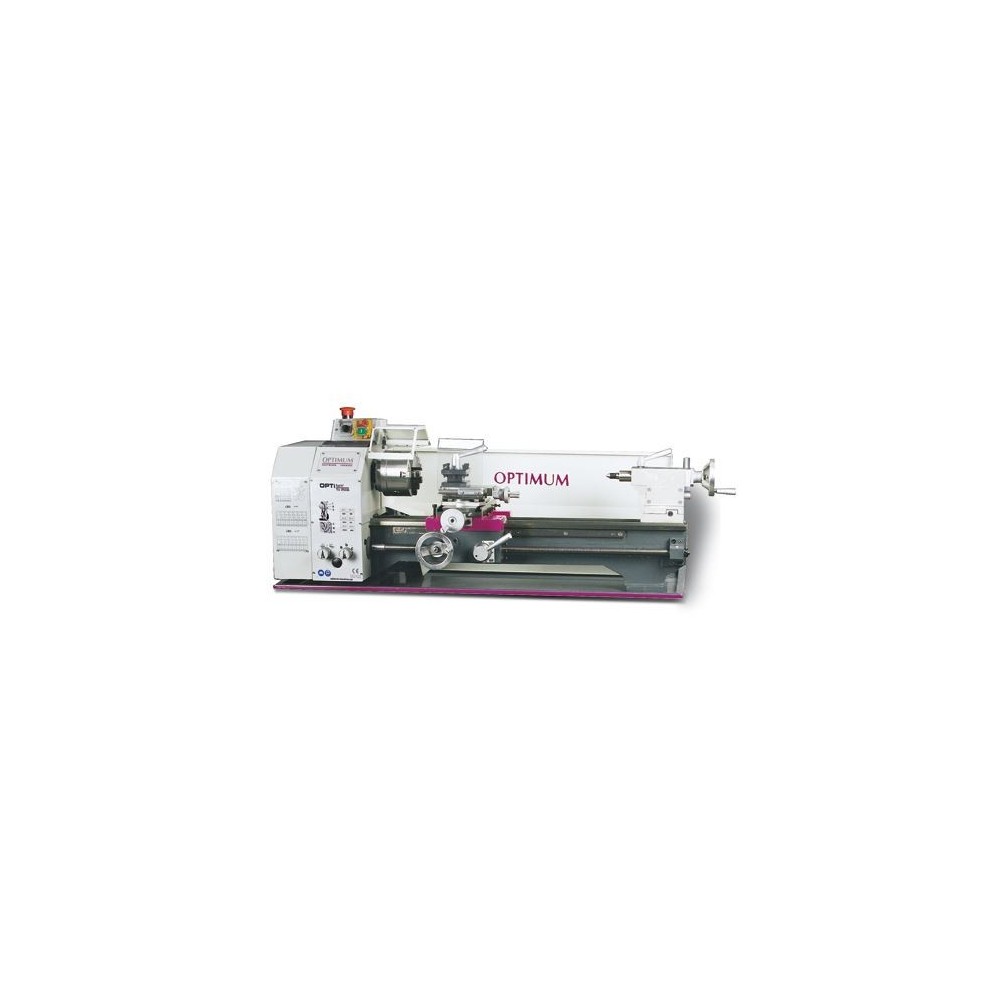

Parallel lathe model TU2506 OPTIMUM with feed gear box code 050OP5001
STANDARD EQUIPMENT
Three-jaw chuck Ø 125 mm
Fixed tailstocks CM 2 - CM 4
Splash guard wall and chip collection tray
HSS turning tools
Brida
4-compartment tool holder
Gearbox gear set
Service keys
A lathe with a powerful, maintenance-free motor. The feed gears are silent, oil-bath-filled , and feature a rounded shape.
The prismatic gray cast iron bed has reinforcing ribs and is induction hardened and precision ground, as are the guideways. The taper is short and the spindle nose is hardened. The main spindle shaft is hardened and mounted on precision tapered roller bearings. The slide handwheels have adjustable fine graduations, divisible 0.04/0.01 mm. High-quality materials and precise finishing characterize the OPTIMUM parallel lathe, delivering outstanding performance.
The lathe has the self-centering concentric rotation accuracy ≤0.04mm, while that of the spindle nose is ≤0.009mm.
Thanks to the control panel, right-left rotation can be easily engaged.
The lathe's leadscrew is mounted on two bearings, the tool holder has four compartments, and all slides are adjustable via tapered gibs. The tailstock and fine-division handwheel are adjustable by 0.02 mm. The tailstock is easily and quickly adjusted using the locking lever. Turning is also easy: the tailstock moves by ± 5 mm.
Note the gear set for the thread.
For user safety, the OPTIMUM parallel lathe features a chip guard on the upper slide. It also features an emergency switch and a minimum voltage relay.
Technical data:
motor power ˜50 Hz - 750 W,
tip height: 125 mm,
distance between tips: 550 mm,
turning diameter on bed: 250 mm,
pallet width: 135 mm,
spindle speed: 125 - 2000 rpm,
number of speeds: 6, spindle cone CM 4,
bar passage: diameter 26 mm,
upper slide stroke: 70 mm,
cross slide travel: 110 mm,
longitudinal feed: 0.07 - 0.2 mm/rev,
metric thread pitch: 0.2 - 3.5 mm/rev,
Thread Inches: 56 - 8 th/1",
Four-compartment tool holder attachment height:
maximum 13 mm, tailstock cone: CM 2,
tailstock-quill stroke: 65 mm,
dimensions: 1250x585x475 mm,
Net weight: 125 kg
The above data are not binding and may be modified at the discretion of the manufacturer.
THE IMAGE IS PURELY INDICATIVE AND MAY DIFFER FROM THE ACTUAL PRODUCT.
ART. OPTIONAL ACCESSORIES

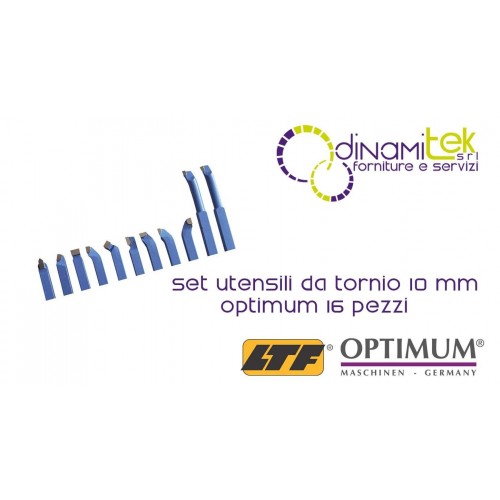

050OP1108 Turning tool set 10 mm, 11 pcs
050OP1666 Turning tool set 12 mm, 5 pcs
335 2002 Universal refrigeration system 230 V
338 1012 Anti-vibration supports
338 3975 Digital magnetic measuring system DRO 5
338 3978 Magnetic tape length 1,100 mm
338 4301 Quick change tool holder SWH 1-A
338 4302 Spare tool holder type D for square tools
338 4321 Spare tool holder type H for round tools
344 0409 Base
344 0702 Revolving tailstock CM2
344 0732 Revolving tailstock with interchangeable tips CM2
344 1109 Collet set ER 25, 1 - 16 mm, 15 pcs
344 1122 ER32 Collet Set
344 1305 ER25 collet chuck
344 1306 ER 32 collet chuck
344 1310 Mobile bezel
344 1312 Flange for three-jaw chuck Ø 125 mm
344 1315 Fixed bezel
344 1352 Disc clamping platform Ø 240 mm
344 2812 Cast iron self-centering chuck with 4 jaws Ø 125 mm (concentric clamping)
344 2874 Cast iron self-centering chuck with 4 jaws, Ø 125 mm (individual clamping)
900 0401 SWH quick change turret assembly
900 0420 Assembly
