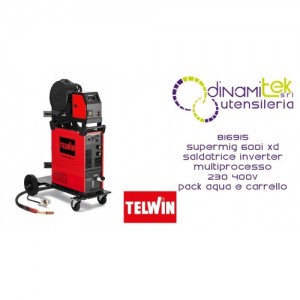

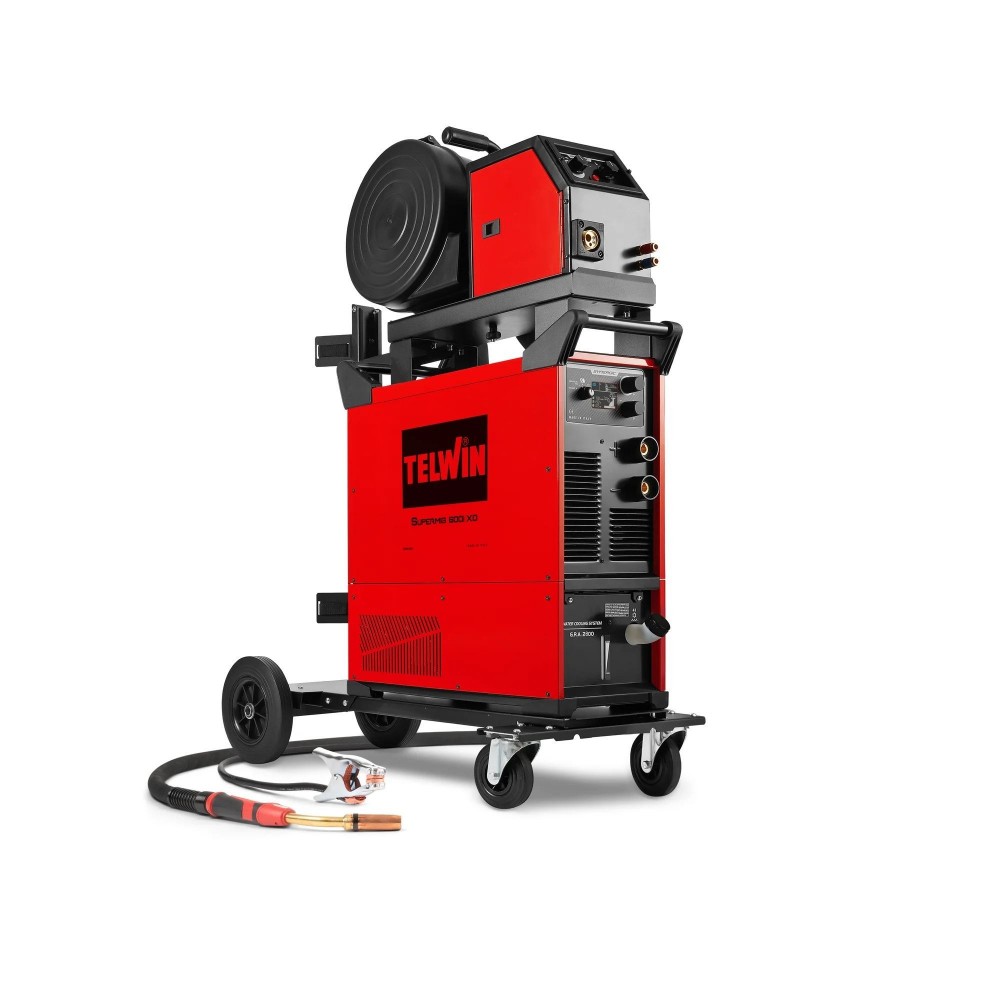

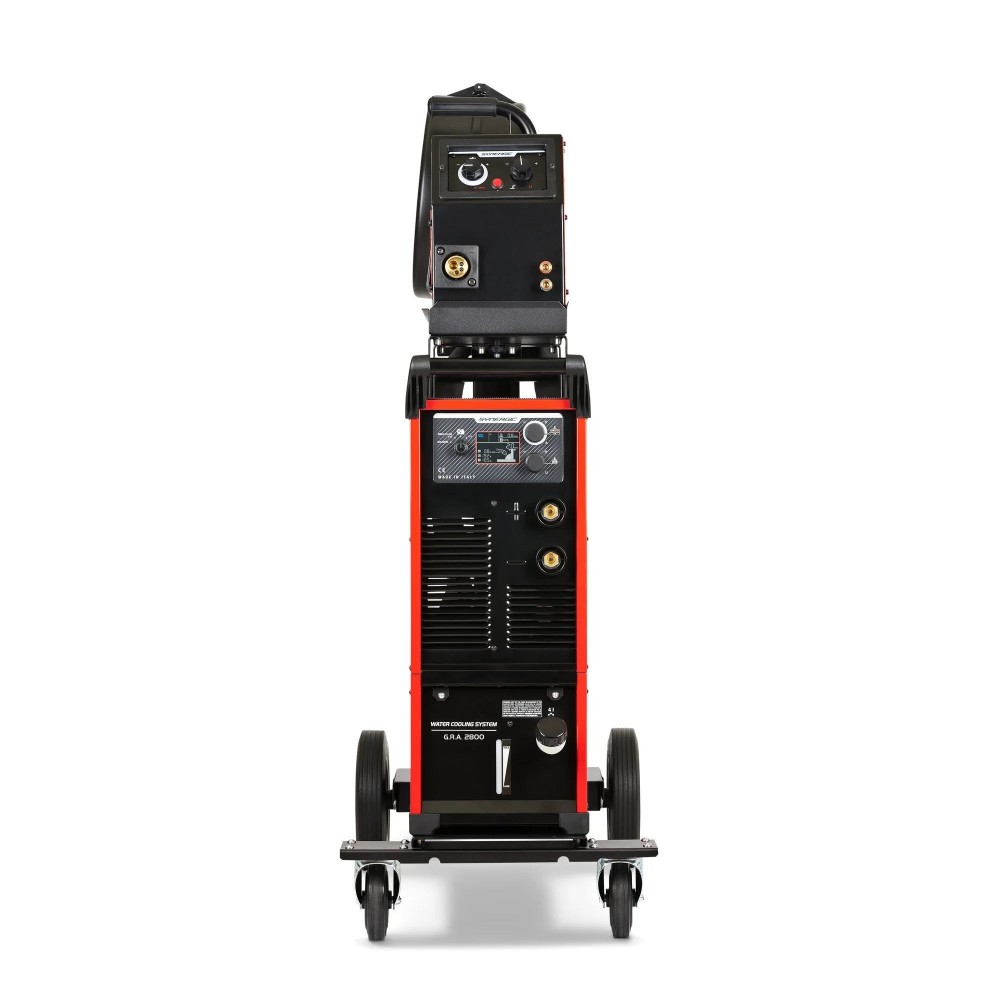

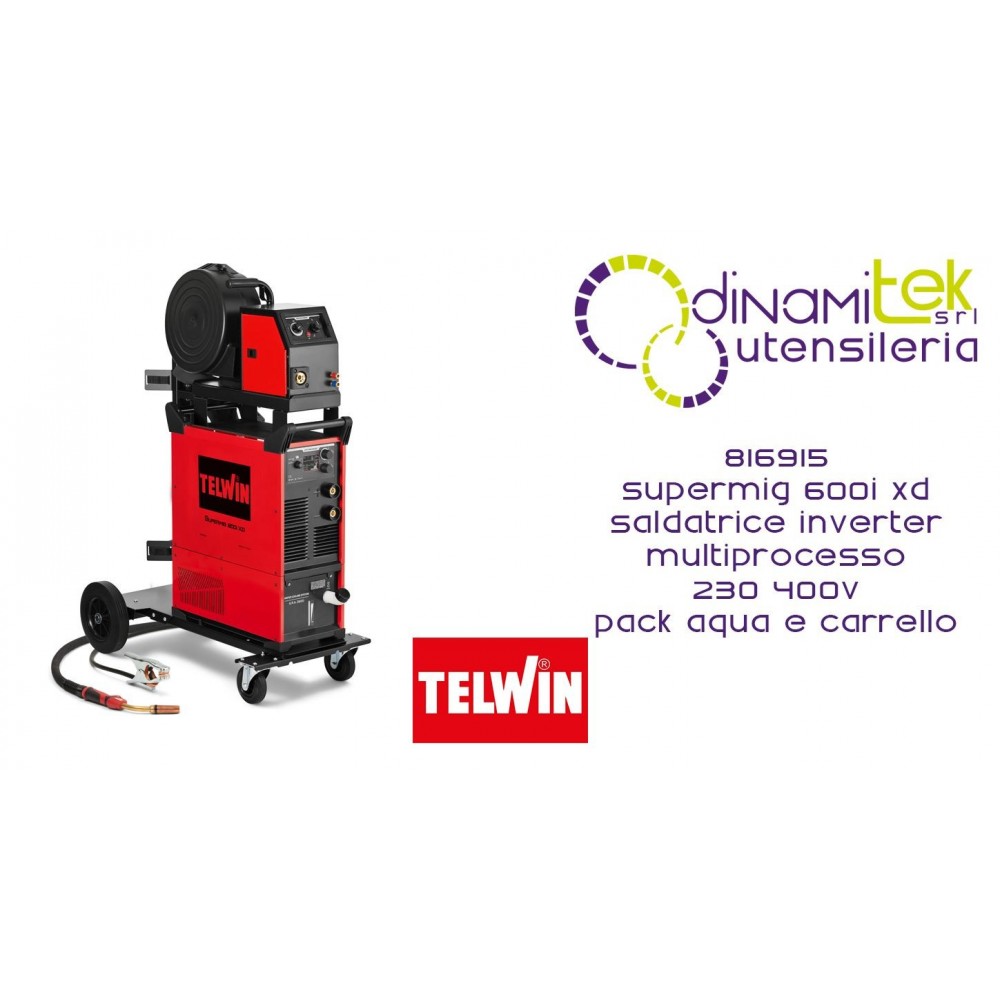

816915 SUPERMIG 600I XD MULTIPROCESS INVERTER WELDING MACHINE 230 400V AQUA PACK AND TROLLEY TELWIN
The "Multiprocess Superhero" in its most extreme and high-performance industrial configuration! The Telwin Supermig 600i XD PACK AQUA + TROLLEY (code 816915) is the 500A three-phase (230V/400V) inverter welding station designed for the toughest challenges of heavy carpentry and shipyards. Thanks to XD (eXtra Duty) technology and the integrated GRA 2800 water cooling unit, it guarantees an extremely high duty cycle for continuous processing without the risk of overheating. Complete with an external 4-roller wire feed unit and Federal trolley , it offers total OneTouch control over MIG-MAG, pulsed MMA, TIG DC-Lift and professional gouging, ensuring mobility and millimetric precision anywhere.
Telwin Supermig 600i XD PACK AQUA: Cooled Power and Total Versatility
The Supermig 600i XD in this "Pack Aqua" version is a multi-process, microprocessor-based inverter welding system that is unrivaled in terms of power and reliability. It is designed to operate on a wide range of materials (steel, stainless steel, aluminum, high-strength steels) ensuring superior results even in the most hostile environments thanks to the dedicated tunnel ventilation system that protects the electronics.
AQUA Cooling and Industrial Productivity
- GRA 2800 Cooling Unit: The liquid system allows the use of water-cooled torches, essential for managing high currents (500A) in prolonged work cycles without interruptions.
- TS 550 Wire Feeder Unit: The 4-roller external wire feeder with 4-meter cable bundle allows you to work remotely from the power source, maintaining smooth and precise wire feeding.
- Federal Cart: Ensures maximum stability and ease of movement of the entire system, including the gas cylinder, within the workshop.
Intelligent Technology and Advanced Features
- OneTouch LCD Adjustment: Simply set the material thickness and the machine manages the arc instant by instant, automatically loading one of the 40 preset synergic curves .
- ATC (Advanced Thermal Control): Exclusive Telwin technology that facilitates welding on thin thicknesses, drastically reducing thermal deformations.
- MMA Pulse and Gouging: The pulsed MMA mode optimizes the weld with basic and cellulose electrodes. It also includes a gouging function with carbon electrodes for rapid metal removal.
Main Technical Specifications
- Product code: 816915.
- Power supply: Three-phase 230 / 400 V.
- Maximum current (EN 60974-1): 500 @ 60% A.
- Current regulation range: 20 - 600 A.
- Dimensions and Weight: 100 x 50 x 133 cm | 95.64 kg.
- Degree of protection: IP23.
Composition of the Aqua Pack
The system comes ready to use with:
- Supermig 600i XD generator.
- Wire feed unit TS 550 with connection cables (70mm² - 4m).
- MIG-MAG torch MT500 AQUA (3 meters).
- GRA 2800 cooling group.
- Federal Cart.
- Ground cable and clamp.
