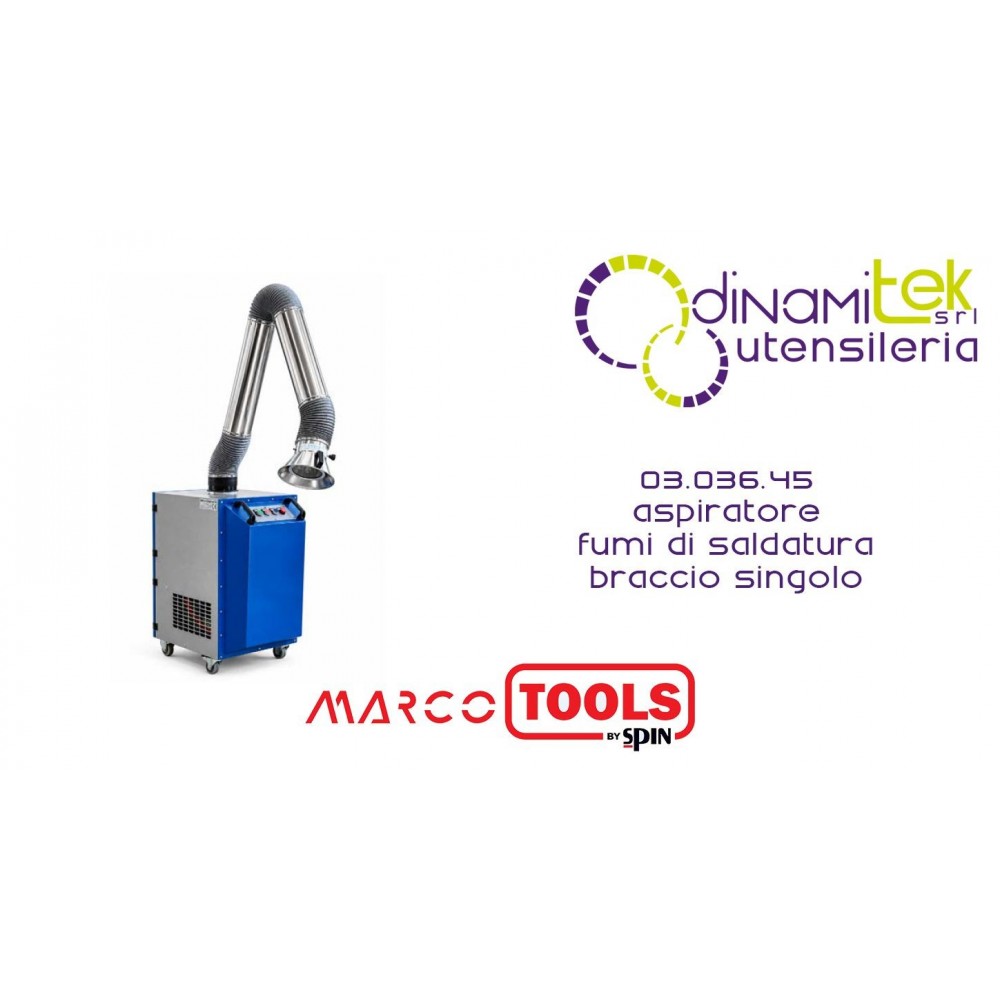

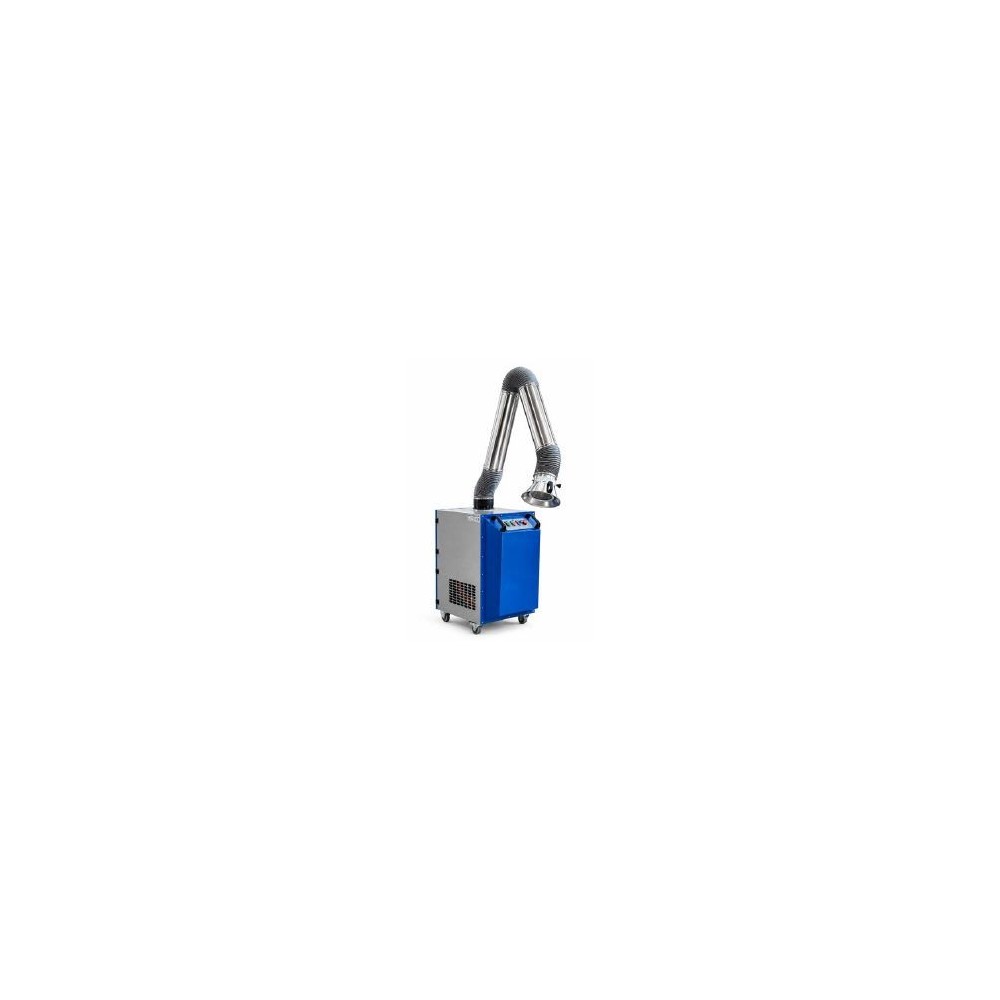

03.036.45 MARCO TOOLS SINGLE-ARM WELDING FUME EXTRACTOR SPIN

The professional solution for a healthy work environment free from harmful emissions. The Spin welding fume extractor (Code 03.036.45) is a high-performance mobile station designed for the localized capture of fumes generated during industrial welding processes. Powered by 380V (three-phase) , this device combines a powerful 1.1 kW fan with a highly efficient nanoparticle filtration system, ensuring an extraction rate of 1500 m3/h and maximum operator protection.

Shipping cost: €25.00 for
1854,4 €
Tax included

1.520,00 € Tax excluded

Quantity
Available product, order it now.

Advanced Suction and Filtration Technology

The 03.036.45 model is an indispensable tool for mechanical workshops and carpentry departments that perform frequent welding operations. Its trolley-mounted design allows the unit to be positioned exactly where needed, ensuring that gases and fine dust are removed at source before being dispersed into the environment.

Superior Filtering Efficiency

  • Nanoparticle Filter: Equipped with a cellulose fiber (wood pulp fiber) cartridge with nanotechnology coating, capable of retaining particles up to 0.3 µm with an efficiency of 97% .
  • Large Filtering Area: It has a filtering surface of 6 m2 , optimising the life of consumables and maintaining constant suction power.
  • HEPA Option: A specific HEPA filter is available as a replacement for applications requiring the highest standards of air purification.

Ergonomics and Construction

  • Stainless Steel Suction Arm: The tool features a flexible, extendable 160 x 2000mm arm made of stainless steel, designed to resist heat and sparks, ensuring stable positioning above the work area.
  • Industrial Power: The 1.1 kW three-phase motor ensures constant performance even during prolonged work sessions, managing large volumes of air (1500 m3/h).
  • Compact and Mobile Design: Despite its high performance, the unit maintains compact dimensions (50x70x100 cm) and easy maneuverability thanks to the integrated wheels.

Technical Specifications

  • Product Code: 03.036.45
  • Brand: Spin (Marcotools Line)
  • Power supply: 380V / 50Hz (Three-phase)
  • Fan Power: 1.1 Kw
  • Suction flow rate: 1500 m3/h
  • Filter Efficiency: 0.3 µm / 97%
  • Arm Dimensions: Ø 160 mm x 2000 mm
  • Unit Dimensions: 500 x 700 x 1000 mm
Professional equipment for car and motorcycle repair and maintenance
