816238 FORCE 205 230V ACX WELDER, PLASTIC CASE TELWIN

Maximum power and professional versatility in a portable format! The Telwin Force 205 (code 816238) is the 200A MMA inverter welder designed for those who don't want to compromise between power and practicality. Capable of handling electrodes up to 4 mm , this machine offers excellent performance on steel, stainless steel, and cast iron, ensuring an extremely stable arc even with variations in mains voltage. Supplied with a sturdy plastic case and professional accessories, it is the ideal tool for intensive work in the workshop or on the construction site, ready to follow you anywhere thanks to its compact and lightweight design.

Shipping cost: Free for
288,01 €
Tax included

236,07 € Tax excluded

Quantity
Available product, order it now.

Telwin Force 205: The Power of an Inverter for Heavy-Duty Applications

The Force 205 represents the pinnacle of the Force range, combining high power output with the advantages of inverter technology: low consumption, lightweight, and ease of use. It is a direct current (DC) generator designed for MMA electrode welding, capable of guaranteeing professional-grade results.

Bow Performance and Control

  • Wide Adjustment Range: With a range from 10 to 200A, it allows you to tackle a wide range of thicknesses and types of joints.
  • High Duty Cycle: Boasts a generous duty cycle (95% at 180A at 20°C), ideal for extended work sessions without frequent interruptions.
  • Superior Stability: Internal electronics ensure high welding current stability, compensating for any power supply fluctuations.

Safety and Reliability on the Construction Site

The device is equipped with multiple protections (thermostatic, overvoltage, undervoltage, overcurrent) and is designed to operate with motor generators (minimum recommended power 8 kW), withstanding variations of +/- 15%. The IP23 protection rating makes it suitable for use both indoors and outdoors.

Equipment and Practicality

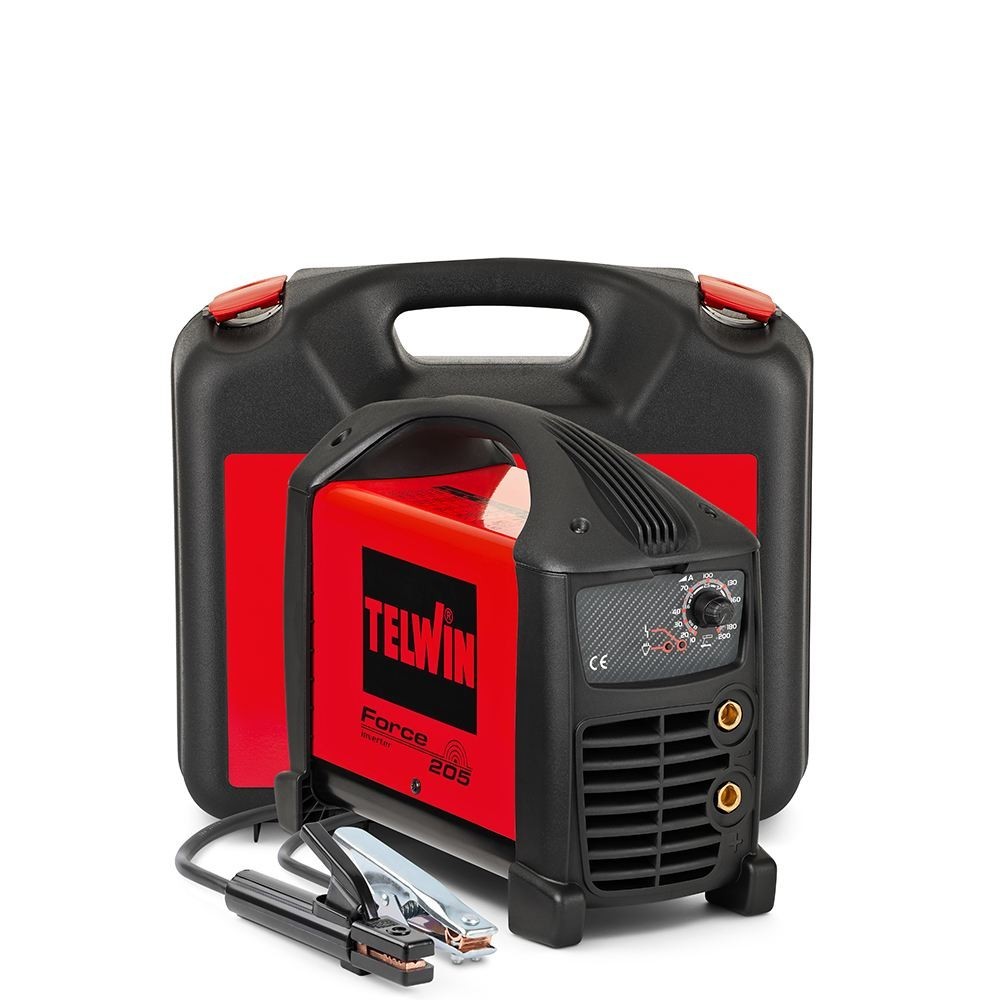

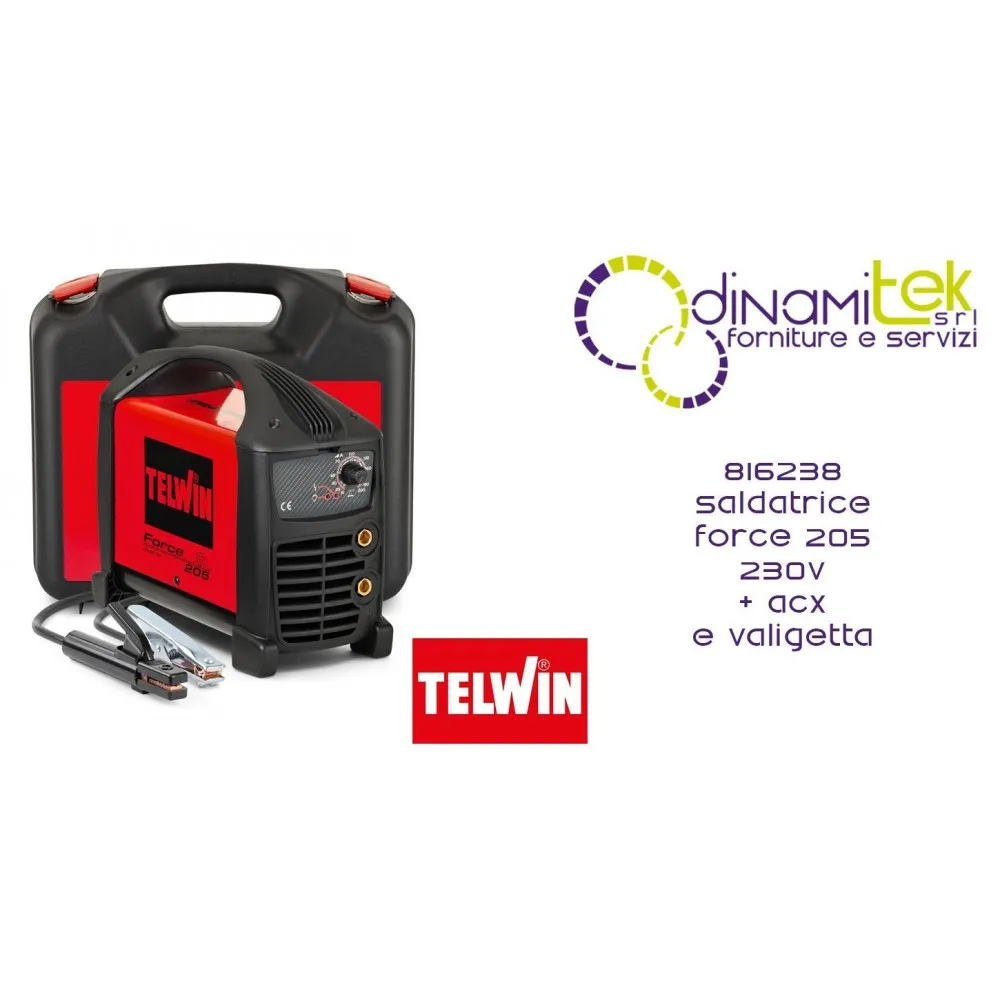

The welder is delivered ready for use in a practical plastic case (code 322800) for easy transport and protection. The equipment includes:

  • Toledo 250A ground clamp.
  • Dallas 300A electrode holder.
  • 16mm² cable (1.8m) with Atlas 25 plug.

Main Technical Specifications

  • Product code: 816238.
  • Mains voltage: 230 V single phase.
  • Electrode diameter: from 1.6 to 4 mm (rutile, basic, stainless steel, cast iron).
  • Maximum power consumption: 5.6 kW.
  • Weight: 5.81 kg.
  • Dimensions: 32.5 x 42.5 x 17.5 cm.
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
