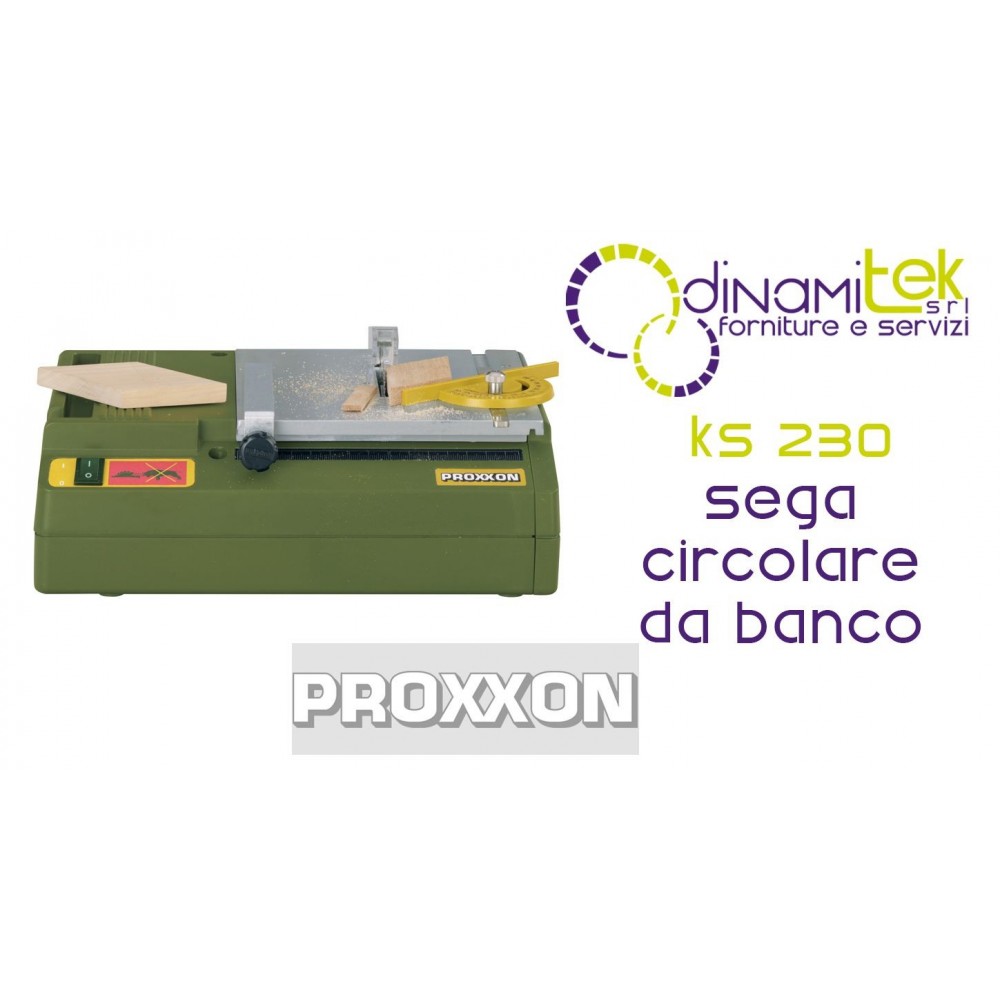

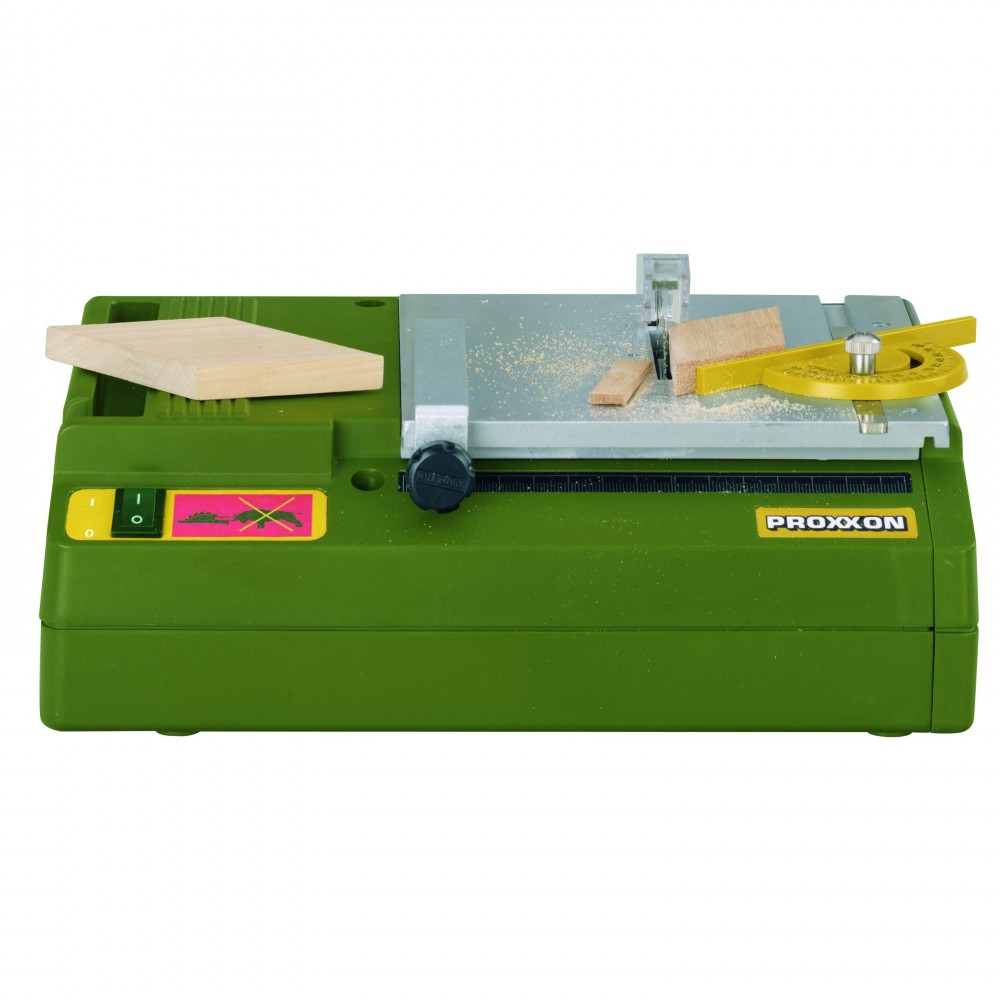

KS 230 CIRCULAR TABLE SAW PROXXON

Efficiency and Precision for Professional Model Making

The KS 230 circular saw (Art. 27 006) is the ideal solution for those who need to cut small pieces with surgical precision. Its sturdy construction and technical features, such as the flat-milled table, make it an indispensable tool in any precision laboratory.

Construction and Mechanical Features:

• Worktop: Made of solid ground die-cast aluminium (160 x 160 mm), it offers a stable and perfectly flat support surface.
• Motor and Transmission: Equipped with a quiet and durable motor. Power is transmitted via a toothed belt on ball bearings, ensuring a working speed of approximately 5,000 rpm with double the torque .
• Waste Management: The ABS case is equipped with a practical right-hand side door for quick sawdust removal.
• Lab Cleaning: Includes a vacuum cleaner adapter to keep your work area free of dust and shavings.

Cutting Capacity and Guides:

The tool offers exceptional versatility thanks to the included guide accessories:

• Softwood: Up to 8mm thick (using the included Super-Cut blade).
• Plastics: up to approximately 3 mm (also ideal for Pertinax boards).
• Non-ferrous metals: up to approximately 1.5 mm.
• Precision Guide: Includes a longitudinal guide with graduated scale and a protractor guide for angled cuts.

Main Technical Data:

• Power supply: 230 V, 85 W.
• No-load speed: 8,000 rpm (blade speed approx. 5,000 rpm).
• Blade included: Super-Cut Ø 58 mm (80 teeth, thickness 1 mm, hole 10 mm).
• Weight: Approximately 1.8 kg.
• Safety: Class 2 insulation.

Technical tip: To cut problematic materials such as fiberglass or ceramic, you can equip the machine with specific all-carbide or diamond-tipped blades (available separately).

Optimize the performance of your KS 230 circular saw by choosing the blade best suited to your cutting needs:

• Diamond cutter (code 28012) : Ø 50 mm with thickness 0.8 mm; ideal for precision cutting on ceramic materials, porcelain, tiles, stone, fiberglass and epoxy printed circuit boards.
• Super-Cut blade (code 28014) : Ø 58 mm with 80 individually set and sharpened alternating teeth; ensures quick and clean cuts on hard and soft wood, Pertinax and plastics.
• Full carbide blade (code 28011) : Ø 50 mm with fine teeth (80 teeth); it is the perfect solution for problematic materials such as fibreglass sheets up to 3 mm, non-ferrous metals and thermoset plastics.
• Carbide-tipped blade (code 28017) : Ø 50 mm with 20 teeth; ensures an extremely clean cut on balsa, plywood, polycarbonate and fibreglass circuit boards.
• Blade made of special hardened HSS steel (code 28020) : Ø 50 mm with 100 fine teeth; designed for making particularly thin cuts on non-ferrous metals such as aluminium, brass and copper, as well as on composite materials.
