FULL CARBIDE BLADE - Ø 50 MM FOR KS 230 28011 PROXXON Dinamitek 1

28011 50 MM ALL-CARBIDE BLADE FOR KS 230 CIRCULAR SAW PROXXON

Take on the toughest challenges in model making and fine mechanics with the Proxxon 28011 all-carbide blade. Designed specifically for the KS 230 table saw , this blade is the ultimate tool for cutting “difficult” materials that require superior wear resistance and pinpoint accuracy.

Thanks to its integral carbide structure and 80-tooth fine toothing , it allows for clean cuts on fibreglass sheets, non-ferrous metals and thermoset plastics, guaranteeing exceptional operating life even on abrasive materials.

Maximum resistance on problematic materials: upgrade your KS 230 with Proxxon quality from Dinamitek!

Shipping cost: €5.00 for

40,3 €

Tax included

33,03 € Tax excluded

Quantity

Available product, order it now.

Description
Product Details

Integral Resistance for High Precision Cutting

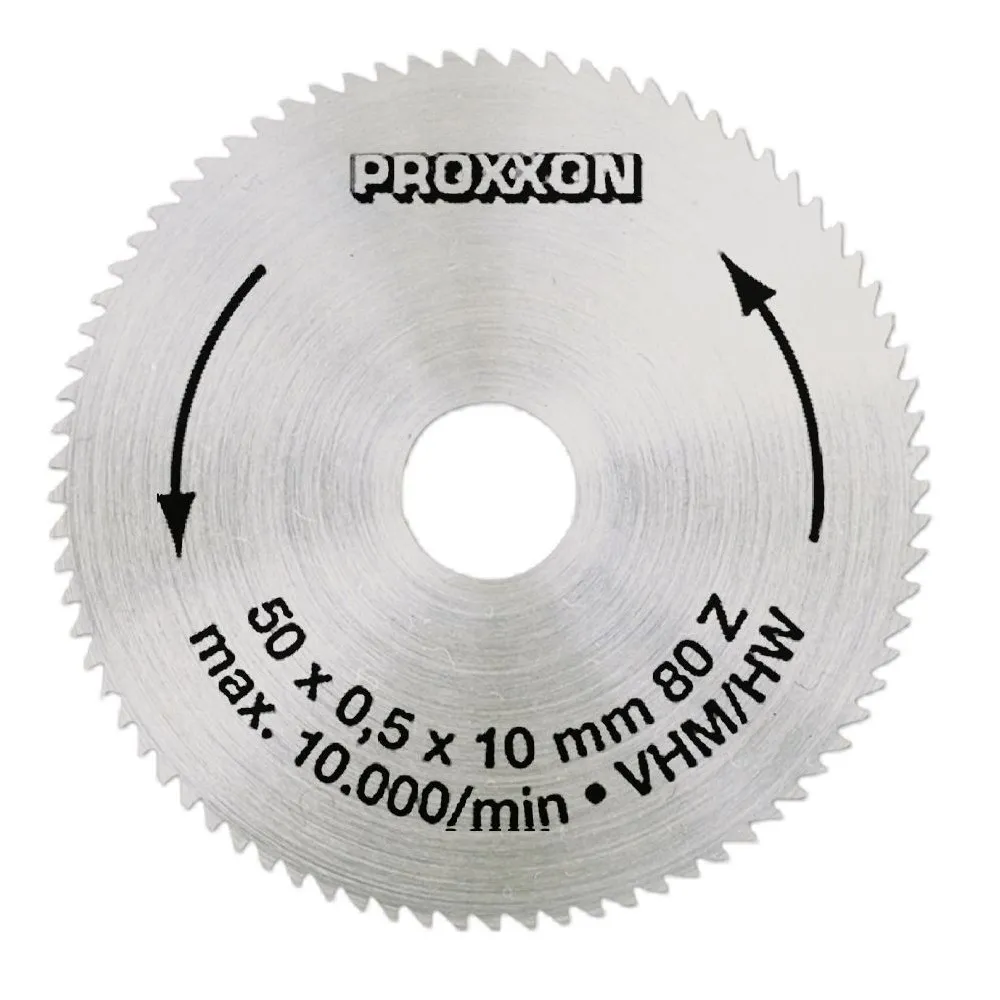

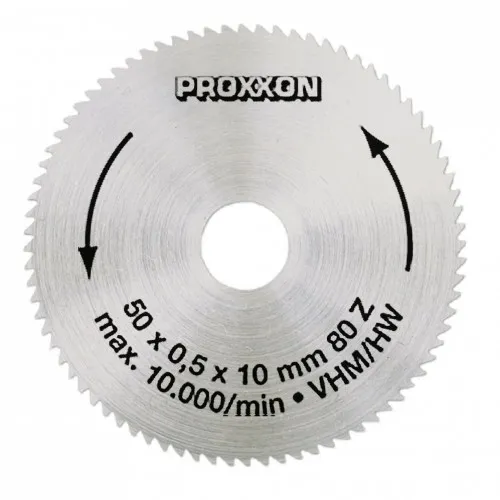

Blade code 28011 represents the pinnacle of MICROMOT system accessories. Made entirely of solid carbide , this blade is designed to maintain constant sharpness much longer than traditional steel blades, making it essential for working with engineering and composite materials.

Technical Specifications and Geometry

Dimensions: 50mm diameter with standard 10mm mounting hole.
Ultra-Thin Profile: A thickness of only 0.6 mm minimizes friction and material removal, favoring extremely accurate cuts.
Fine Teeth: It has 80 teeth designed to ensure a progressive cutting action, ideal for avoiding chipping on the edges.

Areas of Application

This blade has been optimized to solve the problems associated with the most difficult materials:

Fiberglass (GFRP): Perfect for cutting sheets up to 3 mm thick.
Non-Ferrous Metals: Ensures high performance on aluminum, brass and copper.
Thermoset Plastics: Ideal for cutting complex synthetic materials without thermal deformation.
Problem Materials: Effective on a wide range of technical components used in electronics and professional model making.

Technical advice: Given the solid carbide nature of the blade, it offers exceptional rigidity; however, it is recommended to pay attention to lateral impacts during assembly and use to preserve the integrity of the cutting edges.

Proxxon offers professional tools for micro-machining: MICROMOT system, lathes, milling machines, bench saws and precision accessories. European quality for workshops, laboratories and fine mechanics.

PROXXON: PRECISIONE PER MODELLISMO, MICROMECCANICA ED ELETTRONICA

Proxxon è un marchio specializzato in utensili di precisione per modellismo, micromeccanica, elettronica, laboratorio e tutte le lavorazioni di dettaglio che richiedono accuratezza millimetrica. I suoi strumenti sono progettati per artigiani, tecnici, modellisti e professionisti che operano su componenti piccoli e delicati.

La gamma comprende mini trapani, fresatrici, torni da banco, seghe da precisione, utensili rotativi e sistemi completi per micro-lavorazione. Le diverse linee si distinguono per motori silenziosi, controllo elettronico della velocità, stabilità strutturale e precisione costante, ideali per lavorazioni continue e ad alta accuratezza.

Proxxon è riconosciuta per qualità costruttiva, affidabilità e specializzazione tecnica, con strumenti progettati per garantire risultati impeccabili nelle micro-lavorazioni. I professionisti scelgono Proxxon per la precisione, il controllo e la capacità di eseguire lavori complessi con finitura perfetta.

Reference 28011
