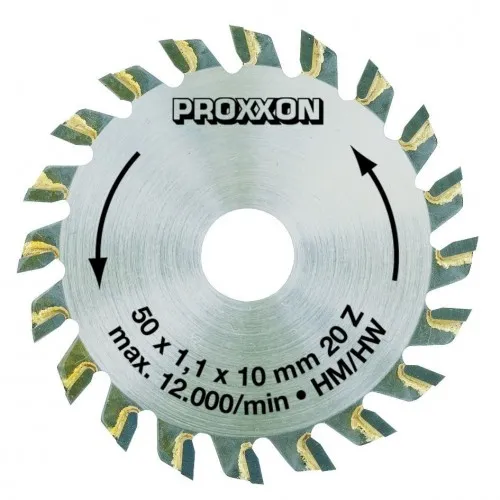

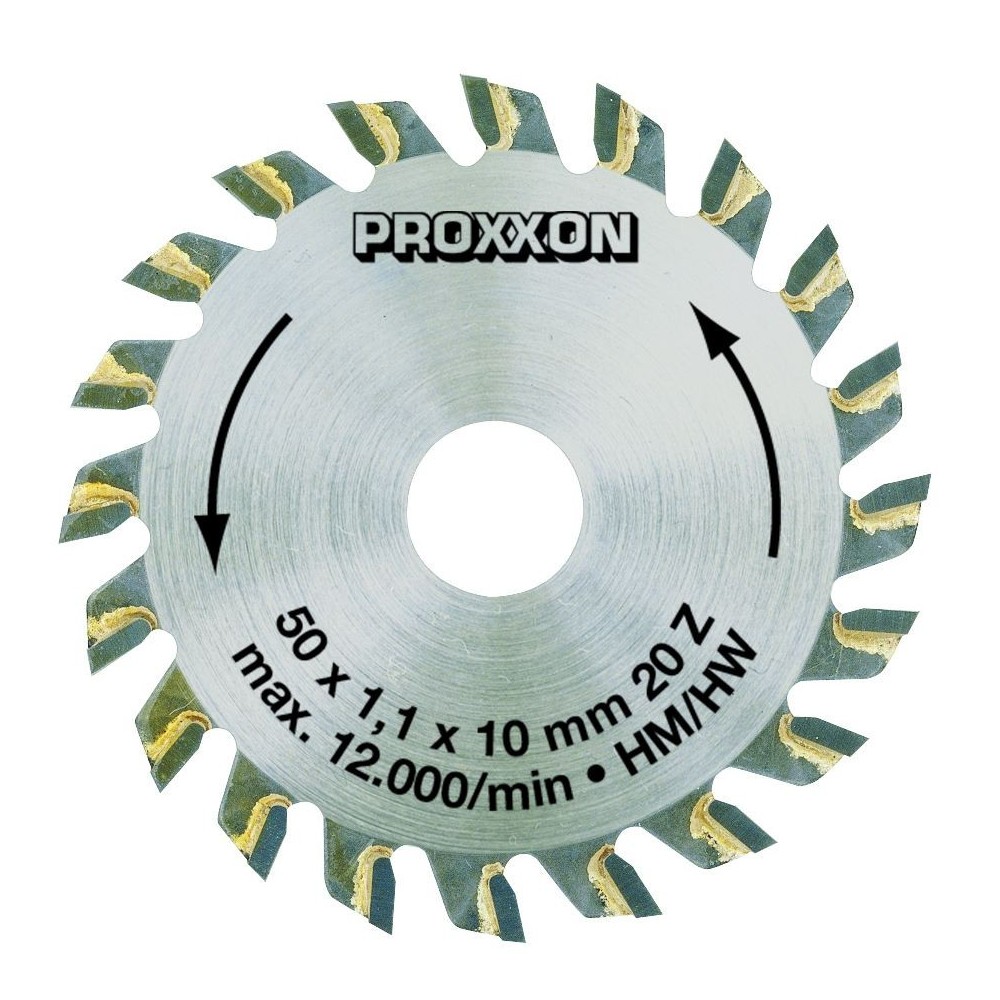

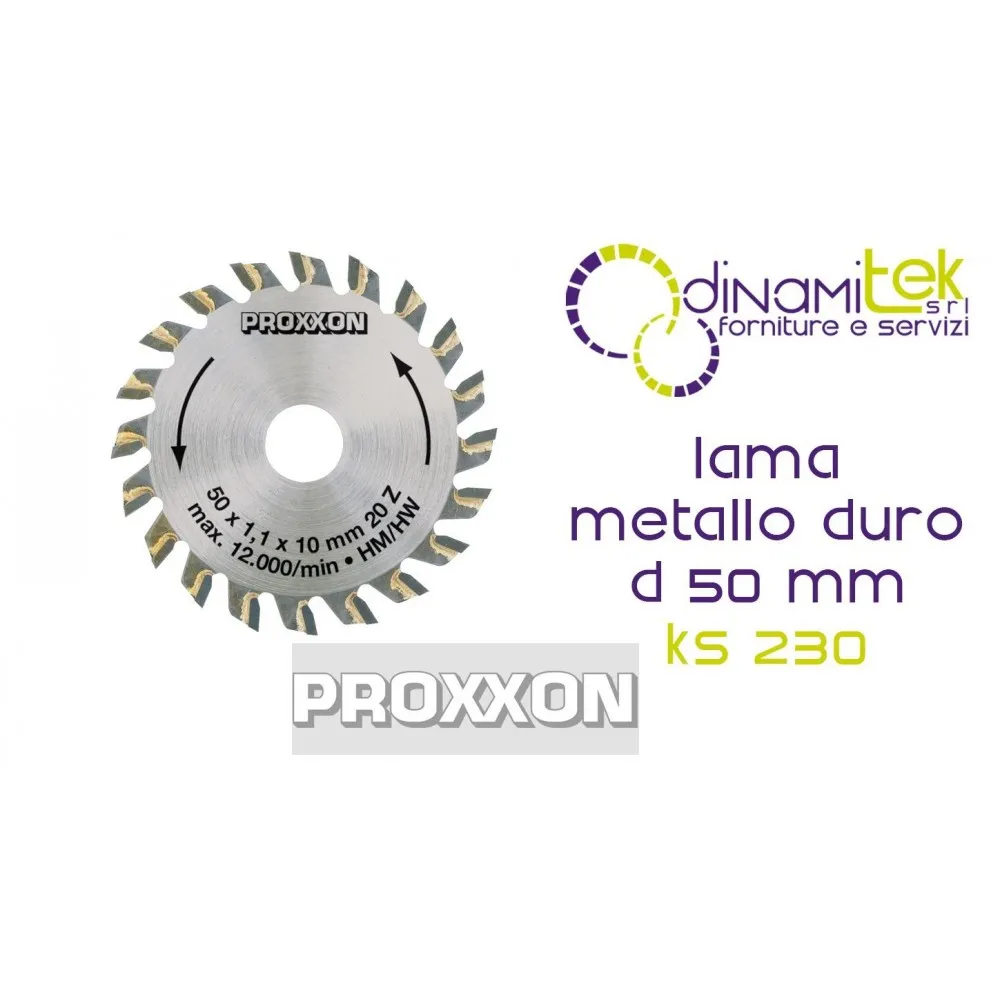

28017 50 MM CARBIDE TIPPED CIRCULAR SAW BLADE FOR KS 230 CIRCULAR SAW PROXXON

Achieve flawless finishes on your models with the Proxxon 28017 circular saw blade . Designed specifically for the KS 230 table saw, this carbide-tipped blade is the ideal tool for those who require extremely clean cuts in lightweight materials and composites.

Thanks to its optimized geometry, it is perfect for working balsa and plywood without chipping, making it indispensable for naval and aeronautical modeling. Its versatility also allows it to precisely handle technical materials such as polycarbonate and fiberglass printed circuit boards, always ensuring clean, sharp edges.

Superior precision for balsa and technical materials: choose Proxxon quality on Dinamitek!

Shipping cost: Free for
10 €
Tax included

10,00 € Tax excluded

Quantity
Available product, order it now.

High Precision Cutting for Model Making and Electronics

The blade code 28 017 is a technical accessory of the MICROMOT system, developed to offer superior cutting performance on the KS 230 circular saw. The distinctive feature of this component is the presence of carbide-tipped teeth (HM/HW) , which ensure exceptional cutting edge life and millimetric precision on every pass.

Technical and Construction Features:

  • Blade Geometry: 50mm diameter with a thickness of 1.2mm and standard 10mm mounting hole.
  • Tooth Configuration: Equipped with 20 carbide teeth , designed to reduce vibration and ensure smooth penetration into the material.
  • Edge Quality: The arrangement and sharpening of the teeth are designed to obtain an extremely clean cut , minimizing the need for post-cut sanding.

Areas of Application and Materials:

This blade has been optimized for a wide range of materials used in the precision laboratory:

  • Wood: Specifically designed for balsa and plywood , but also suitable for softwood and hardwood.
  • Plastics: Ideal for cutting polycarbonate and other common plastics.
  • Technical Components: Excellent for sectioning fiberglass and non-ferrous metal printed circuit boards .

Technical advice: To preserve the integrity of the carbide teeth, make sure that the material is firmly guided during feed, using the longitudinal and goniometer guides supplied with the KS 230 saw.
Proxxon offers professional tools for micro-machining: MICROMOT system, lathes, milling machines, bench saws and precision accessories. European quality for workshops, laboratories and fine mechanics.


28017
