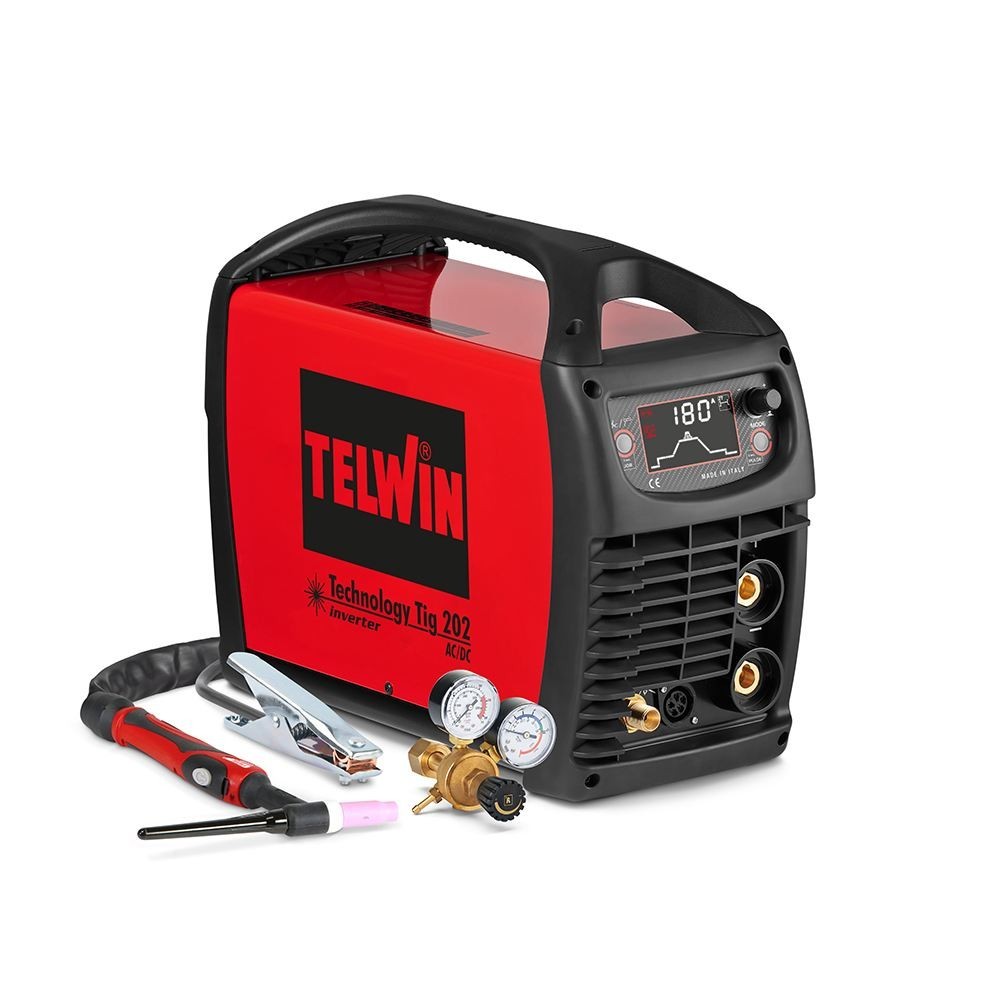

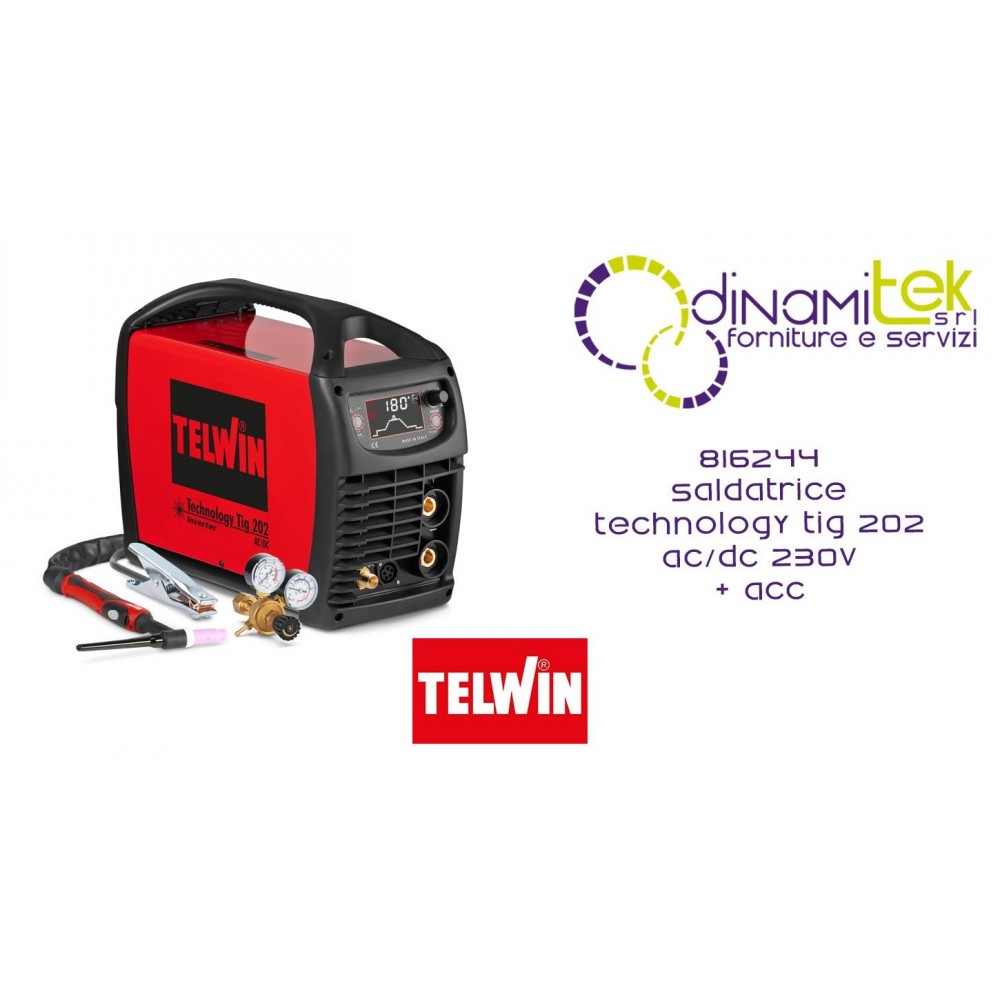

816244 TECHNOLOGY TIG 202 AC-DC 230V AND ACC TELWIN WELDING MACHINE

Total control over aluminum and noble metal welding in a ready-to-use kit! The Telwin Technology Tig 202 AC/DC (code 816244) is a 180A single-phase inverter welder designed for professionals who require maximum precision on aluminum, stainless steel, titanium, and magnesium. Thanks to its advanced LCD interface and advanced functions such as ThinSpot for very thin sheets and MIX AC-DC , it guarantees impeccable results with a consistently stable arc. The dedicated tunnel ventilation system protects the electronics from dust and debris, making it a reliable and long-lasting companion for the workshop and advanced maintenance.

Shipping cost: Gratis for
1513,4 €
Tax included

1.513,40 € Tax excluded

Quantity
Available product, order it now.

Telwin Technology Tig 202 AC/DC: Precision Inverter for Every Material

The Technology Tig 202 AC/DC is the ideal solution for TIG welding (with HF or LIFT ignition) and MMA welding in direct and alternating current. Its versatility allows it to work on a wide range of materials, including steel, copper, nickel, magnesium, and aluminum.

Advanced Features for Professional Results

  • Utility ThinSpot: A cutting-edge technology specifically designed for precise, “cold” spot welding of very thin sheet metal, minimizing the risk of deformations.
  • MIX AC-DC: Exclusive function that allows you to heat the piece to be welded to prepare it optimally for alternating current welding, ideal for large masses.
  • Pulsed and Easy Pulse: Reduces heat input and stabilizes the arc, making it easier to work on minimal thicknesses even for less experienced welders.
  • Custom Programming: Save and recall up to 10 custom welding programs to ensure repeatability and speed on recurring jobs.

"Extra Duty" Protection and Control

Built to last, it features a dedicated tunnel cooling system that channels air, isolating sensitive electronic components from dirt and metal dust. The high-resolution LCD display allows for intuitive adjustment of all welding curve parameters, from pre-gas to AC balance.

Main Technical Specifications

  • Product code: 816244.
  • Power supply: 230 V single phase.
  • Current regulation range: 5 - 180 A.
  • Duty cycle (at 40°C): 180A @ 20%.
  • MMA electrode diameter: 1.6 to 4 mm.
  • Degree of protection: IP23.
  • Weight and Dimensions: 15.4 kg | 47 x 19 x 35 cm.

Equipment Included in the Kit

The product is supplied complete with accessories to be immediately operational in the TIG process:

  • TIG Welding Kit - ST17.
  • Dedicated welding accessories.
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.



816244
