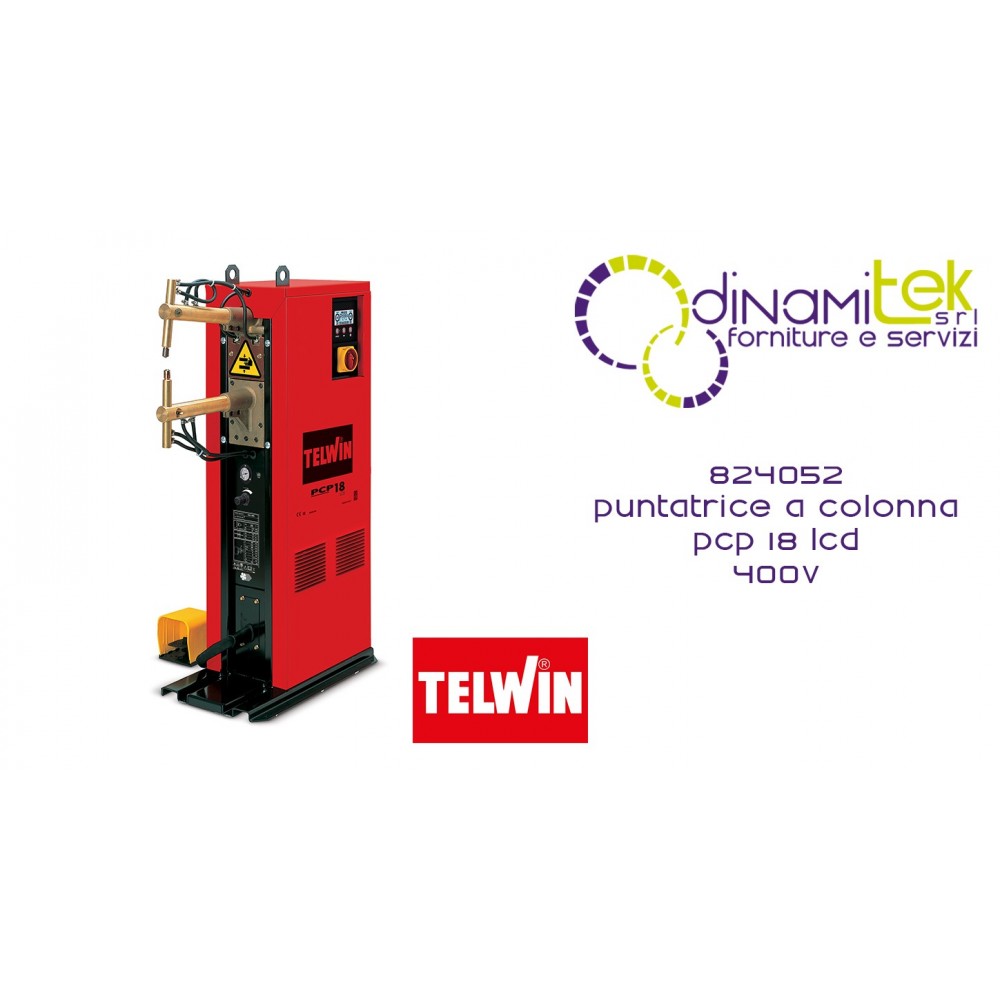

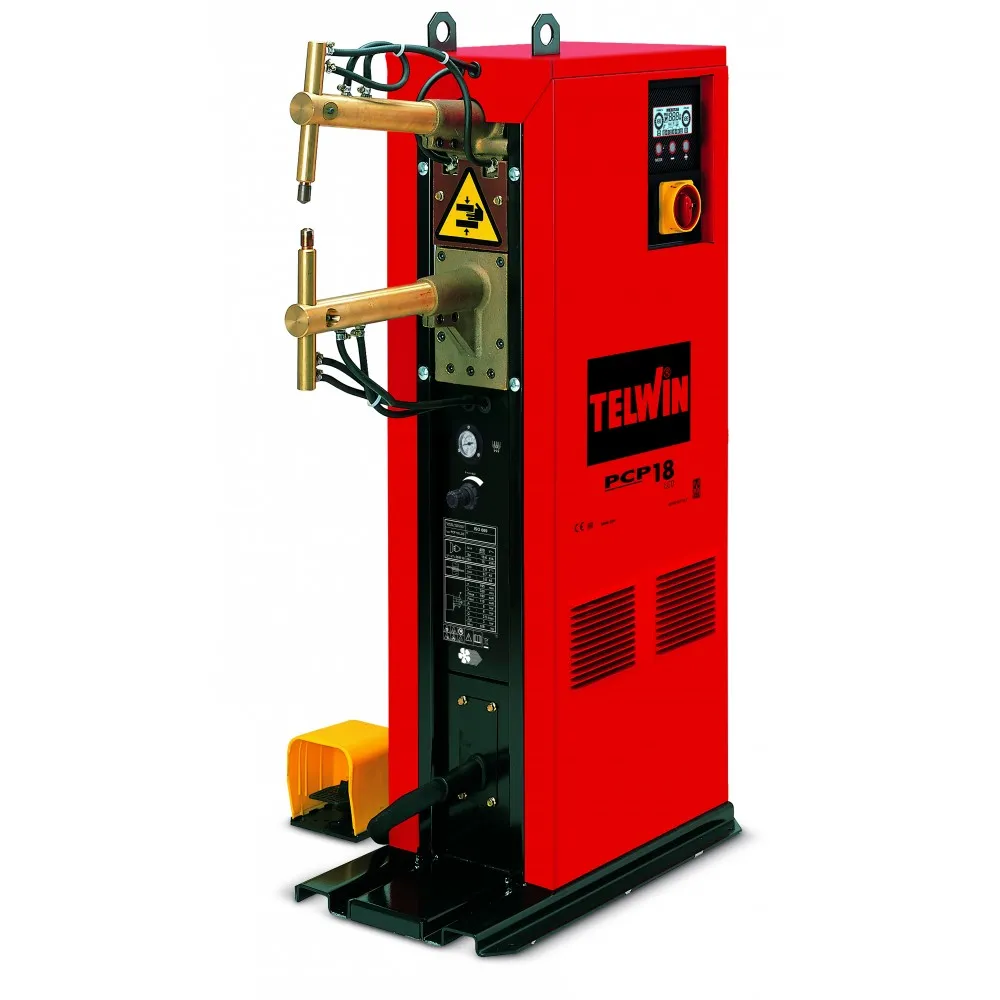

PCP 18 LCD 400V SPOT WELDER TELWIN

PCP 18 LCD 400V SPOT WELDING MACHINE

Shipping cost: Free for
5140,07 €
Tax included

4.213,17 € Tax excluded

Quantity
Available product, order it now.


PCP 18 LCD 400V
code 824052
Column-type resistance welder (spot welder), with oscillating arm, with digital microprocessor control.
The multifunctional LCD digital panel allows you to operate: in EASY mode (setting the current and spot welding time); in EXPERT mode (setting different spot welding parameters) with the possibility of saving up to 20 customized programs.
Continuous and pulsed operation guarantees excellent welds on various types of steel.
Characteristics:
- regulation of spot welding current (%), spot welding time (cycles), pressure and electrode closing speed
- choice of various parameters of the spot welding cycle (approach time, ramp time, welding time, pause time and number of pulses)
- easy-to-read LCD display
- pneumatic drive
- thermal protection with signalling
- air flow regulation to slow down the closing of the arms
The model requires water cooling of the electrodes and arms.
2 PH 400V
EAC CERTIFICATION
CE MARKING

ARM L=350MM 443021
STANDARD STRAIGHT ELECTRODE XP 690035

CODE 824052
MAXIMUM FORCE AT THE ELECTRODES 190 daN
TWO-PHASE MAINS VOLTAGE 400 V
ARM PROJECTION 330 mm
MAINS FREQUENCY 50 / 60 Hz
INTERMITTENCE RATIO 15%
MAX SPOT WELDING CURRENT 9700 A
PROTECTION DEGREE IP20
MAX NO LOAD VOLTAGE 2.6 V
DIMENSIONS 79 x 32 x 128 cm
MAX ABSORBED POWER 22 kVA
WEIGHT 18 kg
RATED POWER X=50% 15 VA
EAN CODE 800489797153 7
POWER FACTOR (cosphi) 0.7
PIECES / PALLET 3 pcs/pallet
MAXIMUM THICKNESS OF 2 SIDES 3 + 3 mm
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
