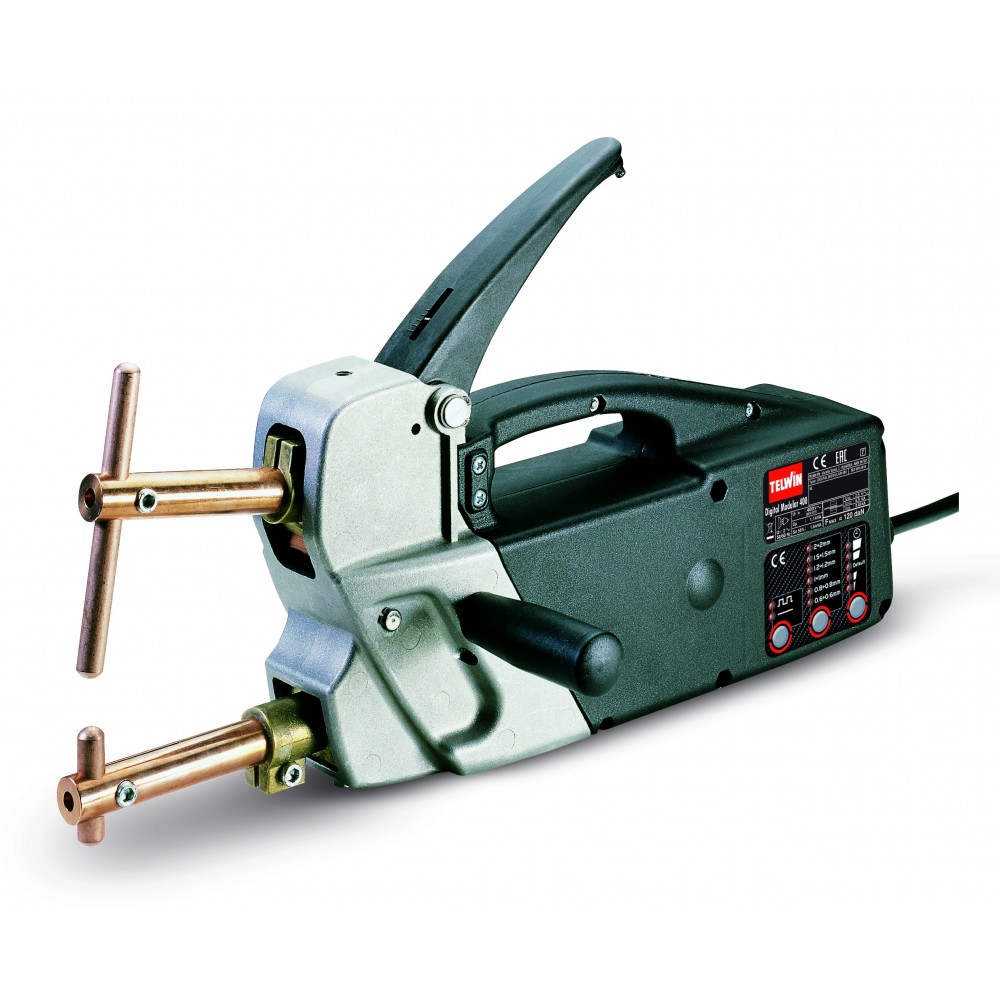

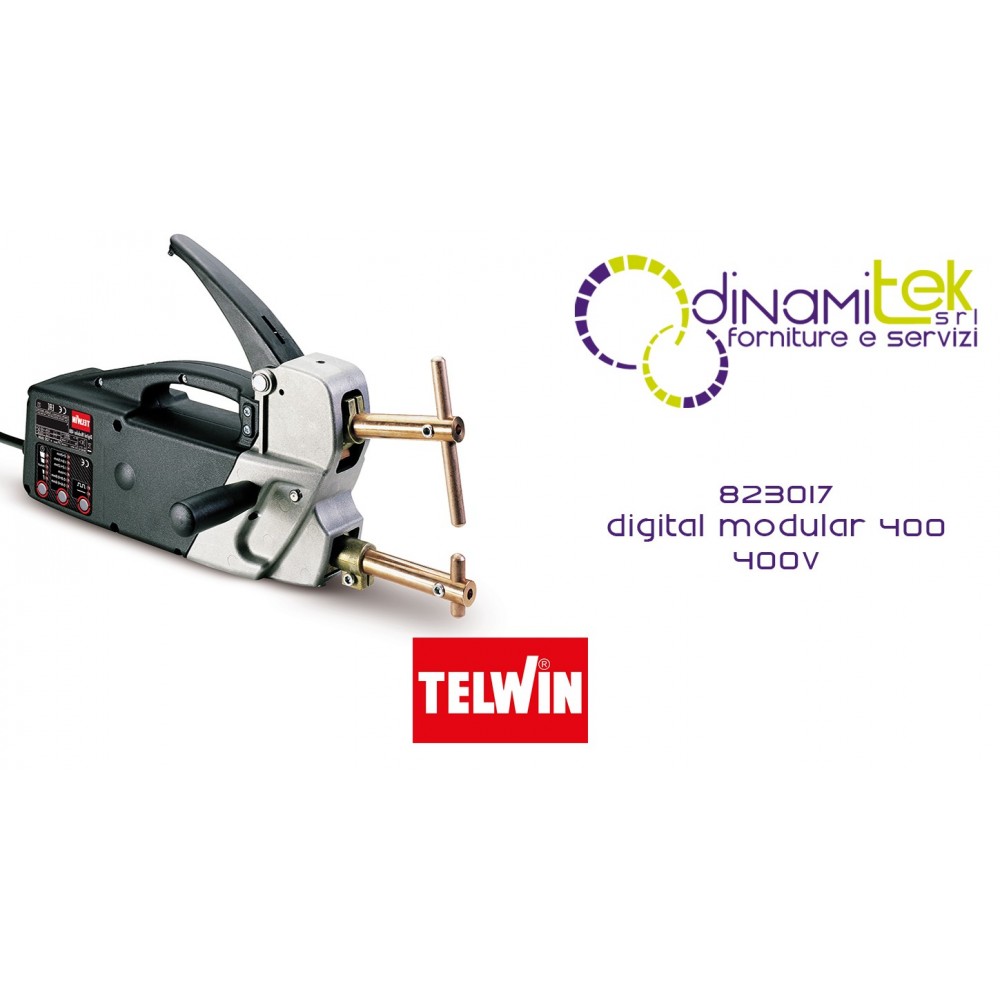

DIGITAL MODULAR 400 400V SPOT WELDER TELWIN

SPOT DIGITAL MODULAR 400 400V

|2
Shipping cost: Gratis for
934 €
Tax included

765,57 € Tax excluded

Quantity
Available product, order it now.


DIGITAL MODULAR 400 400V
code 823017
Microprocessor-controlled resistance welder (spot welder). It features a new fuzzy logic control system that simplifies use and improves spot quality.
Suitable for spot welding sheet metal with a maximum thickness of 2+2mm.
Characteristics:
- automatic adjustment of the current and spot welding time according to the thickness of the material
- selection between continuous and pulsed operation (suitable for sheets with high stress yield coefficient)
- adjustable force on the arms from 40 to 120Kg (with arms L=120mm)
- handle with thermal insulating material
- thermostatic protection.
2 PH 400V
MICROPROCESSOR
CE MARKING
EAC CERTIFICATION

CODE 823017
POWER FACTOR (cosphi) 0.9
TWO-PHASE MAINS VOLTAGE 400 V
MAXIMUM THICKNESS OF 2 SIDES 2 + 2 mm
MAINS FREQUENCY 50 / 60 Hz
INTERMITTENCE RATIO 1.5%
MAX SPOT WELDING CURRENT 6900 A
PROTECTION DEGREE IP20
MAX NO LOAD VOLTAGE 2.5 V
DIMENSIONS 44 x 10 x 18.5 cm
MAX ABSORBED POWER 13 kW
WEIGHT 10.3 kg
RATED POWER X=50% 2.3 kW
EAN CODE 800489746566 1
16 A MAINS FUSE
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
