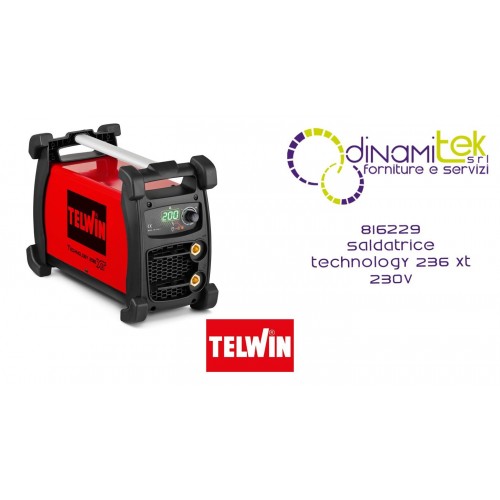

TECHNOLOGY 236 XT 230V WELDING MACHINE TELWIN

TELWIN TECHNOLOGY 236 XT 230V WELDING MACHINE ONLY.
code 816151
DC inverter MMA and TIG electrode welder with scratch striking. Flexible use with a wide variety of electrode types: rutile, basic, stainless steel, cast iron, etc.
Robust and shock resistant.
Characteristics:
- reduced weight and size
- quick connector (socket) Ø 50 mm
- high stability of the welding current in the event of variations in the supply voltage
- arc force, hot start, anti-stick devices
- thermostatic, overvoltage, undervoltage, overcurrent, motor generator (± 15%) protections.
MMA TIG DC SCRATCH
CE MARKING
1 PH 230V
EAC CERTIFICATION

CODE 816151
POWER CONSUMPTION AT 60% 3.3 kW
SINGLE-PHASE MAINS VOLTAGE 230 V
MINIMUM POWER OF MOTOR GENERATOR 10 kW
MAINS FREQUENCY 50 / 60 Hz
EFFICIENCY89% CURRENT REGULATION RANGE 5 - 200 A
POWER FACTOR (cosphi) 0.7
MAX DC CURRENT (EN 60974-1)200 @ 35 % A
D. ELECTRODES USABLE IN DC1.6 - 4 mm
DC CURRENT 140 A
PROTECTION DEGREE IP23
MAX NO LOAD VOLTAGE 60 V
DIMENSIONS 37.5 x 50 x 22 cm
MAXIMUM ABSORBED CURRENT 38 A
WEIGHT 10.55 kg
CURRENT ABSORBED AT 60% MAX 22 A
MAX ABSORBED POWER 6 kW
