816148 TECHNOLOGY PLASMA 60 XT 230V 1PH PLASMA CUTTING TELWIN

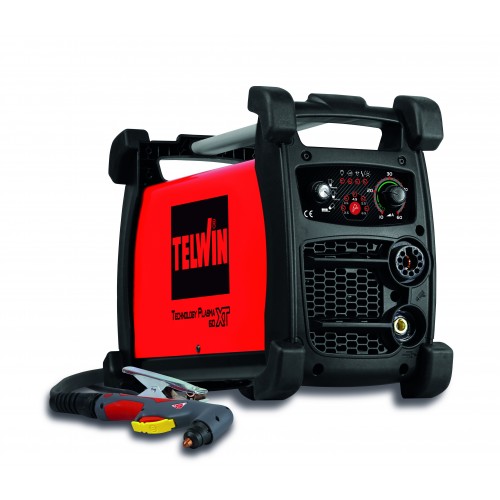

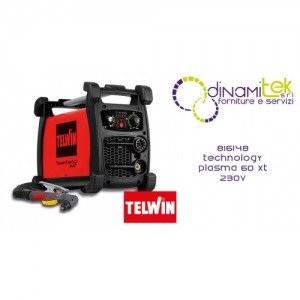

TECHNOLOGY PLASMA 60 XT 230V
code 816148
Compressed air plasma cutting inverter system, with contact ignition of the pilot arc.
It allows fast cutting without deformation, cutting on grids and gouging of all conductive materials such as steel, stainless steel, galvanized steel, aluminum, copper, brass, etc.
Characteristics:
- robust and shock resistant;
- reduced weight and size;
- signaling of presence of voltage in torch, protections;
- consumables change notification;
- automatic torch cooling;
- air pressure display;
- thermostatic, overvoltage, undervoltage, overcurrent, air lack protections.
Complete with PH torch.
1 PH 230V
INVERTER
CONTACT TRIGGER
CE MARKING
EAC CERTIFICATION

CODE 816148
90% YIELD
SINGLE-PHASE MAINS VOLTAGE 230 V
POWER FACTOR (cosphi) 0.7
MAINS FREQUENCY 50 / 60 Hz
MAXIMUM CUTTING THICKNESS 20 mm
CURRENT REGULATION RANGE 10 - 60 A
COMPRESSED AIR FLOW RATE 100 l/min
MAX CURRENT (EN 60974-1)50A @ 30% COMPRESSED AIR PRESSURE 4 - 5 bar
MAX NO LOAD VOLTAGE 313 V
PROTECTION DEGREE IP23
MAXIMUM ABSORBED CURRENT 34 A
DIMENSIONS 50.6 x 18.2 x 29.2 cm
MAX ABSORBED POWER 5.5 kW
WEIGHT 10.3 kg
20 A MAINS FUSE
