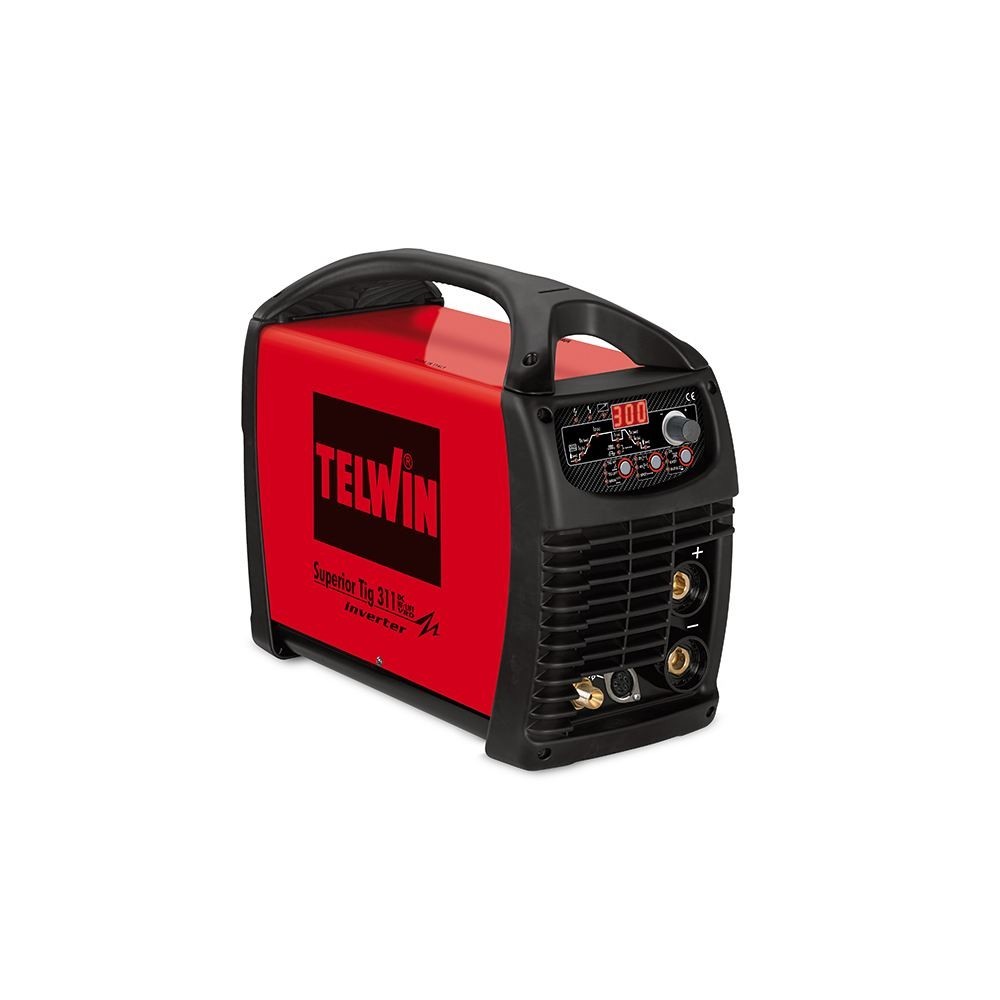

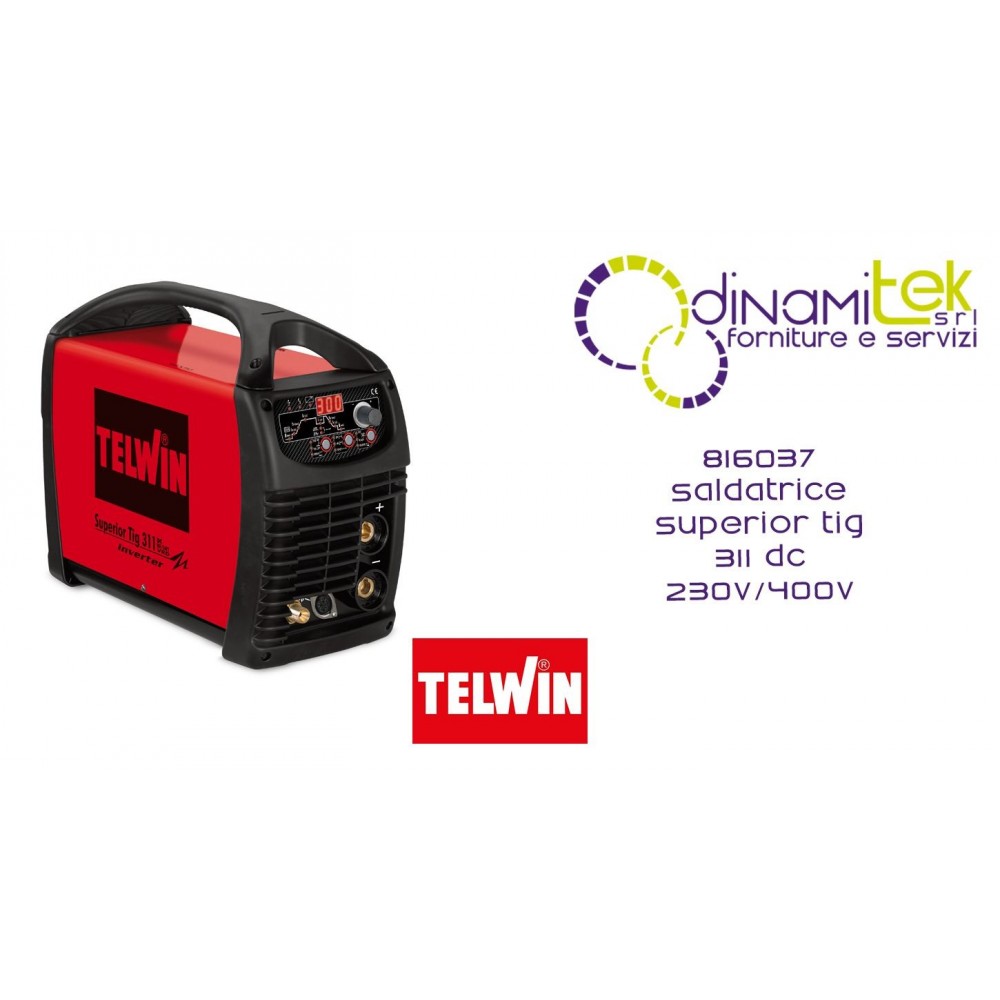

SUPERIOR TIG 311 DC-HF/LIFT WELDING MACHINE 230-400V + ACC.
SUPERIOR T.311 DC-HF/LIFT 230-400V +ACC
code 816123
Microprocessor-controlled TIG (high frequency HF or LIFT ignition), PULSED TIG and MMA inverter welding machine in direct current (DC).
Use with various types of materials such as stainless steel, titanium, copper, nickel and their.
Characteristics:
- pulsed and EASY pulsed operation
- TIG settings: "bi-level", initial/final current, spot welding time, post gas, pre gas, current up and down ramp, DC balance, square wave frequency
- THINSPOT utility for fast and precise spot welding
- MMA adjustments: arc force and hot start
- anti-stick device
- VRD device
- provision for remote control and GRA cooling unit
- thermostatic, overvoltage, undervoltage, overcurrent, cooling group protections.
Complete with TIG welding accessories.
TIG DC HF/LIFT MMA
3 PH 230V-400V
REMOTE CONTROLS
CE MARKING
EAC CERTIFICATION
TÜV SUD CERTIFICATION
ARGON CYLINDER ADAPTER IT 432036
PRESSURE REDUCER 2 MANOMETERS 12 Lmin 722119
TOLEDO 300 GROUND CLAMP 712231
ST26 TIG TORCH AX50 4M 742614
CABLE 25 MMQ 3 M - DINSE 50 713504
CODE 816123
POWER CONSUMPTION AT 60% 6.2 / 6.3 kW
THREE-PHASE MAINS VOLTAGE 230 / 400 V
MINIMUM POWER OF MOTOR GENERATOR 10 / 10 kW
MAINS FREQUENCY 50 / 60 Hz
MAINS FUSE 16 / 10 A
CURRENT REGULATION RANGE 10 - 250 / 10 - 300 A
YIELD 91%
MAX DC CURRENT (EN 60974-1)200 @ 42% / 300 @ 30% A
POWER FACTOR (cosphi) 0.9
DC CURRENT 185 / 205 A
D. ELECTRODES USABLE IN DC 1.6 - 5 mm
MAX NO LOAD VOLTAGE 61 / 64 V
PROTECTION DEGREE IP23
MAXIMUM ABSORBED CURRENT 19 / 14.4 A
DIMENSIONS 47 x 19 x 35.5 cm
CURRENT CONSUMPTION AT 60% - MAX 15 / 10.2 A
WEIGHT 18 kg
MAX ABSORBED POWER 7.2 / 9.2 kW
EAN CODE 800489797290 9
