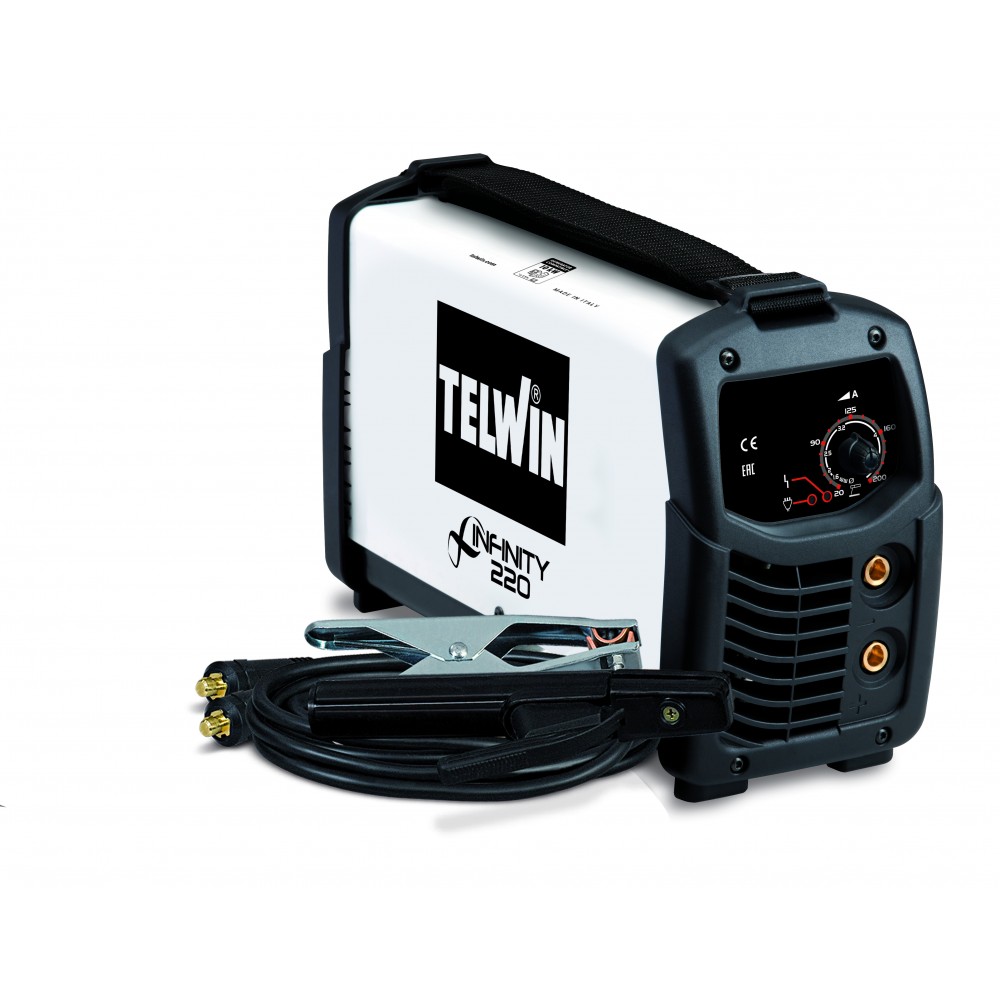

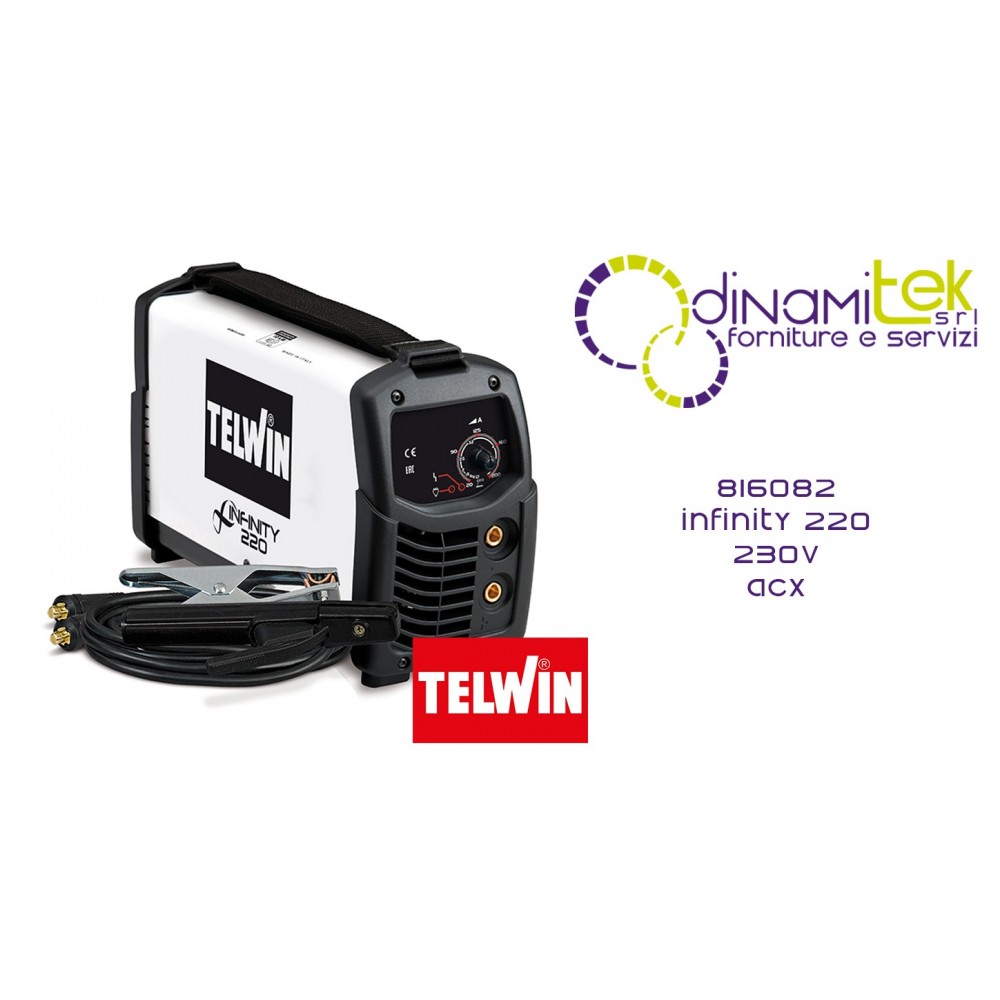

INFINITY WELDER 220 230V ACC.
INFINITY 220 230V ACC.
code 816082
MMA and TIG electrode inverter welder in direct current (DC) with scratch striking.
Flexibility of use with the most varied types of electrodes: rutile, basic, stainless steel, cast iron, etc.
Characteristics:
- compact and lightweight
- high stability of the welding current in the event of variations in the supply voltage
- arc force, hot start, anti-stick devices
- thermostatic, overvoltage, undervoltage, overcurrent, motor generator protection (+/- 15%).
Complete with accessories for MMA welding.
MMA DC
CE MARKING
1 PH 230V
EAC CERTIFICATION
CABLE 25 MMQ 2 M PLUG ATLAS 25 124465
TOLEDO 250 GROUND CLAMP 250A 712030
CABLE 25 MMQ 3 M PLUG ATLAS 25 124466
DALLAS 300 ELECTRODE HOLDER CLAMP 300A 712260
CODE 816082
MINIMUM POWER OF MOTOR GENERATOR 10 kW
SINGLE-PHASE MAINS VOLTAGE 230 V
YIELD 92%
MAINS FREQUENCY 50 / 60 Hz
POWER FACTOR (cosphi) 0.7
CURRENT REGULATION RANGE 20 - 200 A
D. ELECTRODES USABLE IN DC 1.6 - 4 mm
MAX DC CURRENT (EN 60974-1)200 @ 35 % A
PROTECTION DEGREE IP23
DC CURRENT 140 A
DIMENSIONS 40 x 14.5 x 24 cm
MAX NO LOAD VOLTAGE 60 V
WEIGHT 6.56 kg
MAXIMUM ABSORBED CURRENT 36 A
EAN CODE 800489796757 8
CURRENT ABSORBED AT 60% - MAX 24 A
PIECES / PALLET 56 pcs/pallet
MAX ABSORBED POWER 6 kW
PIECES / PALLET - B48 pieces/pallet B
POWER ABSORBED AT 60% 4 kW
TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963
Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.
The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.
The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.
Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.
Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
