816076 SALDATRICE TECHNOMIG 240 WAVE 230V TELWIN Dinamitek 1
  • 816076 SALDATRICE TECHNOMIG 240 WAVE 230V TELWIN Dinamitek 1
  • 816076 SALDATRICE TECHNOMIG 240 WAVE 230V TELWIN Dinamitek 2

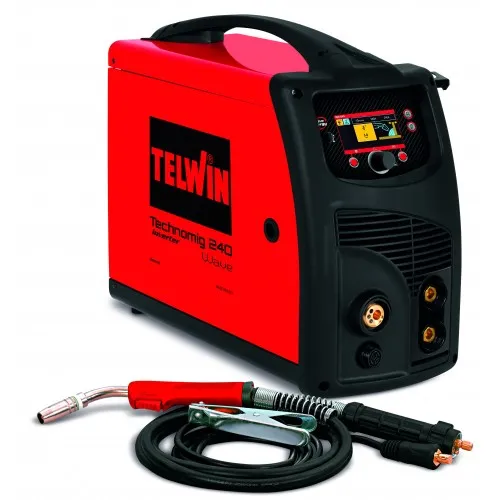

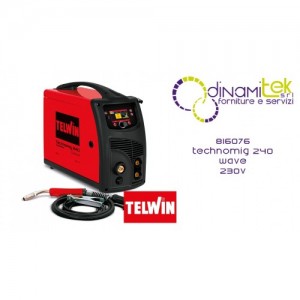

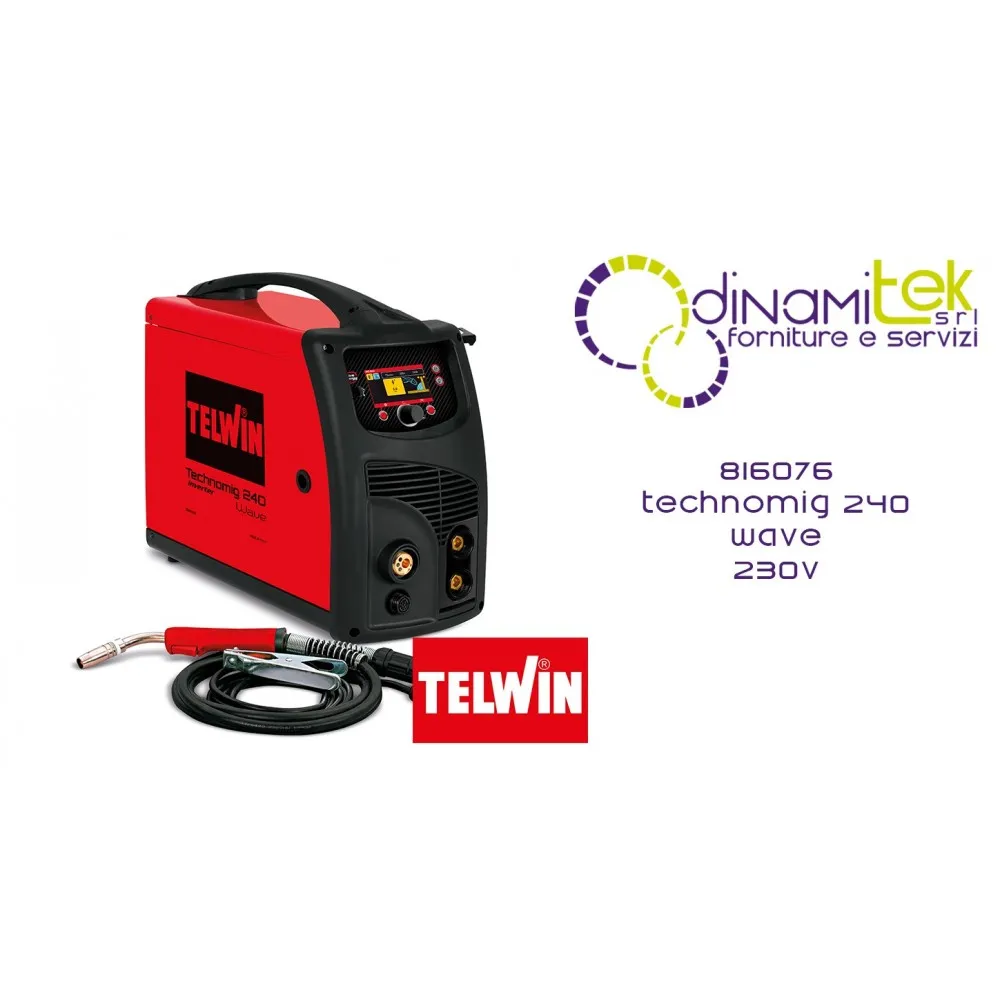

816076 TECHNOMIG 240 WAVE 230V MIG-MAG 1-PH WELDING MACHINE TELWIN

TECHNOMIG 240 WAVE 230V WELDER

Shipping cost: Free for
2022,63 €
Tax included

1.657,89 € Tax excluded

Quantity
Available product, order it now.


TECHNOMIG 240 WAVE 230V
code 816076
Microprocessor-controlled MIG-MAG/FLUX/BRAZING/MMA/TIG DC-LIFT multi-process inverter welding machine.
The WAVE OS system makes welding operations customizable based on the user's needs; traceable and analyzable through data saving via USB; simplified thanks to the synergic adjustment of parameters and the presence of specific programs for the materials to be welded.
Characteristics:
- 55 customizable programs,
- continuous and pulsed operation,
- user-friendly interface with color TFT screen,
- Wave OS operating system with pulsed welding programs for specific materials (AB Pulse for aluminium and galvanised sheets) and low heat input for thin thicknesses (ATC).
Complete with torch, cable and earth clamp.
MMA TIG DC LIFT
MIG-MAG FLUX
1 PH 230V
15 kg REEL
CE MARKING
EAC CERTIFICATION

25MMQ 3M CABLE - GROUND CLAMP - RH 50 713192
MT25 MIG TORCH 3M 742183

SINGLE-PHASE MAINS VOLTAGE 230 V
POWER FACTOR (cosphi) 0.7
NETWORK FREQUENCY
50 / 60 Hz
D. ELECTRODES USABLE IN DC 1.6 - 4 mm
CURRENT REGULATION RANGE 20 - 220 A
D. STEEL WELDING WIRE 0.6 - 1 mm
MAX DC CURRENT (EN 60974-1) 200 @ 20% A
D. STAINLESS STEEL WELDING WIRE 0.8 - 1 mm
DC CURRENT 100 A
D. ALUMINUM WELDING WIRE 0.8 - 1.2 mm
MAX NO LOAD VOLTAGE 96 V
D. 0.8 - 1.2 mm COOLED WELDING WIRE
MAXIMUM ABSORBED CURRENT 32 A
D. BRAZING WIRE 0.8 - 1 mm
CURRENT ABSORBED AT 60% - MAX 16 A
PROTECTION DEGREE IP23
MAX ABSORBED POWER 5 kW
DIMENSIONS 62 x 26 x 49 cm
POWER CONSUMPTION AT 60% 2.3 kW
WEIGHT 24 kg
YIELD 84%
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
