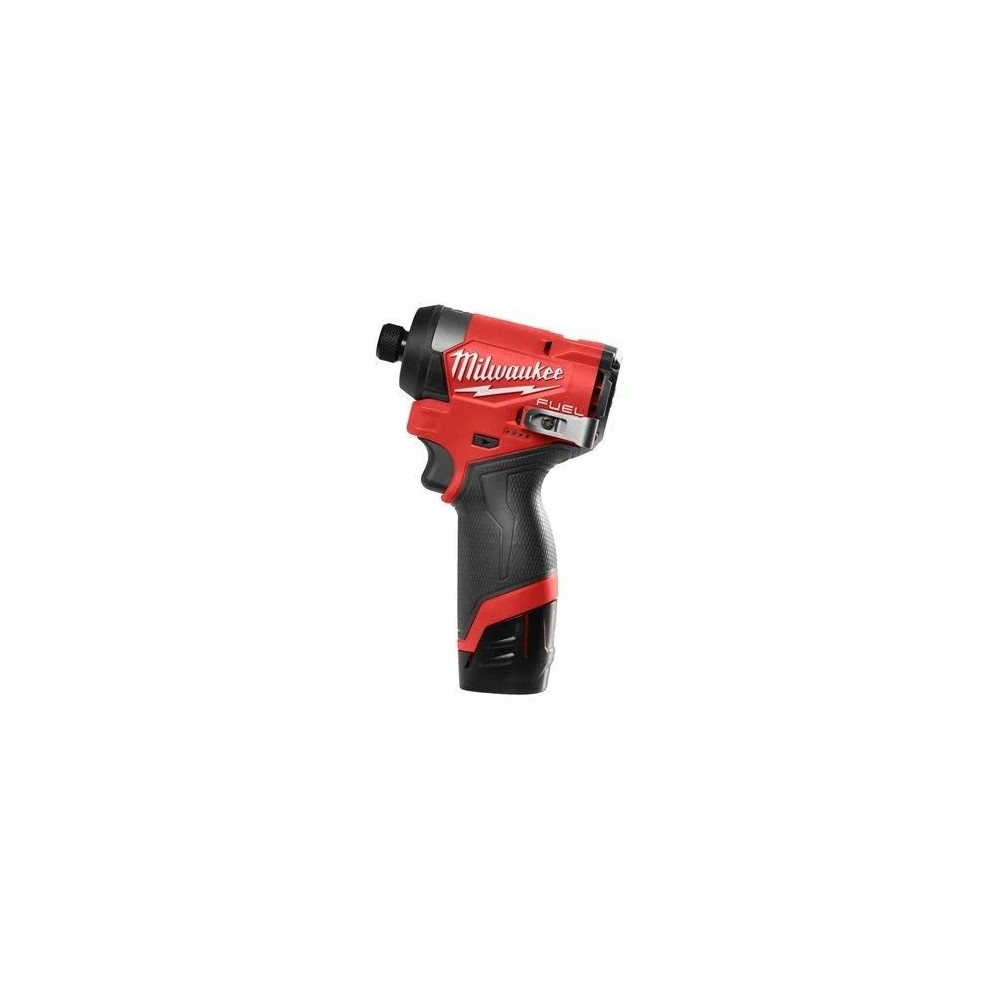

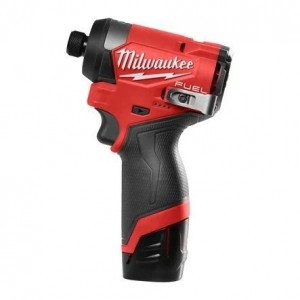

Compact Impact Wrench ¼" HEX M12 FUEL™

Model M12 FID2-202X (Item Code: 4933479877)

The M12 FUEL™ compact impact driver with ¼" HEX attachment (M12 FID2-202X) is a power tool designed by MILWAUKEE® to excel in terms of power and maneuverability. The extremely compact design makes it ideal for tackling fastening jobs in tight spaces .

Performance and Operating Specifications

• Extreme Size: The compact length is only 127mm .
• Maximum Torque: Delivers 170 Nm of torque.
• Speed and Impact Rate: The tool reaches a high speed of 3600 rpm and up to 4000 impacts/min .
• Attachment: Equipped with ¼″ Hex attachment for quick bit changes.
• Electronic Control (DRIVE CONTROL): This function allows the user to precisely select between three different speed and torque settings .
• Special Mode: Also includes a specific self-tapping mode .
• No-Load Speeds (Detail): The no-load speeds are 1,700/ 2,900/ 3,600/ 0 - 3,600 rpm, with Speed 1 (0 - 1700 rpm), Speed 2 (0 - 2900 rpm), and Speeds 3 and 4 (both 0 - 3600 rpm).
• Shot Frequency (Detail): Shots/min are 1,300/ 3,500/ 4,000/ 0 - 4,000.
• Capacity and Voltage: Works with 12V Li-ion batteries.
• Lighting: Three LEDs positioned on the front ensure illumination of the work area.
• Max Bolt Diameter: The maximum bolt diameter is 14mm .
• Weight (EPTA): The weight with the M12 B2 battery pack is 0.9 kg .

FUEL™ Technology and Compatibility

FUEL™ technology represents an innovation for cordless power tools, delivering superior performance and runtime through the integration of three key components:

1. The brushless motor .
2. REDLINK PLUS™ intelligent electronics.
3. The REDLITHIUM™ high-performance battery pack.

This screwdriver works with all MILWAUKEE® M12™ batteries .

Kit Composition (M12 FID2-202X - 4933479877)

The selected kit (Model M12 FID2-202X) is supplied in a Heavy Duty Case and includes the following items:
