• 0142/75 - MORSA TRAPANO FERVI Dinamitek 1

0142/75 DRILL VICE FERVI

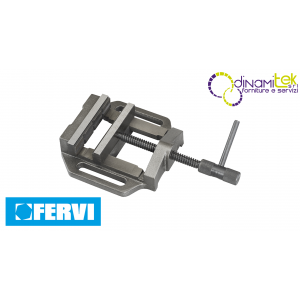

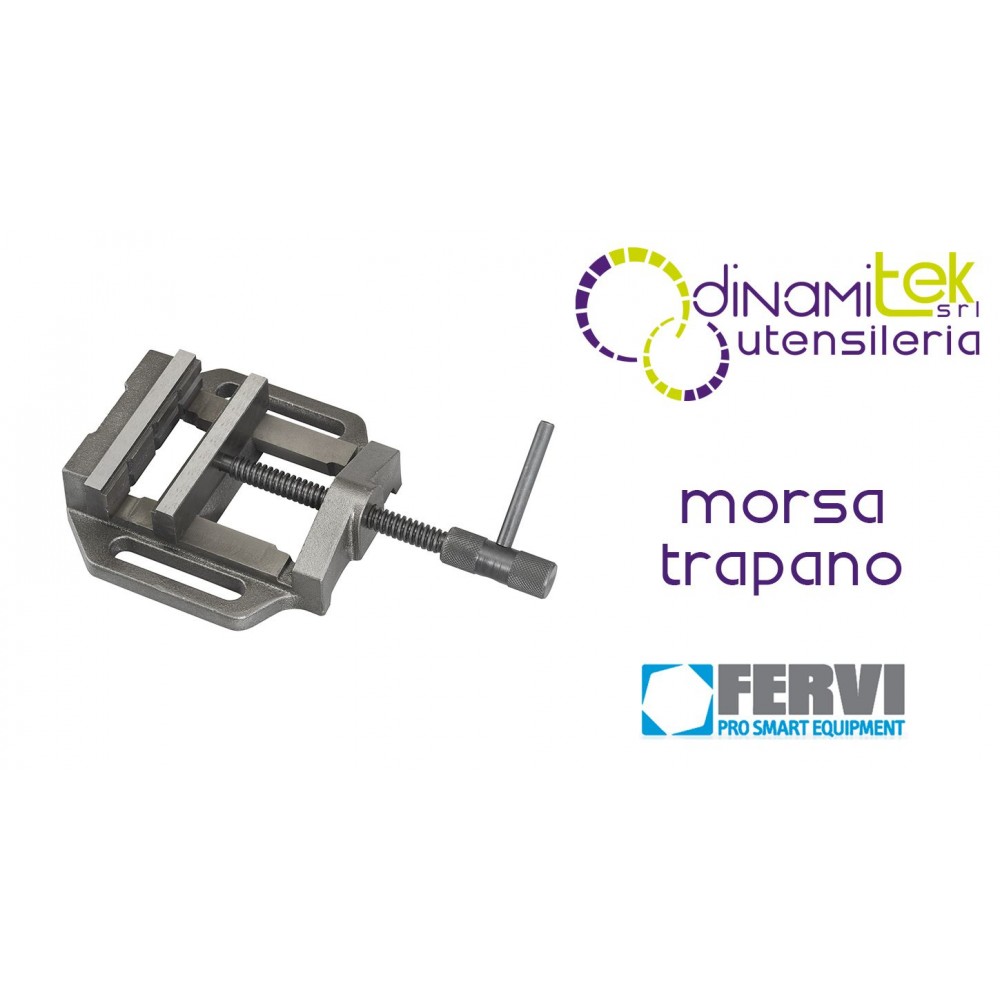

Cast iron drill press vice with 75 mm jaws Fervi Art. 0142/75.

The Fervi Art. 0142/75 machine vice is the ultra-compact cast iron model with 75 x 24 mm jaws and a useful opening of 55 mm , designed for the secure clamping of small pieces during column drill operations.

  • Dual jaw configuration: a prismatic jaw for round profiles and a smooth jaw for flat pieces.
  • Compact cast iron construction: 123 x 115 mm base suitable for grooved machine tool tables.
  • 55 mm clamping capacity: small footprint and net weight of only 1.5 kg for maximum ease of handling.
  • Smooth screw sliding: quick positioning and precise fastening.
Shipping cost: €10.00 for
21,09 €
Tax included

17,29 € Tax excluded

Quantity
Last items in stock

Technical Features and Advantages of the Fervi Drill Vice Art. 0142/75

The Fervi drill press vise, item 0142/75, is the compact version of the Fervi machine vise series, designed to ensure stability and firmness when drilling and light milling small parts or mechanical components. Made of high-strength cast iron, it is securely attached to the machine tool table via the grooves in the base.

Prismatic Jaw and Maximum Versatility

  • Prismatic Clamping for Round Bars: the "V" shaped jaw allows you to perfectly lock bars, tubes and cylinders horizontally or vertically.
  • Table Fixing Slots: ensure quick and adjustable mounting on the worktops of bench and column drills.

Detailed Technical Data Sheet

  • Item Code (SKU): 0142/75
  • Manufacturer / Brand: Fervi
  • Product Type: Drill Press Vice
  • Body material: Cast iron
  • Jaw dimensions: 75 x 24 mm
  • Maximum jaw opening: 55 mm
  • Jaw type: 1 prismatic + 1 smooth
  • Base dimensions: 123 x 115 mm
  • Package dimensions (L x W x H): 220 x 140 x 55 mm
  • Net weight: 1.5 kg
  • Gross weight: 1.84 kg
  • EAN Code: 8012667002121


0142/75
