• 0142/100 - MORSA TRAPANO FERVI Dinamitek 1

0142/100 DRILL VICE FERVI

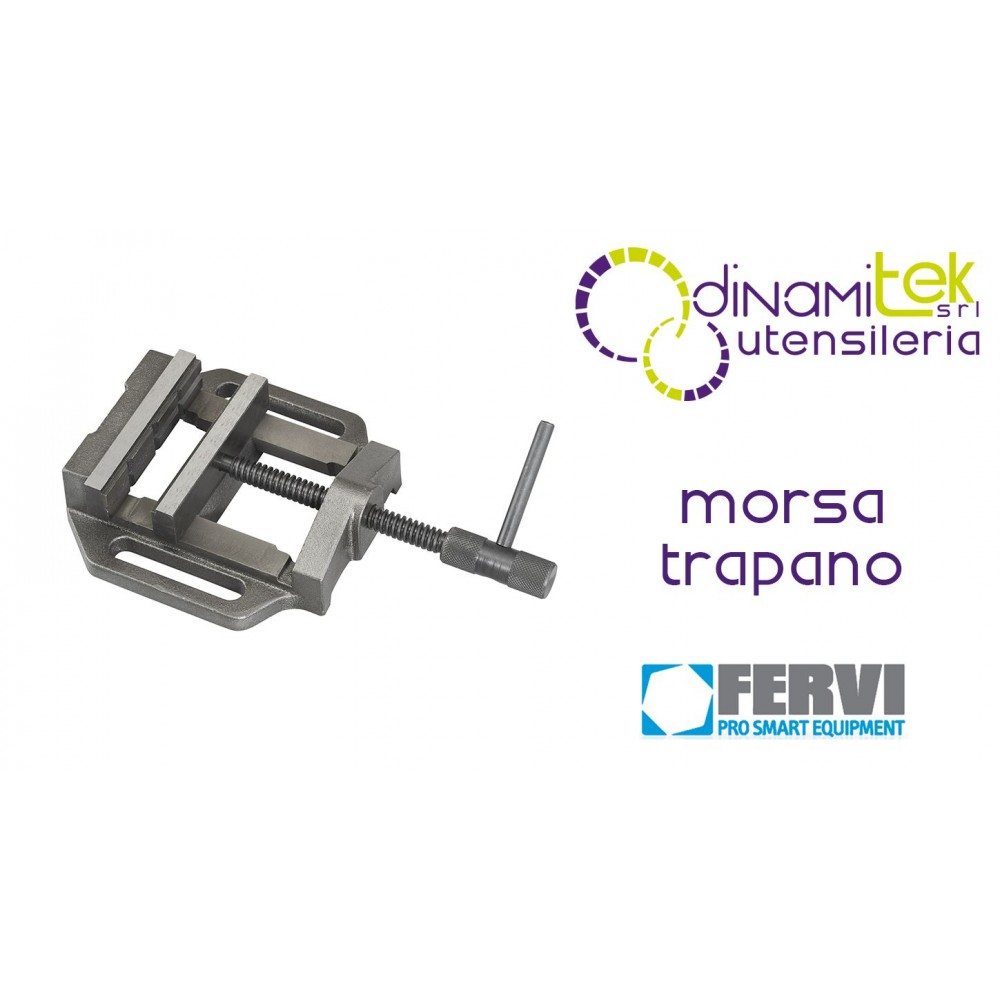

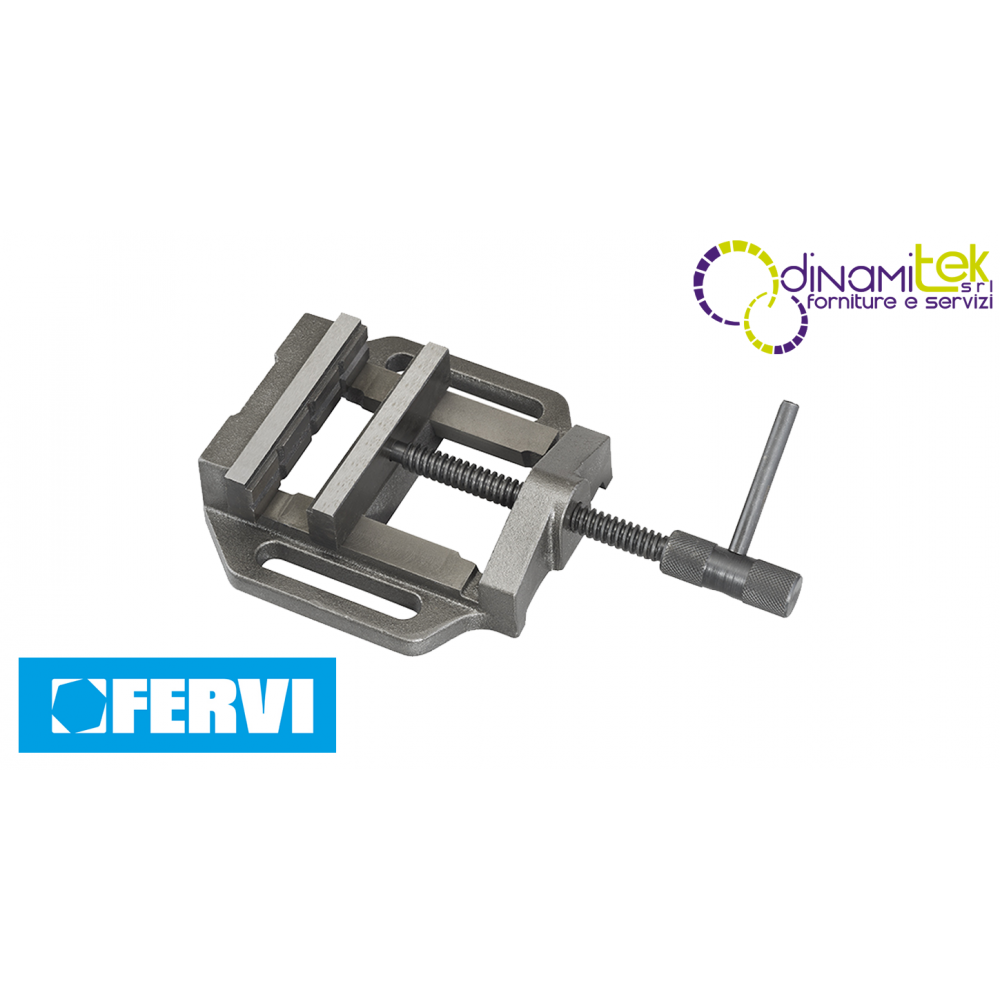

Cast iron drill press vice with 100 mm jaws Fervi Art. 0142/10.

The Fervi Art. 0142/100 machine vice is the compact-robust cast iron vice with 100 x 25.5 mm jaws and a useful opening of up to 85 mm , ideal for the secure clamping of round or flat pieces during machining with column and bench drills.

  • Dual jaw configuration: Equipped with a prismatic jaw for cylindrical profiles and a smooth jaw for flat surfaces.
  • Highly stable cast iron structure: 160 x 155 mm base with slots for fixing to the machine table.
  • 85 mm clamping capacity: compact size and weight of only 2.5 kg for quick positioning on the bench.
  • Smooth screw movement: precise, flex-free manual tightening.
Shipping cost: €5.00 for
29,42 €
Tax included

24,12 € Tax excluded

Quantity
Last items in stock

Technical Features and Advantages of the Fervi Drill Vice Art. 0142/100

The Fervi machine vise, Art. 0142/100, is designed to provide rigid, vibration-free clamping during drilling operations on metal, wood, and plastic materials. Made entirely of high-strength cast iron, it is easily secured to the machine tool table via the wide lateral grooves on the base.

Ease of Use and Prismatic Tightening

  • Integrated Prismatic Jaw: The "V" shape allows you to clamp tubes, round bars and rods vertically or horizontally without the risk of slipping during drilling.
  • Universal Anchoring Slots: allow adjustment of the centre distance on the grooved work surfaces of column drills and drill-mills.

Detailed Technical Data Sheet

  • Item Code (SKU): 0142/100
  • Manufacturer / Brand: Fervi
  • Product Type: Drill Press Vice
  • Body material: Cast iron
  • Jaw size: 100 x 25.5 mm
  • Maximum jaw opening: 85 mm
  • Jaw type: 1 prismatic + 1 smooth
  • Base dimensions: 160 x 155 mm
  • Packaging dimensions (L x W x H): 180 x 65 x 250 mm
  • Net weight: 2.5 kg
  • Gross weight: 2.72 kg
  • EAN Code: 8012667002138


0142/100
