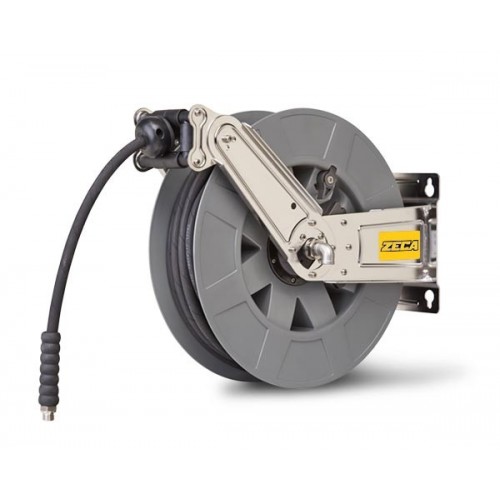

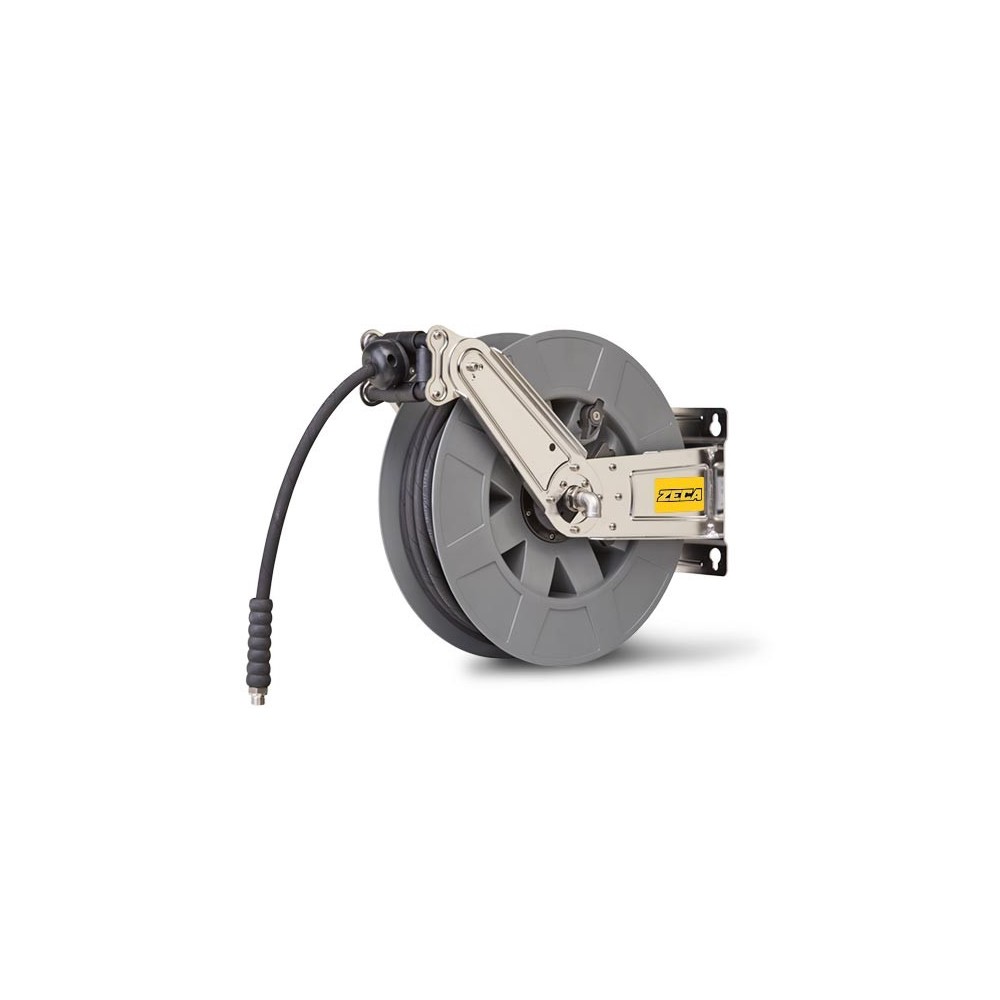

8404/1000 HOSE REEL LIGHT STAINLESS ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE 12 M - DIAM INT PIPE 10 MM Dinamitek 1
  • 8404/1000 HOSE REEL LIGHT STAINLESS ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE 12 M - DIAM INT PIPE 10 MM Dinamitek 1
  • 8404/1000 HOSE REEL LIGHT STAINLESS ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE 12 M - DIAM INT PIPE 10 MM Dinamitek 2
  • 8404/1000 HOSE REEL LIGHT STAINLESS ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE 12 M - DIAM INT PIPE 10 MM Dinamitek 3

8404/1000 8400 SERIES STAINLESS STEEL LIGHT HOSE REEL FOR AIR AND WATER 20 BAR, 12 M HOSE - 10 MM INNER TUBE DIAMETER ZECA

AIR-WATER HOSE REEL 20 Bar SERIES 8400 LIGHT INOX NEW.

AISI 304 stainless steel bracket.

Standard joint.

Brass outlet fitting.

Stainless steel screws.

Shipping cost: Free for
347,74 €
Tax included

285,04 € Tax excluded

Quantity
Available product, order it now.

8404/1000 LIGHT STAINLESS STEEL HOSE REEL 8400 SERIES FOR AIR AND WATER 20 BAR Zeca HOSE m 12 - DIAM INT
The 8400 hose reels in the innovative stainless steel series are even more performing
Suitable for use in aggressive work environments and corrosive atmospheres, they are used in the chemical, marine, and industrial sectors. They are ideal for fluid transport, industrial cleaning, and blowing operations.
The 8404/1000 hose reel has an ABS reel. The brackets and screws are made of stainless steel. The outlet fitting is steel/brass, the inlet fitting is brass. The technical data sheet specifies all the materials used to make the individual components.
For ease of use, the hose reel features an automatic hose stop system, allowing you to work comfortably at the desired length. The roller nozzle can be positioned in various configurations. The hose always unwinds and rewinds easily and simply. The hose stopper is also adjustable.
Technical data sheet
Fluid
air – water type 20 bar
temperature -15°C / +50°C
Tube
SAE 100R6 hose type
tube diameter 10 mm 3/8”
tube length 12 m
Connections
1/2”F inlet
3/8”M outlet
Detail of the inlet connection
steel coil shaft
FPM (Viton) gasket
brass bushing
rotating joint shaft in brass/AISI 304 stainless steel
brass ring
PTFE rod guide ring
brass inlet fitting

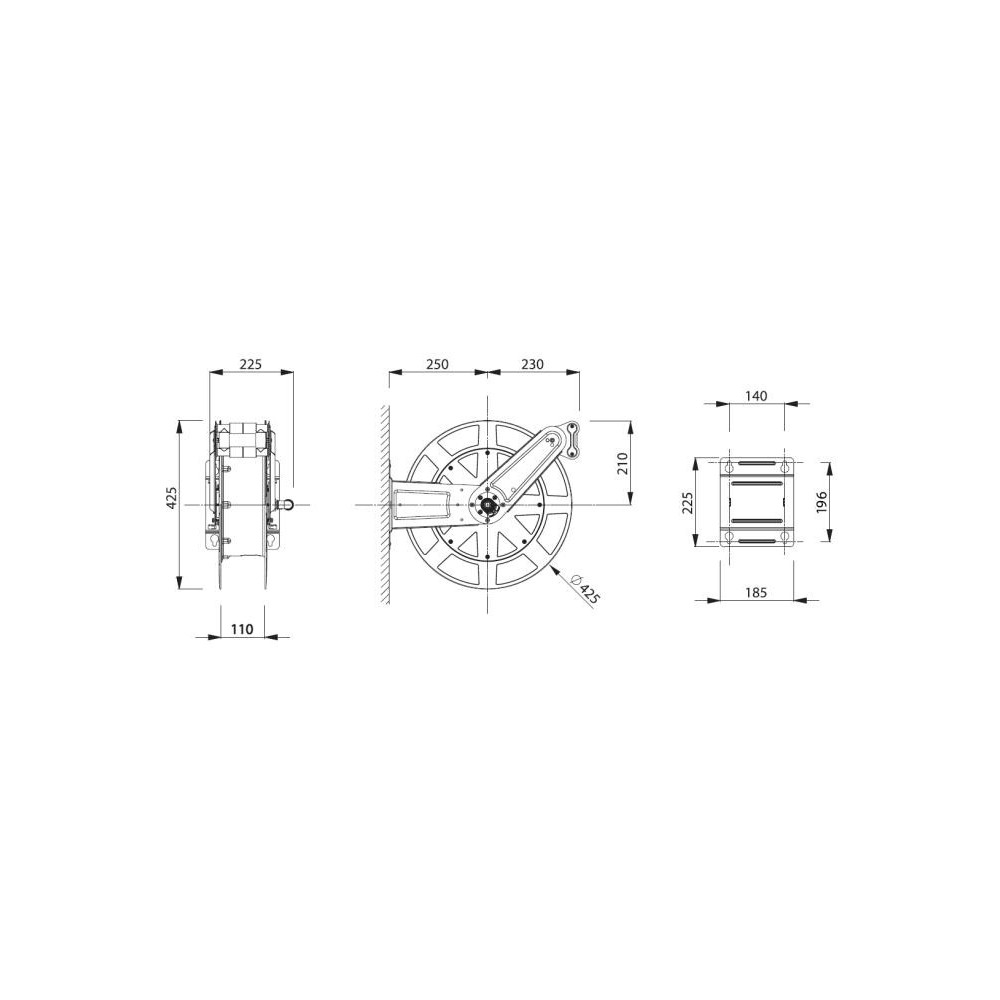

Dimensions 550X505X270 mm
Weight 10 kg
ISO EN 12100 CE 2006/42/CE regulation
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8404/1000

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
