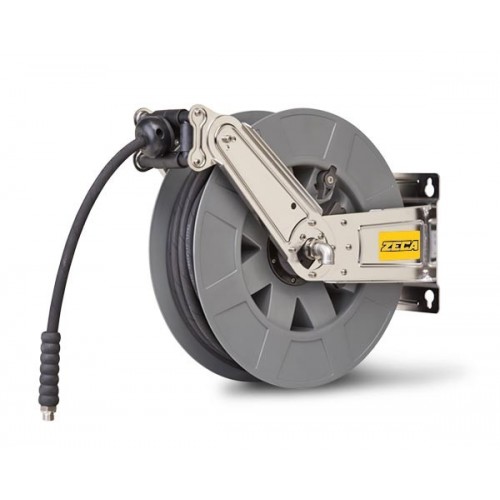

8401/1003 8400 SERIES STAINLESS STEEL HOSE REEL FOR AIR AND WATER 20 BAR WITHOUT HOSE ZECA

AIR-WATER HOSE REEL 20 Bar SERIES 8400 LIGHT INOX NEW.

AISI 304 stainless steel bracket.

Standard joint.

Brass outlet fitting.

Stainless steel screws.

Shipping cost: Free for
251,91 €
Tax included

206,48 € Tax excluded

Quantity
Available product, order it now.

8401/1003 LIGHT STAINLESS STEEL HOSE REEL 8400 SERIES FOR AIR AND WATER 20 BAR Zeca WITHOUT HOSE
Professional hose reel with ABS spool and automatic hose stop system, allowing you to conveniently work at the desired length. The roller nozzle can be easily adjusted to different positions, making unwinding and rewinding the hose quick and easy. The hose stopper is also adjustable.
The 8401 hose reel is made of high quality materials:
Brackets are made of AISI 304 stainless steel
The screws are made of AISI 316L stainless steel
The outlet connection is made of steel/brass
The inlet connection is made of brass
The rotary joint shaft is made of brass/AISI 304 stainless steel
Steel coil shaft, bushings and rings are made of brass
Technical data sheet
Fields of application
nautical
chemical sector
aggressive work environments with corrosive atmospheres
industrial cleaning
blowing operations
fluid transport
Fluid
air – water type 20 bar
temperature -15°C / +50°C
Connections
1/2”F inlet
1/2”F outlet
Detail of the inlet connection
steel coil shaft
FPM (Viton) gasket
brass bushing
rotating joint shaft in brass/AISI 304 stainless steel
brass ring
PTFE rod guide ring
brass inlet fitting
Dimensions 550X505X270 mm
Weight 10 kg
ISO EN 12100 CE 2006/42/CE regulation
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8401/1003

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
