8415 HOSE REEL ZECA SERIES 8400 FOR OIL AND DIESEL 15 BAR HOSE M 8 - DIAM INT PIPE 19 MM Dinamitek 1
  • 8415 HOSE REEL ZECA SERIES 8400 FOR OIL AND DIESEL 15 BAR HOSE M 8 - DIAM INT PIPE 19 MM Dinamitek 1
  • 8415 HOSE REEL ZECA SERIES 8400 FOR OIL AND DIESEL 15 BAR HOSE M 8 - DIAM INT PIPE 19 MM Dinamitek 2
  • 8415 HOSE REEL ZECA SERIES 8400 FOR OIL AND DIESEL 15 BAR HOSE M 8 - DIAM INT PIPE 19 MM Dinamitek 3

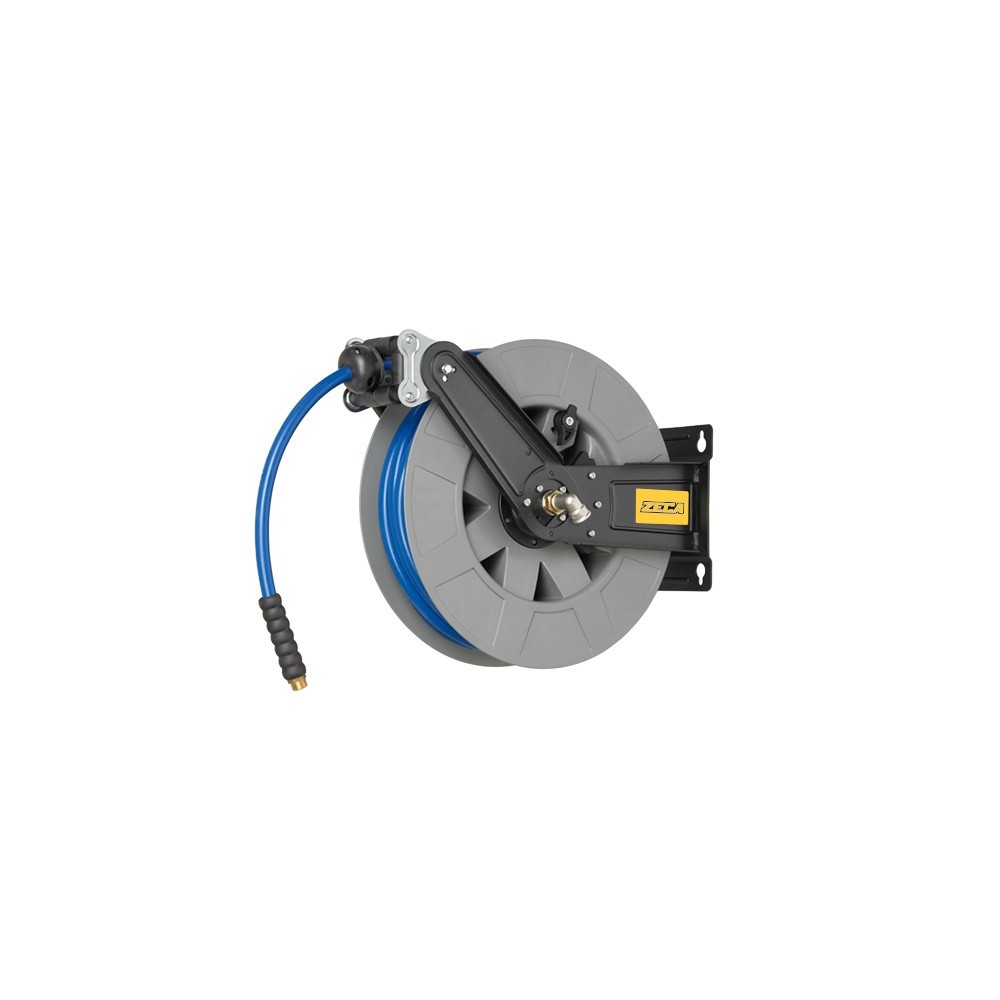

8415 HOSE REELS SERIES 8400 FOR OIL AND DIESEL 15 BAR ZECA HOSE M 8 - DIAM INT PIPE 19 MM

HOSE reel for DIESEL, OIL, 15 Bar SERIES 8400.

Bracket in steel painted with epoxy powders.

The standard coupling.

Connector in brass.

Steel bolts and screws.

Shipping cost: Free for
339,53 €
Tax included

278,30 € Tax excluded

Quantity
Available product, order it now.

8415 HOSE reels SERIES 8400 FOR OIL AND DIESEL 15 BAR ZECA HOSE m 8 - DIAM INT PIPE 19 mm

The range 8400 is designed to serve the different fields of application and coinsentire the passage of all types of fluids. The hose reel differ by type of pipe, for fittings of inlet and outlet and especially for the type of fluid, pressure and temperature that support.

Fluids: air, water, high-pressure, hot water, oil, diesel, Ad Blue
Fields of application: fuel, aviation, military, marine, mining, construction, agriculture, chemical, mechanic, industry, car washes, industrial cleaning, food industry and large kitchens.
requirements of ISO EN 12100 EC 2006/42/EC and the specific models to directive 2014/34/EU II 2GD c IIB T4/T135°C X (Number of Certificate of Type Examination IMQ 14 ATEX 009 X according to Standards EN 13463-1:2009; EN 13463-5:2011 (yellow label hex code Ex).
The HOSE reel 8415 SERVES for THE PASSAGE OF OIL AND DIESEL TO 15 BAR
The distinguishing features of a hose reels series 8400
automatic stop system of the tube
the mouth of the rollers can be positioned in different configurations
buffer wraps adjustable
spring rewind with technology maximo process
fixing bracket in steel painted with epoxy powders adjustable
the joint is of the standard type
connector in brass/steel
steel bolts and screws.
The hose reels series 8400 zeca are technologically advanced. Are equipped with rollers hose guiding self-lubricated, the coil is made of ABS, the rotary joint is without bottlenecks and works with low coefficient of friction, the bearings of the support rolls are made of auto-lubricating material
Data sheet

Hose reel:
max pressure (Bar) 15
using oil and diesel
fluid temperature -10°C/+60°C

Tube:
diameter mm 19 3/4”
length m 8
type PVC-PU

Fittings:
entry ¾ ” M
exit ¾ ” F swivel

The choice of materials is what makes the difference. In detail, the outlet port is formed by:
shaft steel coil
seal in FPM (Viton)
Bushing brass
Shaft rotary joint of AISI 304 STAINLESS steel or brass for the models in the range which operate at low pressure
roller thrust bearing
ring brass
ring rod guide, PTFE
the fitting on the inlet side in brass

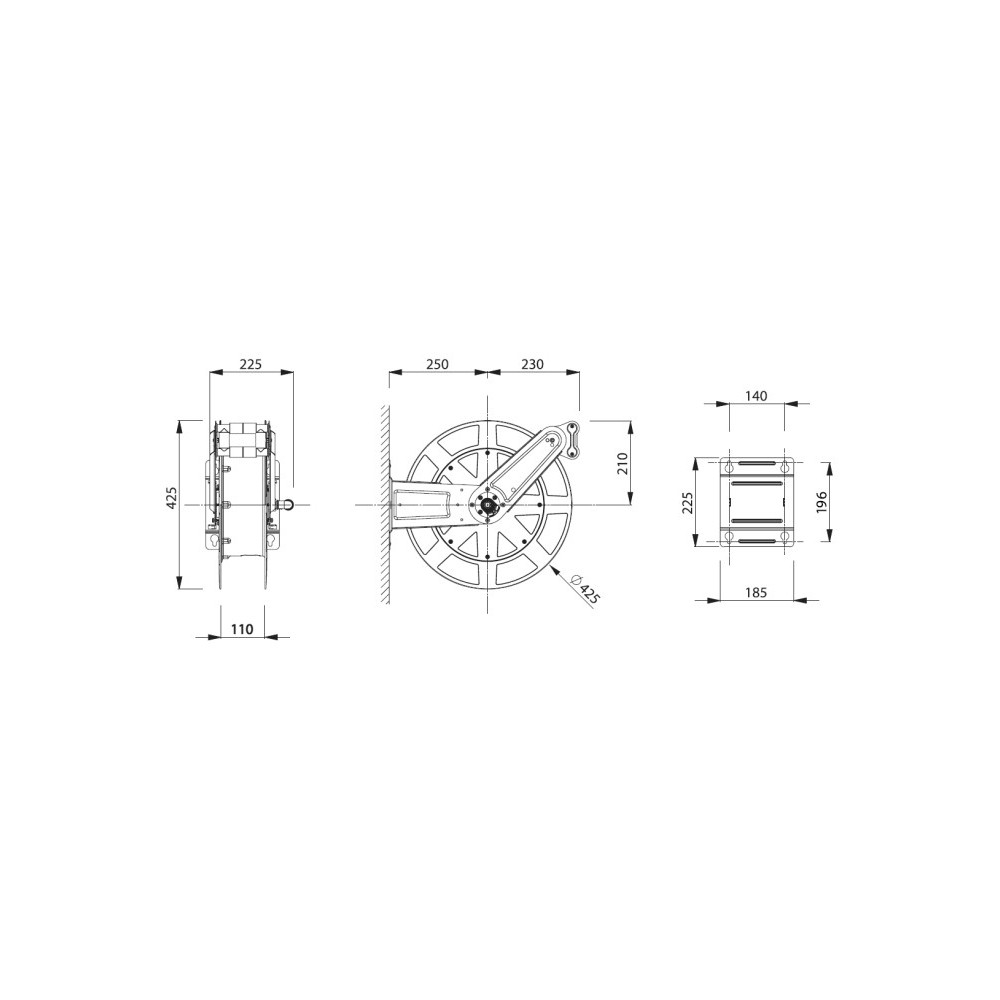

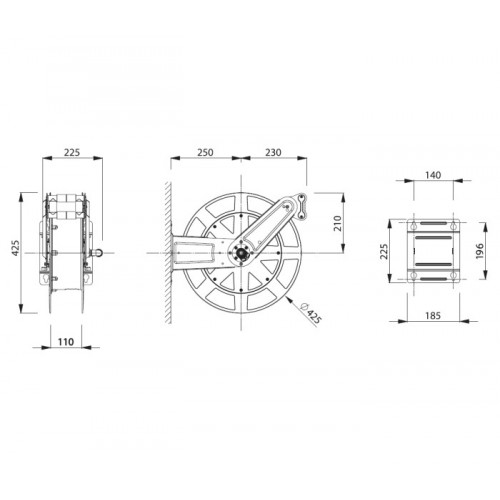

Size and weight 550x505x270 mm, 10 Kg
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8415

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
