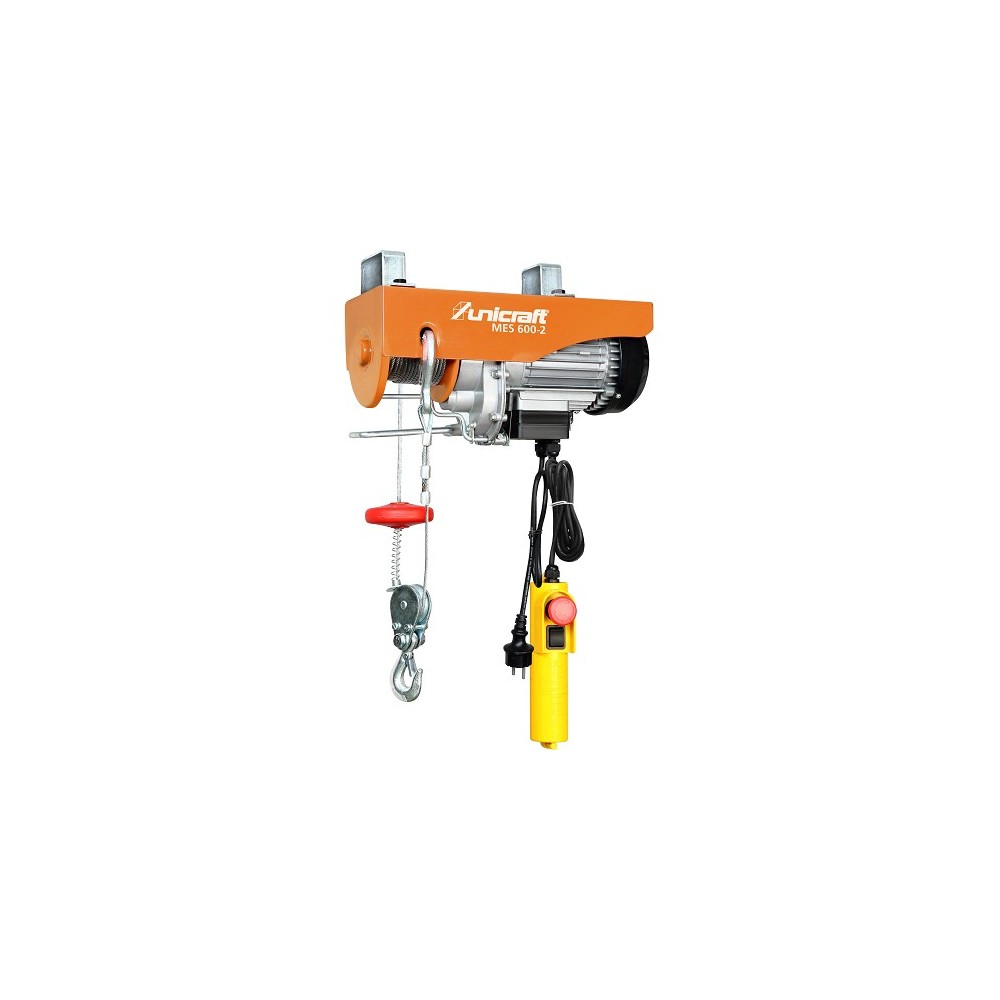

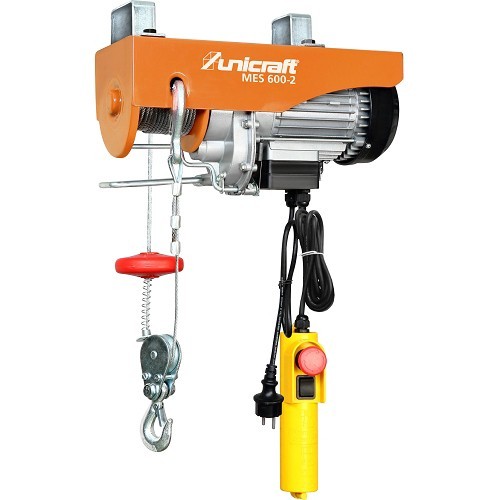

MES 600-2 MINI ELECTRIC WINCH LIFTING POWER WITHOUT/WITH PULLEY 300/600 KG UNICRAFT

The unicraft MES 600-2 electric mini winch (Code 619 8260) is a high-capacity professional tool designed for vertical lifting of loads up to 600 kg . Ideal for workshops, warehouses, and construction sites, this single-phase winch combines a robust structure with advanced safety systems. Thanks to the included return pulley , the rated capacity can be doubled, ensuring versatility and control in every goods handling operation.

Shipping cost: €15.00 for
Request availability
<<>>

Efficiency and Safety in Industrial Lifting

The unicraft MES 600-2 model represents one of the most high-performance solutions in the MES series for lifting medium-heavy loads. Designed to operate with a standard 230V electrical network, this wire rope winch is the ideal choice for those requiring power in a compact and easy-to-install package.

Main Features and Safety Standards

  • Pulley Configuration: The scope of delivery includes an additional hook with pulley that allows the machine to be configured to lift up to 600 kg (compared to 300 kg in single pull), offering essential operational flexibility for different types of loads.
  • Protection and Reliability: The control switch features IP 54 rated insulation, ensuring resistance against dust and splashes of water, typical of intensive working environments.
  • Operational Control: The system integrates a safety limit switch that automatically stops the ascent or descent of the rope at pre-set limits, and an easily accessible emergency stop switch on the control panel.
  • Easy Assembly: Comes with two fixing clamps for quick attachment to round bars or pipes (min. Ø 48 mm). It's also perfectly compatible with WSA series flag supports.

Robust Design

The 4.5mm steel cable and reinforced structure ensure stability and positioning accuracy, reducing vibrations and mechanical wear over time.

Technical Reference Data

Characteristic Detail
Product Code 619 8260 (UNI6198260)
Lifting power (without/with pulley) 300 kg / 600 kg
Max lifting height (without/with pulley) 12 m / 6 m
Max lifting speed (without/with pulley) 10 m/min / 5 m/min*
Diet 230 V ~ 50 Hz
Rope diameter 4.5 mm
Protection class IP 54
Net weight 17.5 kg

Standard Equipment Included:

  • Additional hook with pulley.
  • Pair of clamps for fixing to tubular structures.
  • High tensile steel wire rope (4.5 mm).
  • Control panel with emergency stop.
L'affidabilità della produzione tedesca: macchine utensili e attrezzature per la movimentazione sicura dei carichi
