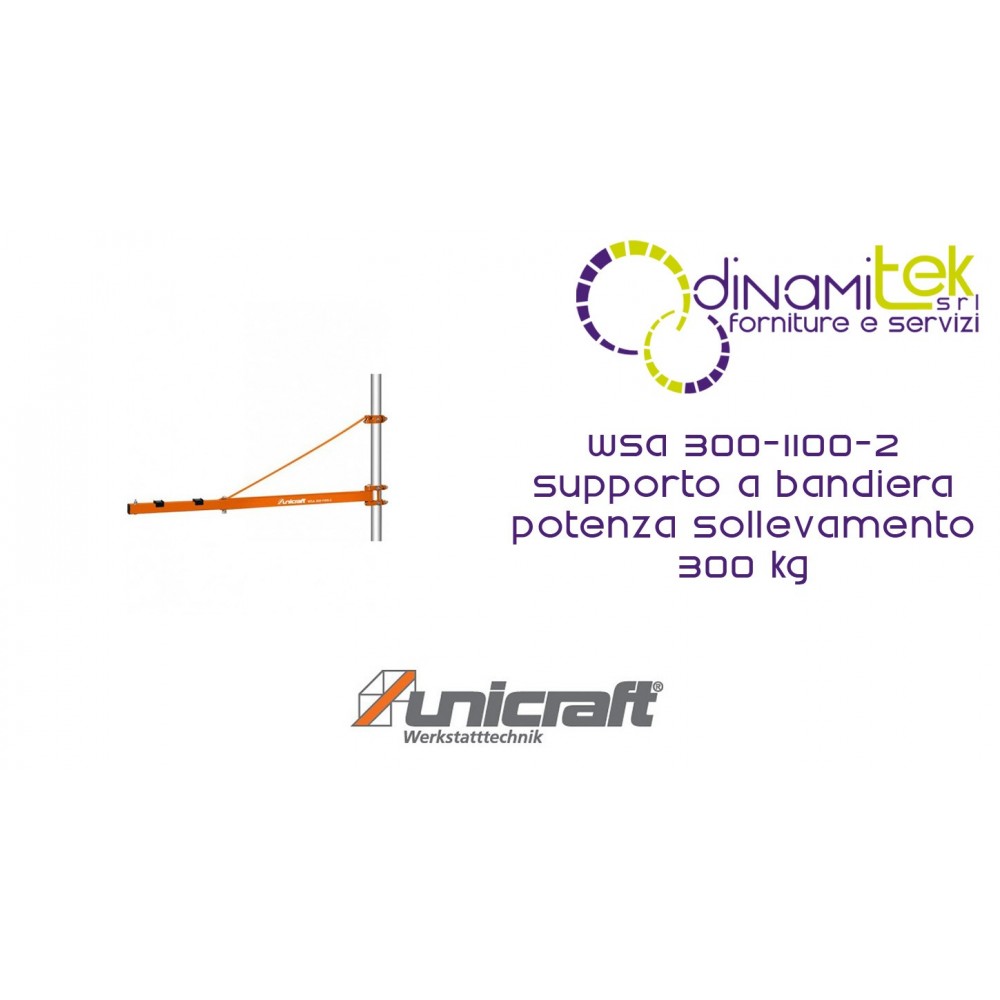

SUPPORT IN FLAG POWER-LIFTING 300 KG WSA 300-1100-2 UNICRAFT Dinamitek 1
  • SUPPORT IN FLAG POWER-LIFTING 300 KG WSA 300-1100-2 UNICRAFT Dinamitek 1

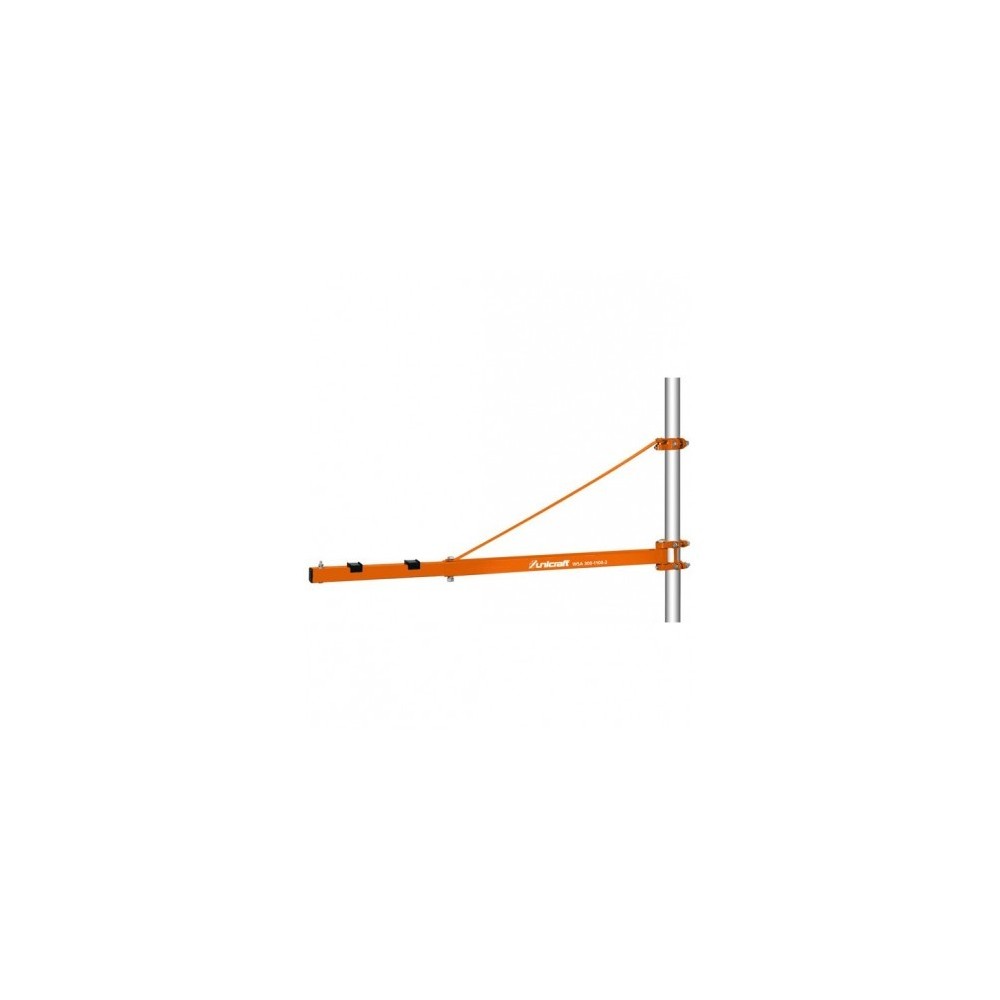

  • SUPPORT IN FLAG POWER-LIFTING 300 KG WSA 300-1100-2 UNICRAFT Dinamitek 2

WSA 300-1100-2 FLAG SUPPORT LIFTING POWER 300 KG UNICRAFT

The unicraft WSA 300-1100-2 jib support (Code 619 8605) is the professional accessory designed to increase the versatility of electric wire rope winches. With a lifting capacity of 300 kg and a projection of 1,100 mm , this rotating arm allows you to move loads with millimeter precision. Ideal for installation on pipes or round bars in workshops and construction sites, it is the perfect complement to the MES 250-2 and MES 600-2 series mini winches.

Shipping cost: €15.00 for
77,57 €
Tax included

63,58 € Tax excluded

Quantity
Available product, order it now.

Flexibility and Capacity for Vertical Movement

The unicraft WSA 300-1100-2 jib support is a robust and reliable solution for those who need to distance the lifting point from the main anchoring structure. Thanks to its extended projection of 1,100 mm , it allows you to bypass structural obstacles and position the load with extreme ease.

Installation and Compatibility

  • Easy Assembly: The bracket is designed for mounting on round bars or pipes . To ensure maximum safety, a minimum support tube diameter of 48 mm is required (vertical rod not included).
  • MES Ecosystem: This model is specifically optimized for integration with unicraft MES 250-2 and MES 600-2 electric winches, ensuring a perfect mechanical coupling.
  • Lightweight and Robust Structure: Weighing only 8.4kg, the arm reduces the static load on the supporting structure while maintaining high torsional strength.

Mechanical Precision

The 450 mm distance between suspension points ensures a balanced distribution of forces, ensuring that the rotation movement of the flag occurs in a smooth and controlled manner even under maximum load.

Technical Reference Data

CharacteristicDetail
Product Code 619 8605 (UNI6198605)
Max lifting capacity 300 kg
Projection (Outreach) 1,100 mm
Distance between suspension points 450 mm
Ø Minimum fixing tube 48 mm
Winch Compatibility MES 250-2 / 600-2 Series
Net weight 8.4 kg

Installation Notes:

  • Vertical support rod not included.
  • Pipe clamp kit included.
  • High visibility industrial paint (orange).
The reliability of German production: machine tools and equipment for safe load handling


WSA 300-1100-2
