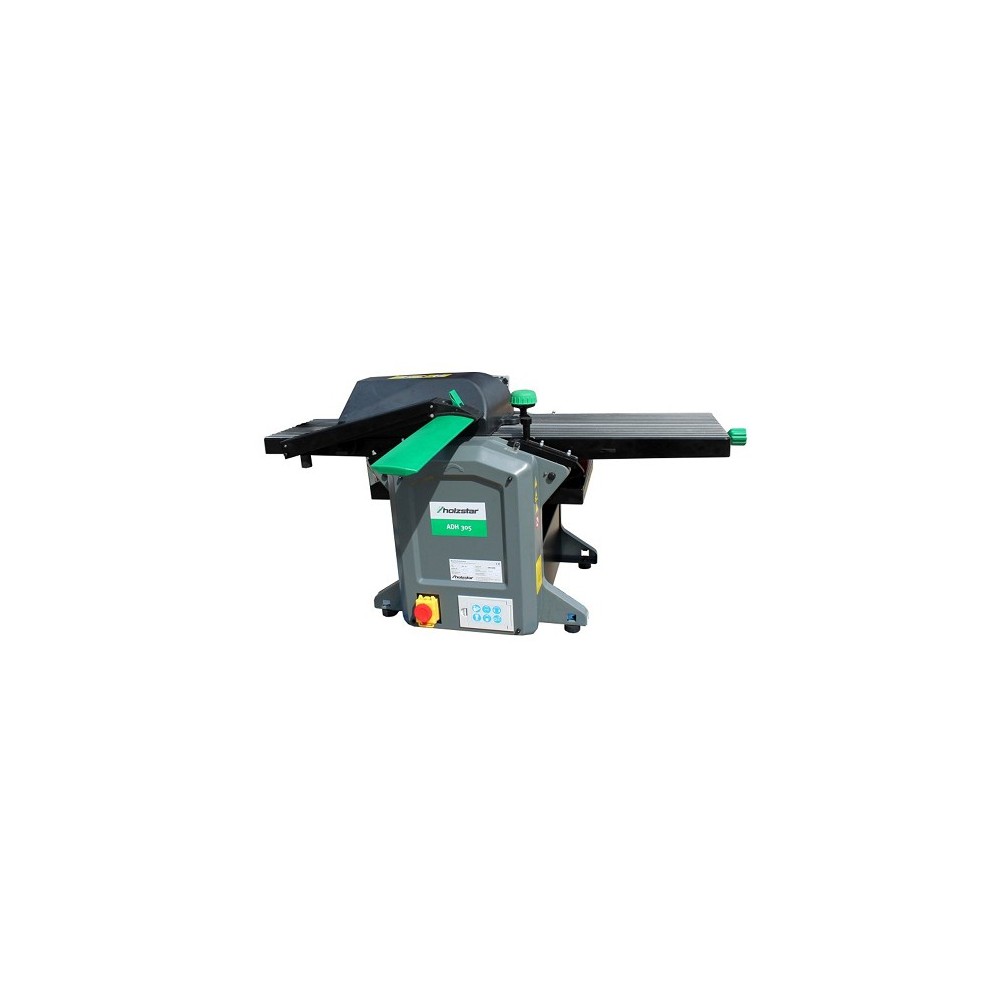

5905305 ADH305 HOLZKRAFT COMBINED PLANER AND THICKNESSER, MAX PLANING WIDTH 305 MM

The wood-fired Model ADH 305 Combination Planer and Thicknesser (Code 5905305) represents the pinnacle of the wood-fired portable range, offering a 305 mm planing width in a compact and easily transportable structure. Designed for precision work with solid wood, boards, and panels , this 1.8 kW machine features automatic feed and specific rubber rollers to preserve surface integrity. The milled aluminum table and tilting fence make it the ideal tool for the craftsman who does not want to sacrifice power on the construction site or in small workshops.

Shipping cost: €25.00 for
1204,57 €
Tax included

987,35 € Tax excluded

Quantity
Available product, order it now.

Efficiency and Large Capacity in a Portable Format

Item 590 5305 (HOL5905305) is the ideal choice for those who need to plan wide workpieces without the bulk of an industrial stationary machine. The ADH 305 combines a space-saving design with advanced mechanical solutions, ensuring stability and a high-quality finish on any type of wood.

Technical Features and Ergonomics

  • Impeccable Finishes: The feed and output rollers are coated with rubber , effectively preventing the formation of marks or imprints on the wood when switching to thickness mode.
  • Precision Mechanics: The planing table is made of milled die-cast aluminum to ensure flatness and smoothness. The cutting depth is adjustable to the millimeter using a practical handwheel with an easy-to-read graduated scale.

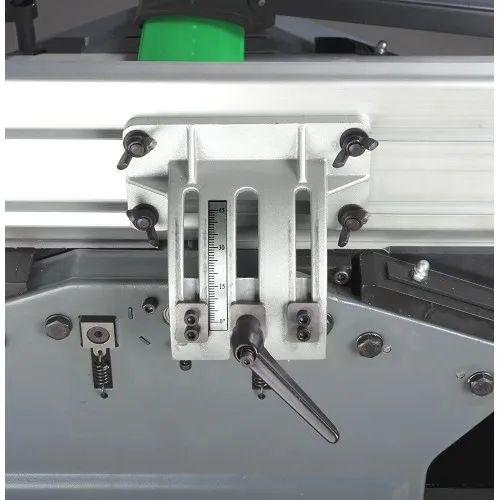

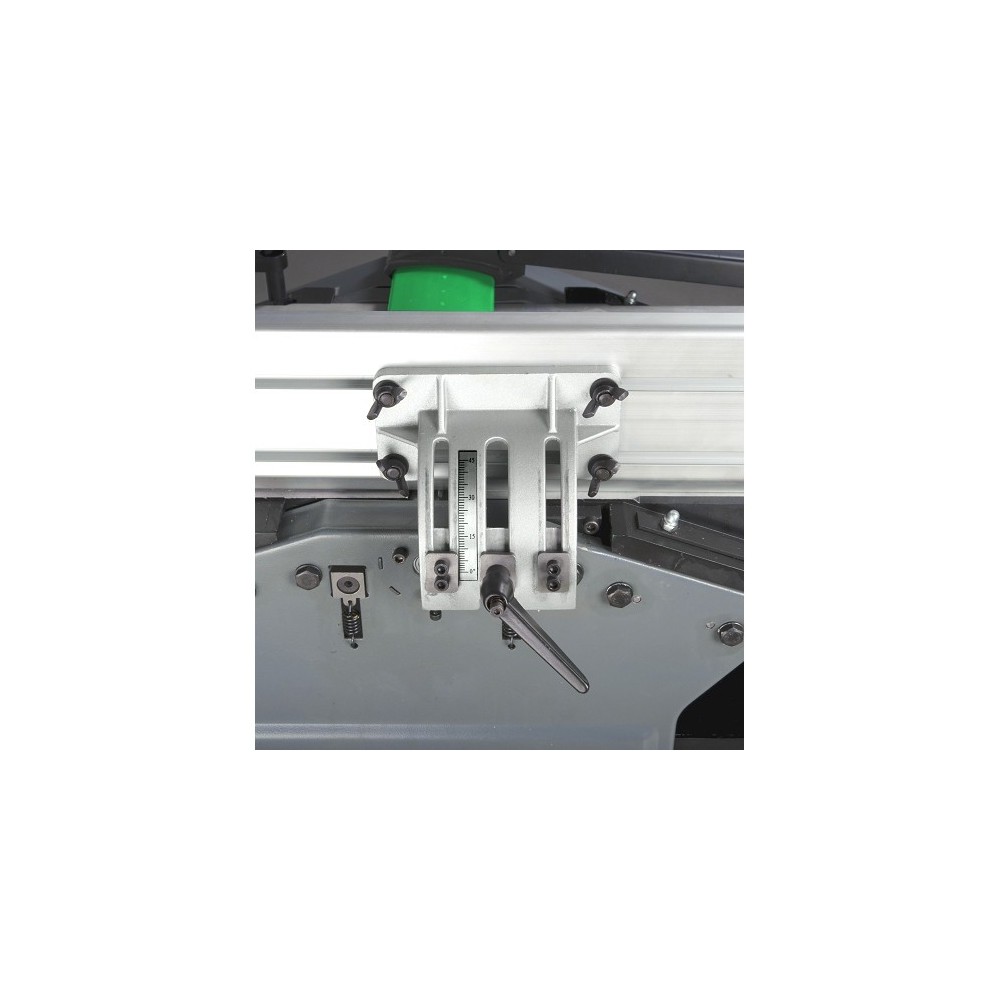

  • Professional Guide: The fixed aluminum guide can be tilted from 0° to 45° , allowing you to create chamfers and corner joints with extreme accuracy.

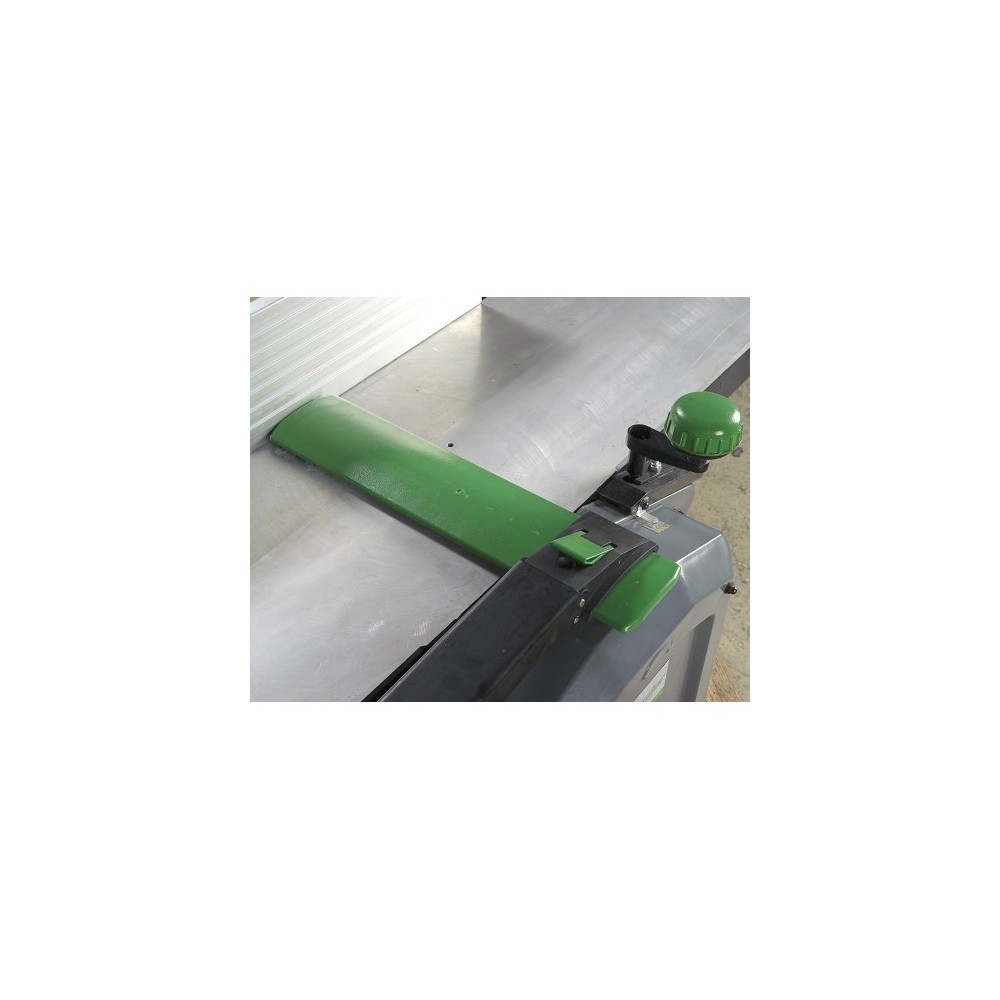

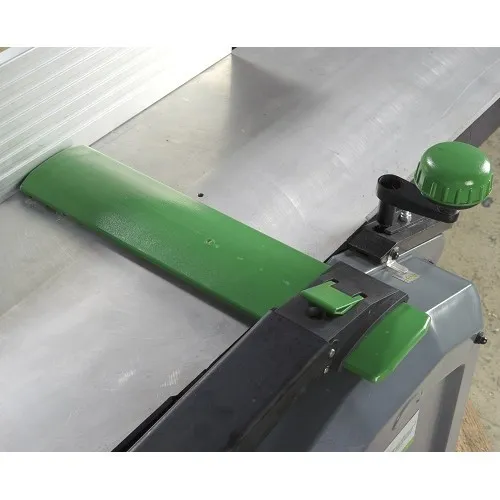

  • Safety and Cleanliness: The machine includes an interchangeable chip extractor hood and the knives are protected by a safety guard with a quick-release system . An integrated storage compartment allows you to keep your service tools always organized.
  • Operational Versatility: Thanks to the spindle speed of 9,500 rpm and the removal capacity of up to 2 mm, the machine handles both roughing and finishing with ease.

Applications

Perfect for professional restoration, interior design, and construction site carpentry. It's the essential tool for anyone who needs to plane wide boards and panels while maintaining the flexibility of a mobile workstation.

Technical Reference Data

Characteristic Detail
Product Code 590 5305 (HOL5905305)
Max planing width 305 mm
Min/max piece height (Thickness) 6 / 160 mm
Maximum removal 2 mm
Number of knives / Shaft Ø 2 / 50 mm
Shaft speed 9,500 rpm
Feed rate 7 m/min
Power supply / Engine power 230 V - 50 Hz / 1.8 kW
Fixed table dimensions (Thread) 1,075 x 310 mm
Moving table dimensions (Thickness) 500 x 305 mm
Ø Suction nozzle 100 mm
Overall dimensions 1,135 x 600 x 570 mm
Net weight 42 kg
