Efficiency and Versatility for the Modern Laboratory

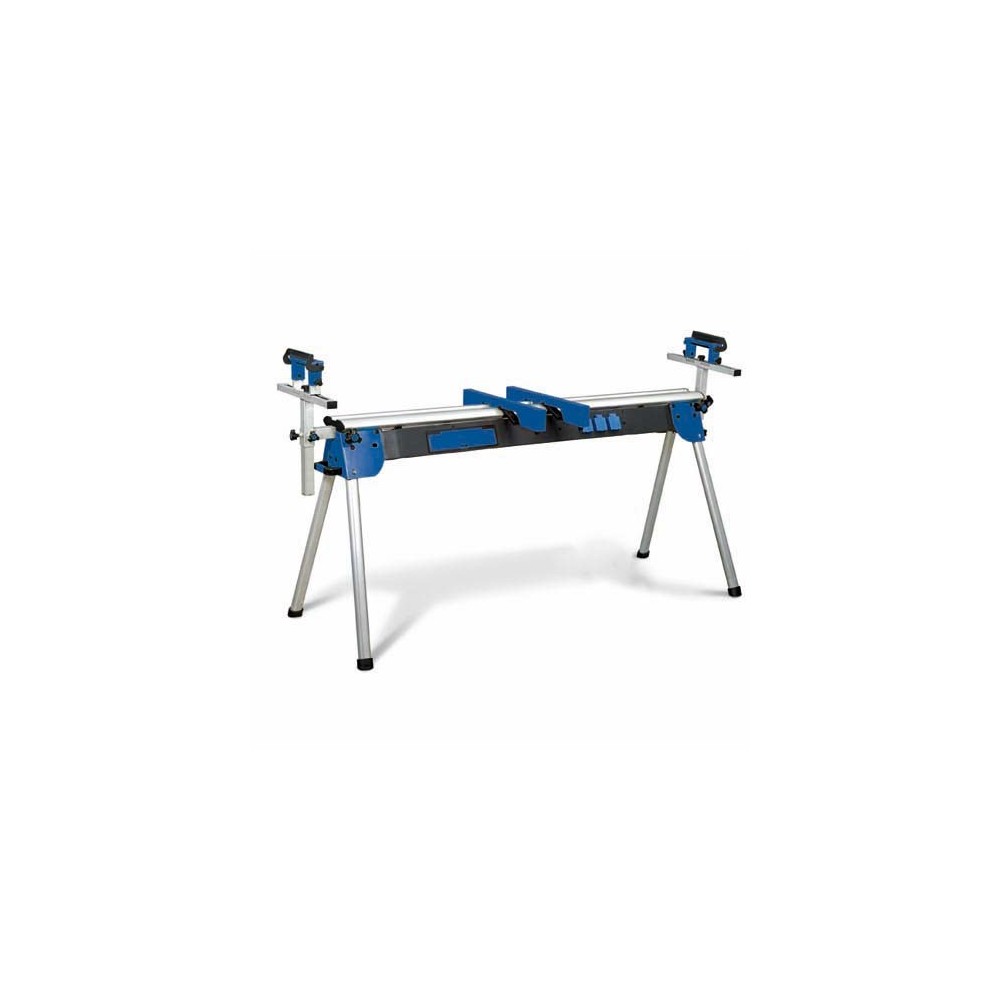

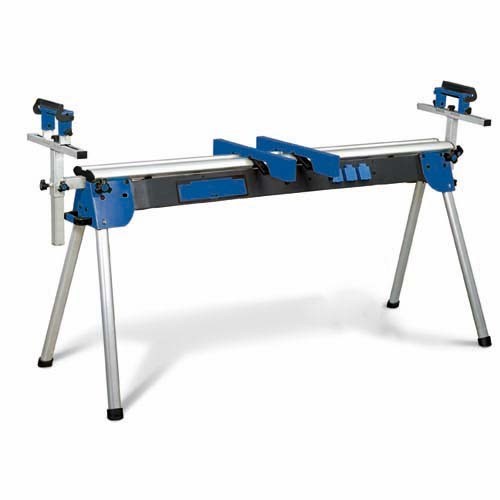

Item 590 0020 (HOL5900020) was designed to minimize machine setup time and maximize precision when machining bulky workpieces. Thanks to its intelligent design, the UWT model serves both as a solid base for machine tools (wood or metal) and as an efficient roller conveyor for material feed.
Distinctive Features and Intelligent Mechanics

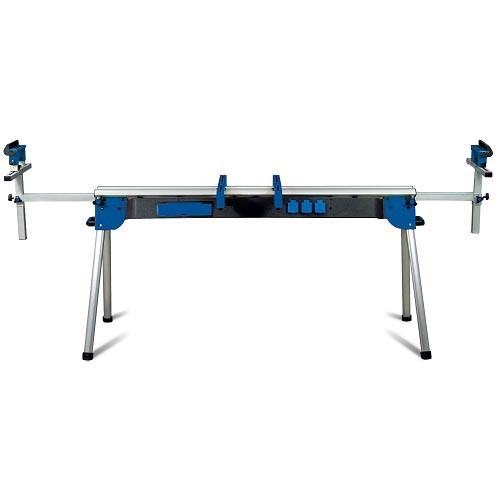

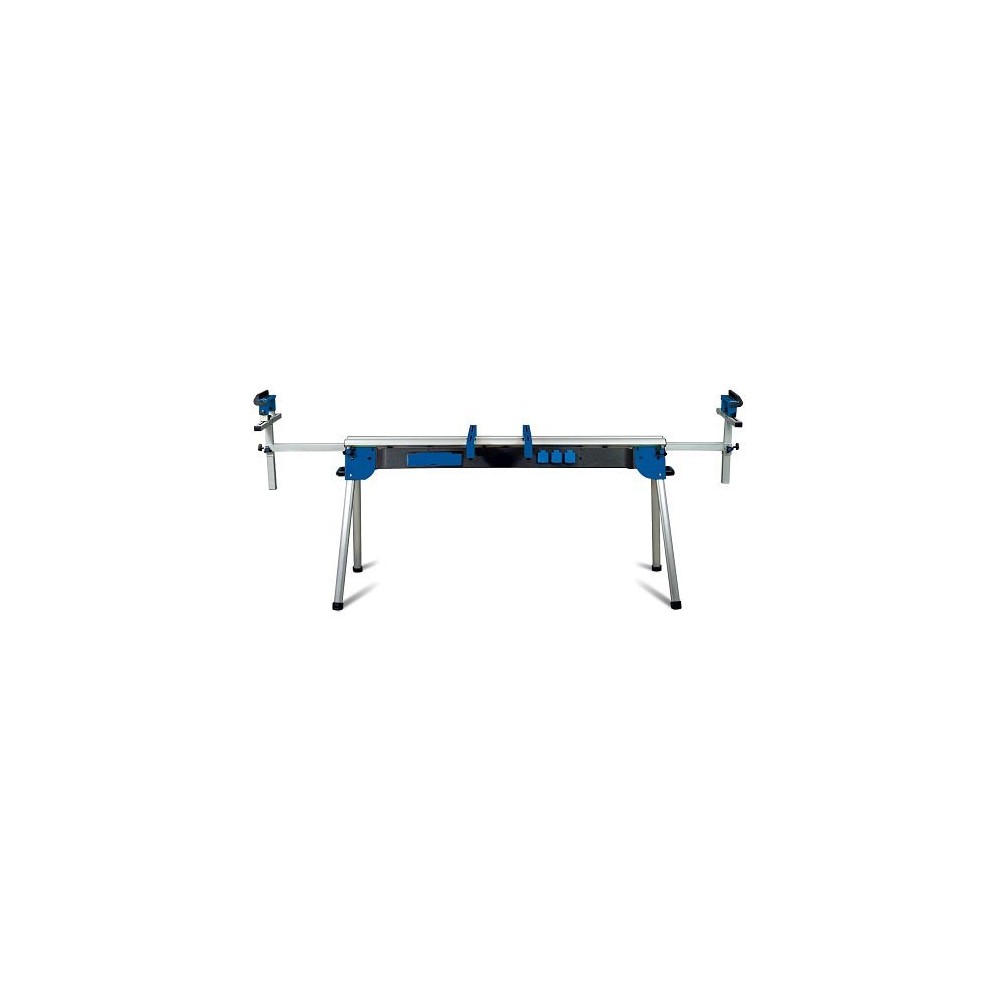

- Modular Extension: Retractable side arms save space when not in use, but can be extended up to a maximum width of 2400mm to support large panels and boards.
- Quick Tightening and Adjustment: The support brackets and accessories are installed via a quick release system; furthermore, each height or position adjustment takes place without the need for keys or tools.

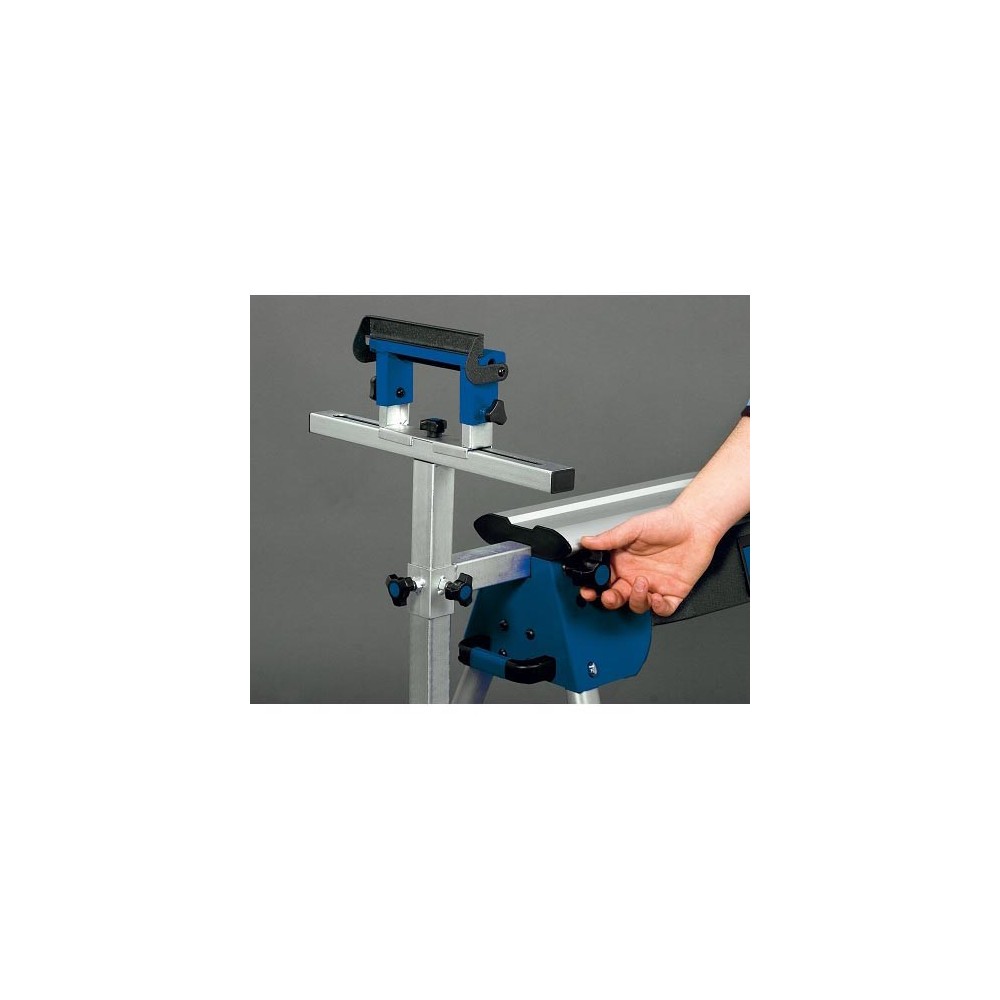

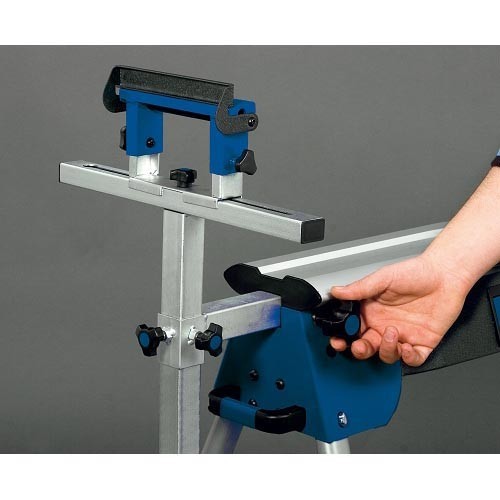

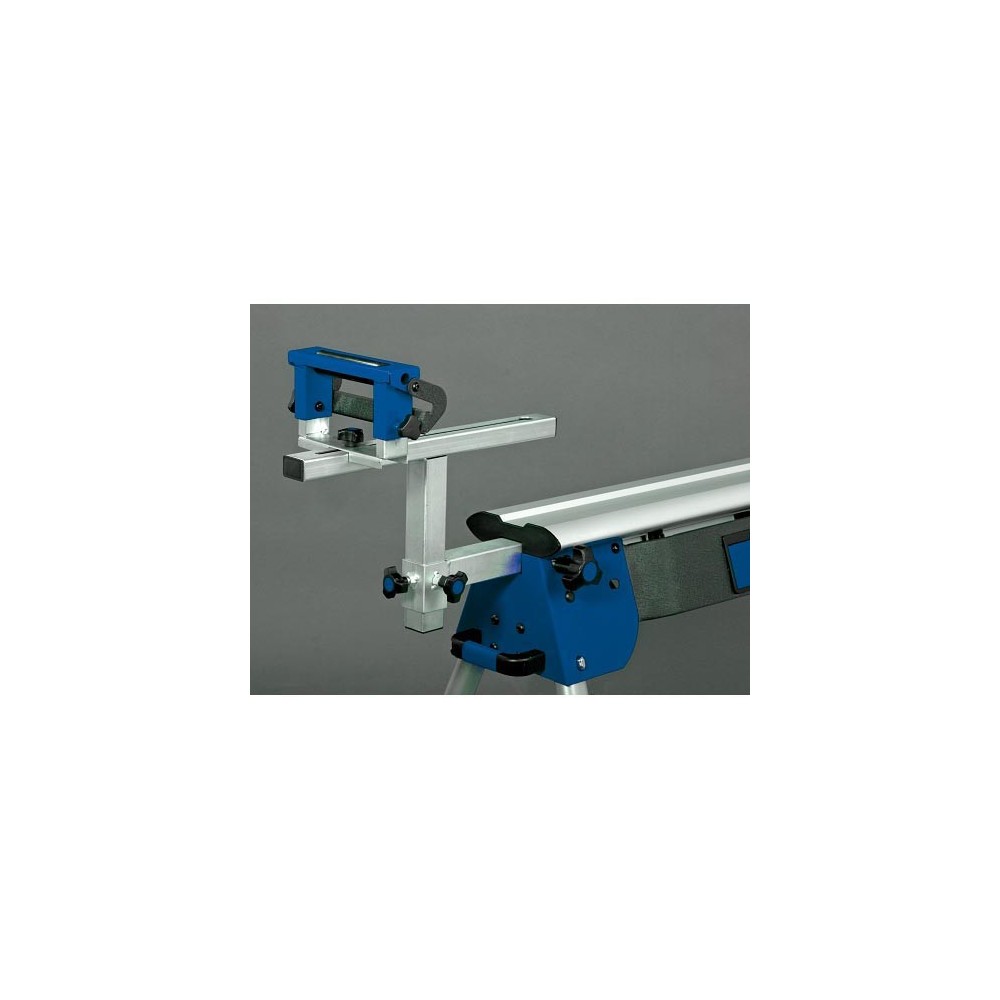

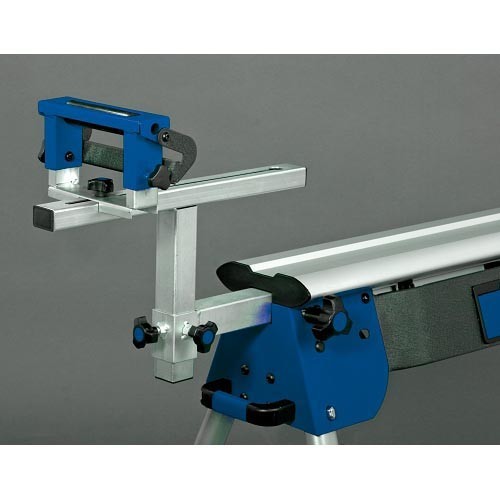

- Advanced Roller Supports: The rollers are height-adjustable (850-1000 mm) and laterally adjustable, can be extended up to 500 mm, and feature a built-in position stop. Their versatility also allows them to be used upside down.

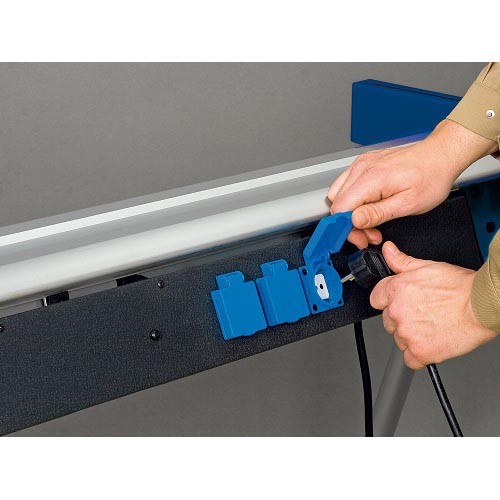

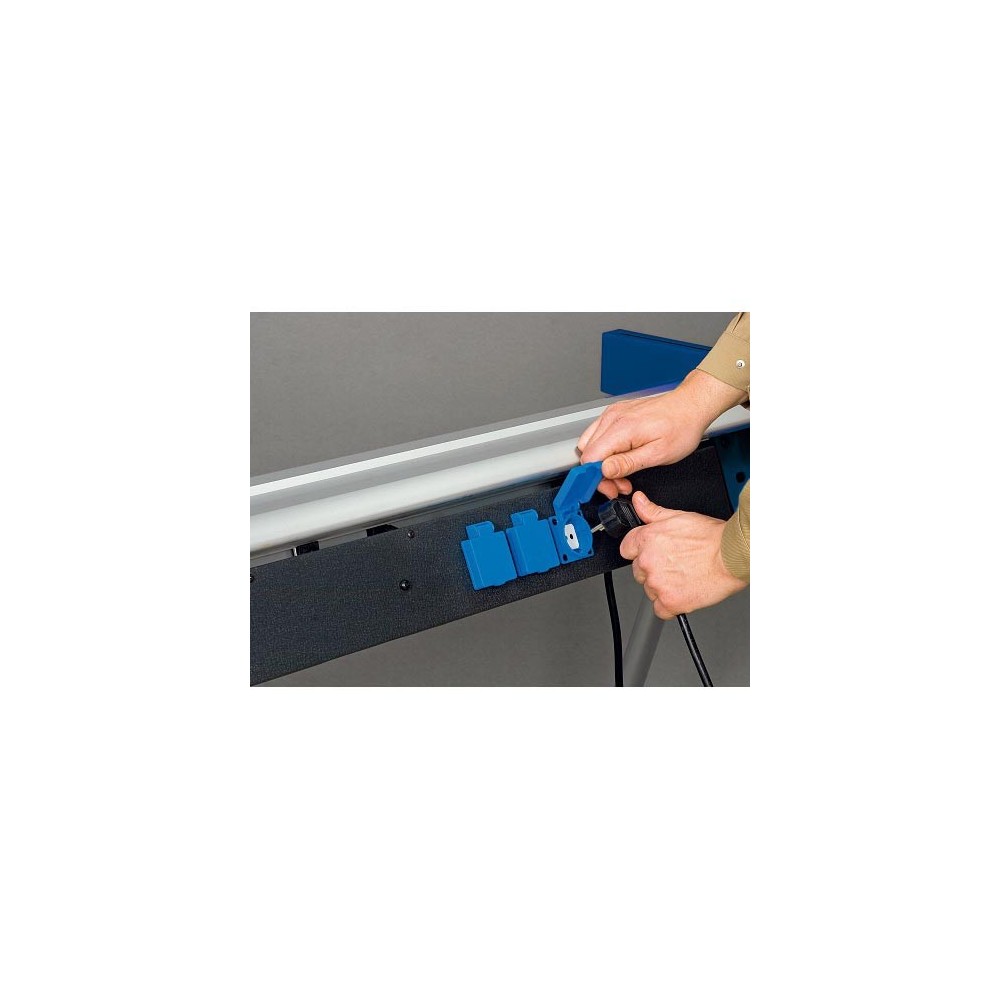

- Integrated Electrification: The structure houses three 230V power outlets, eliminating the need for multiple extension cords and keeping the work area tidy and safe.

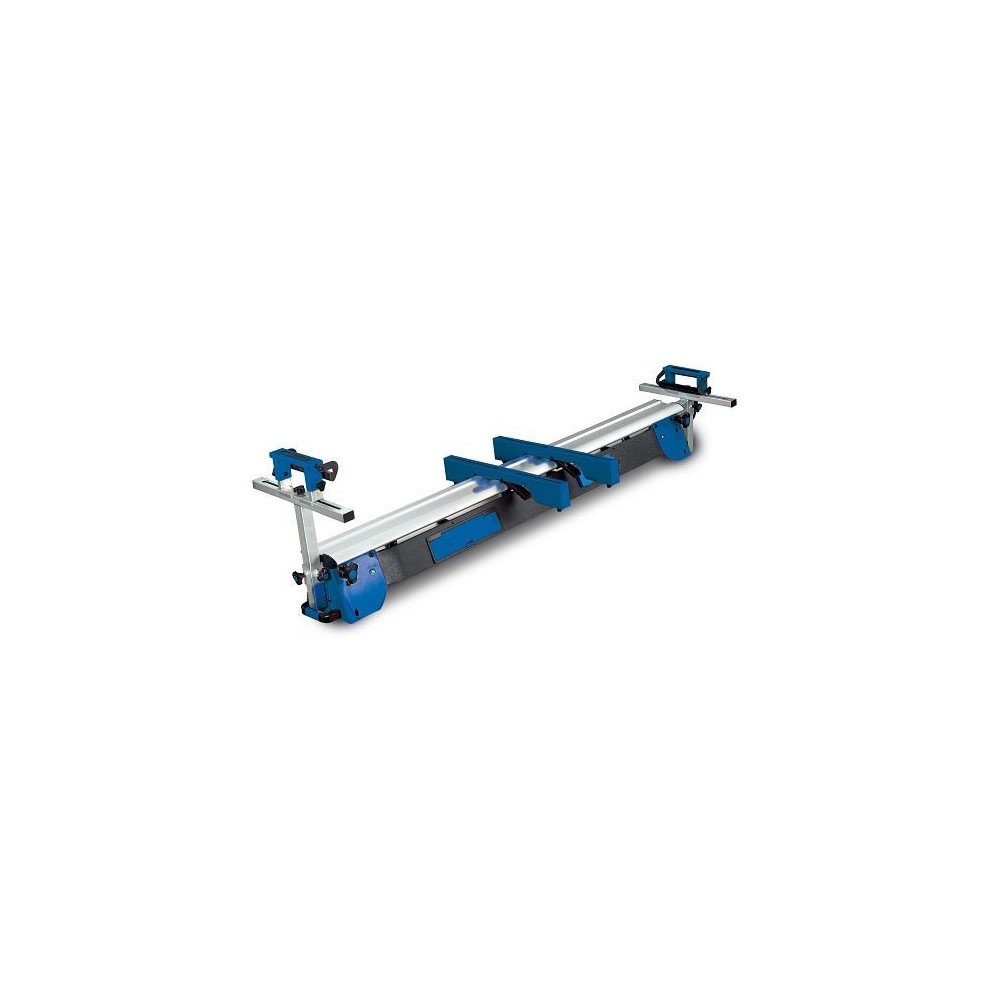

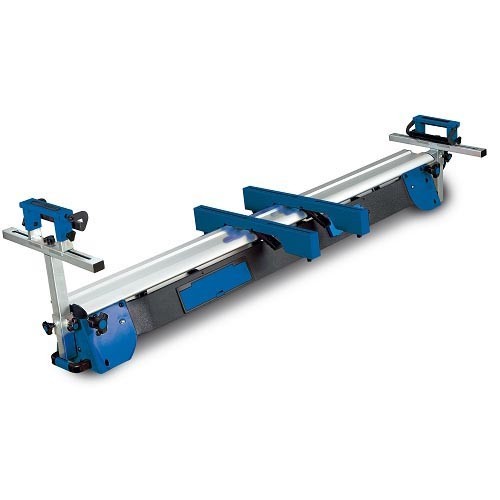

- Portability: Despite the stability provided by the aluminum and steel extrusions, the stand is foldable and easily transportable, making it ideal for temporary installations on construction sites.
Areas of Application
The UWT stand is compatible with a wide range of machines, including miter saws, band saws and planers, providing a stable support surface and integrated storage to keep hand tools always within reach.
Technical Reference Data
| Characteristic | Detail |
|---|
| Product Code | 590 0020 (HOL5900020) |
| Maximum load capacity | 225 kg |
| Min/max support height | 850 - 1,000 mm |
| Maximum arm width | 2,400 mm |
| Overall dimensions | 1,600 x 600 x 850 mm |
| Integrated power supply | 3 x 230 V sockets |
| Net weight | 30 kg |
Standard Equipment Included:
- 2 quick release support brackets.
- 2 adjustable roller supports with position stop.

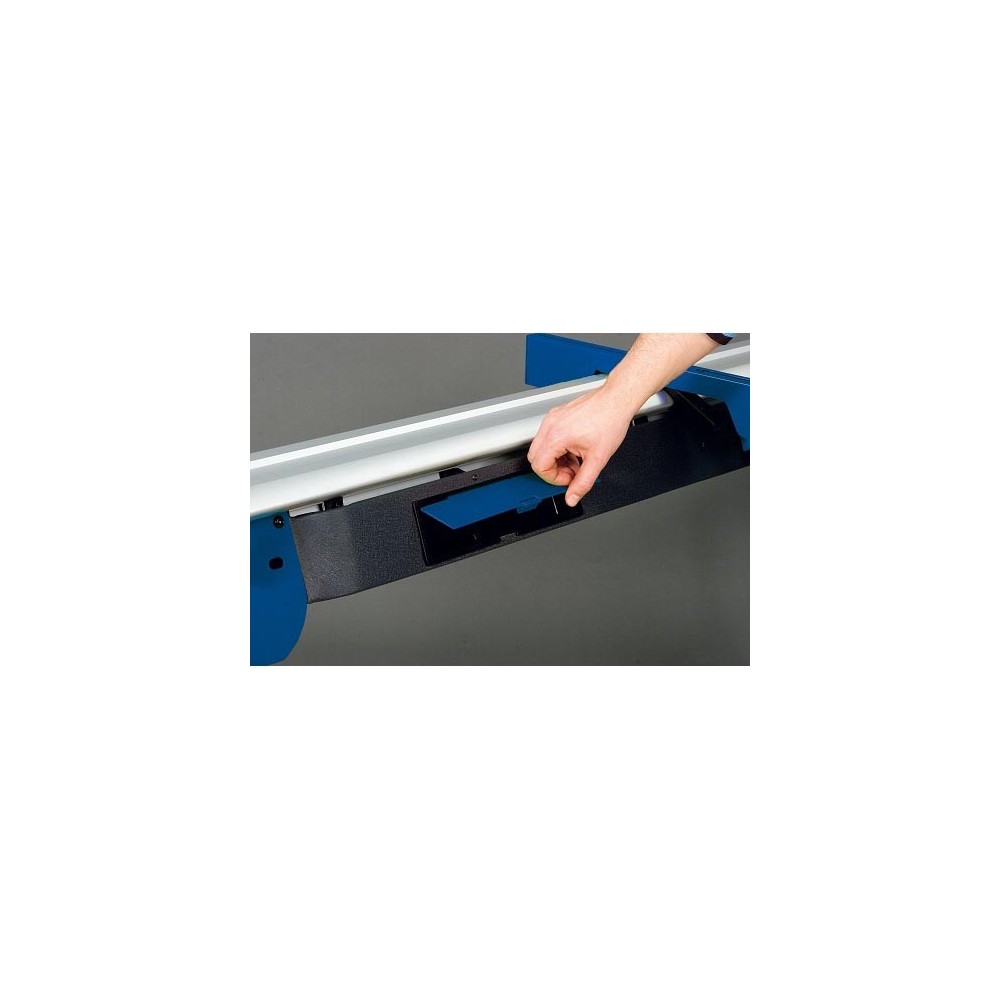

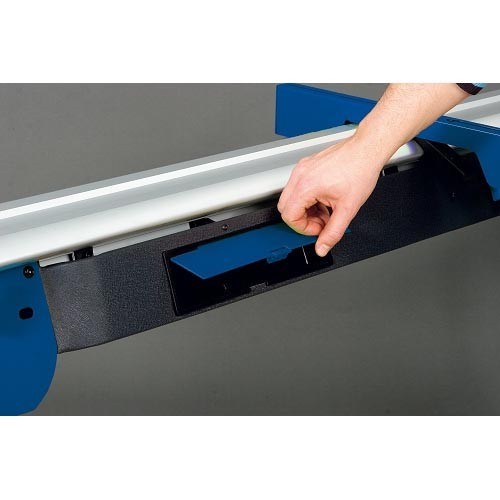

- Integrated storage compartment.
- Power cord for integrated sockets.
