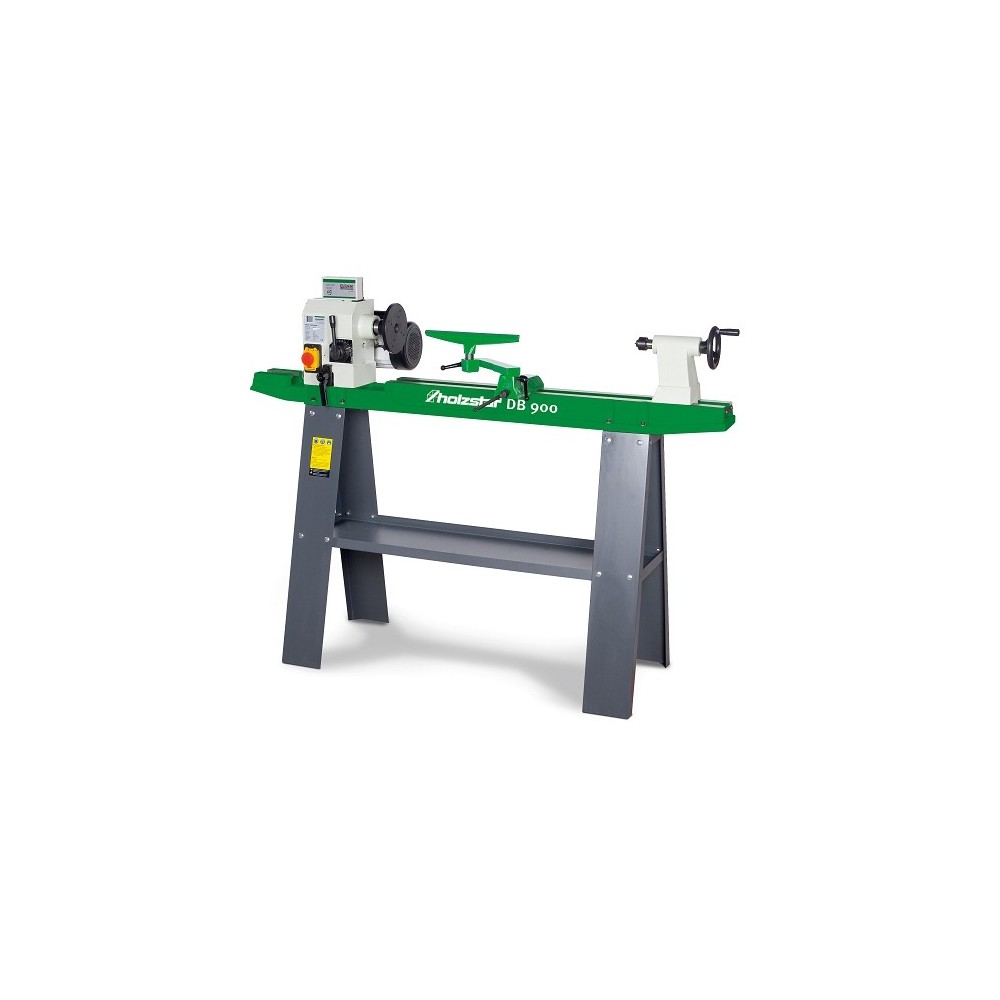

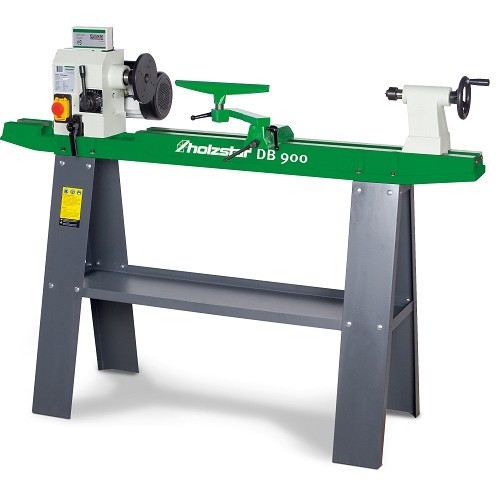

5920900 DB 900 WOOD LATHE HOLZKRAFT MAX TURNING DIAMETER 306 MM

The wood-fired Model DB 900 wood lathe (Code 5920900) is designed for the craftsman who requires flexibility and precision in a single tool. Featuring a 360° rotating head (lockable at 45°, 90°, and 180°), it allows for easy turning even on workpieces with diameters exceeding the capacity of the bed. The solid gray cast iron structure eliminates vibrations, while the 10-stage variable speed system with digital display ensures total control over the process, supported by a 900 mm center distance and a sturdy included base.

Shipping cost: €50.00 for
973,91 €
Tax included

798,29 € Tax excluded

Quantity
Available product, order it now.

Operational Flexibility and Industrial Solidity

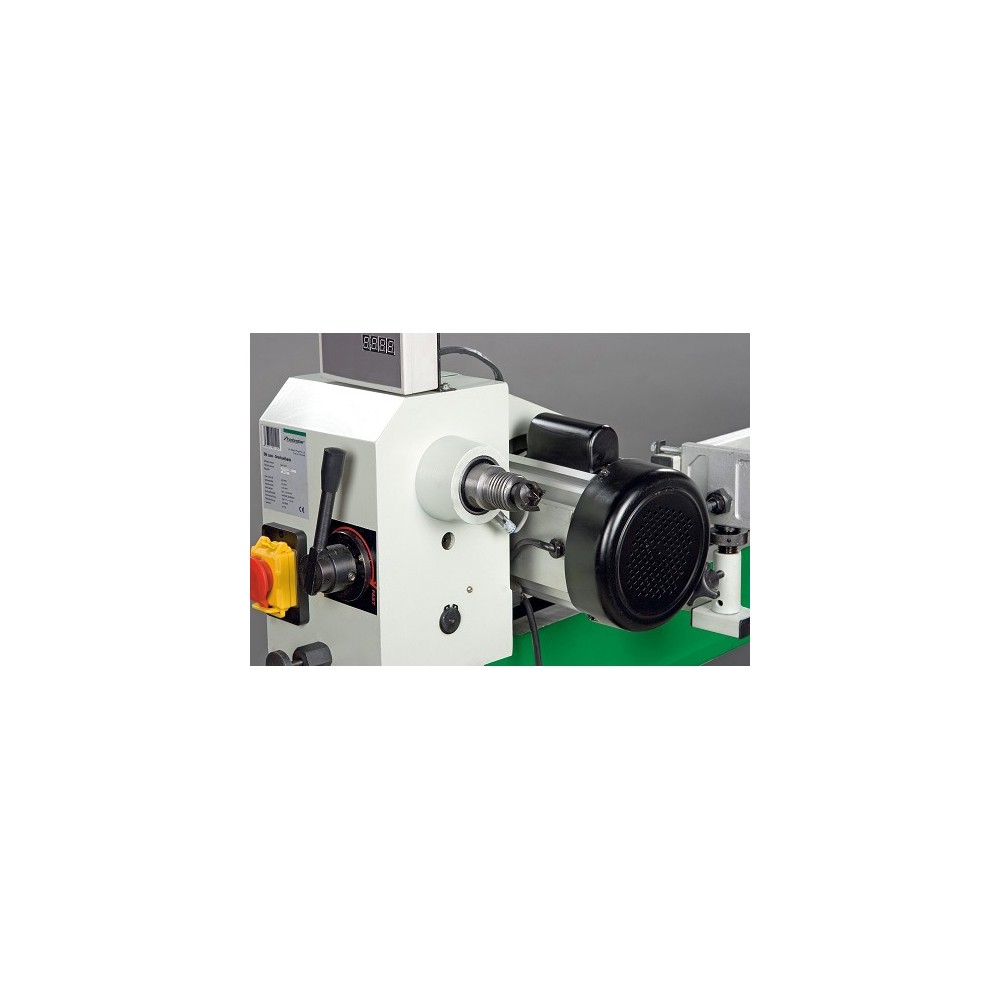

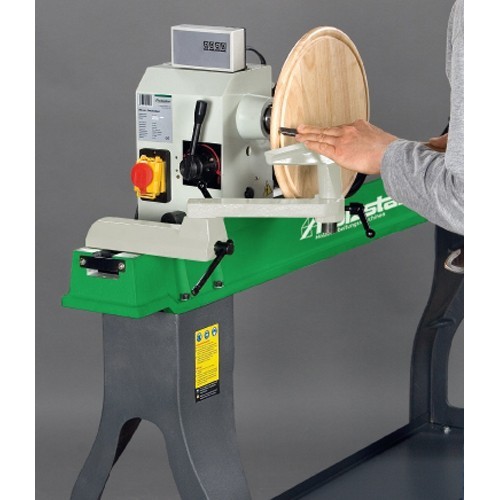

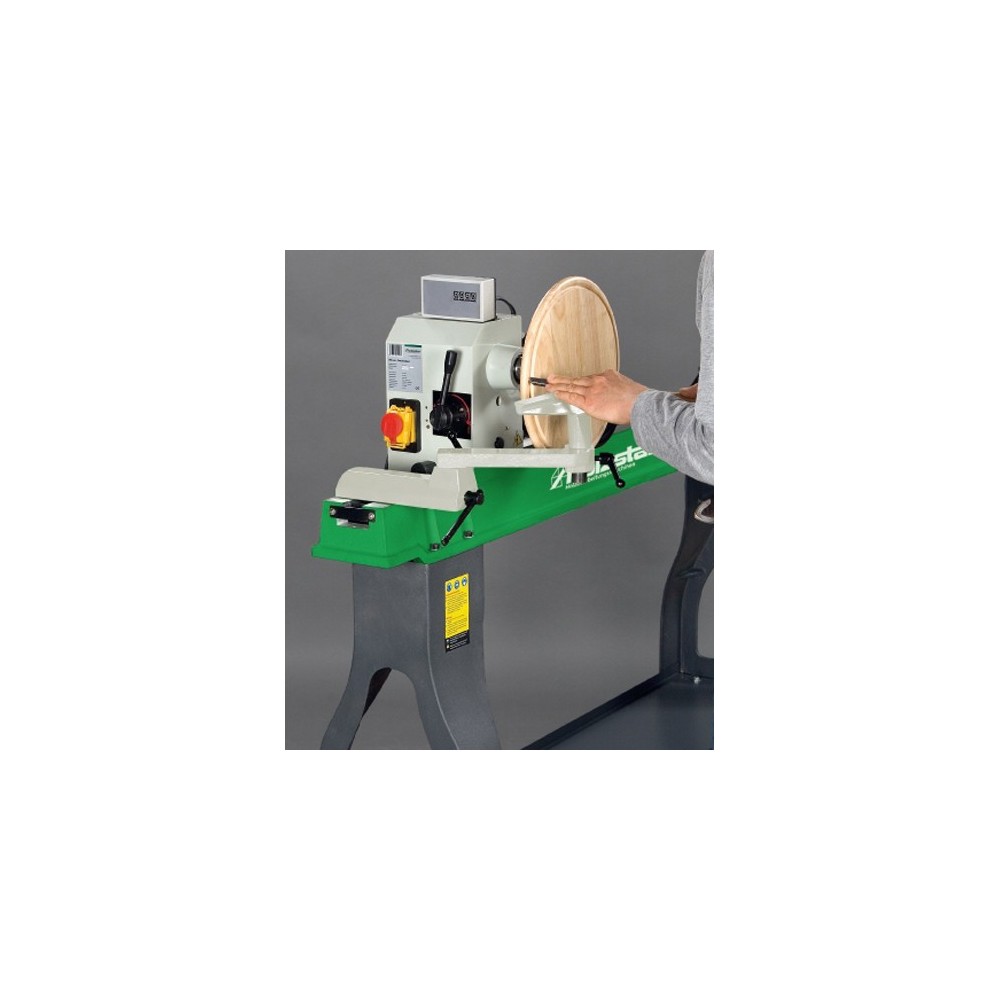

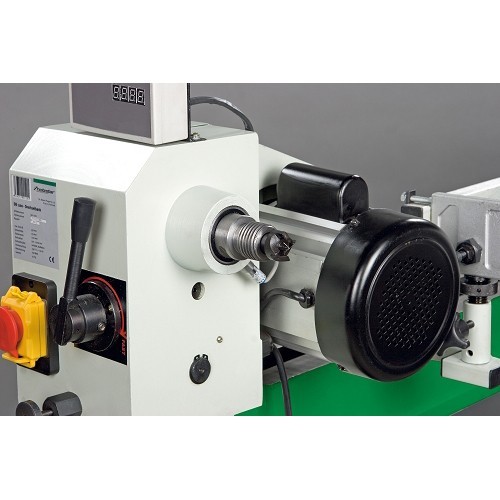

Item 592 0900 (HOL5920900) is an ideal solution for workshops that handle a variety of processes, from small furniture components to large-diameter bowls. The swivel head transforms the machine into a buckling lathe, allowing for external transverse machining when the workpiece exceeds the dimensions of the bed.

Technical Features and Benefits

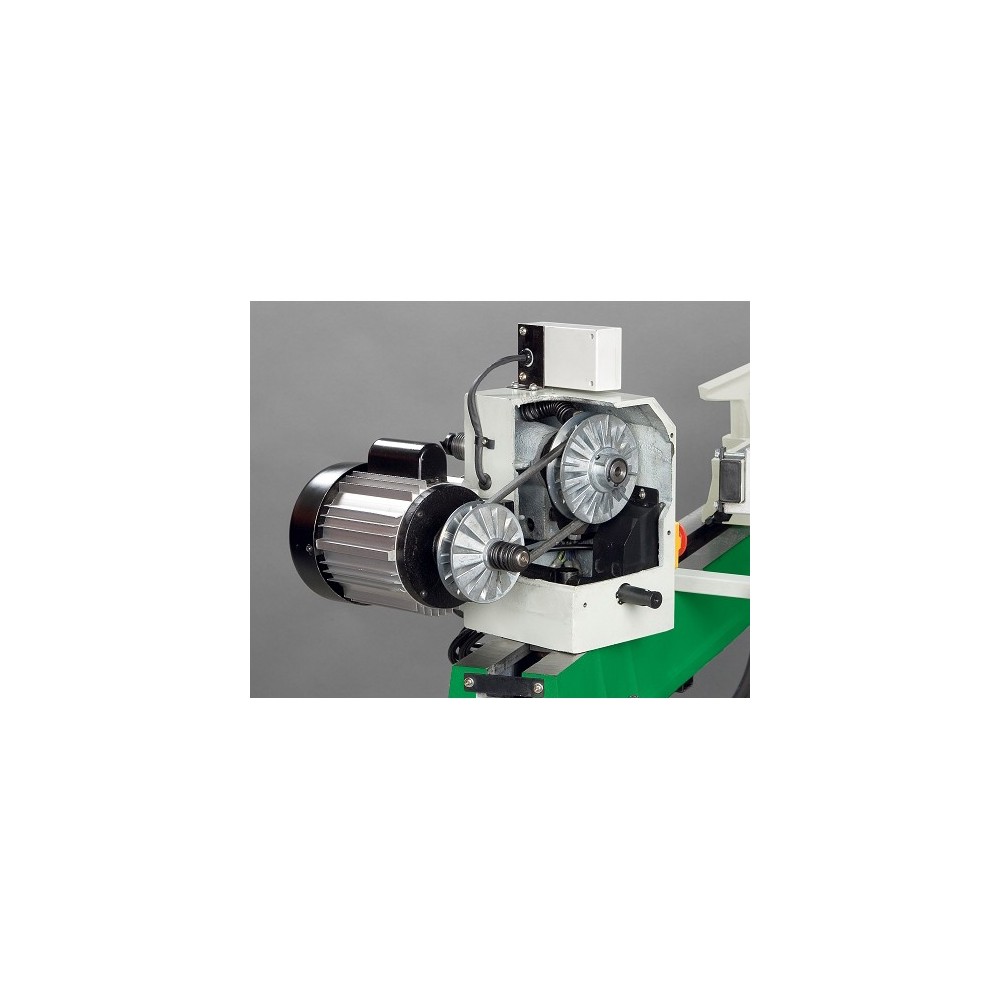

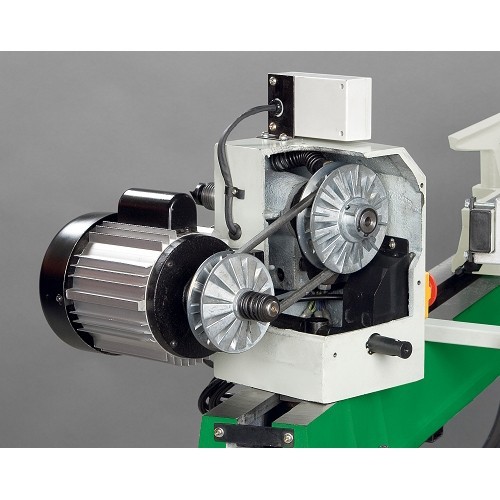

  • Electronics and Control: The speed can be adjusted via a lever on the operator's side in 10 stages (from 500 to 2,000 rpm) ; the integrated digital display allows constant monitoring of the revolutions for perfect adaptation to the material.
  • Anti-Vibration Structure: The bed, headstock and tailstock are made of heavy gray cast iron , ensuring superior stability and a clean, precise surface finish.
  • Advanced Mechanics: The tailstock is equipped with a quick release lever, ergonomic handwheel and shaft with through hole , a fundamental feature for performing deep holes directly in rotation.
  • Safety: Includes a lockable emergency switch to prevent unauthorized use and ensure maximum protection during operations.
  • Turning Versatility: 900mm center distance and 306mm maximum turning diameter (over bed) provide ample operating capacity for complex projects.

Areas of Application

Ideal for producing table legs, columns, plates, bowls, and art objects. The stable cast iron base makes the machine a stand-alone workstation, ready for professional use.

Technical Reference Data

Characteristic Detail
Product Code 592 0900 (HOL5920900)
Max turning Ø 306 mm
Tip height 155 mm
Distance between tips 900 mm
Spindle attachment M 33 x 3.5
Spindle speed 500 – 2,000 rpm
Speed number 10 stages, manually variable
Power Supply / Power 230V - 50Hz / 0.55kW (550W)
Morse taper CM 2
Dimensions (L x W x H) 1,380 x 330 x 1,175 mm
Net weight 80 kg

Standard Equipment Included:

  • Cast iron machine base.
  • Plate Ø 15 cm.
  • Rotating tailstock.
  • 4-prong dragger.
  • Wide piece support.

All lathe accessories from the HOLZKRAFT range are available here
