4932478626 SDS-PLUS MX4 NG SET 7 PC SDS-PLUS MX4 TIPS 4 MILWAUKEE CUTTING EDGES

SDS-Plus MX4 4-Cut Drill Bits (7-Piece Set)

The SDS-Plus MX4 NG Set 1 - 7 pc has been designed to ensure precise holes, maximum resistance and optimal debris removal, positioning itself as a new generation accessory.

Identification Data and Certifications

• Selected model: SDS-Plus MX4 NG Set 1 - 7 pc.
• Product Code: 4932478626.
• EAN Code: 4058546348199.
• Package quantity: 7 pieces.
• Certifications: PGM.
• Production: Made in Germany.

Main Technical Features

These tips are equipped with advanced technologies to ensure maximum precision and durability:

• 4-Cut Carbide Block: Single block (4x90°) to ensure perfectly round holes and optimal anchoring.
• Optimized Design: New cutting edge design makes drilling easier, increases accuracy and improves performance when working with rebar.
• Carbide Welding Technology:
  • For diameters 5-10 mm: Carbide cutting edge welded onto the body of the tip.
  • For diameters 12-32 mm: Carbide cutting edge embedded and welded onto the body of the bit, for greater durability.
• 4-Flute Geometry: The high-volume 4-flute geometry is designed to ensure optimal dust and debris removal.
• Centering Tip: Allows easy spot drilling with millimetre precision.
• Wear Indicators: Tips equipped with wear indicators.

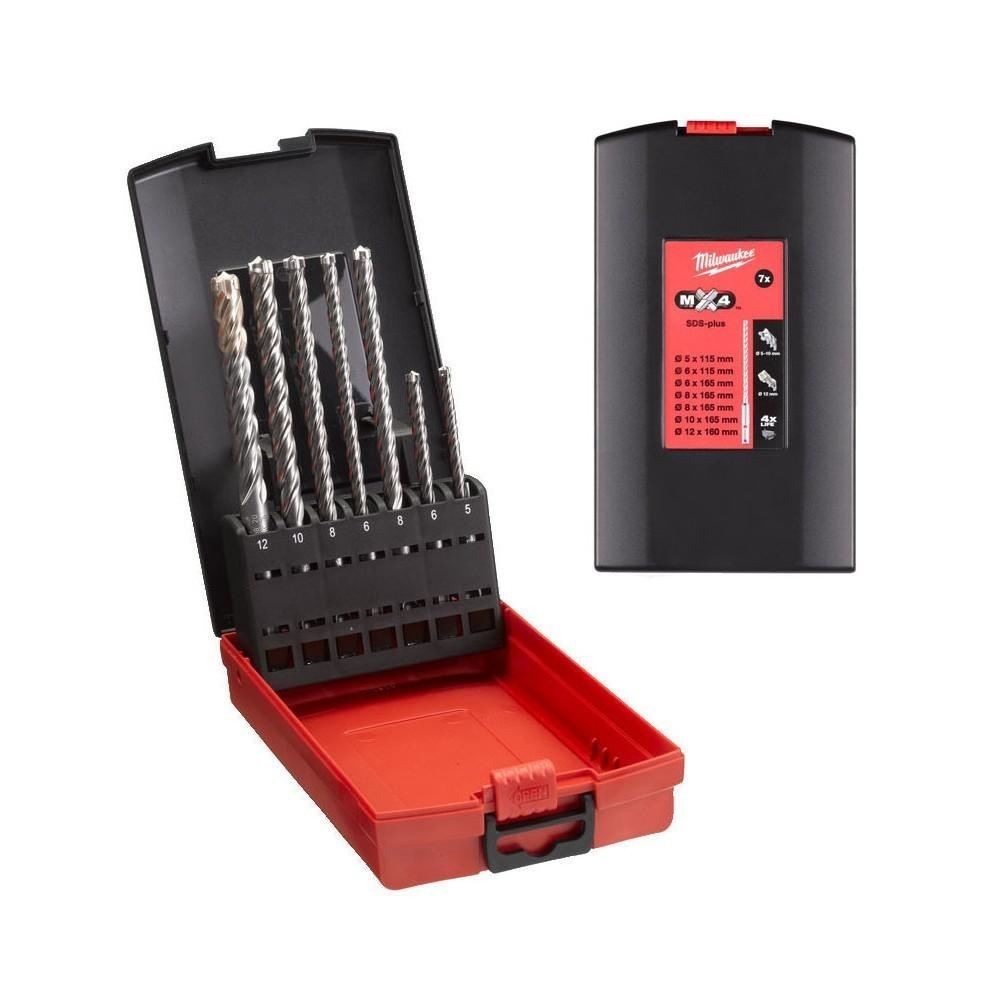

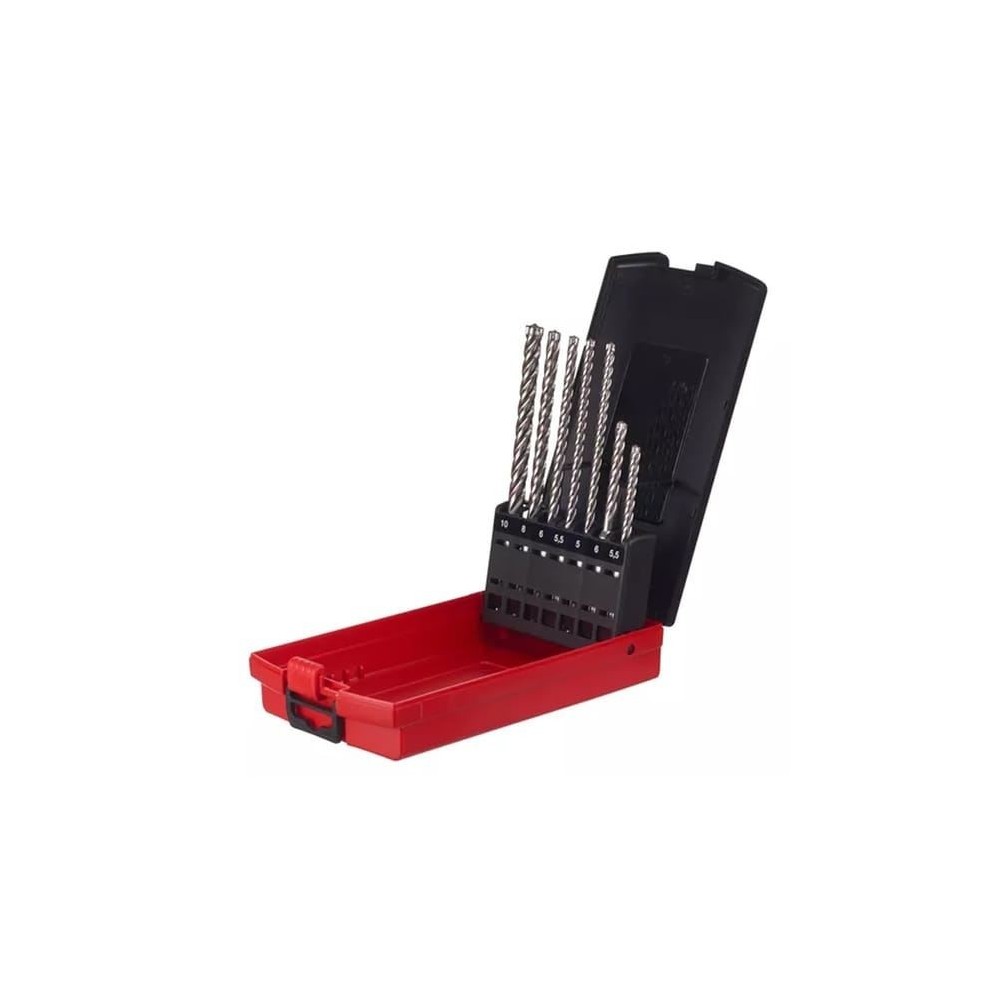

Composition of Set 1 of 7 SDS-Plus MX4 Bits (Code 4932478626)

The set consists of 7 tips with a 4-edge carbide block (4x90°) and has the following dimensional composition:

• Tips with a total length of 115 mm:
  • 1 x Diameter 5 mm
  • 1 x Diameter 6 mm
• Tips with a total length of 165 mm:
  • 1 x Diameter 6 mm
  • 2 x Diameter 8 mm
  • 1 x Diameter 10 mm
  • 1 x Diameter 12 mm
