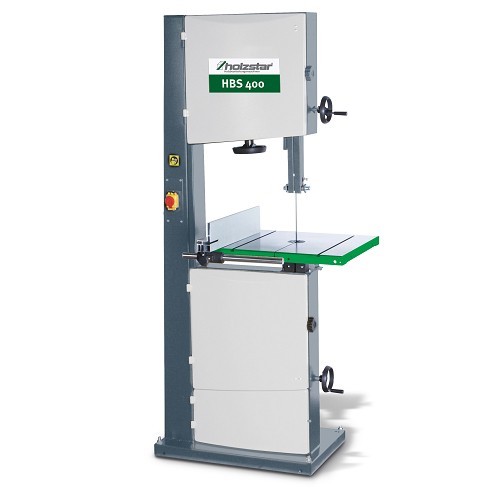

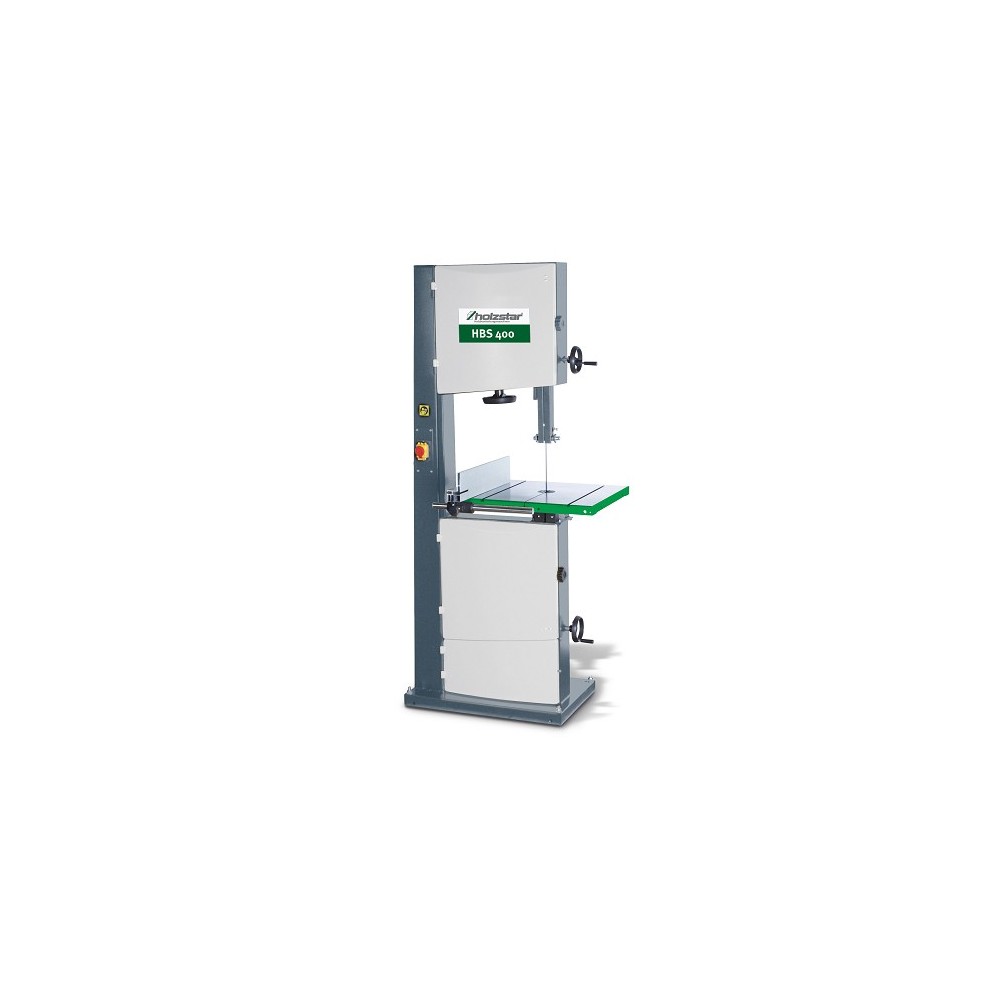

5900410 HBS 400 HOLZKRAFT WOOD BAND SAW CUTTING HEIGHT 305 MM TABLE DIMENSIONS 530X480 MM

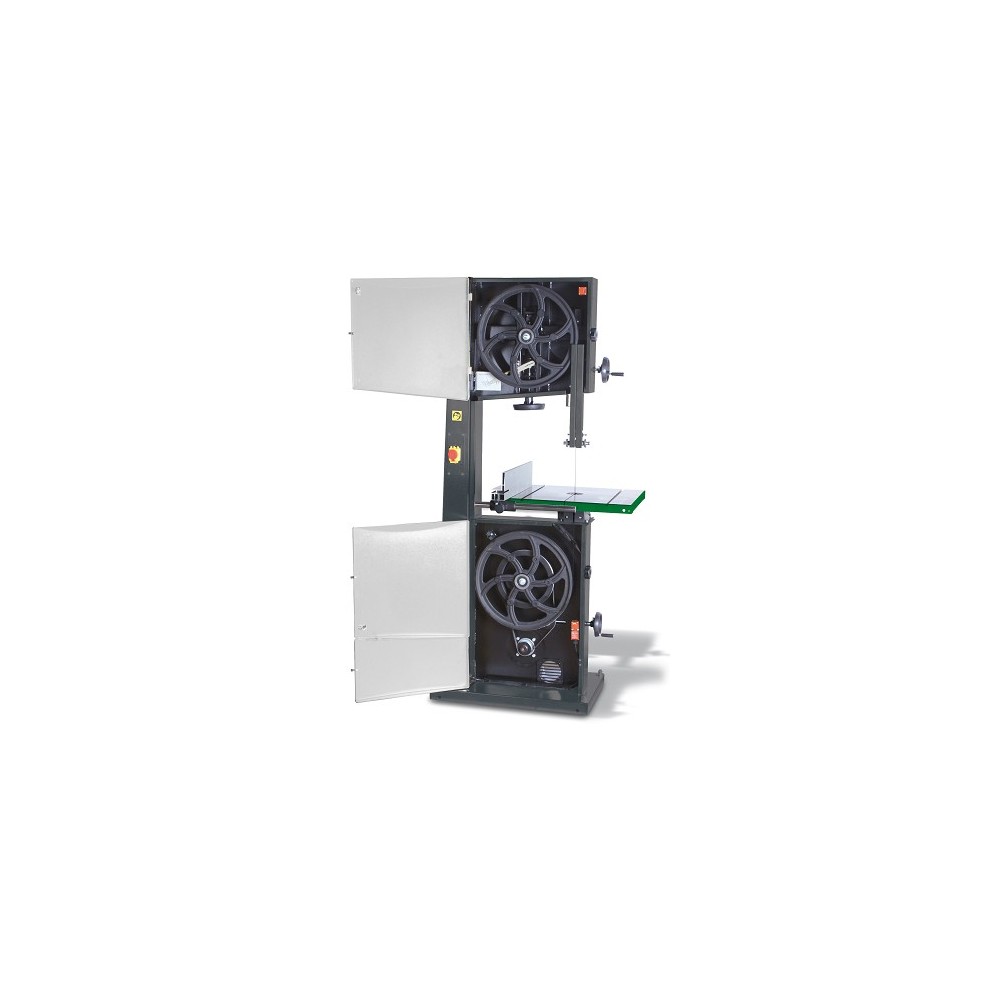

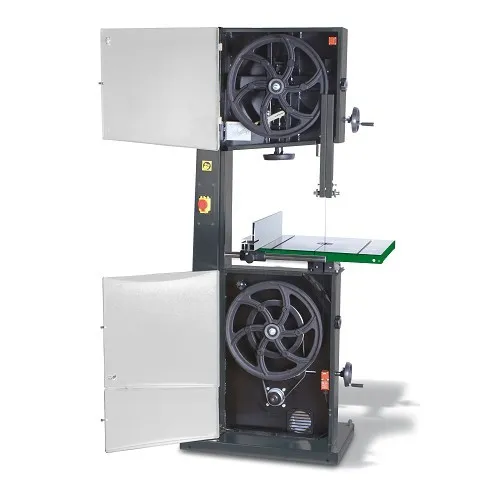

The wood-fired Model HBS 400 band saw (Code 5900410) is the ideal tool for professionals and craftsmen seeking great stability in a compact size. Designed to make safe and clean cuts on wood, plastic and non-ferrous metals , it stands out for its heavy ground cast iron table (530x480 mm) that can be tilted up to 45° and for its balanced cast iron flywheels that ensure smooth rotation. Equipped with a powerful 1.5 kW motor and a quick blade tensioning system, it guarantees a cutting capacity at heights of up to 305 mm .

Shipping cost: €60.00 for
2311,69 €
Tax included

1.894,83 € Tax excluded

Quantity
Available product, order it now.

Strength and Control for High Performance Cutting

The HBS 400 model represents the perfect combination of mechanical engineering and operational safety. Its robust construction minimizes vibration, allowing for precision machining even on large workpieces or dense materials. Versatility is ensured by the two speeds adjustable via a V-belt, making it suitable for various types of wood and technical materials.

Precision and Safety Mechanics

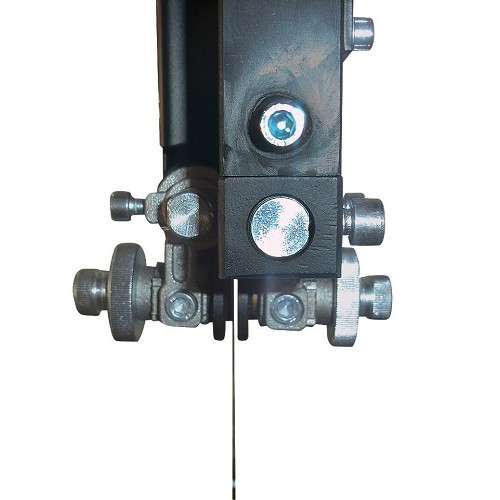

  • Advanced Blade Guide: Equipped with a 3-ball bearing blade guide positioned both above and below the work surface, it ensures stable blade movement and perfectly orthogonal cuts.
  • Intelligent Tensioning: A lever system with eccentric allows for quick blade tensioning without having to reset the base tension each time. A built-in display, readable through a slot, shows the correct tension for different heights.

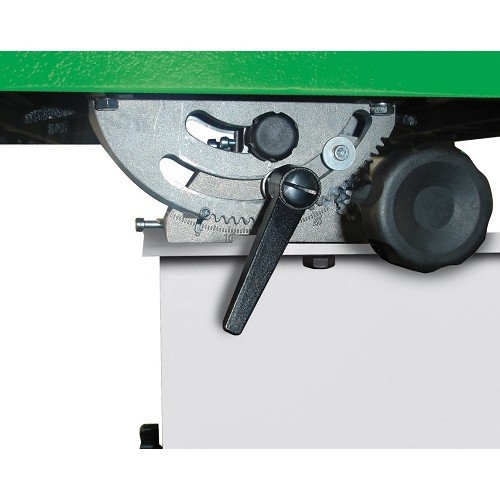

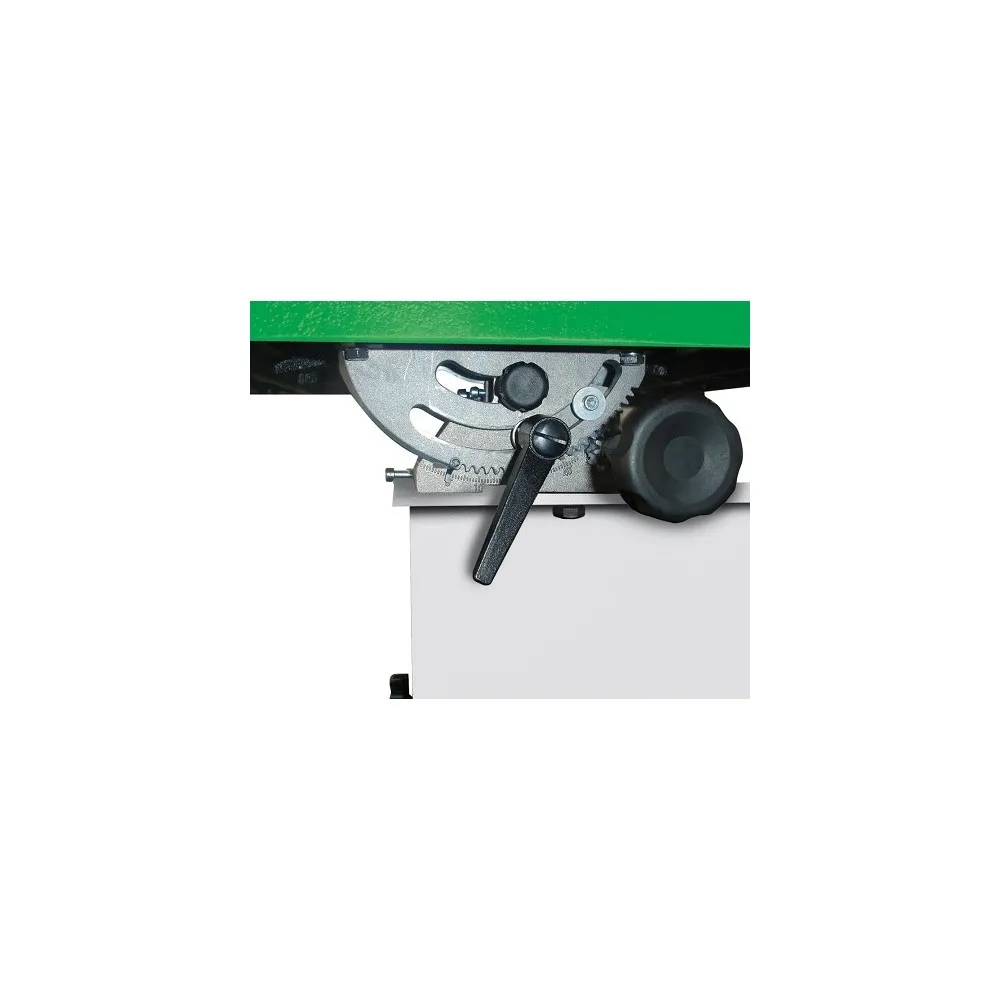

  • Table Ergonomics: The cast iron table top rests on a balanced support and can be tilted from 0° to 45°, facilitating complex mitre cuts.
  • Maximum Safety: The closing covers are equipped with safety micro-switches that prevent accidental starting of the machine with the doors open.
  • Professional Parallel Guide: Made of aluminum and mounted on a round bar, it allows quick and precise positioning for repetitive longitudinal cuts.

Applications

Ideal for woodworking workshops, training centers and workshops requiring a bandsaw capable of handling structural cuts (up to 305 mm high) and precision trimming on solid wood, panels and plastic or aluminum profiles.

Technical Reference Data

Characteristic Detail
Product Code 590 0410 (HOL5900410)
Flywheel Diameter 426 mm
Max cutting width (With/Without guide) 266 mm / 416 mm
Max cutting height 90° 305 mm
Blade speed 460 / 980 m/min
Blade length 3,378 mm
Table dimensions 530 x 480 mm
Motor power (230 V - 50 Hz) 1.5 kW (1,500 W)
Ø Suction nozzles 2 x 100 mm
Overall dimensions 765 x 520 x 1,750 mm
Net weight 140 kg

Standard Equipment Included:

  • Band saw blade (3378x16x0.5 mm).
  • Aluminum parallel guide mounted on bar.
