5830/XF 5000 XF SERIES INDUSTRIAL CABLE REEL, 11M+1.5M - CABLE CROSS-SECTION 2 X 1.5MMQ ZECA

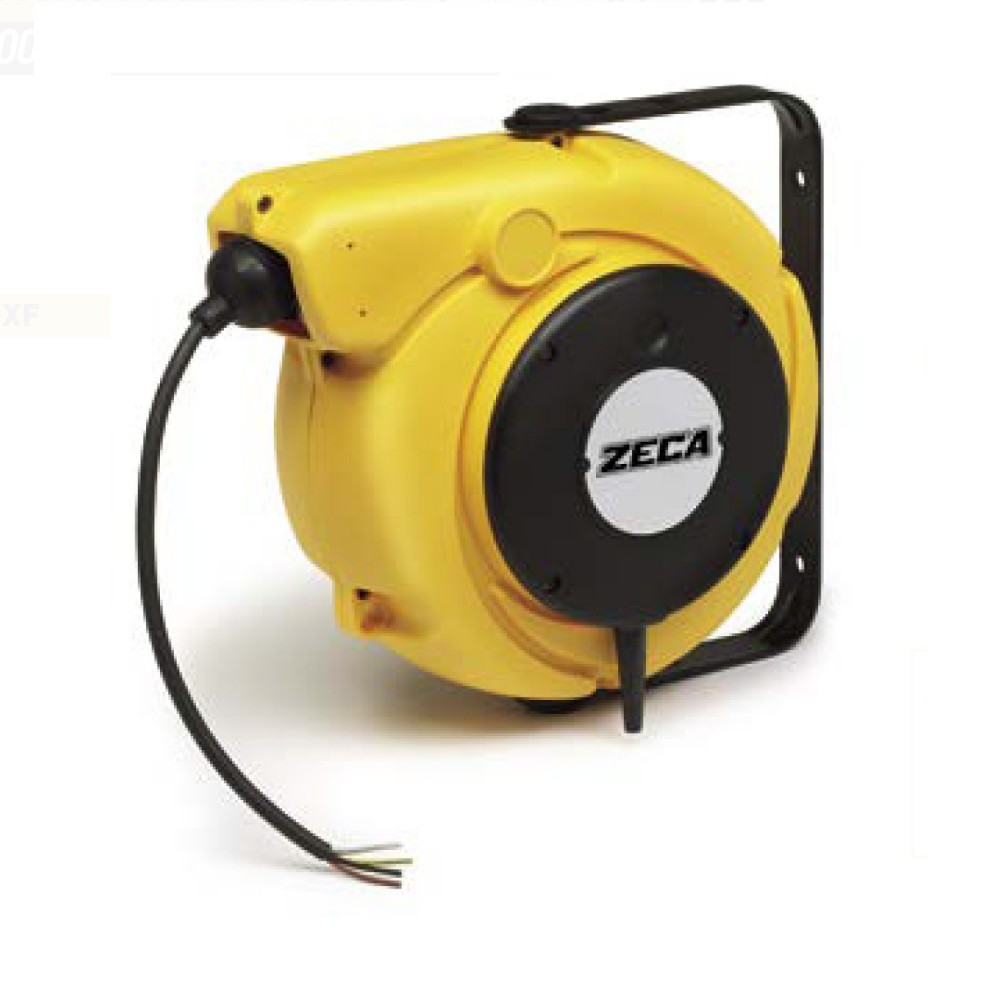

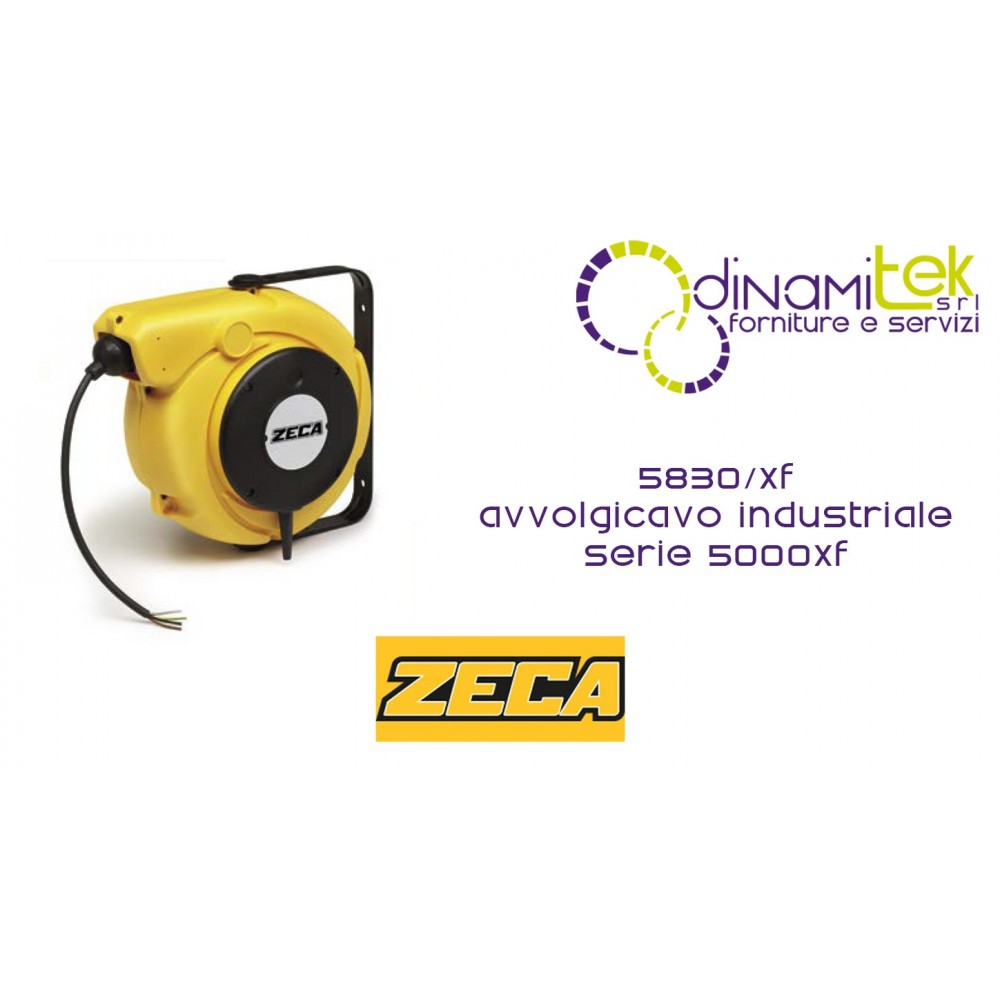

INDUSTRIAL CABLE REEL 5830/XF SERIES 5000XF Zeca

Number of conductors 2 X

Conductor section 1.5

Cable length (m) 11+1.5

KW Wrapped Cable 1.1 @230V

KW Unwound Cable 1.6 @230V

Cable type H05VV-F

Cable diameter (mm) 8

Thermal protector

V max 500

Shipping cost: Free for
154,98 €
Tax included

127,03 € Tax excluded

Quantity
Available product, order it now.

INDUSTRIAL CABLE REEL 5830/XF SERIES 5000XF Zeca

Cable reel with resistant shock-proof plastic body.

Cable movement is facilitated by the roller cable guide mouth. There is also a rack device that stops the cable every 50 cm, which can be eliminated if you prefer to work with the cable constantly under tension.

The cable reel is supplied without the cable section on the power side.

Technical features

Number of conductors 2 X

Conductor section 1.5

Cable length (m) 11+1.5

KW Wrapped Cable 1.1 @230V

KW Unwound Cable 1.6 @230V

Cable type H05VV-F

Cable diameter (mm) 8

Thermal protector

V max 500

Collector insulation voltage 2.5 KV.

Double ground contact.

Sliding contacts with collector ring and brushes.

Degree of protection IP42.

Ambient operating temperature -5°C/+50°C.

CE marking.

EN 61242
EN 60355-1
2014/35/EU
2006/42/EC
2011/65/EU
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



5830/XF
