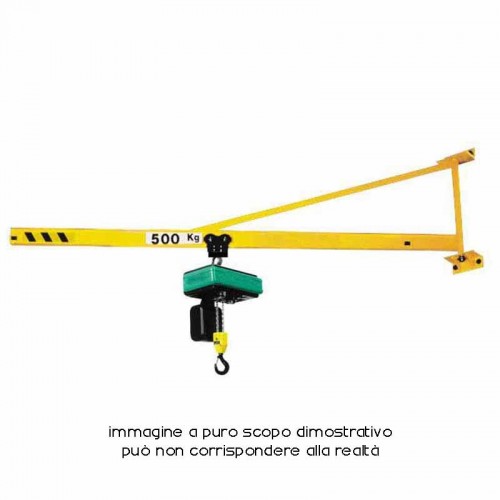

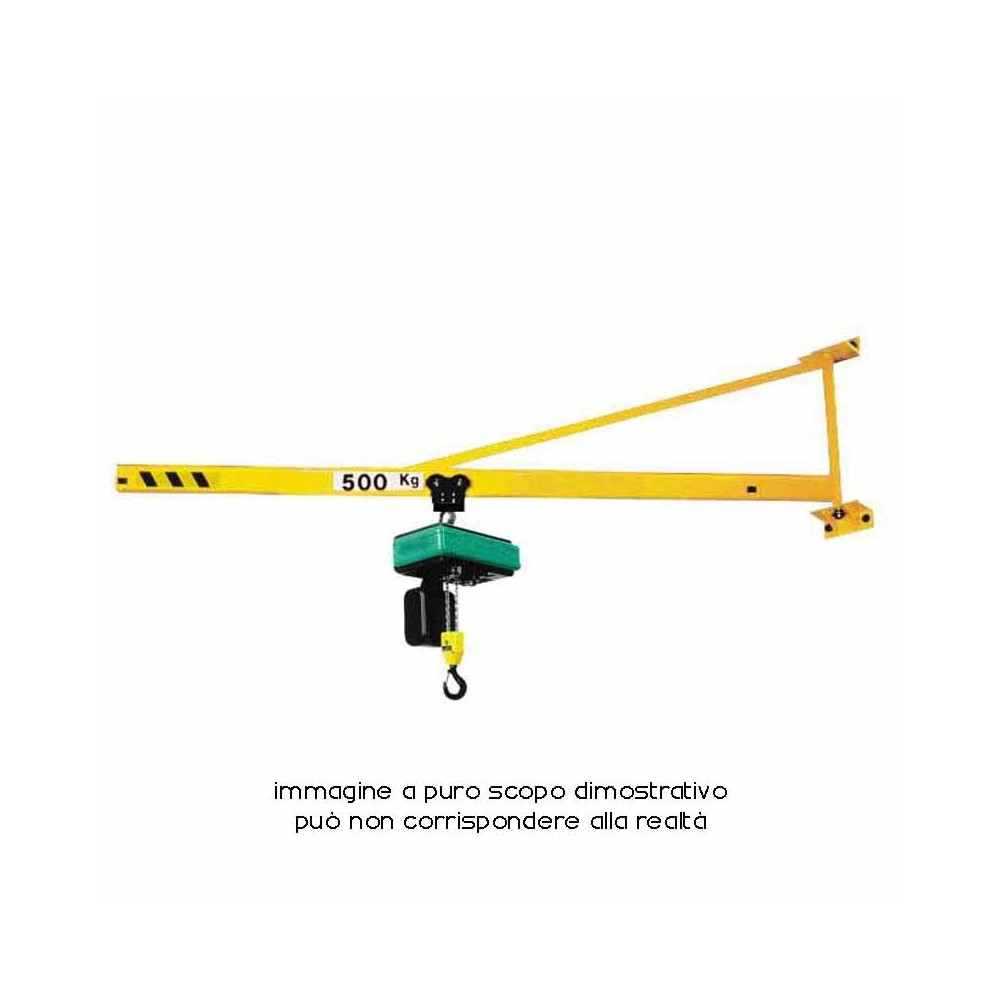

JIB CRANE FIXED TO A BRACKET WITH AN ARM IN A TIE BEAM

Solution to adopt when it is not possible to install a steel column or you want to take advantage of the presence of a reinforced concrete pillar in the workplace. The crane beam is hinged to the pillar so that it can rotate. FOR ANCHORING, USE THE COUNTER BRACKETS FOR PILLARS, you can find them under accessories. The beam is supported by an upper tie rod which serves as a vertical rotation pin. The beam represents the runway where the translation unit anchored to the lifting unit slides. Respectively, the trolley and the hoist.

The handling of the load follows three moments: lifting, translation along the radial axis of rotation of the arm and rotation of the arm itself. The controlled work area, therefore, is delimited by the rotation radius of the arm.

For the safety of the operator and the integrity of the load, it is recommended to respect the indications for use and the limits of use indicated in the instruction manual.

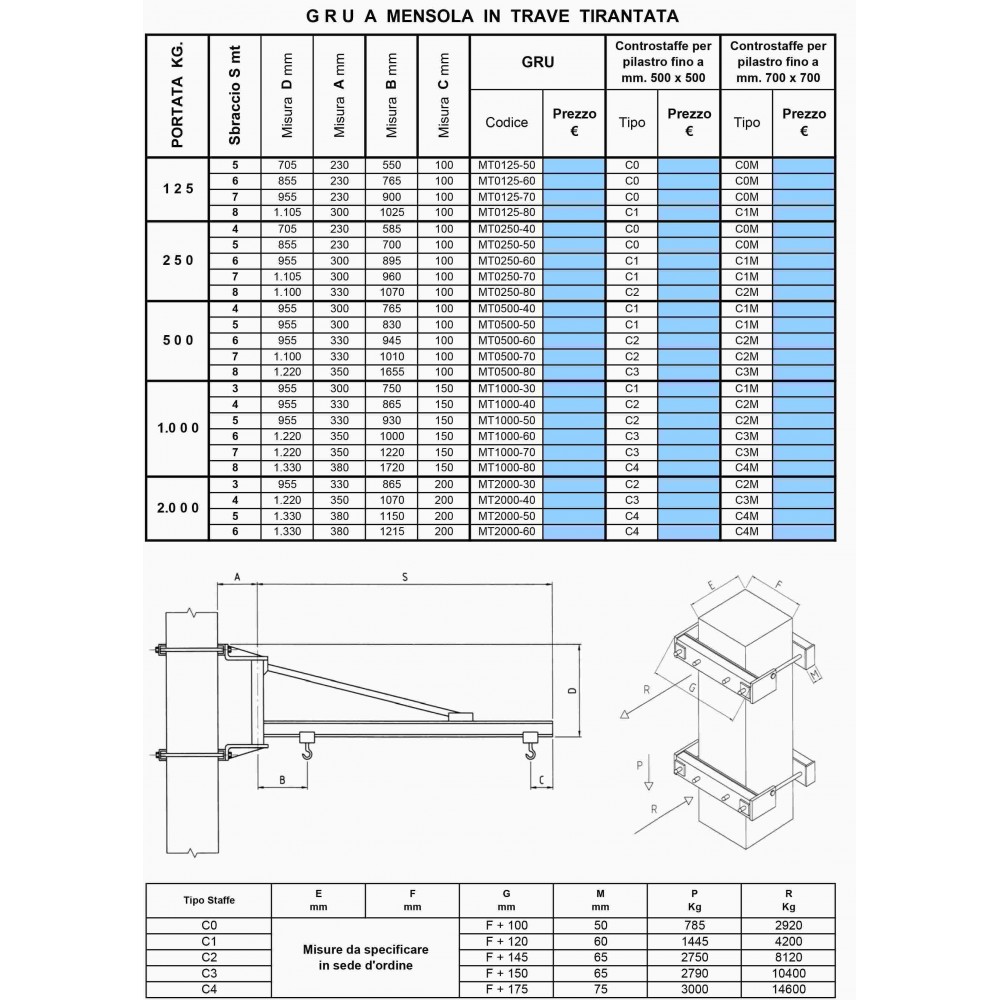

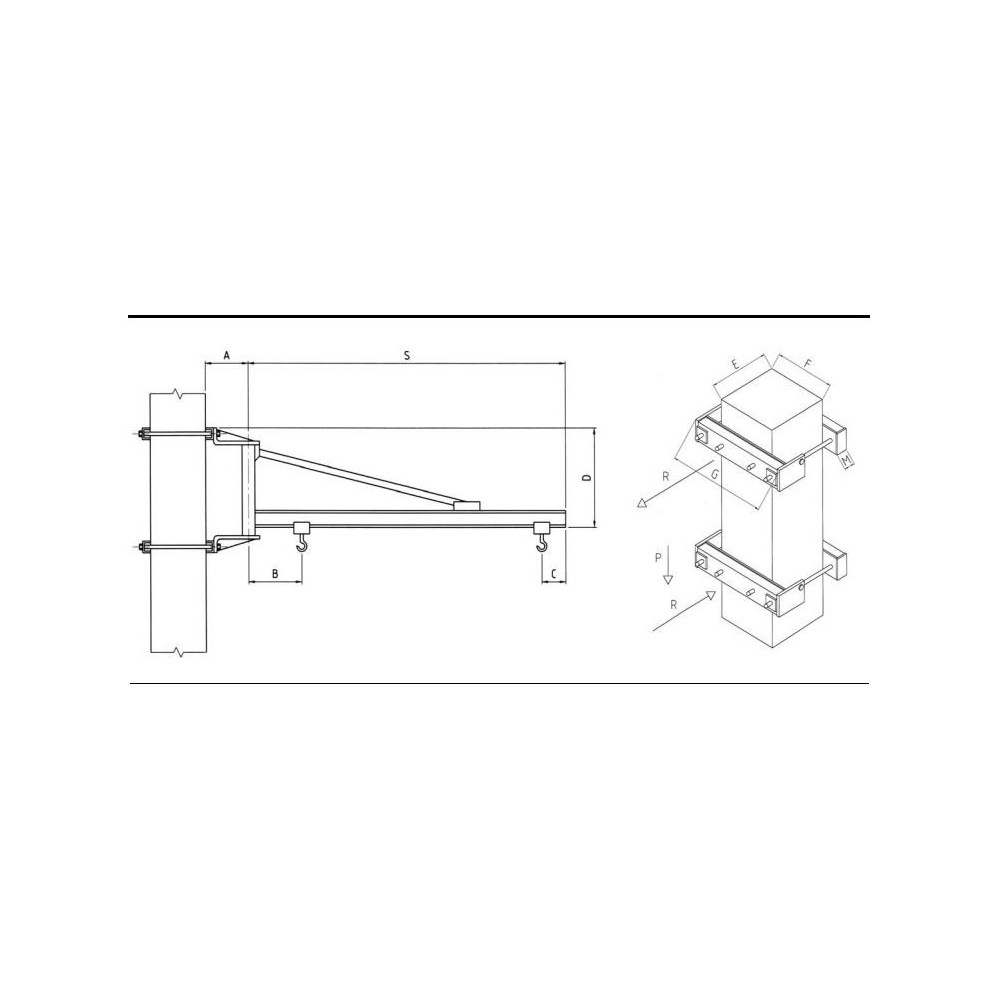

In the attached sheet you will find the diagram of the counter-brackets for pillars for column-mounted cranes.

The boom of the crane is made of normal profile steel.

The bracket is adapted to the support pillar using special 8G screws and with brackets chosen for the specific case. The evaluation of the most suitable solution for the need of the case takes place by contacting the customer service info@dinamitek.com .

The travel unit and the lifting unit are not included with the crane: therefore, the trolley and the hoist are not included in the delivery. The hoist can be purchased separately, the range of electric hoists type PT PHOLGOR is available

SAPORITI cranes are certified professional equipment:

compliance with the Community Machinery Directive No. 2006/42/EC (in Italy Legislative Decree No. 17/2010)
CE marking
CE declaration of conformity
manufacturer's declaration
test certificate / suitability for use
