COLUMN JIB CRANE IN 5 M HIGH TIE BEAM ASCARLO SAPORITI

CRANE ASCARLO SAPORITI

5m HIGH

JIB CRANE TYPE

Typology of Fastening Column crane

Type of Arm in beam with tie rod

Variants available

Capacity Kg 125 Outreach S m 5 _ 6_ 7 _ 8

Capacity Kg 250 Outreach S m 4 _ 5 _ 6 _ 7 _ 8

Capacity Kg 500 Outreach S m 4 _ 5 _ 6 _ 7 _ 8

Capacity Kg 1000 Outreach S m 3 _ 4_ 5 _ 6 _ 7 _8

Capacity Kg 2000 Outreach S m 3 _ 4 _ 5 _ 6

Shipping cost: €100.00 for
2598,97 €
Tax included

2.130,30 € Tax excluded

Choose
Match
Request availability

5 m HIGH TIRANTATA BEAM COLUMN JIB CRANE AS CARLO SAPORITI

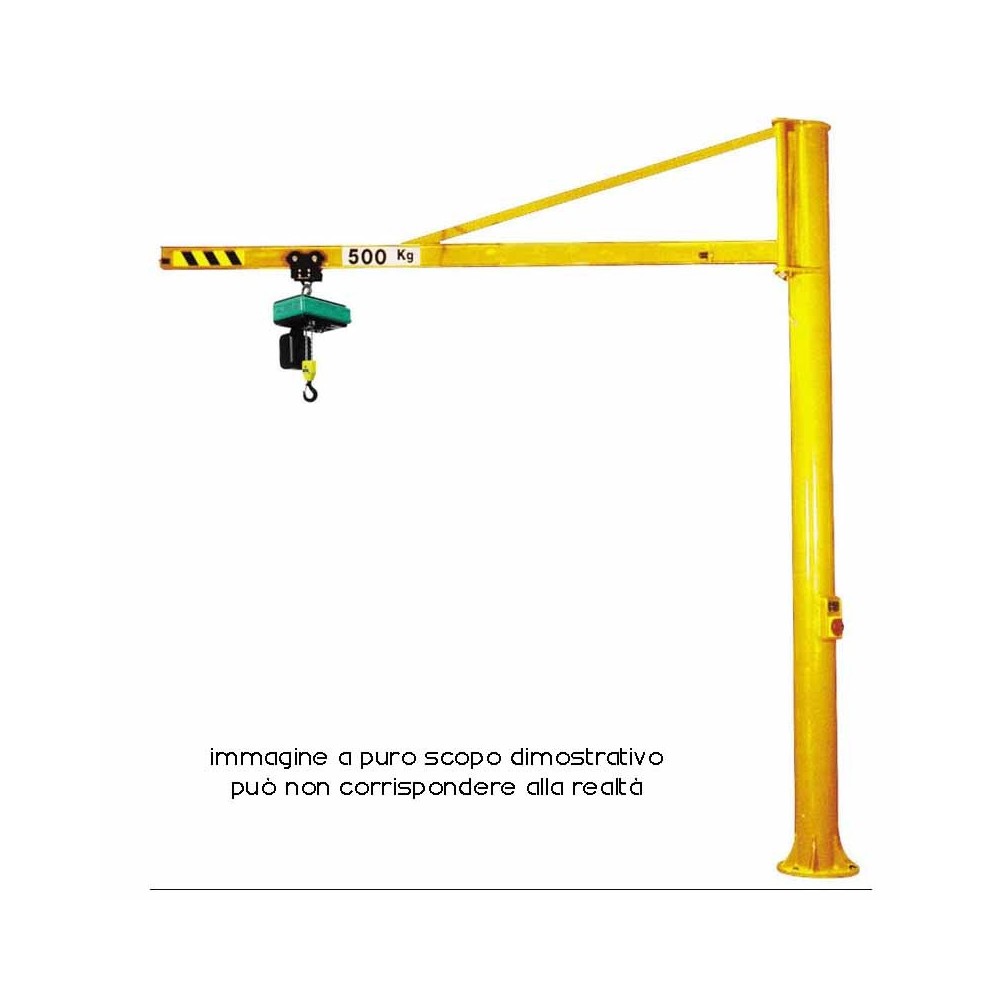

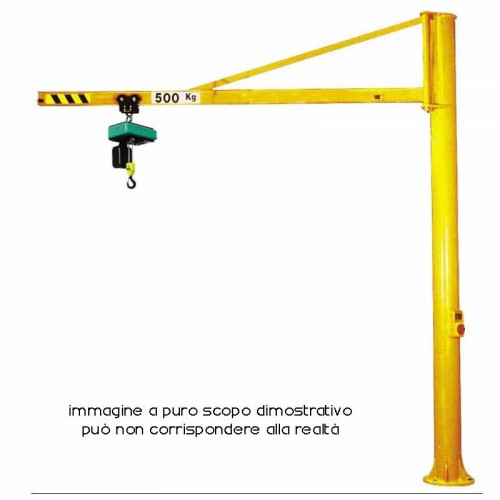

JIB CRANE FIXED TO A COLUMN WITH AN ARM IN A TIE BEAM

Crane type: jib. It is a beam that is hinged on a vertical support, using pins on bearings that allow rotation. The translation unit to which the lifting unit is connected runs on the horizontal beam, which functions as a runway.

Fixing: column. The structure is simple, but very functional. The column is made of profiled steel. The column is laid by anchoring a thick plate to the foundation plate using special foundation cages with threaded rods, suitable for each type of column. THE FOUNDATION BASE AND THE BOLTS ARE FOR SALE SEPARATELY.

Arm: in tie beam. An upper tie rod supports the arm. This solution makes the rotation "lighter" even if the capacity and outreach are increased. The work area served by the crane is delimited by the rotation radius of the arm. The rotation of the arm, therefore, takes place by pushing and covers an area of 270 degrees along the entire length of the arm. The arm is in normal profiled steel.

The connection between the arm and the column takes place via pins that rotate on bearings. Thanks to the adjustable braking device, the push rotation of the arm can be adjusted.

SAPORITI cranes are certified professional equipment, designed and manufactured in compliance with the Community Machinery Directive No. 2006/42/EC (in Italy Legislative Decree No. 17/2010). They are supplied after anti-rust painting and zinc chromate finish

The travel unit and the lifting unit are not included with the crane: therefore, the trolley and the hoist are not included in the delivery. The hoist can be purchased separately, the range of electric hoists type PT PHOLGOR is available

Certifications:
CE marking
CE declaration of conformity or Manufacturer's Declaration
test certificate / suitability for use

For the safety of the operators and to safeguard the load, it is recommended to comply with the limits of use indicated in the user manual.

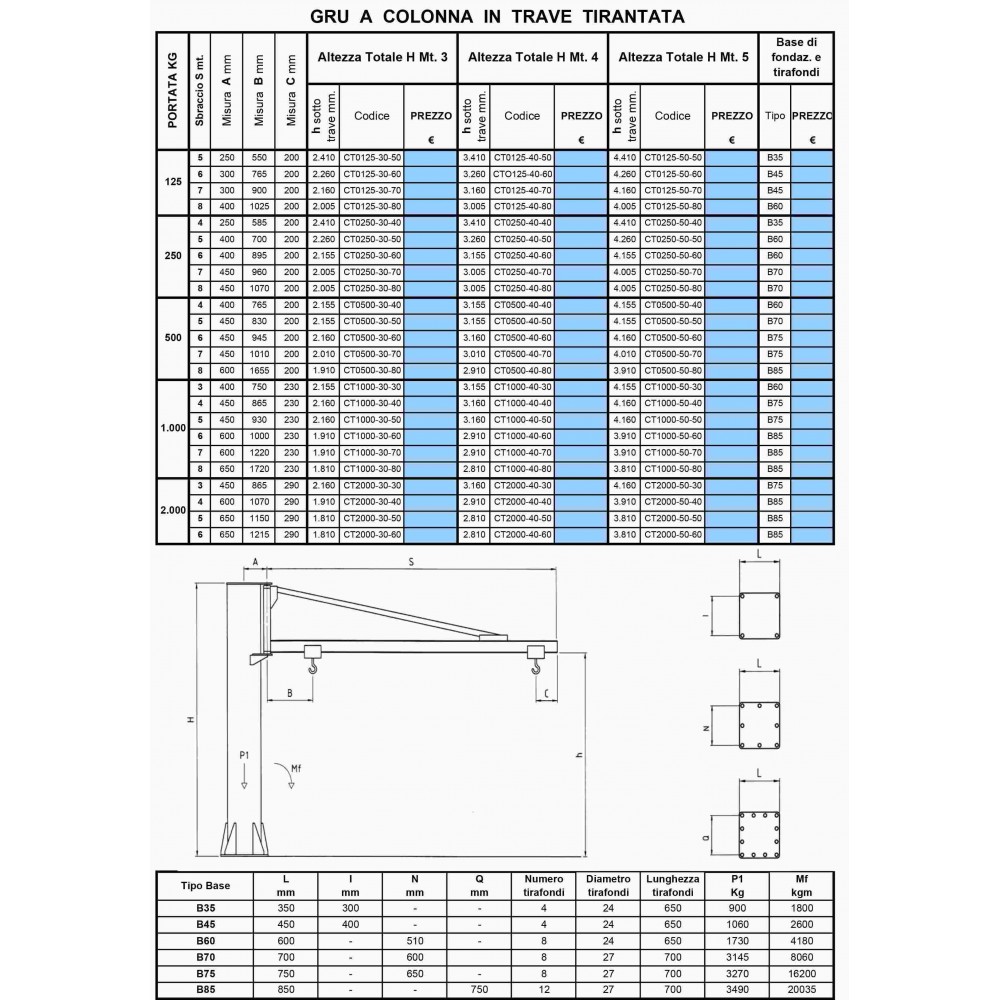

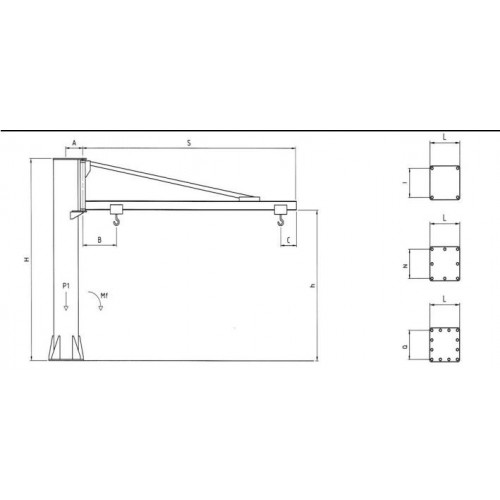

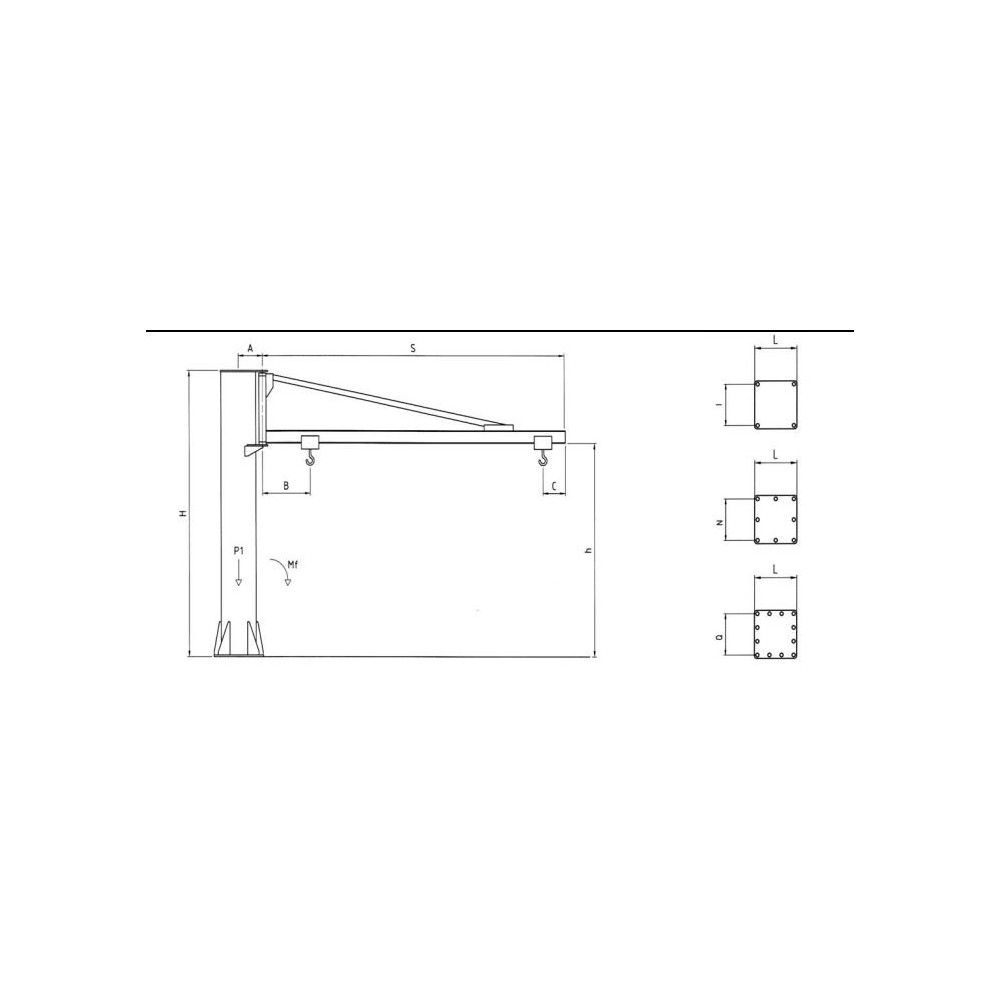

In the attached sheet you will find the diagram of the foundation base and bolts for column cranes. For the choice of the most suitable solution, you can get help from our technician by contacting customer service at info@dinamitek.com
For load handling, choose Saporiti jib cranes: bracket or column mounted, with channel arm, tie-rod or cantilever beam


CT0125-50-50
