056OP116V BF 16VARIO SMALL OPTIMUM DRILL-MILLER WITH ELECTRONIC DRIVE AND CONTINUOUS POWER REGULATION 230 V

The optimum BF 16 Vario Small Drill/Milling Machine is a compact and versatile machine tool, ideal for mechanical workshops and precision workshops. Equipped with an electronic drive with continuously variable speed control (100-3000 rpm) and a ±90° tilting head, this model allows for complex drilling and milling operations with extreme accuracy. The hand-ground guide structure and laterally adjustable column guarantee a wide range of applications despite its compact size.

Shipping cost: €50.00 for
1848,18 €
Tax included

1.514,90 € Tax excluded

Quantity
Available product, order it now.

Industrial Precision in a Compact Format

The optimum BF 16 Vario model (Code 056OP116V) was designed to offer the performance of a professional milling machine in a compact structure. Thanks to its advanced electronics, equipped with an EMC filter to protect components from line disturbances, the machine ensures smooth and safe operation. The 24V electrical safety system and the adjustable safety shield with microswitch place the operator at the center of the design.

Construction and Mechanical Excellence

  • High Quality Guides: The guides are hand-ground and scraped, equipped with oil cups for constant lubrication and smooth movement.
  • Stability and Precision: The column features a dovetail guide adjustable on all 3 axes via conical gibs, ensuring maximum structural rigidity.
  • Concentric Rotation: Thanks to the tapered roller bearings, the rotation accuracy is certified to less than 0.05 mm in the spindle seat.
  • Solid Cross Table: Precision machined with 10mm T-slots and coolant channels, it features a graduated length scale.

Operational Versatility

The BF 16 Vario is suitable for a wide range of machining operations thanks to its ±90° tilting head and its two-speed transmission, electronically adjustable via a potentiometer. The graduated rings on all handwheels allow for precise, millimetre-precise feed rates.

Technical Reference Data

Characteristic Detail
Engine power 230 V ~ 50 Hz - 500 W
Max drilling capacity (S235JR steel) Ø 16 mm
Spindle attachment CM 2 / M 10
Spindle speed (Vario) 100 ÷ 3,000 rpm
Head tilt ± 90°
Cross table dimensions 400 x 120 mm
X - Y - Z axis travel 220 / 160 / 210 mm

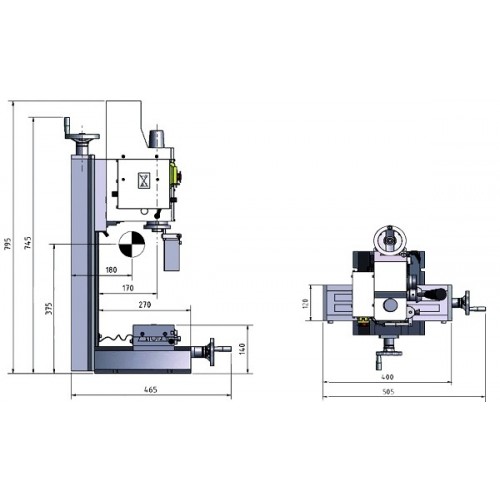

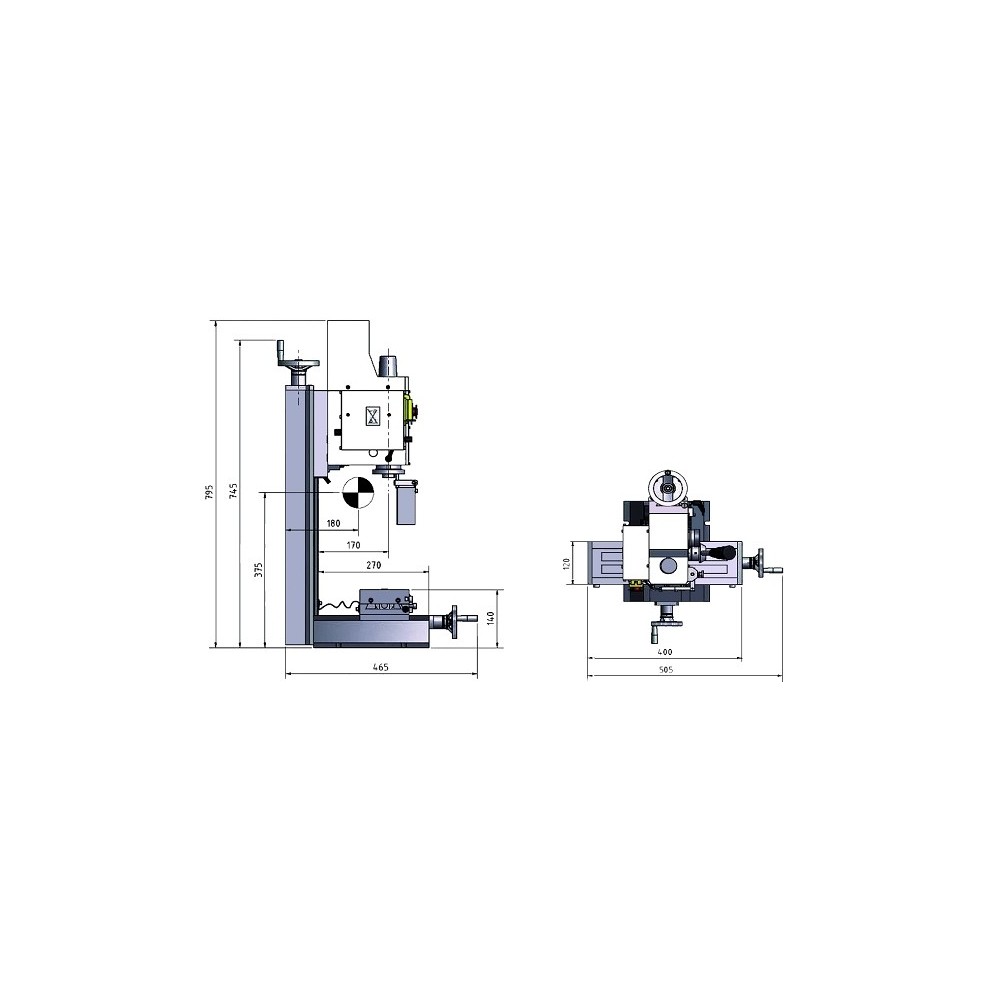

Dimensions / Net Weight 505 x 465 x 795 mm / 62 kg

Standard Equipment Included:

  • Conical chuck CM 2 / B 16.
  • M 10 pull rod.
  • Service keys.

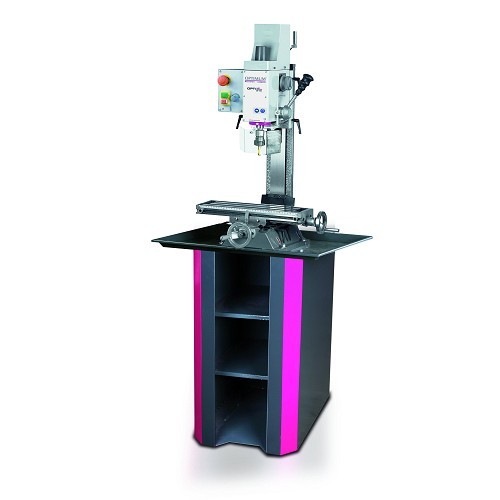

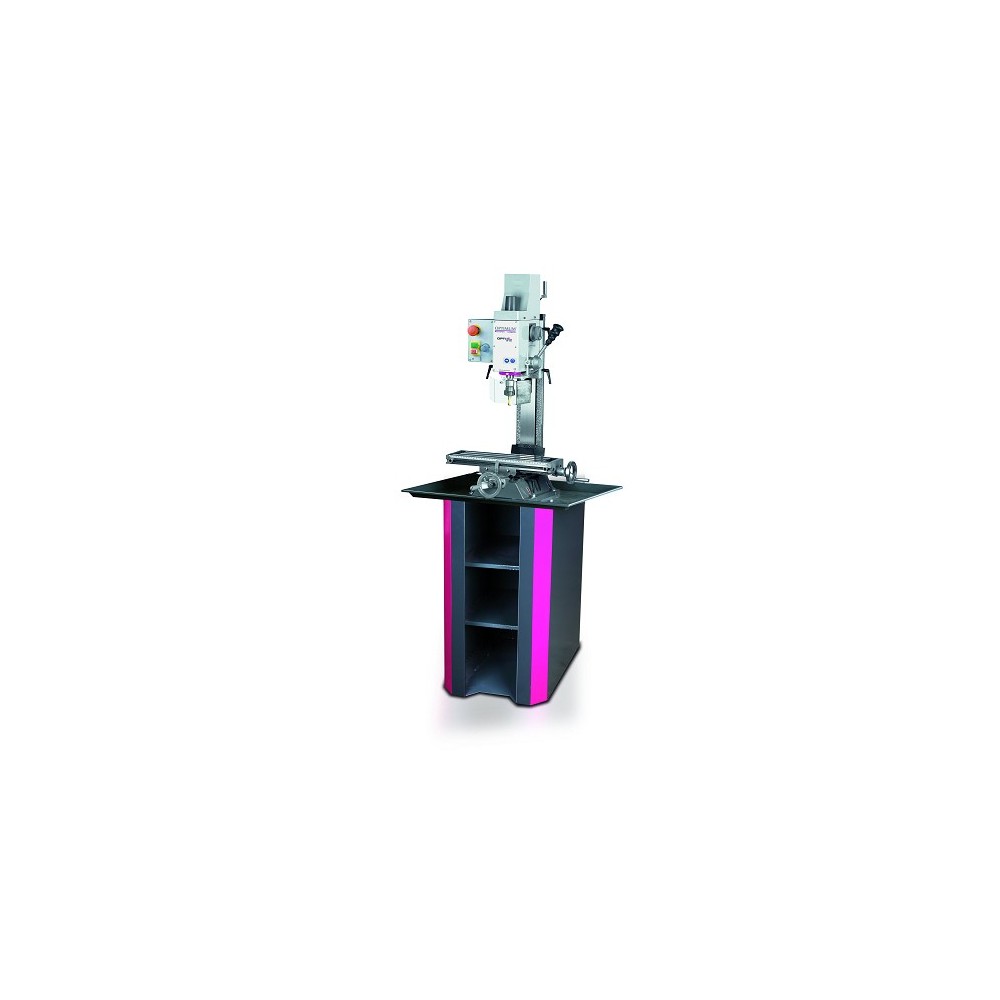

Note: A dedicated base for a stationary workstation is available as an optional accessory.
Qualità, precisione, longevità e stabilità di valore caratterizzano le macchine per la lavorazione dei metalli, garanzia tedesca


056OP116V

Accessories

OPT3352042 - TAPPING MACHINE WITH CLUTCH REVERSAL FROM M5 TO M12 Dinamitek 1

3352042 OPTIMUM M5 TO M12 REVERSING CLUTCH TAPPING...

The optimum Reversing Clutch Thread Tapper (Code 3352042) is the essential professional accessory for fast, precise threading on drills and machine tools. Designed for threads ranging from M5 to M12 , it features a built-in reverser and a 4-position adjustable clutch, ensuring maximum tool protection and high productivity in every work cycle.
Price €637.88
Available product, order it now.
OPT3354170 - CLAMP TWO-AXIS MODEL ZAS 50 50 MM Dinamitek 1

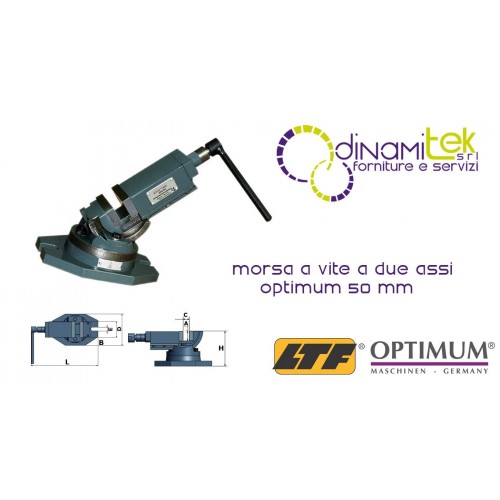

3354170 ZAS 50 OPTIMUM TWO-AXIS SCREW VICE 50 MM
