3354170 ZAS 50 OPTIMUM TWO-AXIS SCREW VICE 50 MM

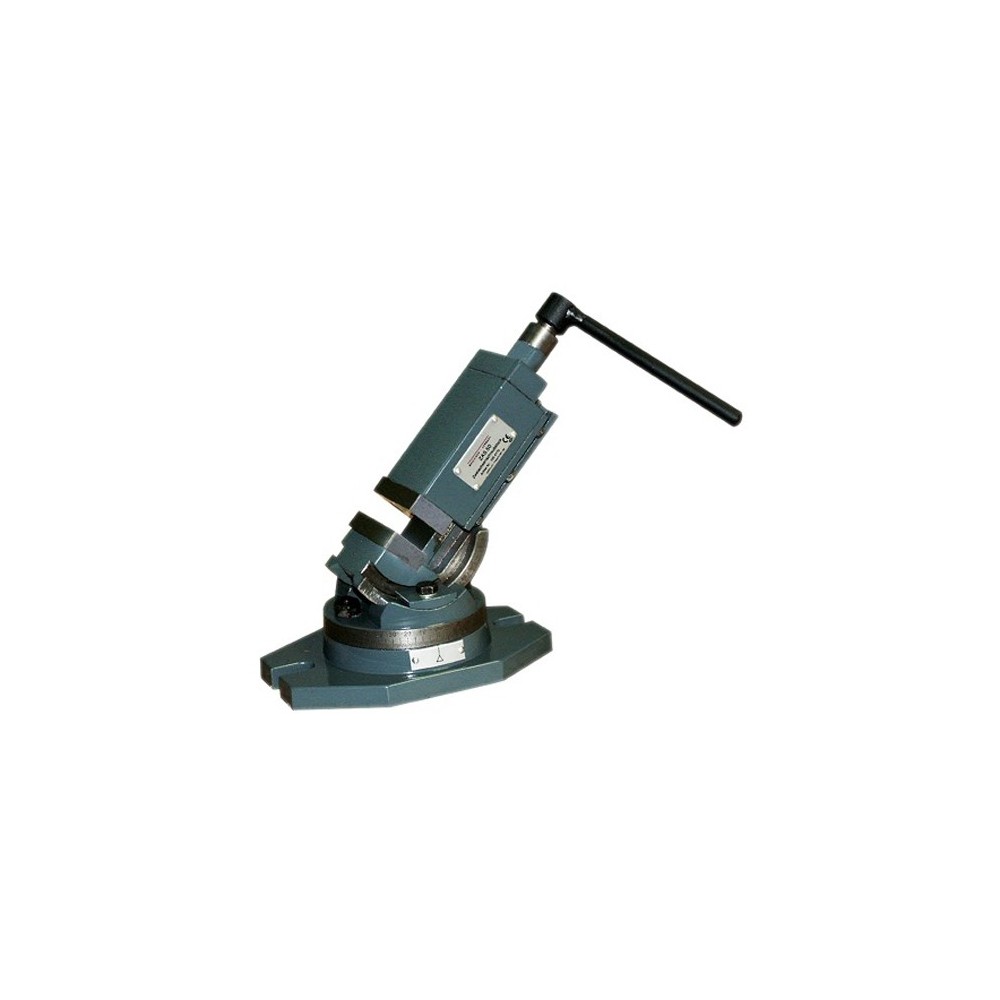

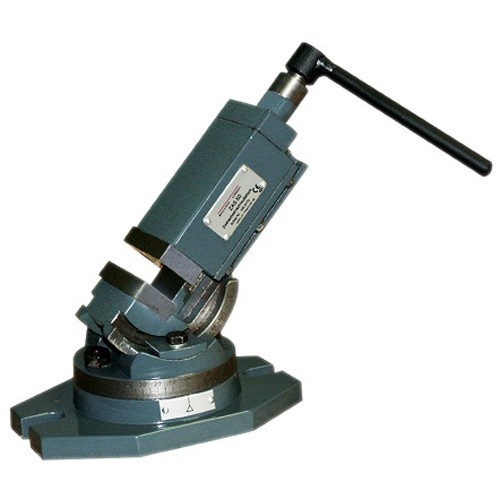

The ZAS 50 dual-axis vice is a precision tool designed for complex machining operations requiring precise angular inclinations. Featuring a 360° rotating base and the ability to tilt up to -90° , this compact vice ensures stability and versatility on drills and milling machines, allowing for precise positioning of the workpiece thanks to the clearly legible graduated scales.

Shipping cost: €15.00 for
182,8 €
Tax included

149,84 € Tax excluded

Quantity
Available product, order it now.

Two-axis vice model ZAS OPTIMUM 50 - 50 mm code 3354170

For drill milling machine 056OP116V DRILL-MILLING MACHINE WITH ELECTRONIC DRIVE AND CONTINUOUS ADJUSTMENT BF 16 Vario or

Total Flexibility for Precision Angle Machining

The optimum ZAS 50 model (Code 3354170) represents an excellent solution for workshops that need to drill or mill on inclined planes. The unique feature of the two axes of movement allows for extremely free orientation of the workpiece, eliminating the need for complex manual settings and significantly increasing operational efficiency.

Technical and Construction Features

  • Quality Mechanics: The vice is equipped with hardened and ground jaws , interchangeable to ensure long life and a consistently secure grip on the material.
  • Precise Adjustment: Both axes feature easy-to-read graduated scales , allowing the operator to set the desired angle quickly and accurately.
  • Unlimited Orientation: The 360° swivel base allows for full rotation on the horizontal plane, while the vertical joint allows for tilts up to -90° .
  • Compact and Sturdy Design: Weighing only 3.4kg and with an overall length of 205mm, it fits perfectly even on small and medium-sized machine tools without sacrificing stability.

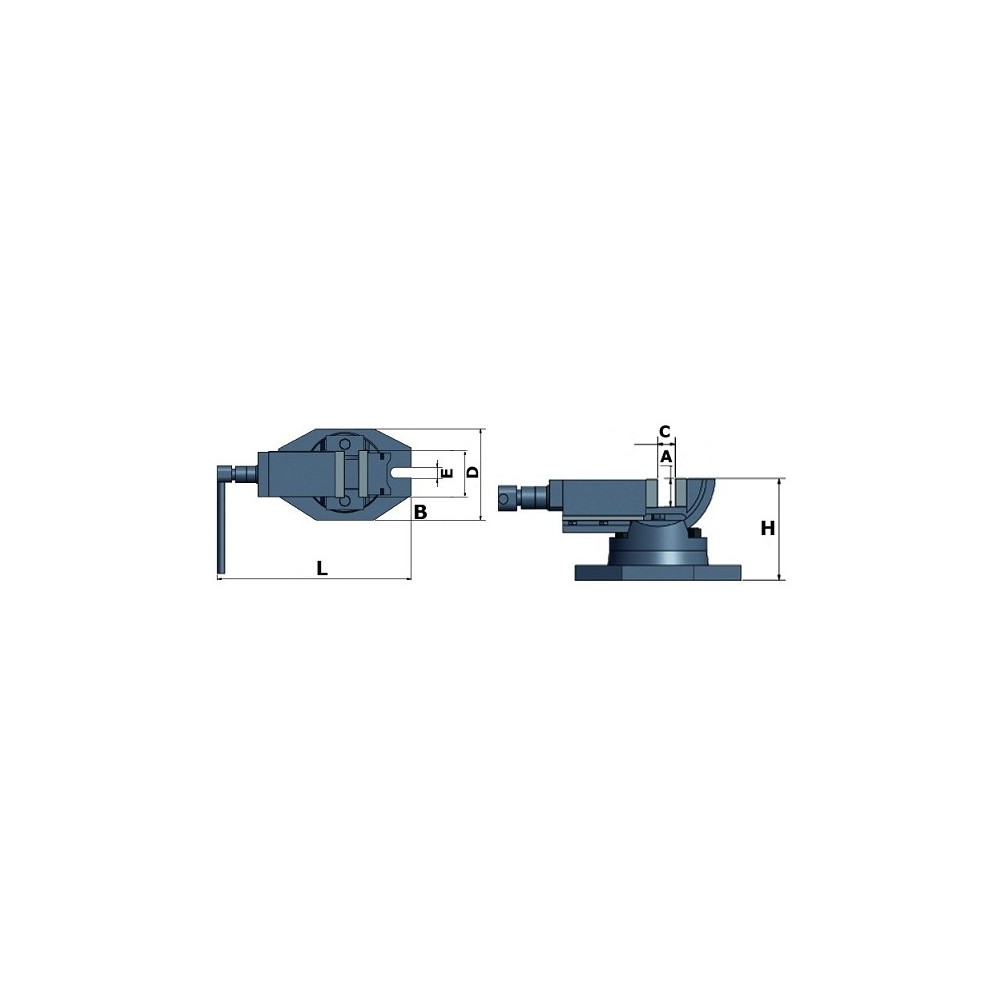

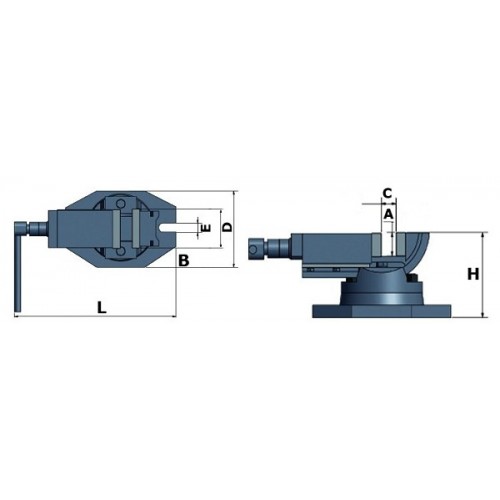

Technical Reference Data

Characteristic Detail
Product Code 335 4170 (OPT3354170)
Jaw width 50 mm
Jaw height 22 mm
Clamping opening 46 mm
Vertical axis tilt up to -90°
Basic rotation 360°
Dimensions (L x H) 205 x 87 mm
Net weight 3.4 kg

Choosing genuine optimum accessories means relying on engineering precision backed by LTF quality control, an industry leader since 1965.
Qualità, precisione, longevità e stabilità di valore caratterizzano le macchine per la lavorazione dei metalli, garanzia tedesca
