Solidity and Strength for Precision Mechanical Interventions

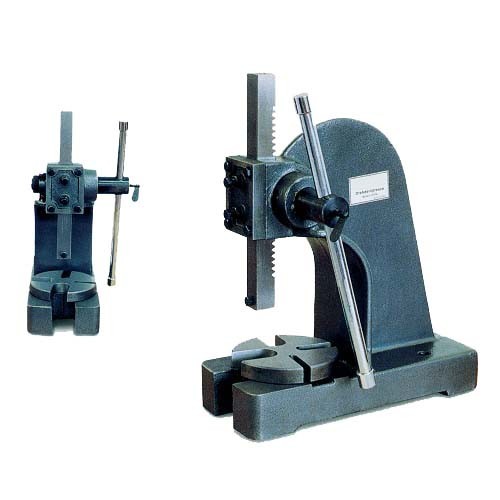

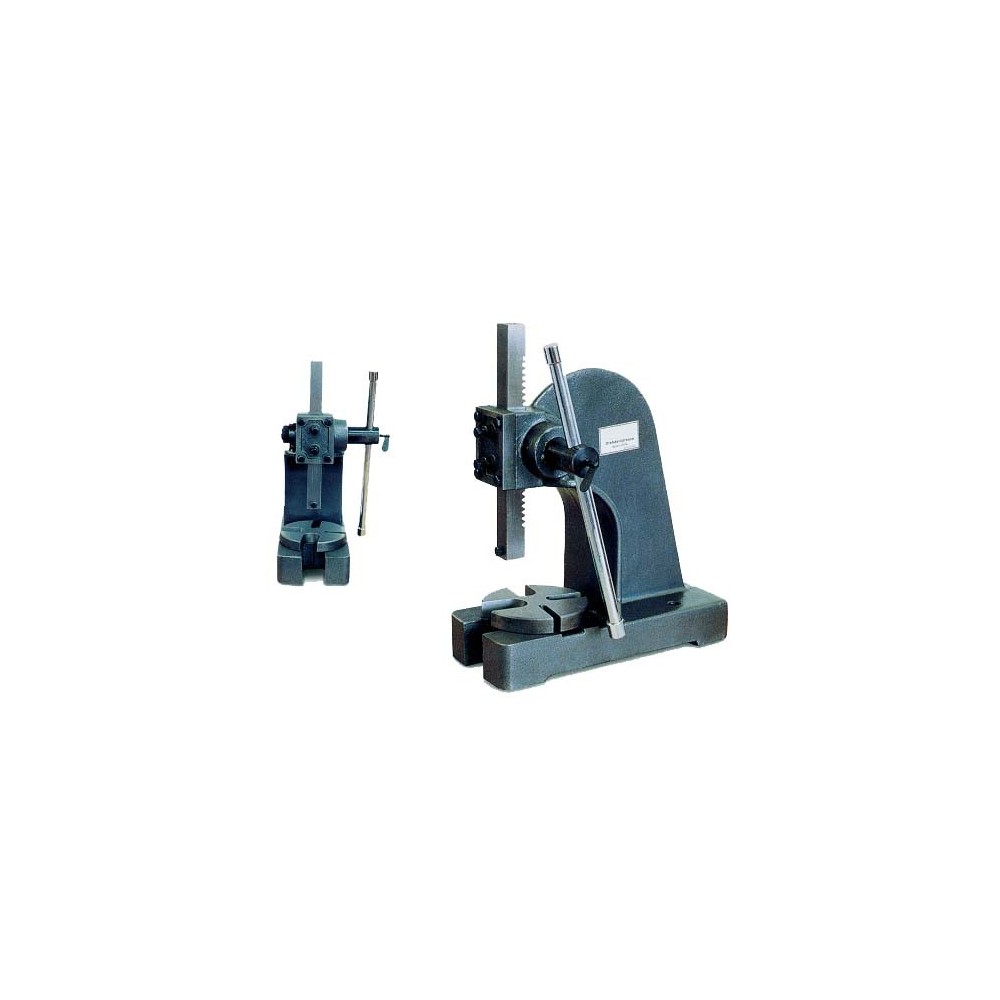

The optimum DDP 10 model (Code 111OP9011) is a manual press designed to last and withstand industrial stress. The machine body is made of gray cast iron , chosen for its excellent vibration dampening properties and structural rigidity, making it ideal for shrink-fitting and mechanical maintenance work.
Mechanical Features and Versatility
- Thrust Mechanics: The pinion and ram (dimensions 25x25x240 mm) are made of chromed steel , ensuring smooth power transmission and superior wear resistance.
- Adjustable Lever: The lever arm is designed to be positioned in different ways, allowing the operator to optimize the push angle and force applied according to specific work needs.
- Rotatable Base Plate: The machine includes a rotating base plate as standard that can be set to four different positions , offering flexible support for workpieces of various geometries.
- Fixing Provision: The base is designed for secure anchoring to the workbench, a fundamental step to ensure maximum safety when applying heavy loads.
Performance and Power Manual
Despite its compact size, the DDP 10 can generate considerable pressing forces. With a manual push of 392.4 N (approximately 40 kg), the machine is capable of producing a compressive force of 7,480 N (763 kg) , which can increase to 11,220 N (1,144 kg) with a manual push of 60 kg.
Technical Reference Data
| Characteristic | Detail |
|---|
| Product Code | 111 OP 9011 (OPT111OP9011) |
| Maximum piece height | 123 mm |
| Overhang (Outreach) | 95 mm |
| Sled dimensions | 25 x 25 x 240 mm |

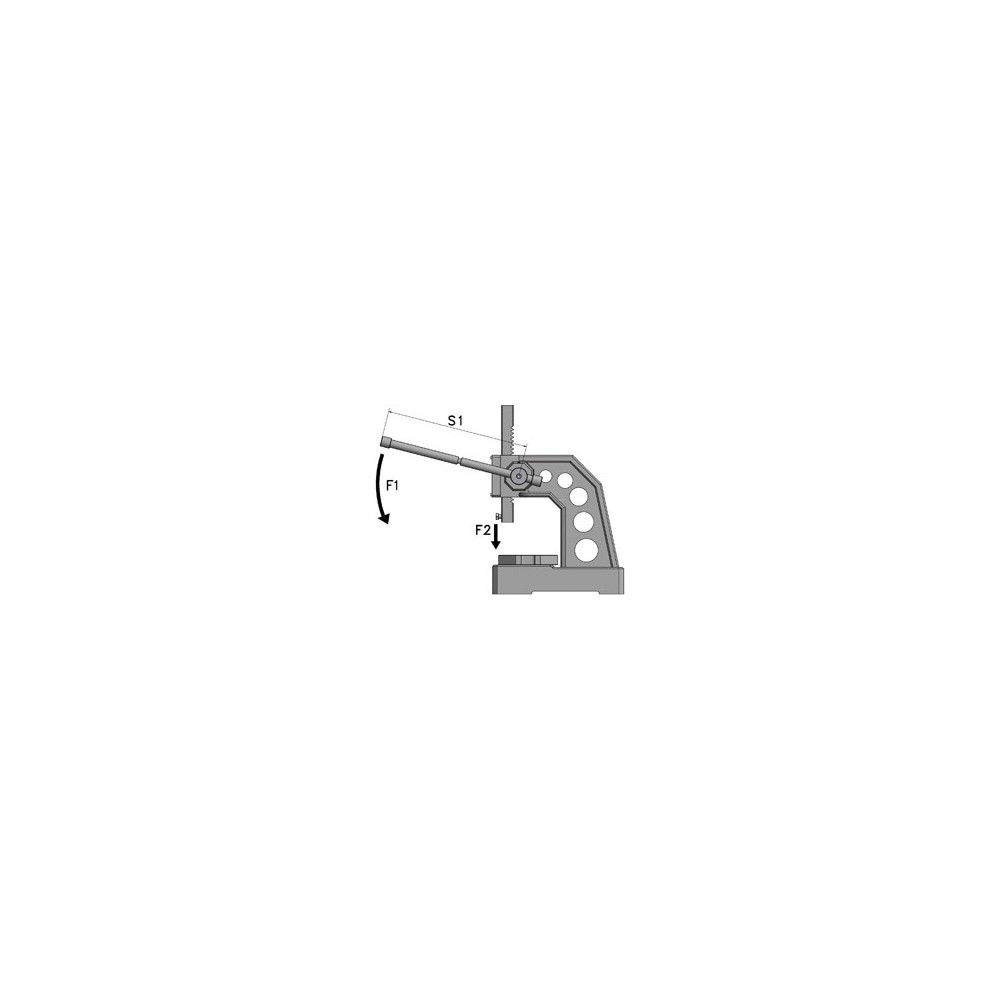

| Lever arm length (S1) | 340 mm |
| Overall dimensions (L x W x H) | 270 x 180 x 410 mm |
| Net weight | 14 kg |
Standard Equipment Included:
- Rotating base plate in four positions.
- Adjustable control lever.
Relying on the optimum press line means choosing German precision supported by the LTF SpA assistance and quality control network.
