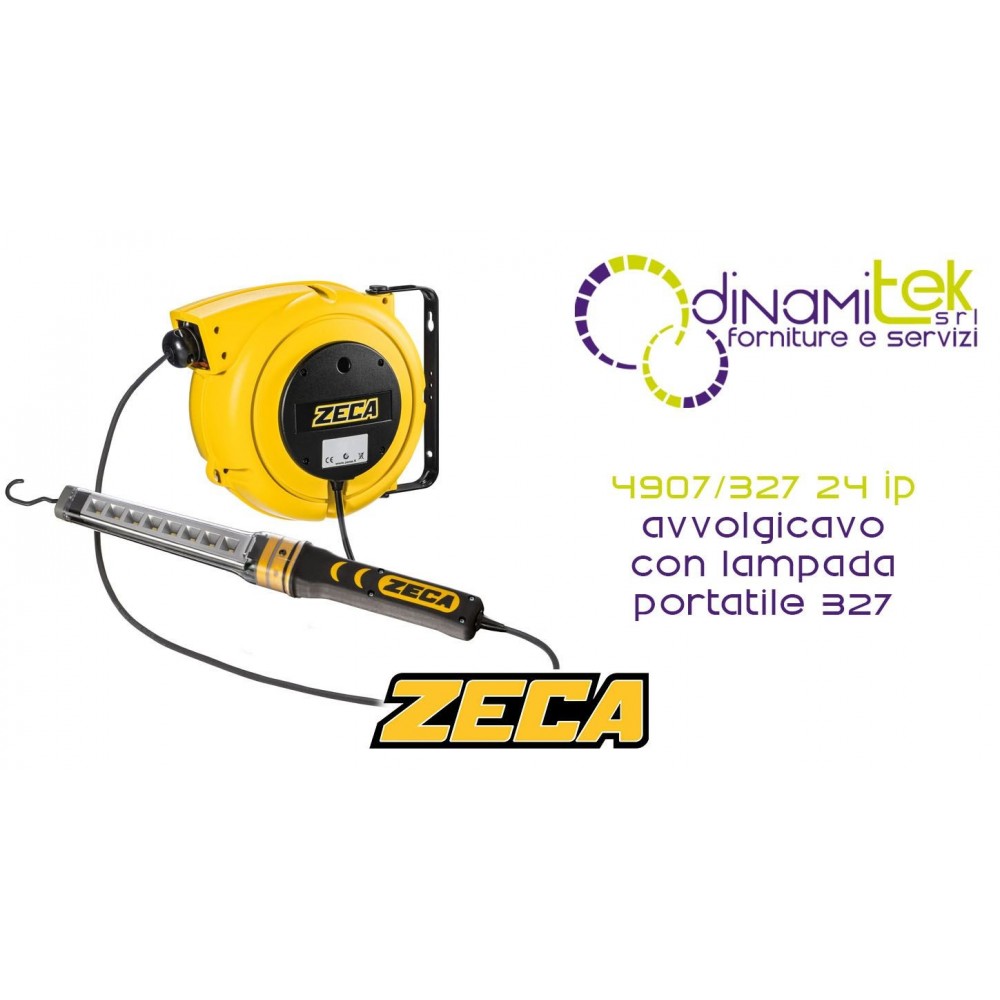

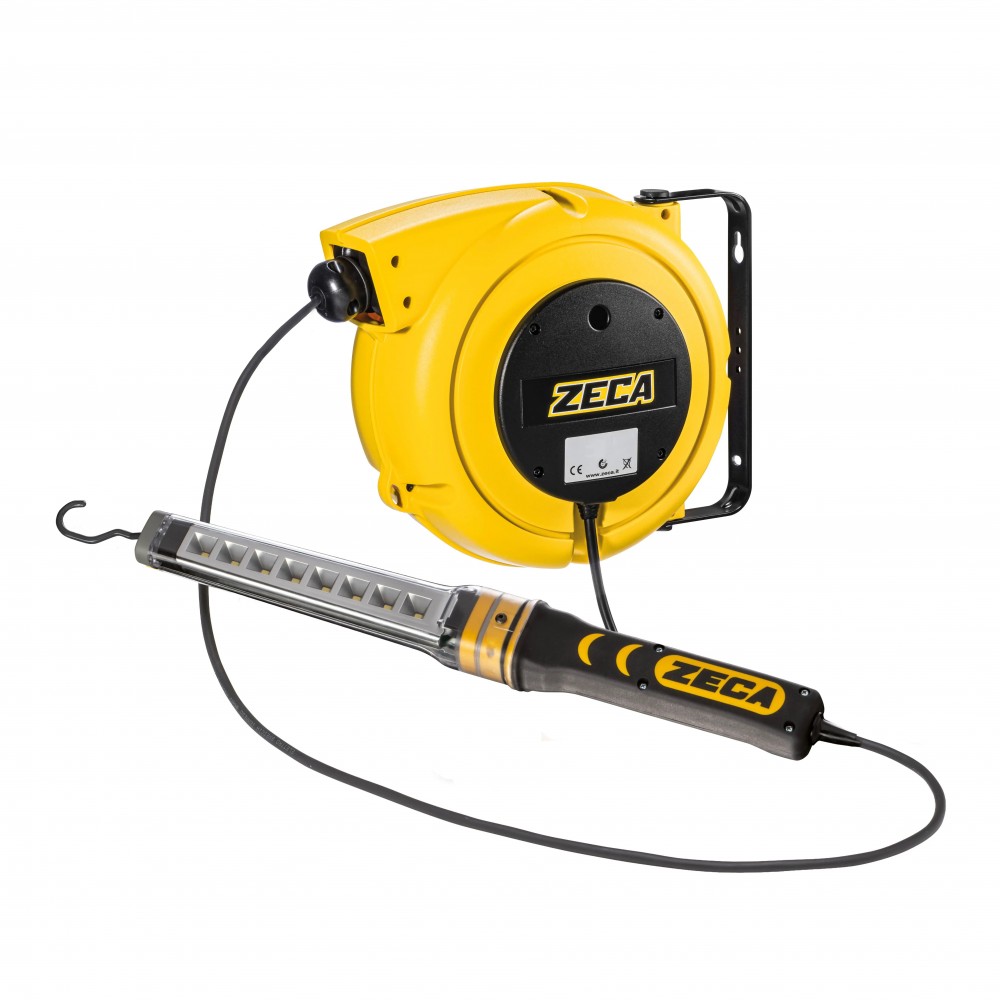

4907/327 24 IP CABLE REEL WITH PORTABLE LAMP 327 SERIES 4000 24V IP ZECA

Technical Features and Performance of the Cable Reel with IP Lamp Zeca Art. 4907/327 24 IP

The automatic cable reel with adjustable lamp Zeca Art. 4907/327 24 IP represents the watertight and hermetic variant of the 4000 Zeca Series. Developed for particularly harsh work environments, washdowns, inspection pits and outdoor environments, this model increases protection against water and dust, bringing the lamp to IP65 and the reel drum to IP55.

The Model 327 LED lamp uses 4-watt SMD LED technology with a 55° beam angle, delivering 700 lumens and a concentrated illumination of 1,000 lux at a distance of 50 cm. The power supply operates at safety low voltage (12-24V DC/AC) without a transformer integrated into the reel, ensuring compliance with workplace safety regulations.

Detailed Technical Data Sheet

• Product Code / Article: Art. 4907/327 24 IP
• Manufacturer / Brand: Zeca SpA
• Series: 4000 IP Series
• Product Type: Automatic spring-loaded cable reel with high IP protection LED inspection lamp
• Total Cable Length: 15.5 meters
• Connected Lamp Model: Model 327 24V
• Light Source: SMD LED
• Lamp Power Consumption: 4 W
• Luminous Flux and Illuminance: 700 Lumen / 1,000 Lux @ 50 cm
• Beam Angle: 55°
• Lamp Protection Rating: IP65
• Winder Protection Rating: IP55
• Power Supply Voltage: 12 - 24 V DC/AC
• Transformer: Not present / Direct low voltage power supply (NO)
• Packaging Dimensions and Weight:
  • Case / packaging dimensions: 410 x 305 x 185 mm
  • Net weight: 4.5 kg
