• New
ZECA 3516 AVVOLGICAVO MANUALE 40M 3G2.5 2 PRESE SCHUKO E 1 CEE Dinamitek 1
  • ZECA 3516 AVVOLGICAVO MANUALE 40M 3G2.5 2 PRESE SCHUKO E 1 CEE Dinamitek 1
  • ZECA 3516 AVVOLGICAVO MANUALE 40M 3G2.5 2 PRESE SCHUKO E 1 CEE Dinamitek 2
  • ZECA 3516 AVVOLGICAVO MANUALE 40M 3G2.5 2 PRESE SCHUKO E 1 CEE Dinamitek 3

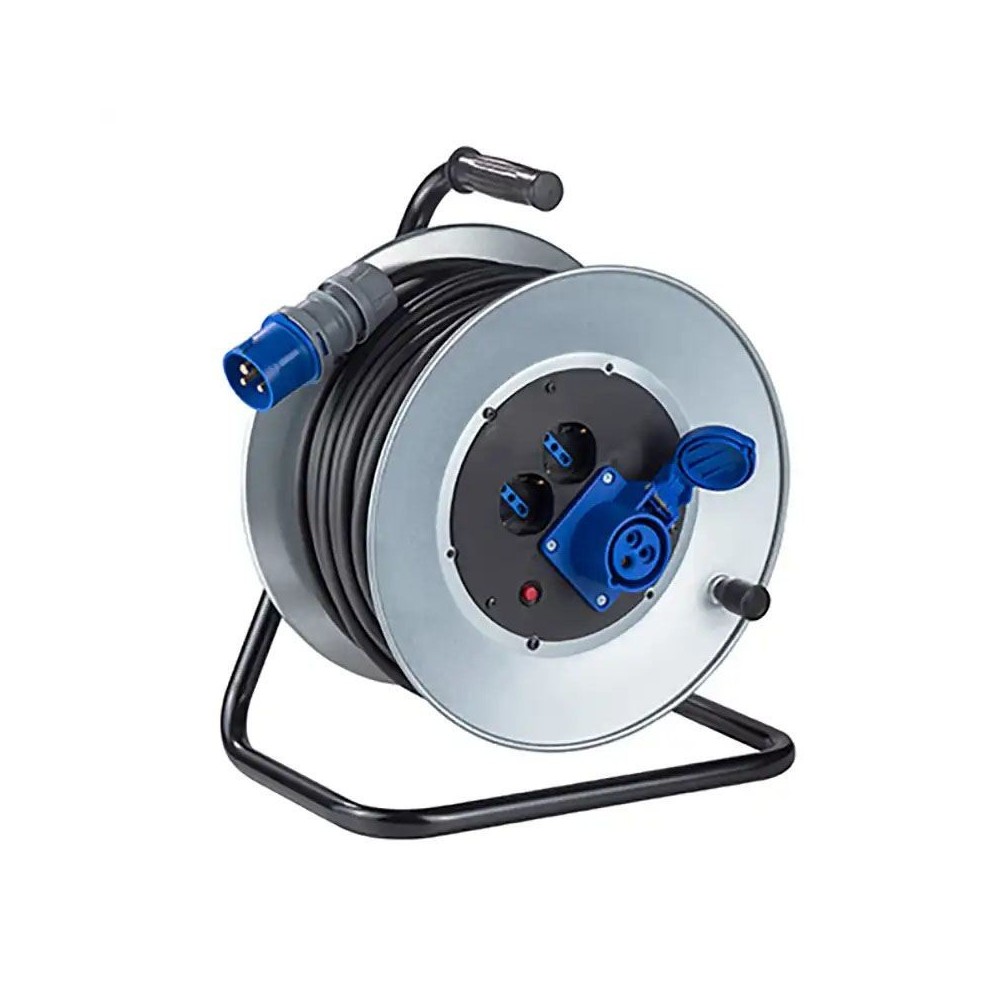

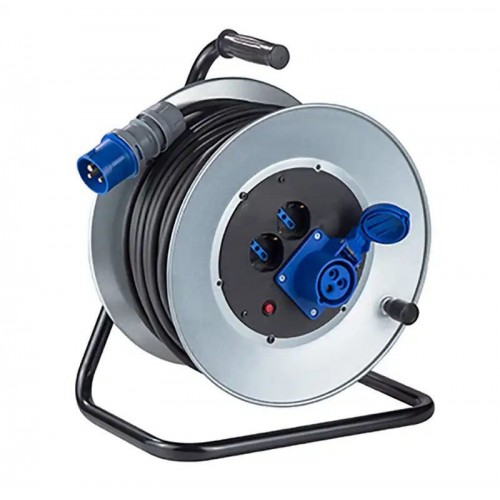

3516 40M 3G2.5 MANUAL CABLE REEL WITH 2 SCHUKO SOCKETS AND 1 CEE 3500 SERIES ZECA

High capacity and extended extension manual cable reel with 40 m of 3G2.5 mm² cable, combined panel with 2 Schuko sockets, 1 blue CEE 16A socket and thermal circuit breaker Zeca Series 3500 Art. 3516.

The Zeca Art. 3516 manual cable reel (belonging to the 3500 Series) is a professional manually wound cable reel that combines a wide 40 metre range of action with a high cross-section PVC cable (3G2.5 mm²), designed by Zeca SpA to guarantee a safe, stable and high-power power supply for both civil and industrial users over long distances.

  • 40 Meters of High Section PVC Cable (3G2.5 mm²): equipped with 40 m of 3G2.5 electrical cable to reach very distant working points while minimizing voltage drop under load.
  • High Power Up to 1.8 kW (1800 W): ensures an electrical output of 1,800 W both with the cable wound and with the cable fully unwound at 230V.
  • Combined Civil and Industrial Socket Panel: equipped with 2 universal 10/16 A 2P+T Schuko sockets and 1 CEE 16A 2P+T industrial socket (blue), with CEE 16A 2P+T plug included.
  • Thermal Circuit Breaker and Galvanized Steel Structure: equipped with an automatic thermal circuit breaker, Ø 310 mm galvanized sheet metal containment flanges and a support stand in fire-painted steel tube.
Shipping cost: Free for
172,37 €
Tax included

172,37 € Tax excluded

Quantity
Available product, order it now.

Technical Features and Performance of the Zeca Cable Reel Art. 3516

The Zeca Art. 3516 manually wound extension cable reel represents the maximum combination of extension and power of the 3500 Zeca Series for dynamic electrification on construction sites, workshops and industrial environments. The presence of the 2.5 mm² (3G2.5 mm²) PVC cable with a larger cross-section, developed over 40 metres in length, combined with the mixed socket panel (2 universal Schuko sockets and 1 single-phase CEE 16A socket) allows for the supply of up to 1.8 kW continuous power in complete safety.

The solid metal structure consists of a stove-enamelled steel tube support stand, an insulating plastic inner casing, and a built-in mechanical brake to stop the coil from rotating at the desired speed. The built-in thermal cutout automatically interrupts the circuit in the event of overload or conductor overheating.

Detailed Technical Data Sheet

  • Product Code / Article: Art. 3516
  • Manufacturer / Brand: Zeca SpA
  • Series: 3500 Series
  • Product Type: High capacity manual winding cable reel / extension cord with mixed sockets and increased extension
  • Cable Length: 40 meters
  • Number of Conductors and Section: 3G x 2.5 mm²
  • Cable Type: PVC (H05 VV-F)
  • Sockets and Plugs: 2 universal 10/16 A 2P+T Schuko sockets + 1 CEE 16A 2P+T socket (blue) and CEE 16A 2P+T plug included
  • Power and Electrical Range (@20°C):
    • Wrapped cable: 1.8 kW (1800 W)
    • Unwound cable: 1.8 kW (1800 W)
  • Thermal Circuit Breaker: Present / Integrated (YES)
  • Retraction System: Manual by crank
  • Construction Specifications:
    • Mechanical brake to block the reel rotation
    • Insulating internal body made of plastic for maximum safety
    • Side flanges in galvanized sheet metal
    • Support stand in fire-painted steel tube

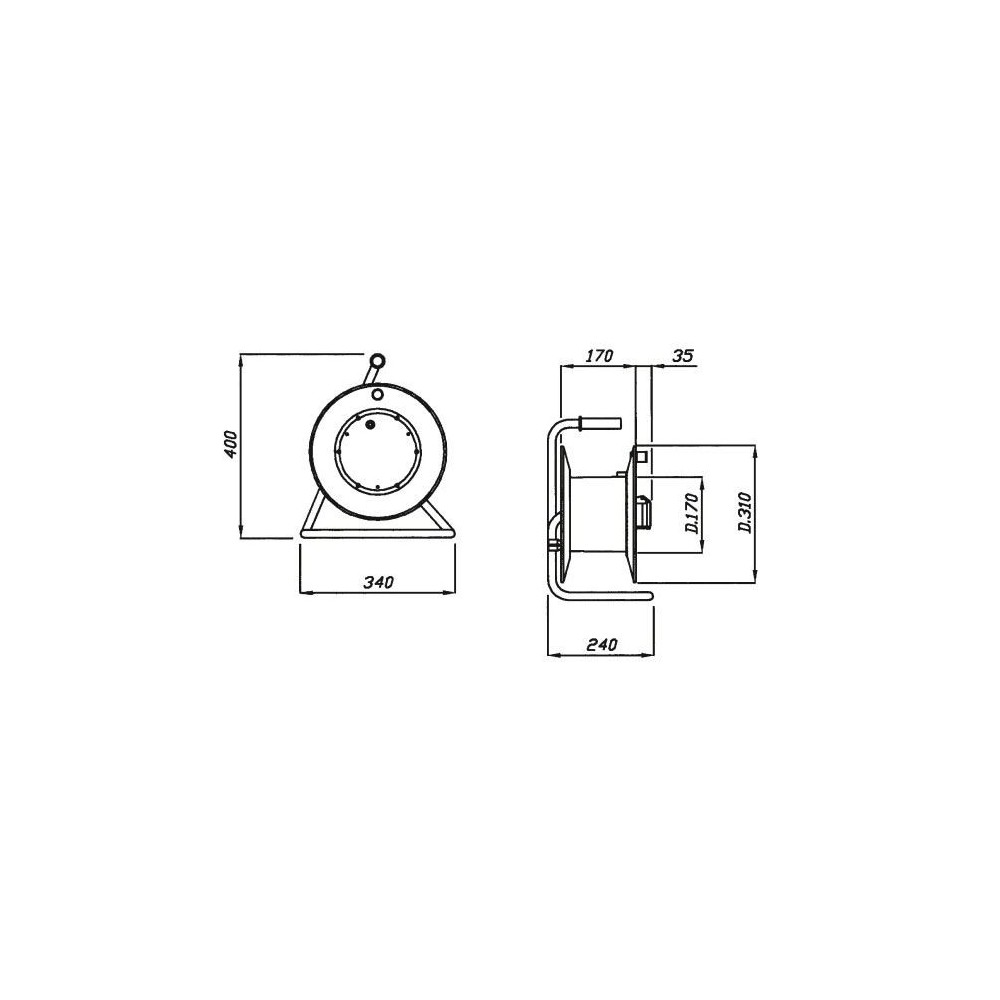

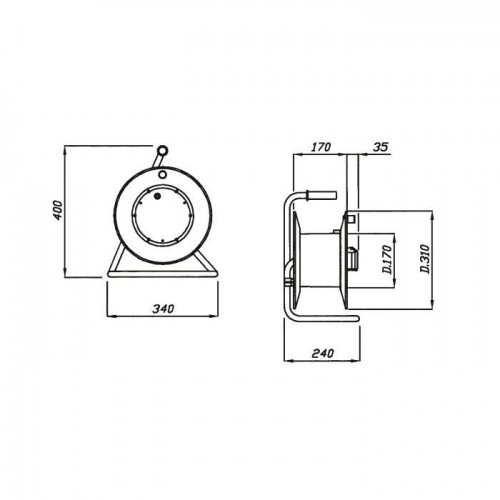

  • Overall dimensions:
    • Total height: 400 mm
    • Base width: 340 mm
    • Depth: 240 mm
    • Diameter of galvanized flanges: Ø 310 mm
    • Internal drum diameter: Ø 170 mm
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.
