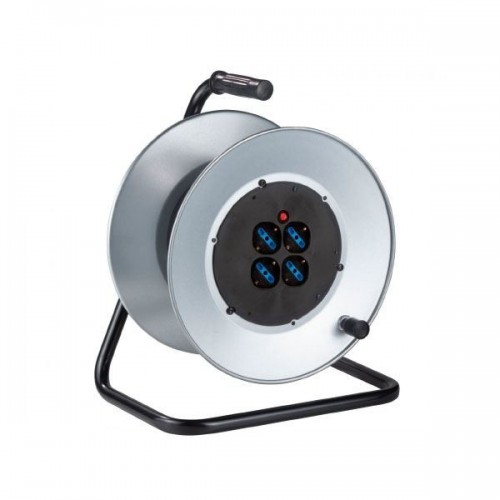

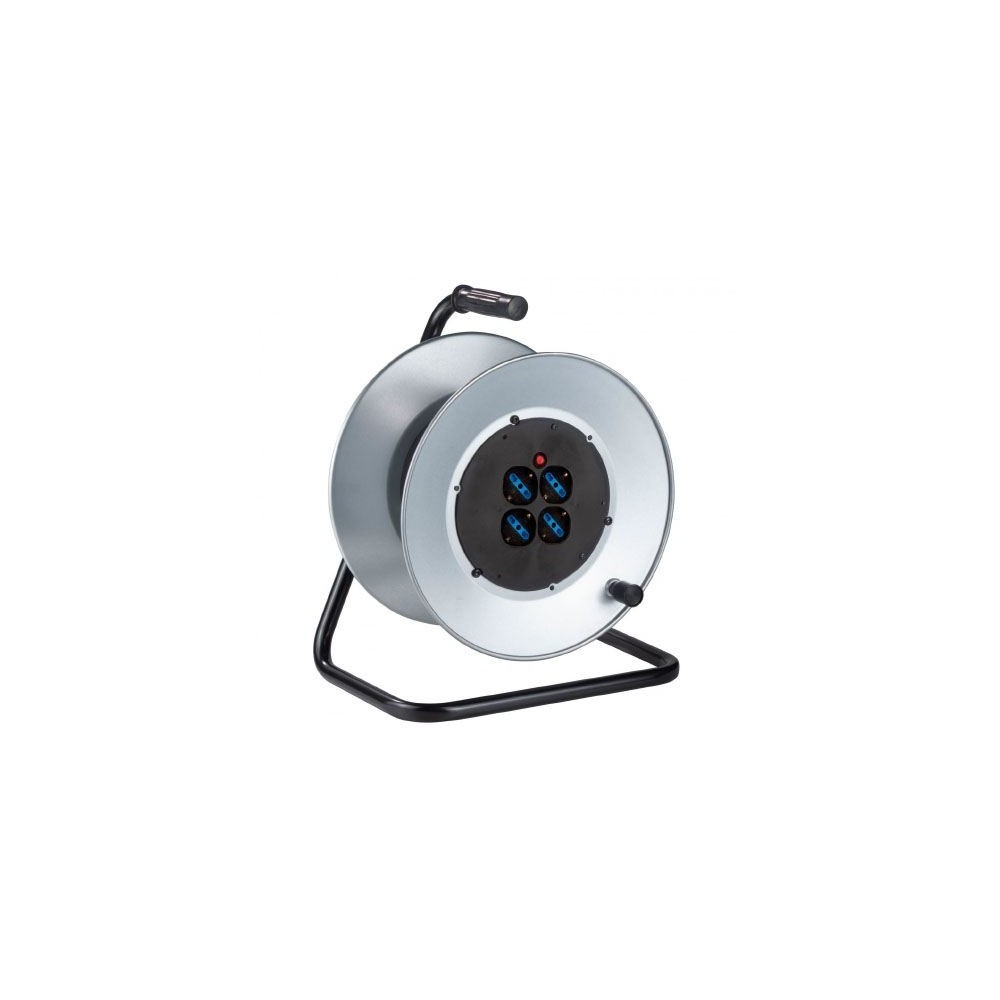

3507 MANUAL CABLE REEL WITHOUT CABLE WITH 4 SCHUKO SOCKETS 3500 SERIES ZECA

Manual cable reel without cable with 4 universal Schuko sockets and thermal circuit breaker Zeca Series 3500 Art. 3507.

The Zeca Art. 3507 manual cable reel (belonging to the 3500 Series) is a professional cable-free reel designed by Zeca SpA to allow the user to install the cable of the desired length and section, already taking advantage of the wired panel with 4 sockets and protective circuit breaker.

  • Panel with 4 Universal 10/16 A 2P+T Schuko Sockets: equipped as standard with 4 universal Schuko sockets and supplied with a 16A 2P+T plug for multiple and immediate connectivity.
  • Integrated Thermal Circuit Breaker: Equipped with a thermal safety circuit breaker that automatically cuts off the power supply in the event of an overload.
  • Sturdy Structure with Galvanized Flanges and Steel Tube: made with Ø 310 mm galvanized sheet metal containment flanges and a support stand in fire-painted steel tube for optimal stability.
  • Coil Locking Brake and Insulating Body: incorporates the mechanical brake to block the rotation of the drum and an internal body made of highly insulating plastic material.
Shipping cost: Free for
52,97 €
Tax included

52,97 € Tax excluded

Quantity
Available product, order it now.

Technical Features and Performance of the Zeca Cable Reel Art. 3507

The Zeca Art. 3507 manual cable reel represents a versatile solution from the 3500 Zeca Series for construction sites, workshops and electrical installers. Unlike the completely empty versions, the Art. 3507 is supplied already equipped with a plate with 4 universal 10/16A Schuko sockets and a built-in thermal circuit breaker, allowing the electrician to simply wire the cable with the specifications deemed most suitable.

The sturdy, stove-enamelled steel tube stand ensures easy transport and a solid base on the work surface. The 310 mm diameter galvanized sheet metal flanges and the insulated plastic inner casing ensure maximum operational safety and effective protection of the electrical conductor during manual winding.

Detailed Technical Data Sheet

  • Product Code / Article: Art. 3507
  • Manufacturer / Brand: Zeca SpA
  • Series: 3500 Series
  • Product Type: Cable reel / Manually wound extension cord (without cable, with sockets)
  • Cable Included: Supplied without cable (NO cable)
  • Sockets: 4 universal 10/16 A 2P+T Schuko sockets (16A 2P+T plug included)
  • Thermal Circuit Breaker: Present / Integrated (YES)
  • Retraction System: Manual by crank
  • Construction Specifications:
    • Mechanical brake for locking the reel
    • Insulating internal body made of plastic material
    • Side flanges in galvanized sheet metal
    • Support stand in fire-painted steel tube

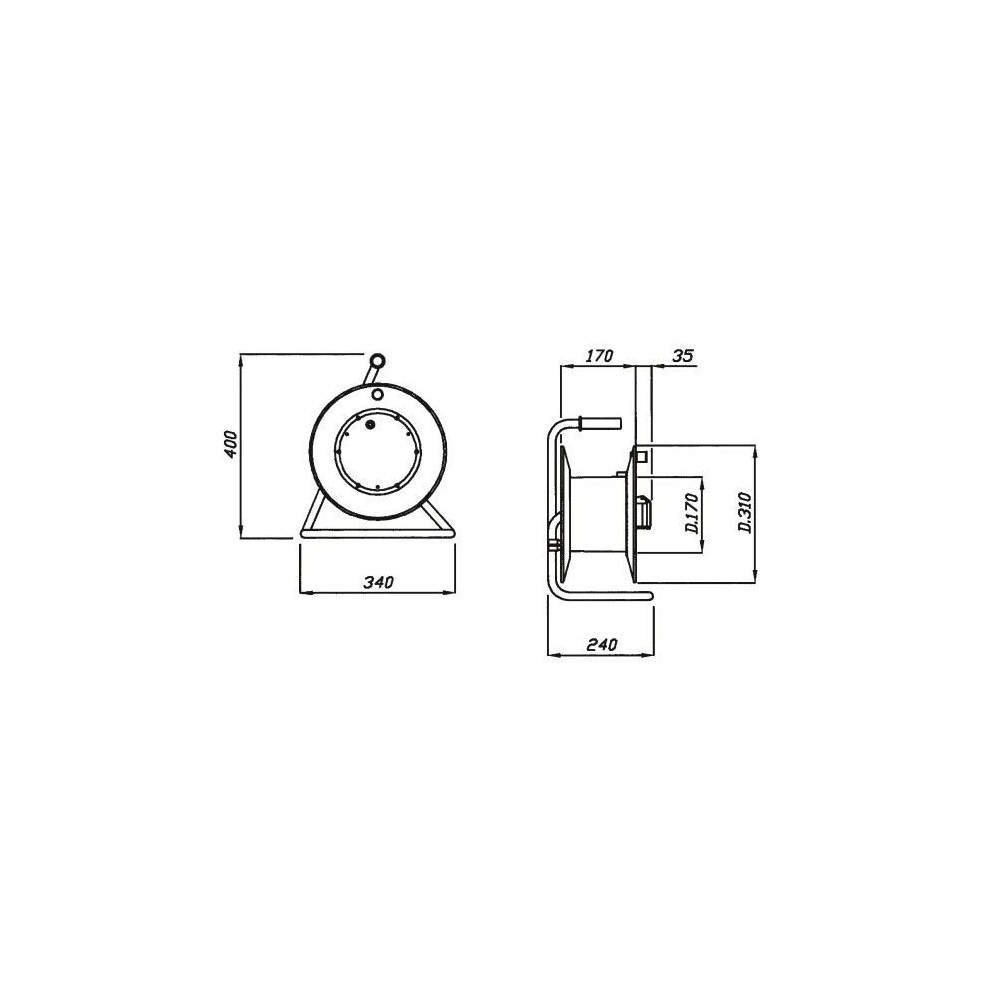

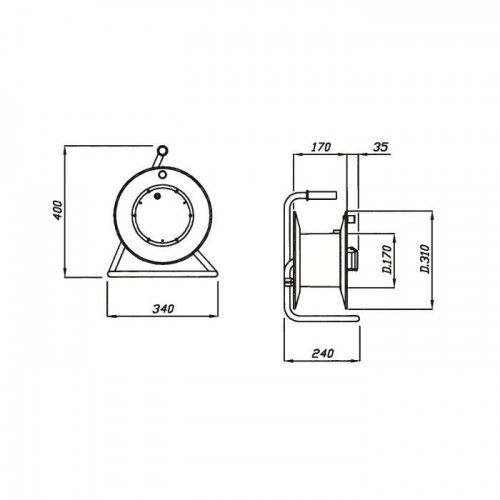

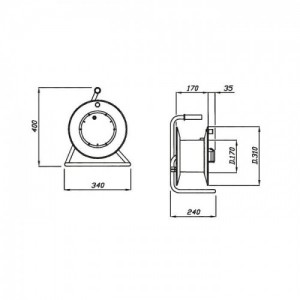

  • Overall dimensions:
    • Total height: 400 mm
    • Base width: 340 mm
    • Depth: 240 mm
    • Diameter of galvanized flanges: Ø 310 mm
    • Internal drum diameter: Ø 170 mm
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.
