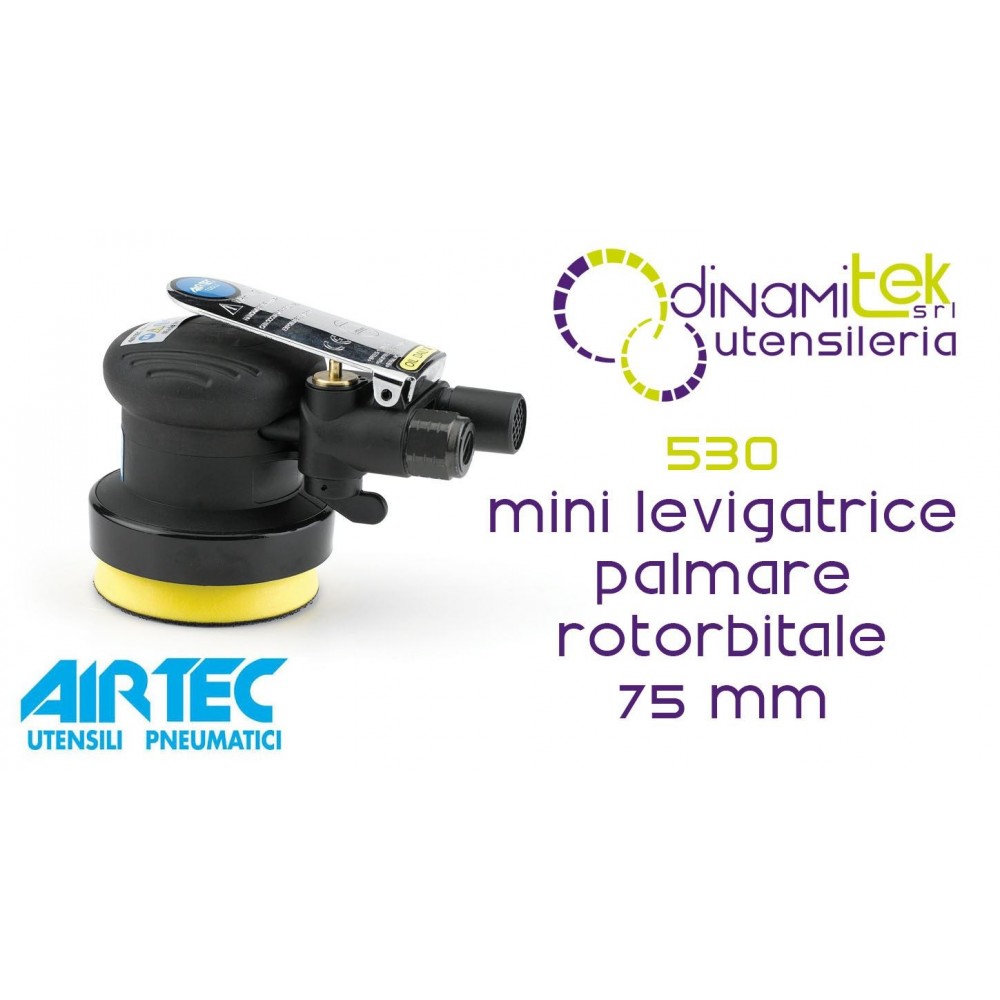

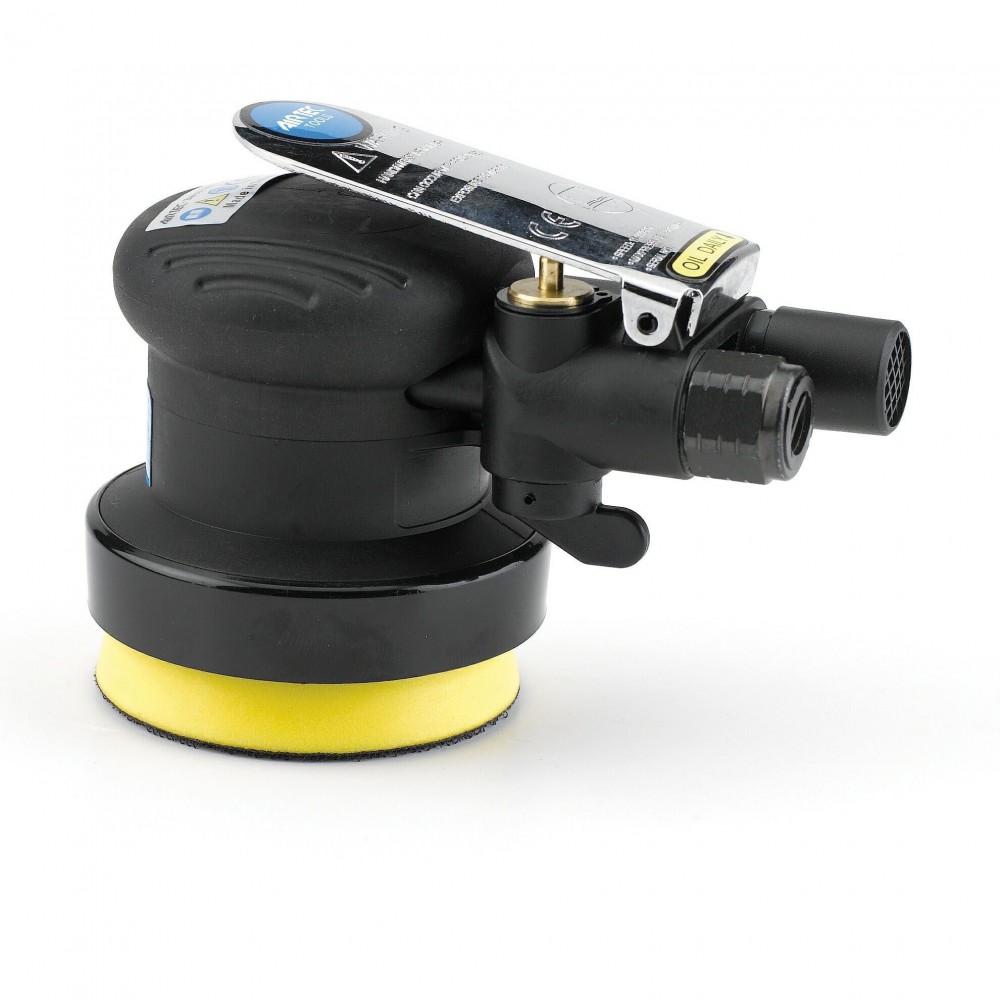

530 75MM MINI ORBITAL PALM SANDER AIRTEC

Technical Features and Performance of the Mini Sander Airtec Mod. 530

The Airtec Mod. 530 compressed air mini random orbital sander (Code 13115100) is the ideal workshop tool for body shop technicians, painters, carpenters, and model makers who need to work in tight spaces, on edges, and on shaped profiles where using a 150 mm sander would be cumbersome. The combination of the anti-vibration composite body and the small disc diameter (75 mm) ensures pinpoint control when removing paint imperfections.

Powered at a recommended operating pressure of 6.2 bar via a 1/4" BSPT inlet fitting and a 10mm internal diameter hose, it has an average air consumption of 6.8 litres per second. The machine is supplied as standard with the Mod. AC 78/1 Velcro backing pad and is designed to operate at a low sound pressure level of just 76 dB(A).

Detailed Technical Data Sheet

• Product Code / SKU: Cod. 13115100 / Mod. 530
• Manufacturer / Brand: Airtec Srl
• Product Type: Mini orbital palm sander (without suction)
• Pad / Disc diameter: Ø 75 mm (3") with velcro
• Orbit Diameter: 2.5 mm
• Power Output: 0.19 kW
• No-load speed: 12,000 rpm
• Recommended Air Pressure: 6.2 bar
• Average Air Consumption: 6.8 l/sec
• Air Connection: 1/4" BSPT
• Recommended Air Hose Internal Diameter: 10 mm
• Ergonomic and Construction Features:
  • Heat-insulated and anti-vibration composite palm body
  • Operation without integrated suction system
• Noise and Vibration Levels:
  • Sound pressure: 76 ± 3 dB(A)
  • Sound power: 88 ± 3 dB(A)
  • Vibration level: 1.5 m/s²
• Dimensions and Weight:
  • Total length: 132 mm
  • Net weight: 0.60 kg
• Recommended Related Accessories:
  • 3" Velcro backing pad (Mod. AC 78/1 - Code 10700632)
